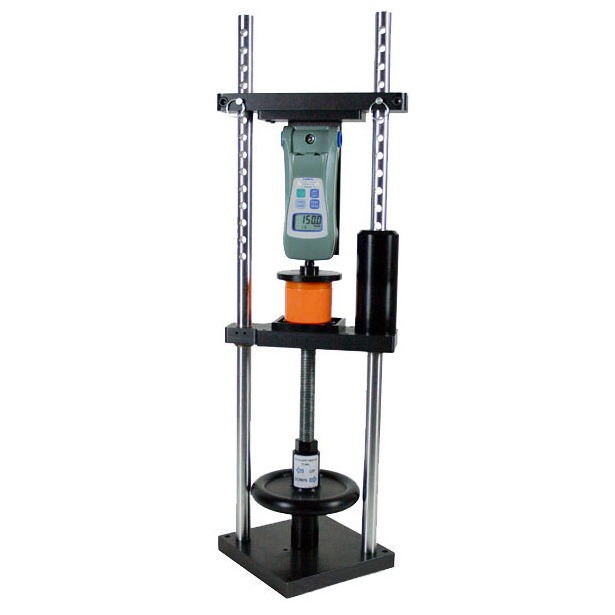

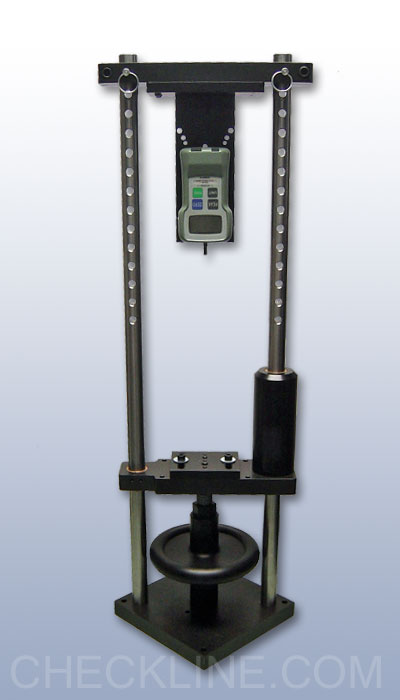

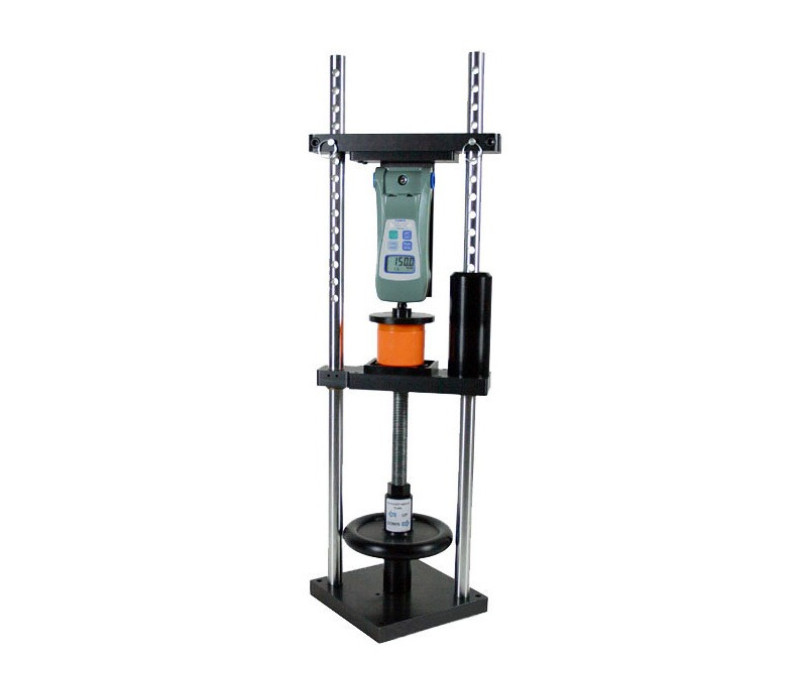

    FGS-1000H Manual Handwheel Force Test Stand

    The FGS-1000H from Checkline is a manual test stand designed for both tension and compression testing, combining precision and ease of use. With a capacity of up to 5,000 N (500 kg), this equipment is perfect for various industrial and laboratory applications requiring detailed and controlled measurements.

    Key Features:

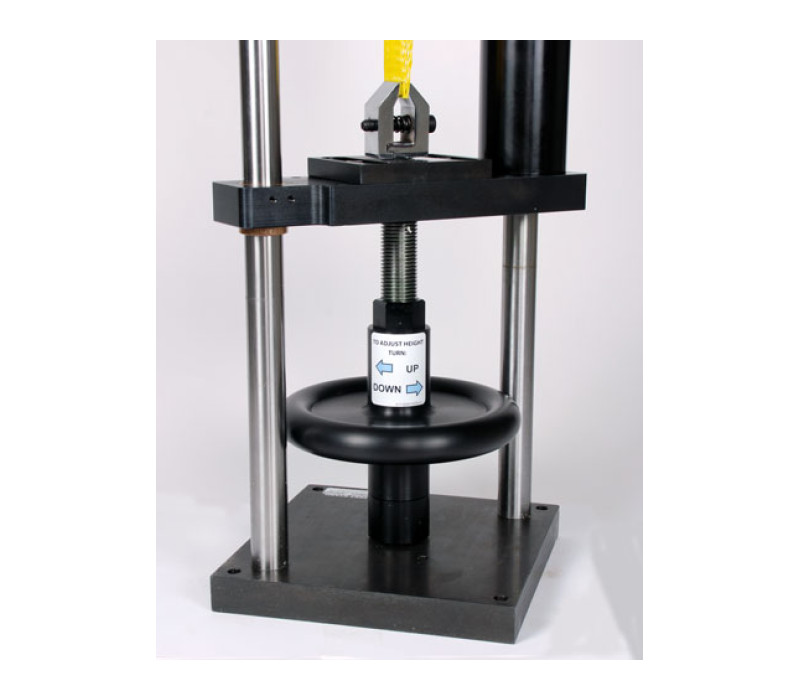

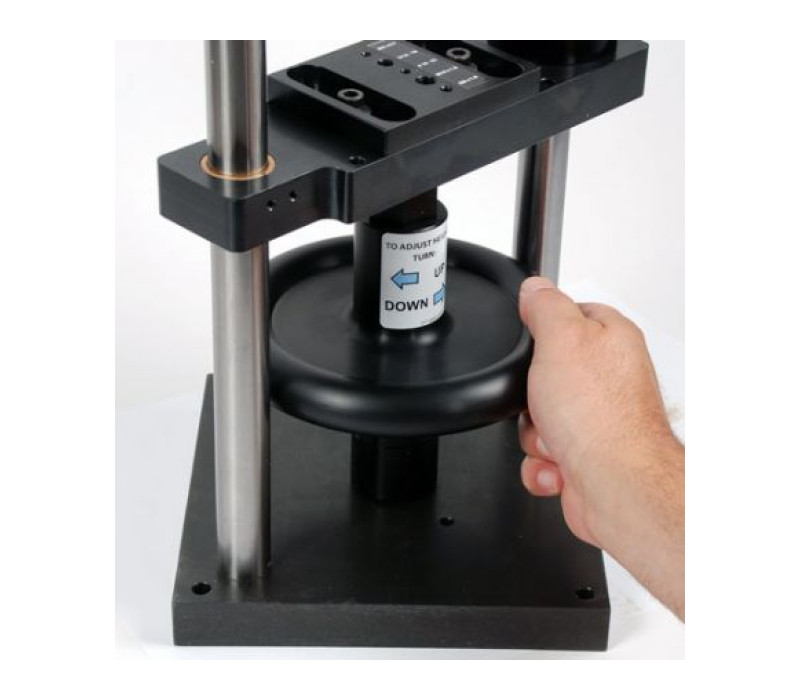

    • Precise Control: Equipped with a rotating wheel that offers smooth 0.1 inch per revolution movement, enabling fine adjustments during testing.
    • Robust Construction: Its durable design ensures repeatable and reliable tests over time.
    • High Capacity: Supports loads of up to 500 kg, ideal for a wide range of force testing applications.

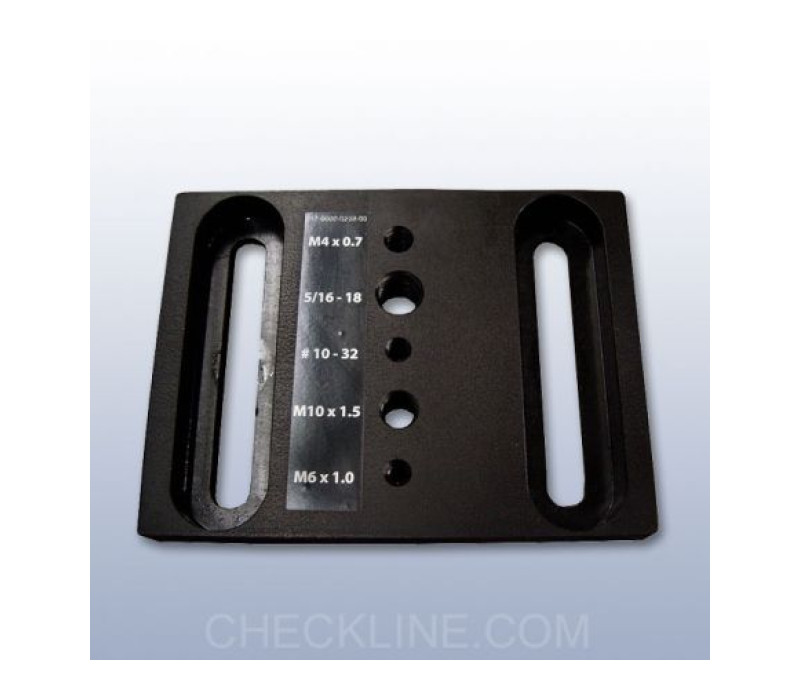

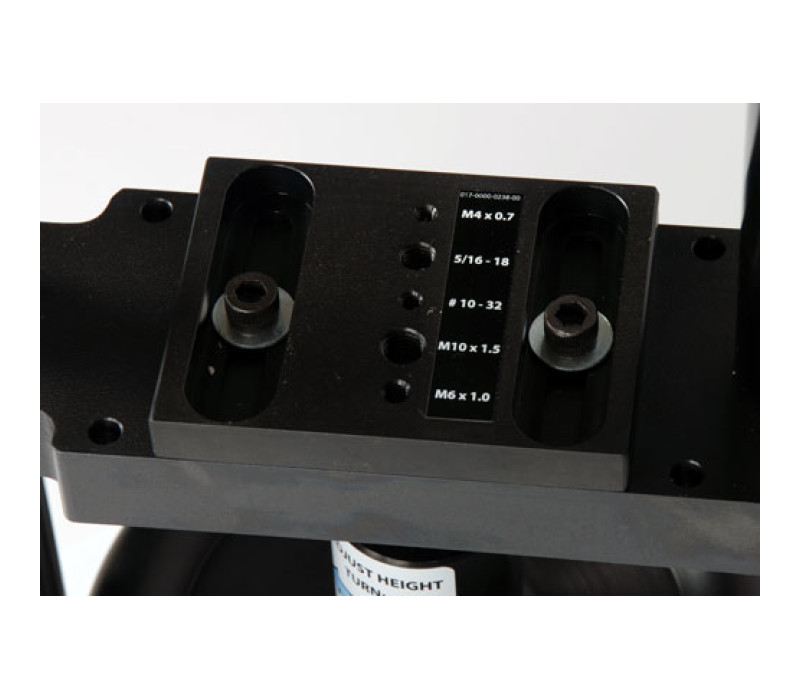

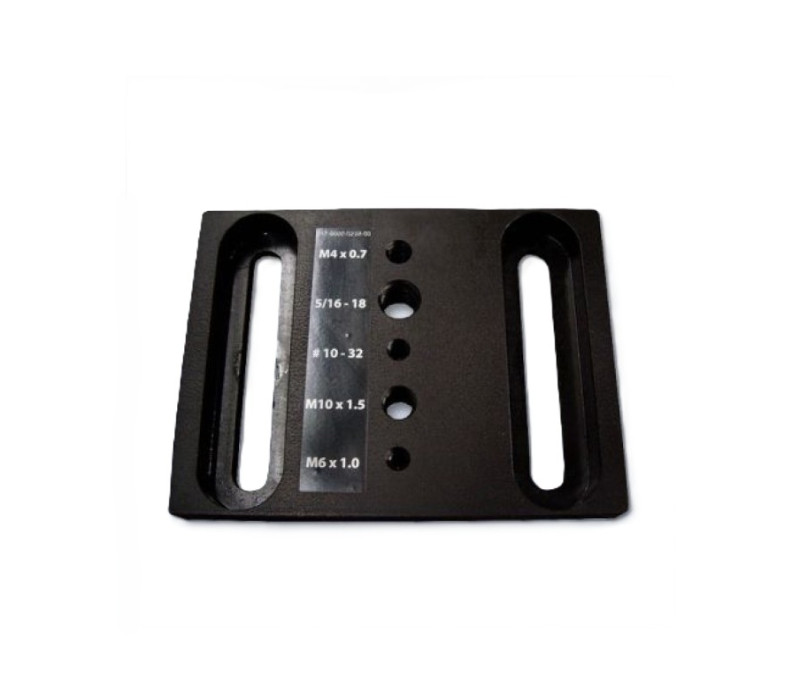

    • Versatility in Mounting: Includes counter sunk mounting holes and a self-aligning, sliding base plate, facilitating secure fixation of test pieces.
    • Option for Digital Scale: A digital scale kit is available for high-resolution displacement tracking (sold separately).
    Key Benefits:
    • Easy Setup: Its intuitive and straightforward configuration allows quick adaptation to various tests and needs.
    • Improved Ergonomics: Manual operation minimizes the effort required, making tests more comfortable and less laborious.


    Contact us for more information on how the FGS-1000H can facilitate and enhance your testing processes.
    € 3.988,00
    Order now

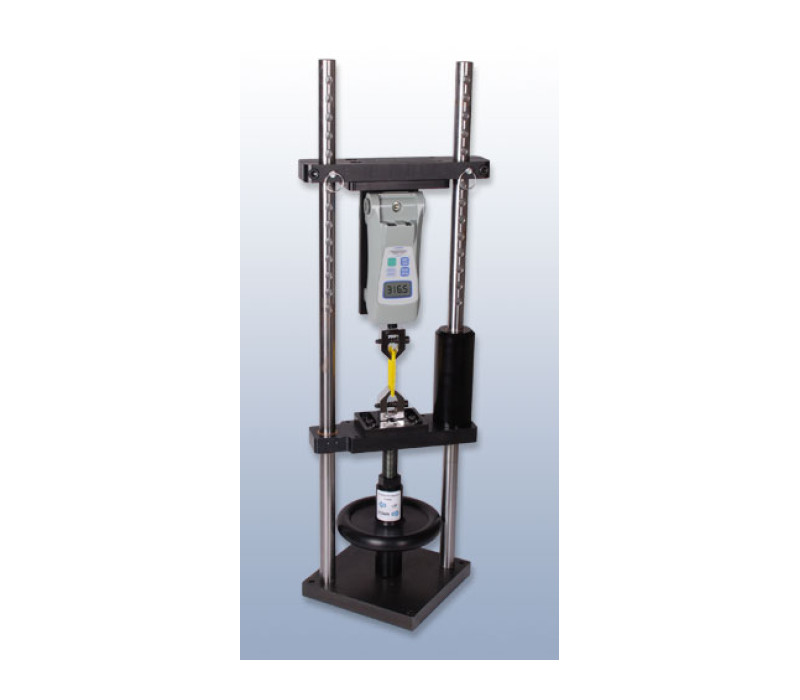

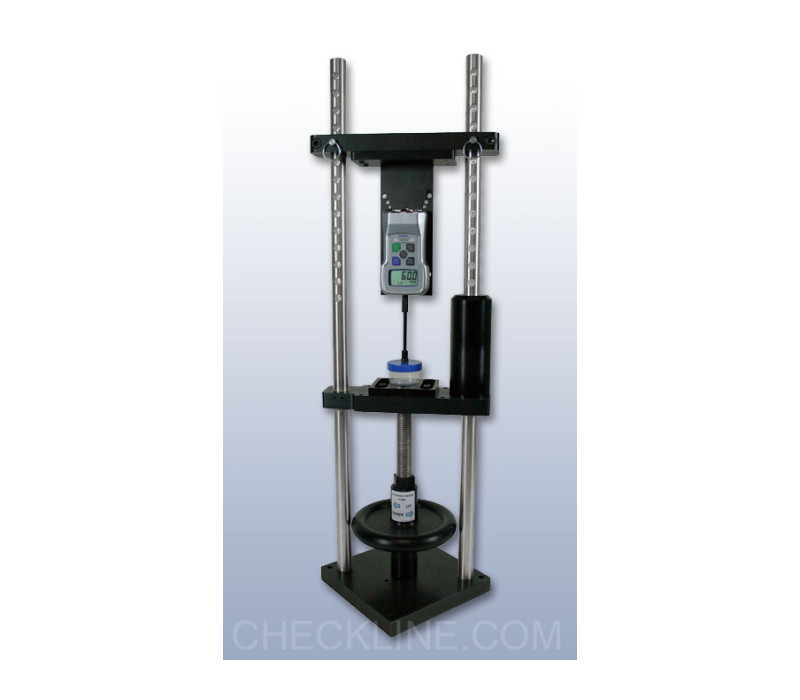

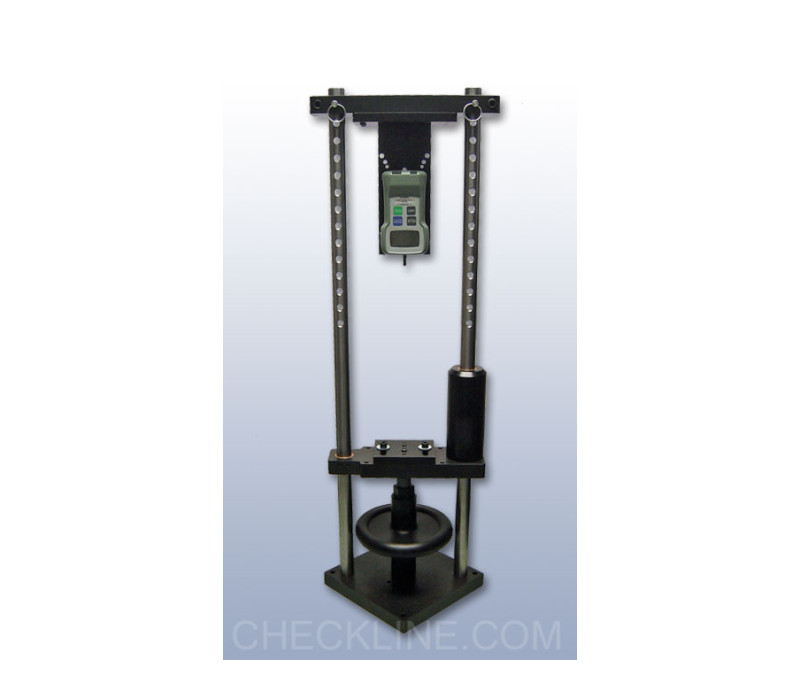

    • Compatibility with Dynamometers: Accommodates mounting of the FGV-1000HX digital dynamometer and all dynamometers from the FGE/FGV-X series, adapting to most force testing applications.
    • Modular and Compact Design: Its modular and compact design reduces space footprint, weight, and cost, ideal for environments with limited space.
    Complete Kit

    Included Items:

    • 5mm Allen wrench
    • 3/16 Allen wrench
    • 1/4 Allen wrench
    • 4x Philips head screw M4x15
    • 4x Philips head screw M6x14
    • Threaded Stud
    • 1 Year Warranty
    • User Manual
    Dimensions-FGS-1000H
    FGS-1000H Manual
    Capacity500 kg / 5000 N
    Stroke15.2 cm / ( 2.5 mm) wheel turn approx
    Vertical Clearance33 cm
    Weight25.4 kg
    Warranty1 year

    Related Products

    Browse Related Products

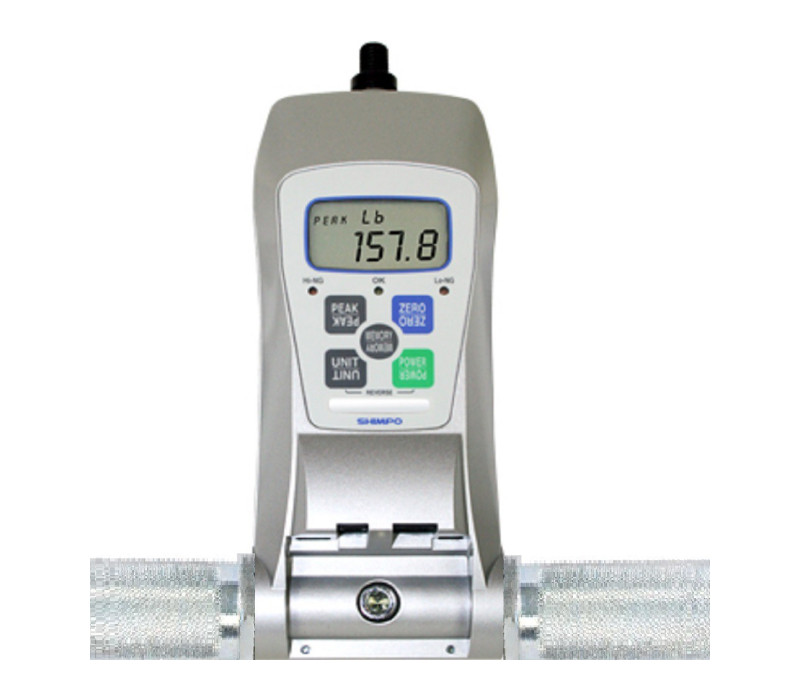

    FGV-HXY High Capacity Digital Force Gauge
