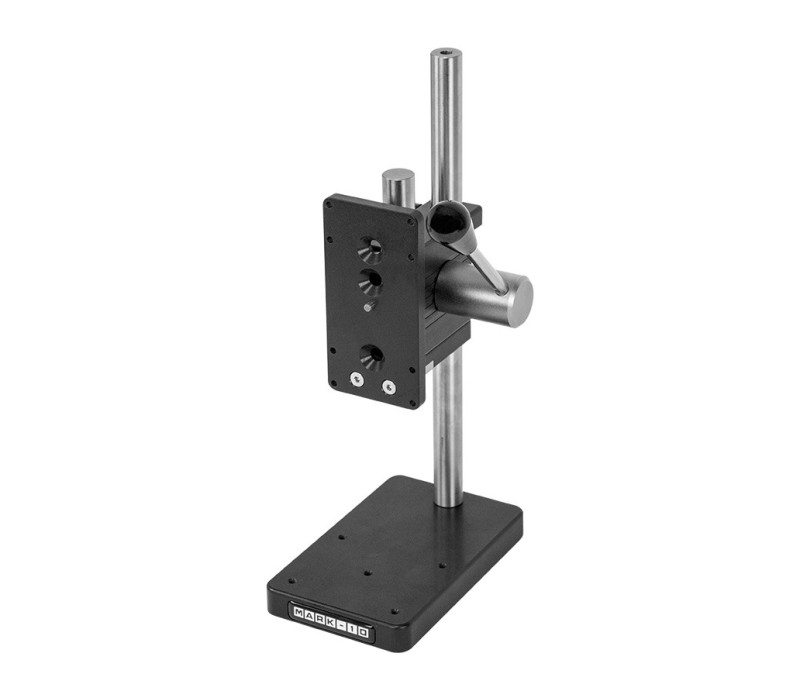

    ES05 Manual Compression Force Test Stand

    Explore the ES05, a manual test stand designed for compression testing with a capacity of up to 150 N (30 lbF), perfect for a wide range of industrial and research applications. This model combines a compact design with a spring-loaded lever mechanism, facilitating repetitive and precise testing across different sample sizes.

    Highlighted Features:
    • Application Versatility: Ideal for switch contact activation testing, small spring testing, peel testing, and more.
    • Compact and Lightweight Design: Its small size is perfect for crowded workbenches and its low weight makes it highly portable for field audits or quick transport to other testing areas.

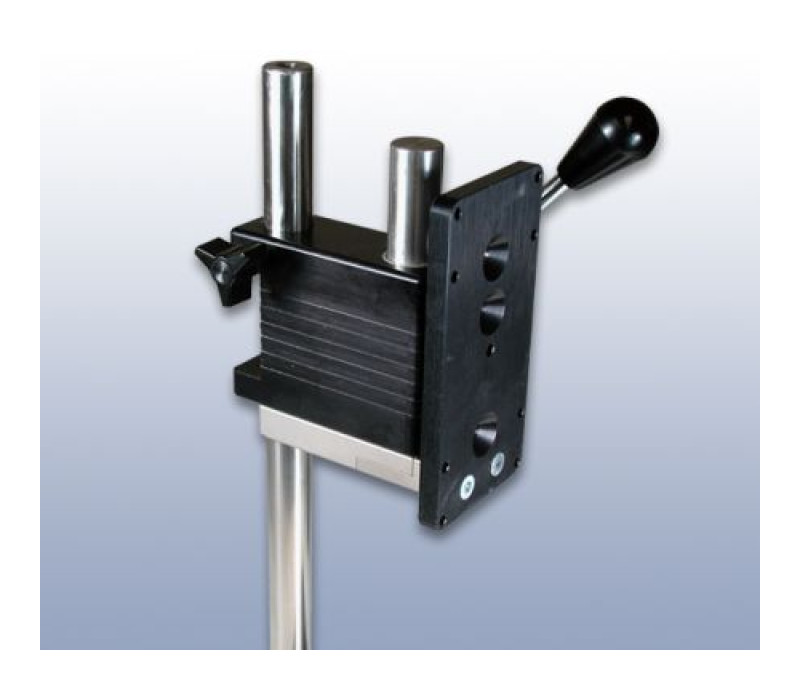

    • Lever Mechanism Adjustability: Allows repositioning along the column to accommodate various sample sizes.
    • Efficient Manual Operation: Equipped with a spring-loaded lever for facilitating consistent and repeatable tests.
    Key Benefits:
    • Ease of Use: Intuitive interface allows users of all levels to operate the equipment easily.
    • Durable Construction: Built to withstand rigorous use in industrial and laboratory environments.


    For more information on how the ES05 test stand can integrate into your force measurement processes, contact us.
    € 823,00
    Order now
    • Spring-loaded lever operation, ideal for repetitive testing requirements, simplifying the process.
    • The lever mechanism can be adjusted along the column's length to accommodate different testing setups.
    • Includes mounting holes for secure bench mounting, enhancing stability and precision.
    • Compact size and lightweight design make it easy to handle and suitable for limited spaces.

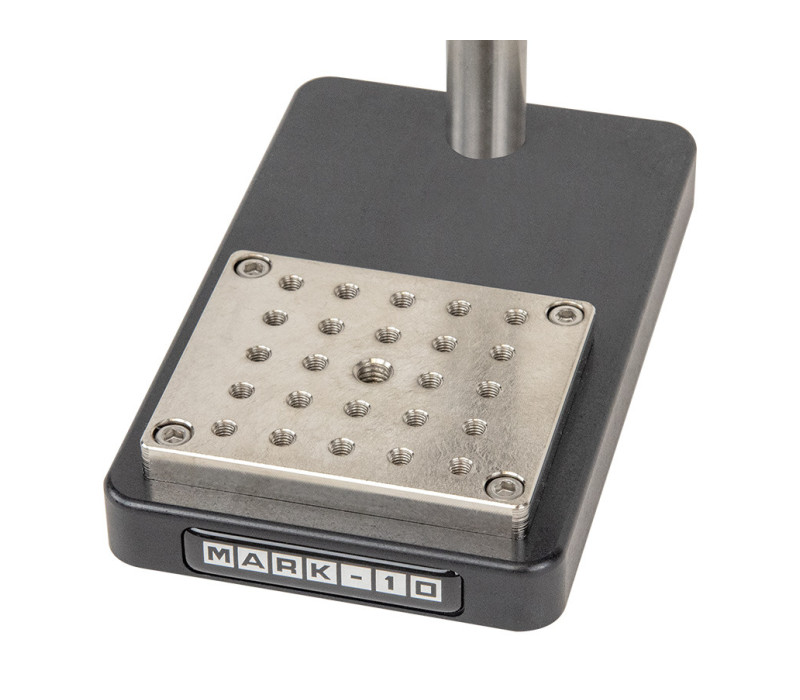

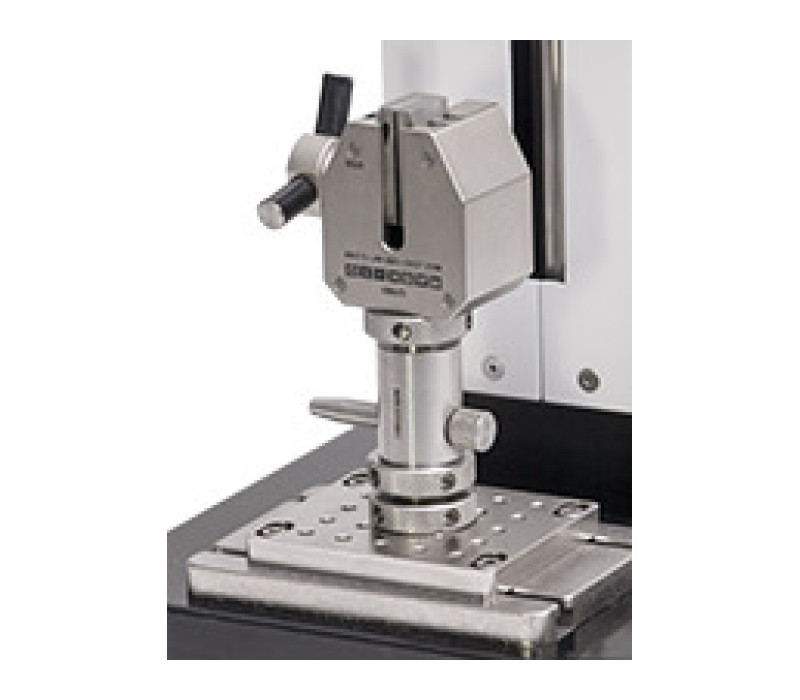

    • Optional base plate available with 25 #10-32 threaded holes for versatile fixture mounting.

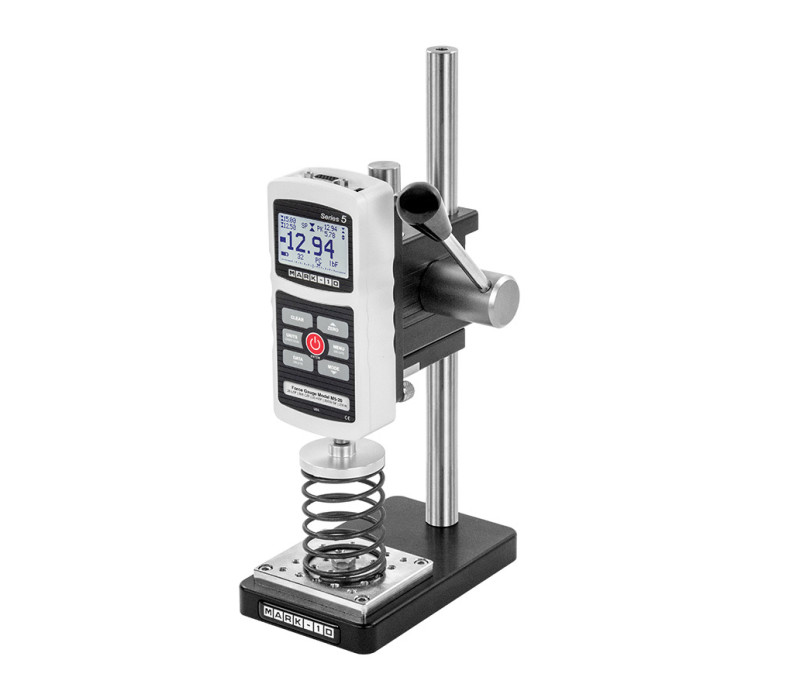

    • Fully compatible with all Mark-10 Force Gauges, accessories, grips, and fixtures, ensuring a wide range of testing capabilities.
    • Mounting kits for competitor force gauges are also available, offering greater flexibility.
    • Comes with a 3-year warranty, providing assurance of quality and reliability.
    Complete Kit

    The ES05 Test Stand is shipped including the following accessories:

    • 4 Thumb screw for force gauge
    • An Allen wrench set

    Manual test stand comparison

    Model Force capacity Maximum test travel Loading method Travel rate Maximum, sample clearance
    ES05 150N 38mm Spring lever 25.4mm per lever turn 223mm
    ES10 500N 229mm Spring lever 26.7mm per lever turn 229mm
    ES20 500N 229mm Upper manual wheel 1.5mm per wheel turn 229mm
    ES30 1000N 330mm Side manual wheel 1.3mm per wheel turn 356mm
    TSA750(H) 3750N 95mm (with travel stops)
    152mm (without travel stops)    		 Rack and pinion lever, adjustable in 30° increments 76.2mm per lever turn Vertical: 267mm
    Horizontal: 368mm
    TSB100 500N 95mm (with travel stops)
    152mm (without travel stops)    		 Rack and pinion lever, adjustable in 30° increments 76.2mm per lever turn 330mm
    TSC1000(H) 5000N 89mm Inline manual wheel 2.5mm per wheel turn Vertical: 254mm
    Horizontal: 330mm
    TSF(H) 5000N 102mm Side manual wheel 0.34mm per wheel turn Vertical: 356mm
    Horizontal: 459mm
    - Maximum test travel and/or free space depend on the grips or accessories used during testing. The dimensions specified are without grips or accessories.
    - Column extensions available for all models except ES05, ES10, and ES20.
    - Models marked with (H) are available in both vertical and horizontal versions.

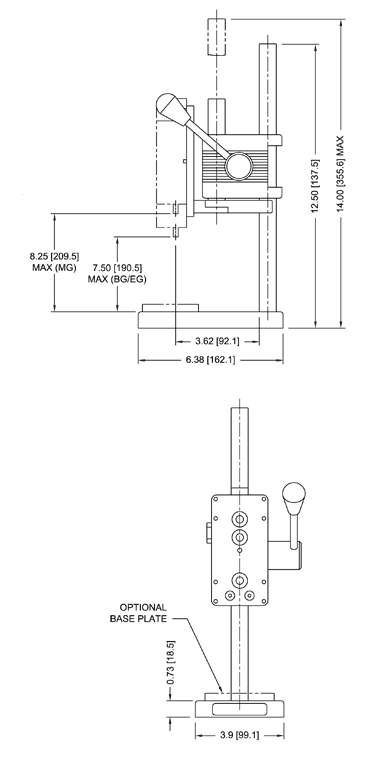

    Dimensions-ES05
    Dimensions-ES05

    ES05 Manual Compression Force Test Stand


    All sizes in inch and (mm)

    Video
    Video Preview for ID: Nyi-aLdfTVM
    ▶
    ES05 data sheet
    ES05 User manual
    ES05 solid model
    Capacity150 N (30 lbF)
    Stroke38mm (1.5")
    DimensionsRefer to dimensions above
    Weight2,7 kg (6 lb)
    Shipping weight3,2 kg (7 lb)

    Related Products

    Browse Related Products

    Series-3 Digital Force Gauge

    Series-3 Digital Force Gauge

    Series-4 Advanced Digital Force Gauges

    Series-4 Advanced Digital Force Gauges

    Series-5 Advanced Digital Force Gauge

    Series-5 Advanced Digital Force Gauge

    Accessories

    Browse Accessories

    Order Now

    Products
    Item Product Price  Quantity Action
    131905ES05 - Manual Test Stand - 15kg/150N € 823,00
    Accessories
    Item Product Price  Quantity Action
    136882AC1060 Base plate with matrix of threaded holes € 87,00
    137692M10-TS-MB Metric Base Plate - Metric Threaded Holes, Center M8, others M6 € 106,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
