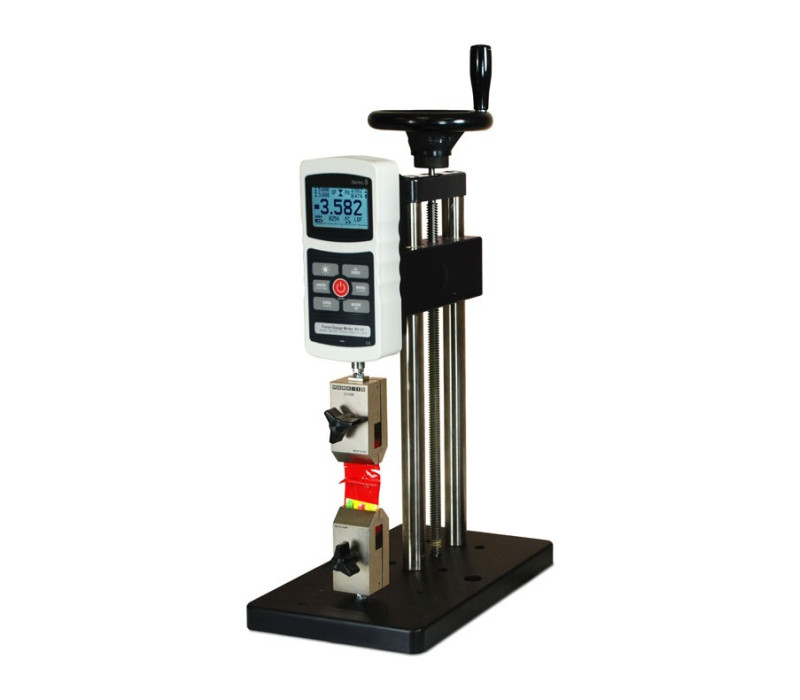

ES20 hand wheel operated manual force test stand


Discover the ES20, a hand wheel-operated force test stand designed to provide superior motion control in tensile and compression testing. With a capacity of up to 500 N and a total travel distance of 229 mm, this equipment is ideal for a variety of applications in environments with limited space.

Highlighted Features:

  • Versatility and Precision: Equipped with a hand wheel that allows fine adjustment of movement, ensuring precise and consistent results.
  • Compact Design: Its lightweight of just 4.5 kg and compact structure make it perfect for laboratories and workshops with limited space.

Advanced Features:

  • Broad Compatibility: Perfect for use with Mark-10 digital force gauges and accessories, facilitating the setup of complete testing solutions.

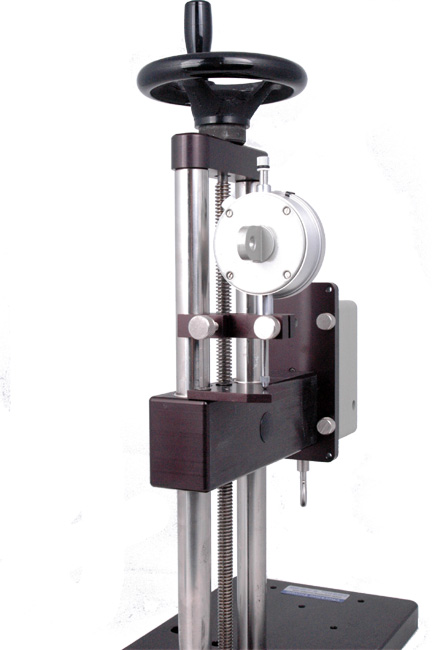

  • Customization Options: Available with kits to mount a dial indicator, providing flexibility in measurement and displacement tracking.



For more information on how the ES20 can enhance your force testing, contact us.


Features

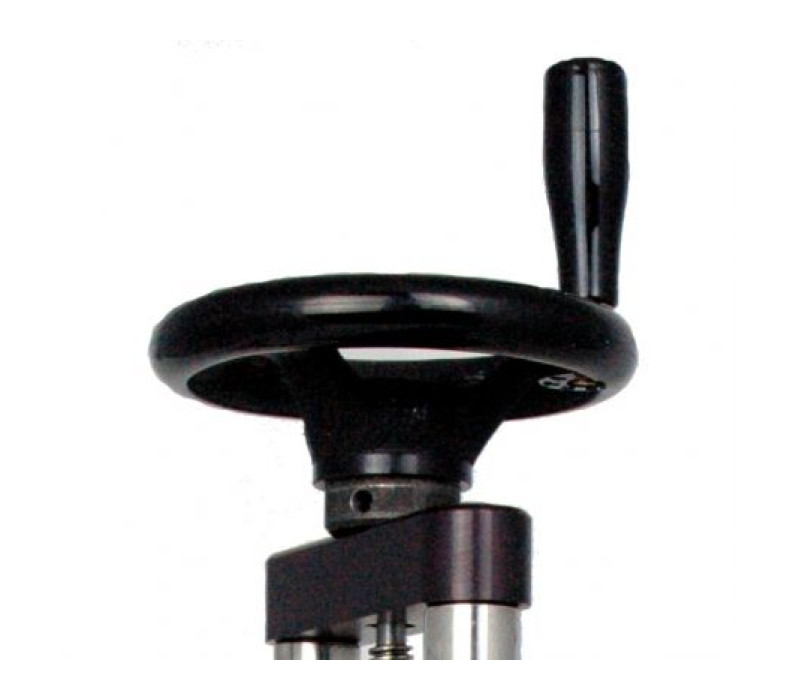

  • Operated by hand wheel for precise control during testing.
  • Includes mounting holes for secure and stable bench mounting.
  • Compact and lightweight design for easy handling and efficient use of space.
  • Features a large base plate with 5 #10-32 holes, allowing for versatile fixture mounting.

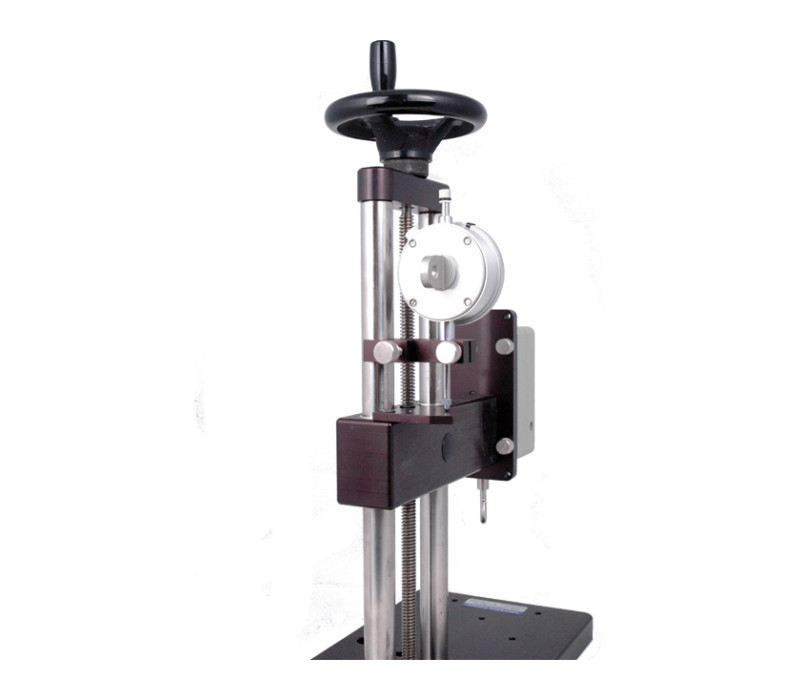

  • Optional 25.4 mm dial indicator travel kit available to enhance measurement precision.
  • Compatible with all Mark-10 force gauges, accessories, and grips, ensuring extensive usability.
  • Competitor force gauge mounting kits also available, offering greater flexibility for various testing needs.

Complete Kit

The ES20 Manual Force Test Stand comes with:

  •  Allen wrench set
  •  Hand wheel
  • 4 Thumb screws for force gauge


Manual test stand comparison

Model Force capacity Maximum test travel Loading method Travel rate Maximum, sample clearance
ES05 150N 38mm Spring lever 25.4mm per lever turn 223mm
ES10 500N 229mm Spring lever 26.7mm per lever turn 229mm
ES20 500N 229mm Upper manual wheel 1.5mm per wheel turn 229mm
ES30 1000N 330mm Side manual wheel 1.3mm per wheel turn 356mm
TSA750(H) 3750N 95mm (with travel stops)
152mm (without travel stops)
Rack and pinion lever, adjustable in 30° increments 76.2mm per lever turn Vertical: 267mm
Horizontal: 368mm
TSB100 500N 95mm (with travel stops)
152mm (without travel stops)
Rack and pinion lever, adjustable in 30° increments 76.2mm per lever turn 330mm
TSC1000(H) 5000N 89mm Inline manual wheel 2.5mm per wheel turn Vertical: 254mm
Horizontal: 330mm
TSF(H) 5000N 102mm Side manual wheel 0.34mm per wheel turn Vertical: 356mm
Horizontal: 459mm
- Maximum test travel and/or free space depend on the grips or accessories used during testing. The dimensions specified are without grips or accessories.
- Column extensions available for all models except ES05, ES10, and ES20.
- Models marked with (H) are available in both vertical and horizontal versions.

Dimensions

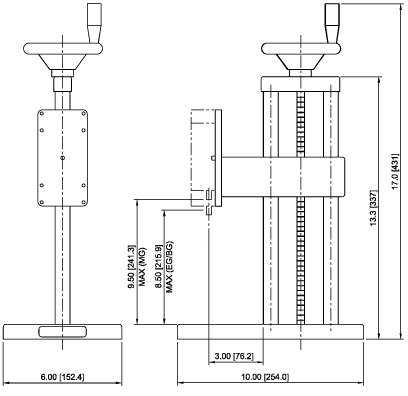

Dimensions-ES20


Size measurements for the ES20 Manual Force Test Stand

All sizes in inch and (mm)


Related Products

Series-3 Digital Force Gauge


  • High-speed 2.000 Hz sampling rate
  • USB data output of continuous or individual data points

More details

Series-3  Digital Force Gauge

Series-4 Advanced Digital Force Gauges


  • High-speed 3.000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs

More details

Series-4  Advanced Digital Force Gauges

Series-5 Advanced Digital Force Gauge


  • ±0,1% accuracy
  • High-speed 7.000 Hz peak sampling rate
  • 1.000-point data memory with statistics and outputs

More details

Series-5  Advanced Digital Force Gauge

Accessories

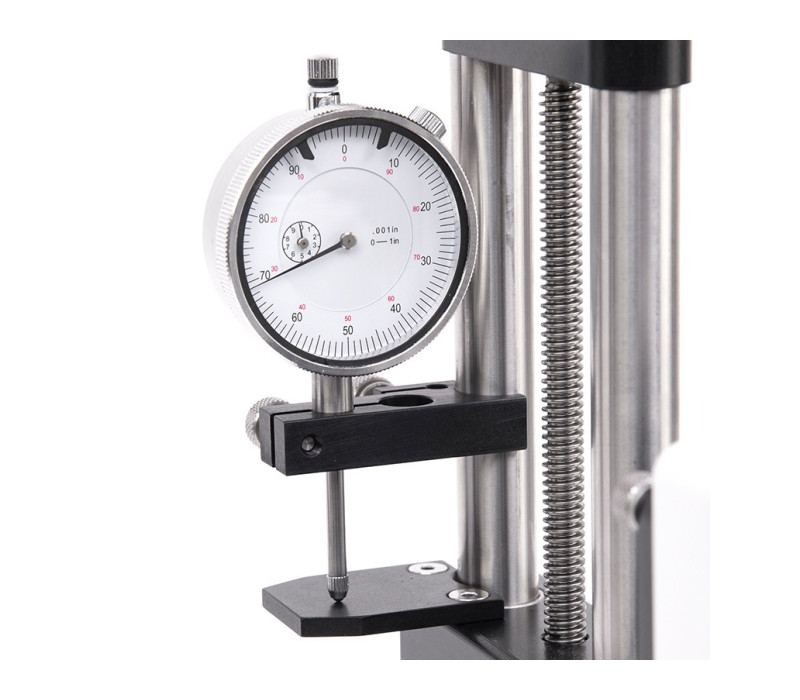

ES001 Dial Indicator / Distance Meter


  • Displays up to 1" of displacement
  • Resolution of 0.001"

More details

ES001 Dial Indicator / Distance Meter 126739

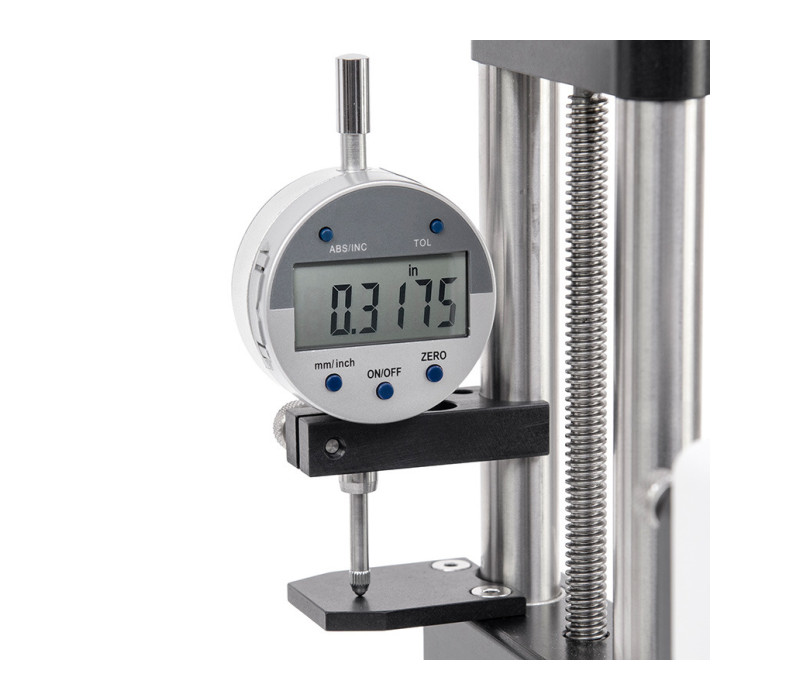

ES002 Digital Indictator / Distance Meter


  • Displays up to 1" (25.4mm) of displacement
  • Resolution of 0.0005" (0.01 mm)

More details

ES002 Digital Indictator / Distance Meter 126740

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 0

Video


Downloads

Specifications

Load capacity:500 N (50 kg / 100 lb)
Maximum travel:229 mm (9")
Loading Method:Top-mounted hand wheel
Travel Rate2,1mm (0.083") per revolution
Dimensions:152 mm x 254 mm x 431 mm (6" x 10" x 13.3") - W x D x H
Weight:4.5 kg (10 lb)
Shipping weight5,4 kg (12 lb)
Warranty:3 years

Buy Now

Product

Product
Price
Quantity
126389
ES20 - Manual Test Stand - 100 lbF/500 N
€ 875,00

Accessories

Product
Price
Quantity
131906
ES001 - Analog Dial indicator kit for ES10/ES20
€ 162,00
130406
ES002 - Digital indicator kit for ES10/ES20, 1" / 25 mm
€ 379,00
133347

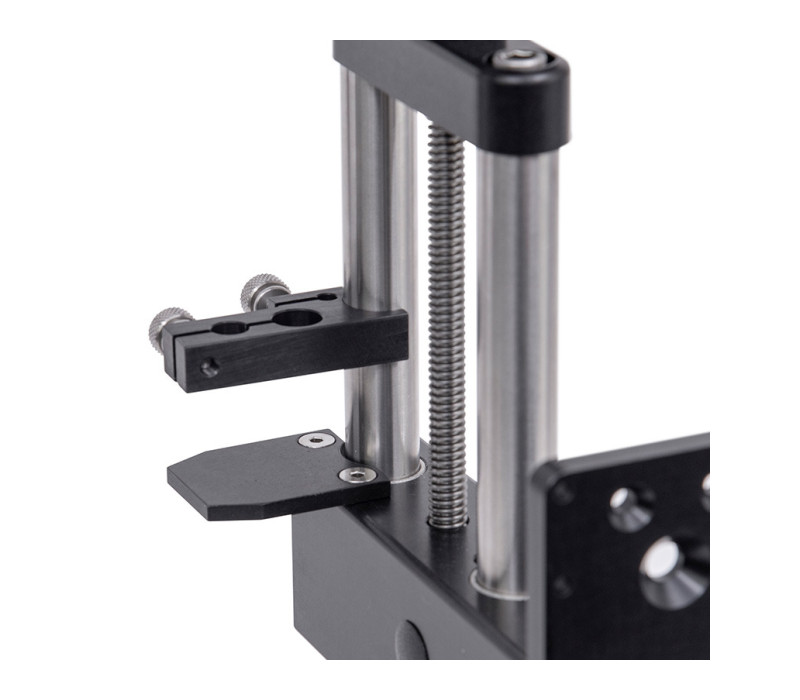

ES001NI Set of brackets for indicator 9.5 mm dia. stem
€ 134,00
136791
ES001NI-8MM Set of brackets for indicator 8 mm dia. stem
€ 134,00
136882

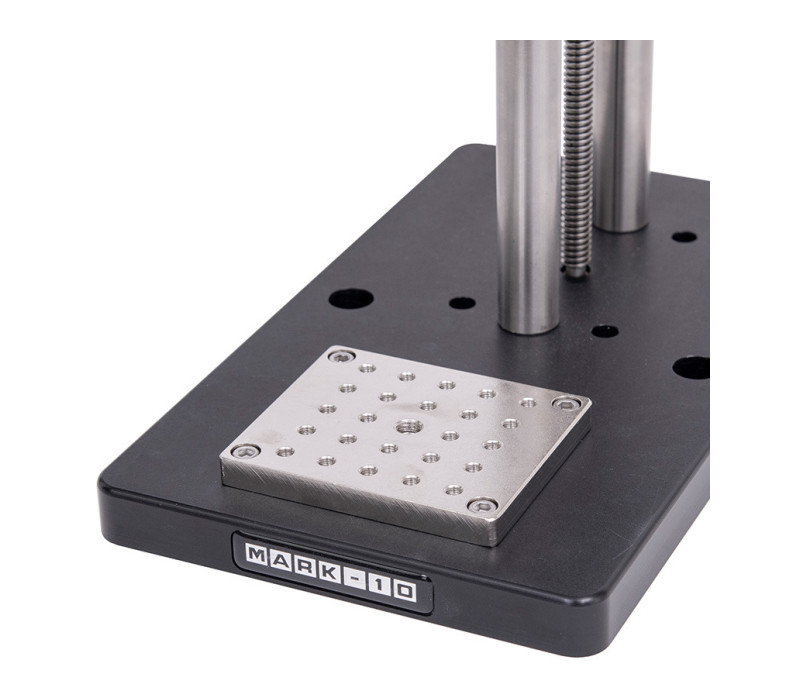

AC1060 Base plate with matrix of threaded holes
€ 88,00
137692
M10-TS-MB Metric Base Plate - Metric Threaded Holes, Center M8, others M6
€ 106,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
