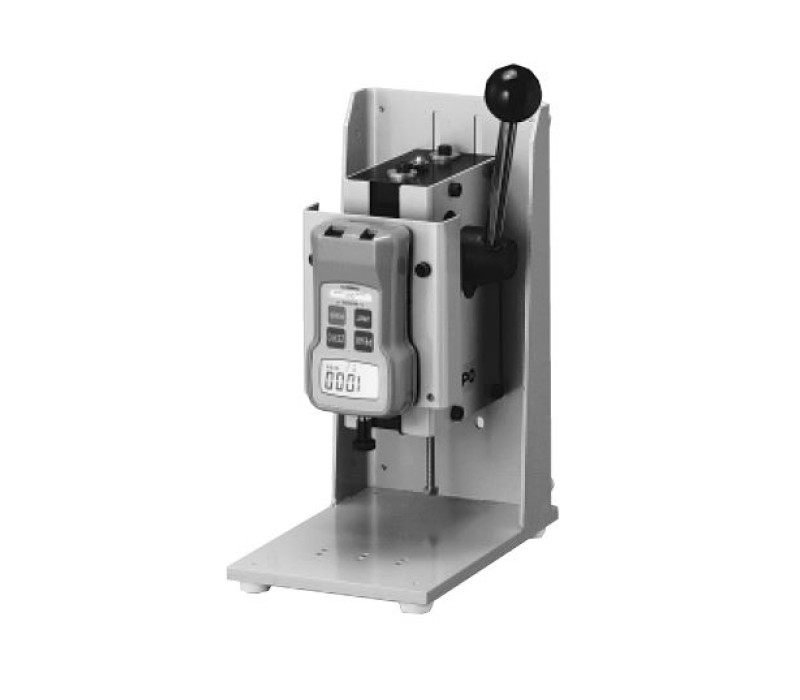

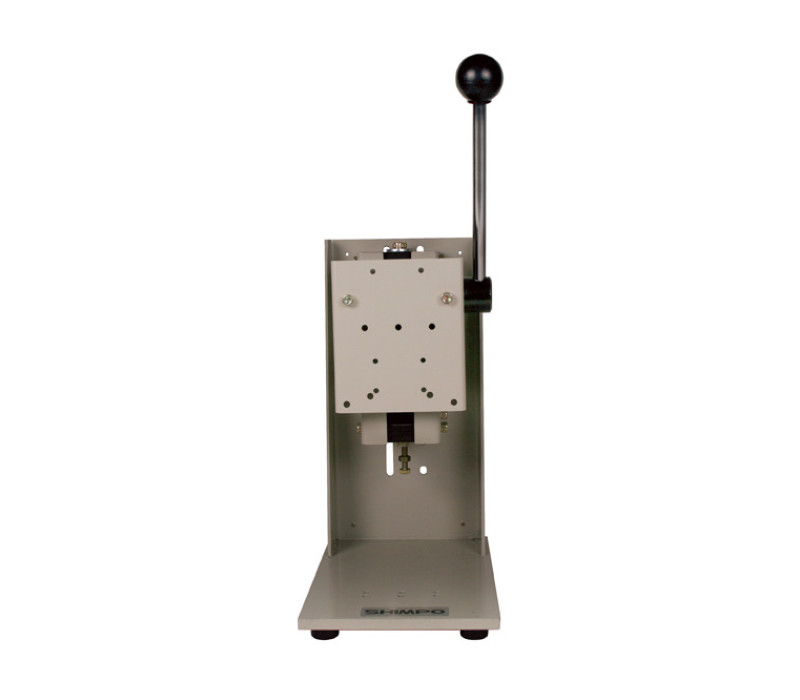

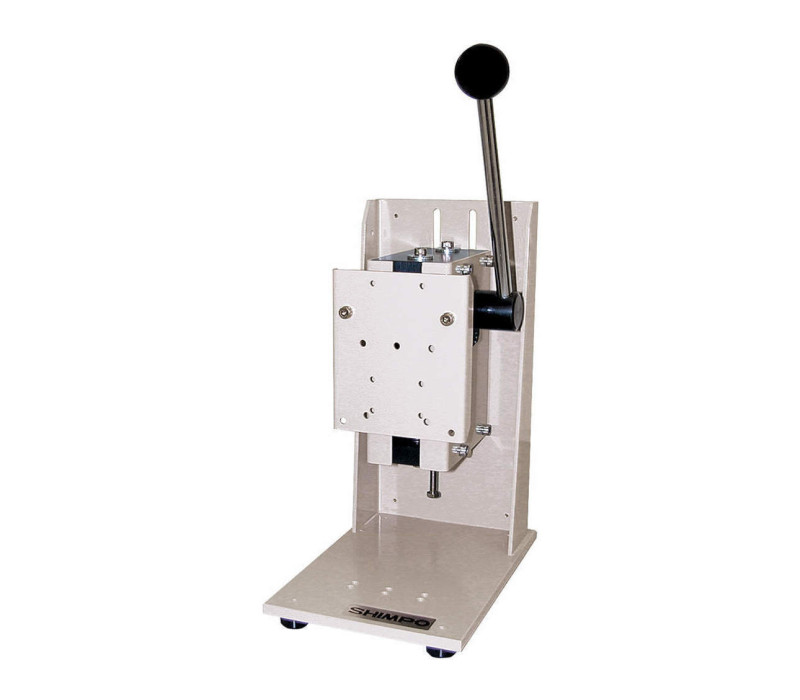

FGS-50S Manual Lever Test Stand


Discover Checkline's FGS-50S, an effective manual test stand for achieving precise and consistent measurement results without the need for an expensive motorised system. This manual lever-operated test stand is ideal for quick tensile and compression tests and adapts perfectly to both laboratory environments and production lines.

Main features:

  • Measuring capacity: up to 220 N (22 kg), allows precise testing on a wide range of materials such as wire, plastic and composites.

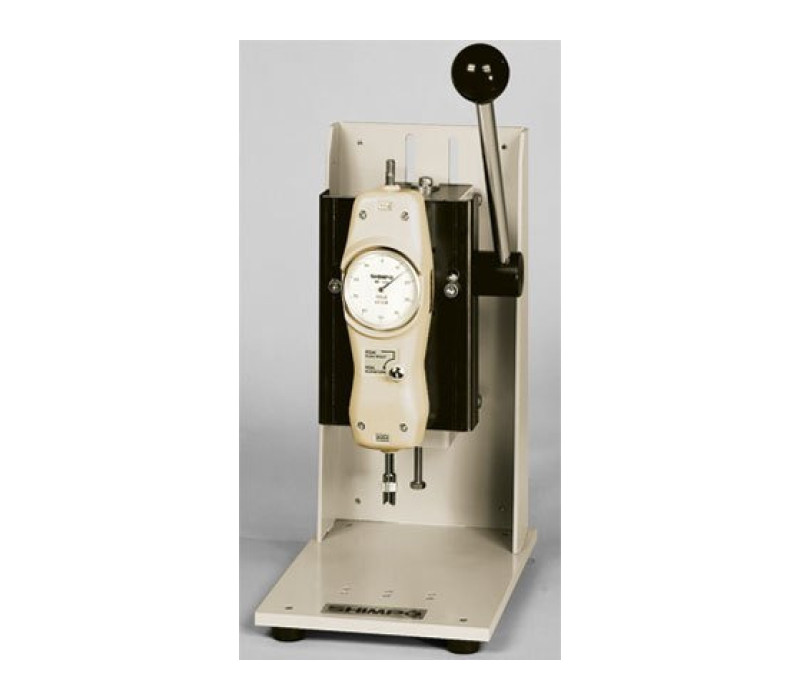

  • Universal compatibility: Fits almost all force gauges and offers unrivalled flexibility in sensor selection.

Technical data:

  • Robust construction: using aluminium components, this stand ensures long life and stability during testing.
  • Versatility of use: Ideal for material testing in confined spaces thanks to its compact design.

Special features:

  • Simple set-up: With a reversible base plate that facilitates use on irregular surfaces and increases the adaptability of the device.
  • Clear display: Equipped with a highly visible EL display that shows force, displacement and other critical operating values.



To find out more about how the FGS-50S can fulfil your specific force measurement requirements, contact us.







Features

  • Manual lever operation for compression (push) measurements
  • Adjustable stroke with stop screws: max. 50 mm
  • Large platform base accepts special attachments
  • Fixed position (clearance) in 3 steps: 40, 70, 100 mm
  • Max. capacity 22kg (50 lb)
  • Dimensions 150 x 240 x 320 mm (L x W x H)

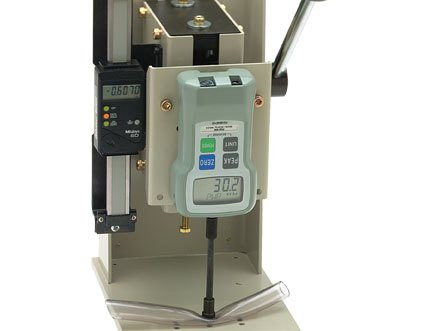

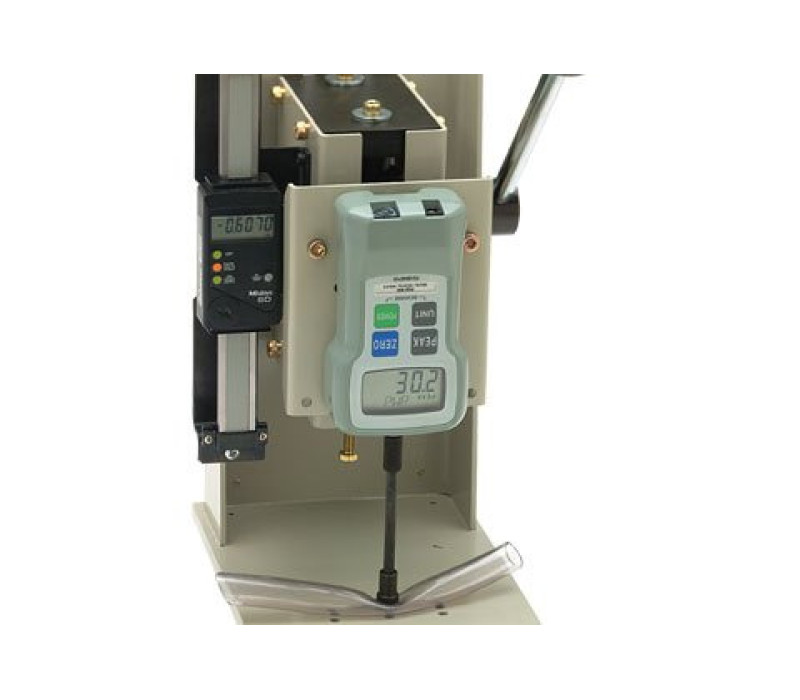

  • Digital length meter optional

Complete Kit

The FGS-50S force teststand comes with the following Items:

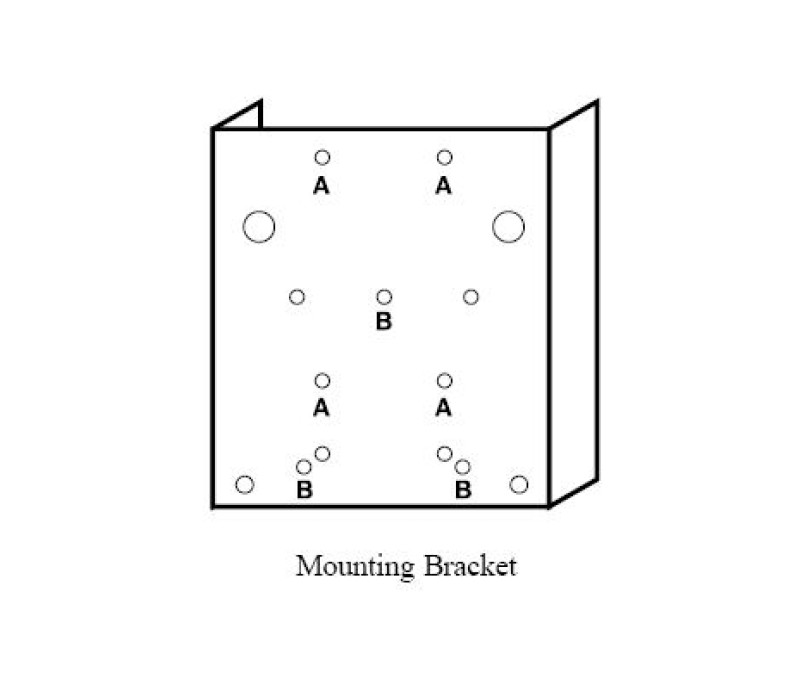

  • Mounting Bracket
  • Cable Holder
  • 5mm Allen wrench
  • 4x Philips head screw M4x8
  • 3x Philips head screw M5x6
  • 2 Year Warranty
  • User Manual


Dimensions

Dimensions FGS-50S
Dimensions-Dimensions FGS-50S


All dimensions are in mm


Related Products

FGV-XY Digital Force Gauge with USB Output


  • Accuracy of ±0.2%
    providing superb repeatability
  • USB, RS-232 & Analog Outputs-- all included!
    3 different outputs for data transfer provides maximum flexibility

More details

FGV-XY  Digital Force Gauge with USB Output

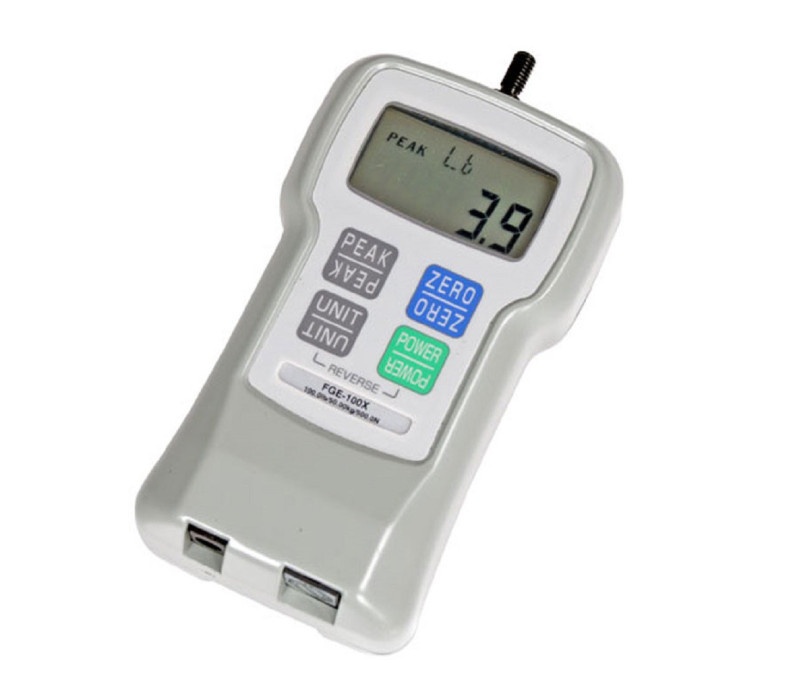

FGE Hand-held Digital Force Gauge


  • Includes Traceable Calibration Certificate
  • Accuracy ± 0.2%
  • User-selected units of Pounds, Kilograms or Newtons

More details

FGE  Hand-held Digital Force Gauge

PS Mechanical force gauge for accurate measurements


  • High accuracy mechanical gauge with ± 0.1 % full scale
  • Easy to use
  • Peak Force Hold function captures transient values and peaks

More details

PS  Mechanical force gauge for accurate measurements

FB Mechanical force gauge


  • Ideal for precision tension and compression measurements in all environments
  • Real Time and Peak Force display
  • Free manufacturer´s calibration report

More details

FB  Mechanical force gauge

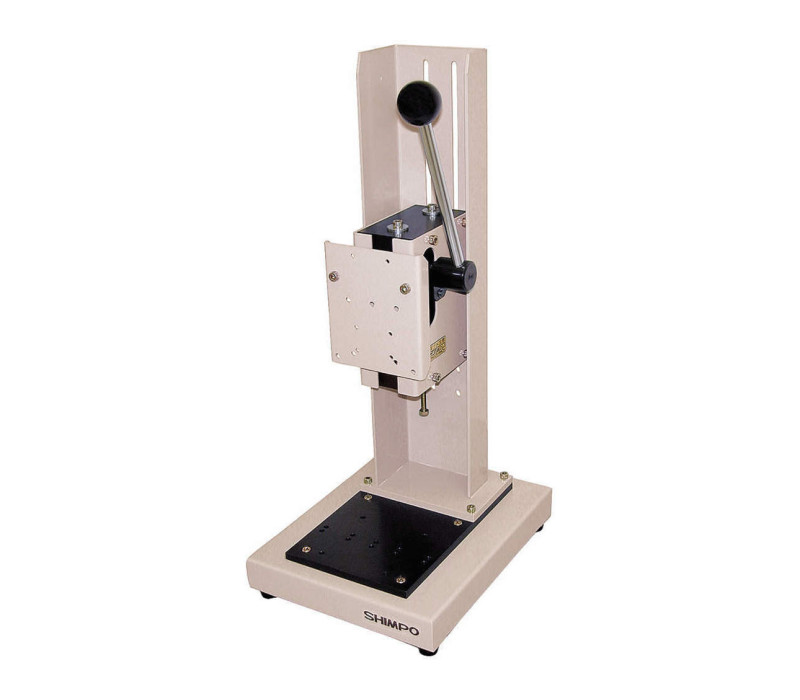

FGS-100L Manual Lever Test Stand


  • Manual lever operation for compression (push) measurements
  • Precision gear movement provides a consistent linear motion that produces repetitively accurate results

More details

FGS-100L  Manual Lever Test Stand

Downloads

Specifications

Capacitymax. 200 N (20 kg)
Stroke50 mm
Vertical Clearance40, 70, 100 mm
Dimensions150 x 240 x 320 mm (L x W x H)
Weight10 kg
Warranty2 year

Buy Now

Product

Product
Price
Quantity
130189
FGS-50S Manual Lever Test Stand
€ 776,00

Accessories

Product
Price
Quantity
131385
UNI-PLATE (Competitors gauges & MF-JAVELIN)
€ 151,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
