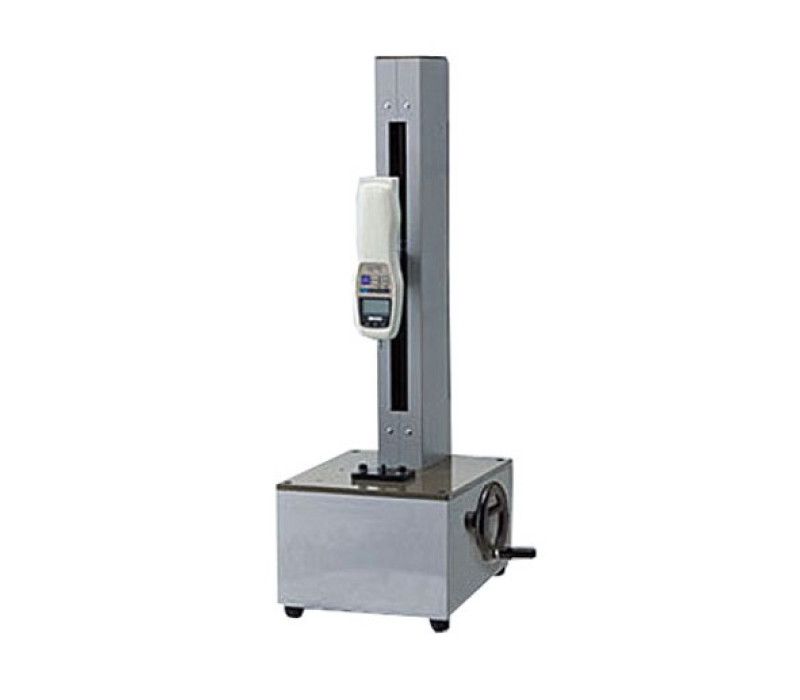

HV-SERIES HV-Series High Capacity Precision Handwheel Test Stands

HV-Series High Capacity Precision Handwheel Test Stands

Discover the HV-300, HV-500, and HV-750 models, handwheel test stands that offer advanced solutions for measuring push and pull forces. Designed to handle oversized materials and perform tests requiring an extended range of movement, these stands ensure precise and repeatable results in each test.

Key Features:

Ample Space and Long Stroke: Ideal for materials that need considerable space and extensive displacement during testing.
Precise Control: The manual wheel ensures consistent speed and maximum control, ideal for applications that demand precision in force measurement.
Compatibility with Force Gauges: Although the DS2 & Z2 force gauges are not included, these stands are designed to integrate perfectly with them, facilitating setup and enhancing the equipment's flexibility.

Benefits of Using the HV-300, HV-500, and HV-750:

Versatility in Testing: Capable of performing both compression and tension tests, adapting to a variety of testing requirements.
Ease of Use: The user interface is designed to facilitate quick changes between samples, improving efficiency in high-performance environments.

Contact us for more details on how the HV-Series test stands can adapt to your operational needs and enhance your force measurement processes.

Superior Quality Control: Each test stand is equipped with features that ensure compliance with international standards of precision and repeatability.
Durable Construction: Built with high-strength materials to offer prolonged performance even in the most demanding conditions.
Technical Support: Access to expert technical support to maximise the functionality and lifespan of your equipment.
Variety of Models: The HV series offers models from 1500N to 3400N capacity, with and without a digital distance meter, allowing precise adaptation to your specific measurement needs.
Precision and Resolution: All models guarantee a resolution of 0.01 mm and an accuracy of 0.02 mm, ensuring reliable and accurate measurements.
Enhanced Functionality: The 'S' models include a digital distance meter for more detailed tracking of displacement during tests.

All sizes are in mm and (inch)

Comparison chart

Model	Capacity	Stroke	Digital distance meter	Clearence	Travel rotation	Accuracy	Resolution
HV-300	1500	430 mm	No	229 mm	2 mm	0.02 mm	0,01 mm
HV-300S	1500	430 mm	Yes	229 mm	2 mm	0.02 mm	0,01 mm
HV-500	2500	430 mm	No	229 mm	2 mm	0.02 mm	0,01 mm
HV-500S	2500	430 mm	Yes	229 mm	2 mm	0.02 mm	0,01 mm
HV-750	3400	430 mm	No	229 mm	6 mm	0.02 mm	0,01 mm
HV-750S	3400	430 mm	Yes	229 mm	6 mm	0.02 mm	0,01 mm
Digital display comes with push button for inch/mm, zero set and on/off

Capacity	HV-300: 150 Kg (300 lbs) HV-500: 250 Kg (500 lbs) HV-750: 340 Kg (750 lbs)
Stroke	430mm
Weight	HV-300: 27 kg HV-500: 30 kg HV-750: 40 kg
Warranty	3 years

Products

Item	Product	Price
140010	HV-300, 1500N Manual Test Stand	€ 2.848,37
140011	HV-300S 1500N Manual Test Stand with digital distance meter	€ 3.721,88
132302	HV-500, 2500N Manual Test Stand	€ 3.354,74
132304	HV-500S, 2500N Manual Test Stand with digital distance meter	€ 4.228,25
140012	HV-750 Test Stand	€ 5.380,25
140013	HV-750S Test Stand with digital distance meter	€ 6.033,03

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

HV-Series High Capacity Precision Handwheel Test Stands

Features

Dimensions

Specifications

Comparison chart

ZT Digital Force Gauge with Luminescent EL Display

DST DST Digital Force Gauge with 30,000 / sec sampling rate

PS Mechanical force gauge for accurate measurements

FB Mechanical force gauge

Buy Now

HV-Series High Capacity Precision Handwheel Test Stands

Features

Dimensions

Specifications

Comparison chart

Related Products

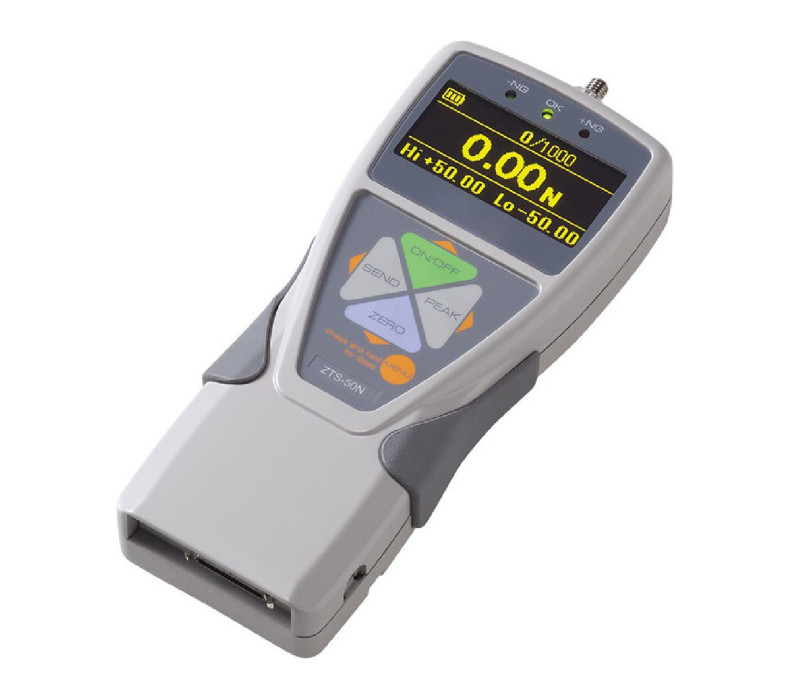

ZT Digital Force Gauge with Luminescent EL Display

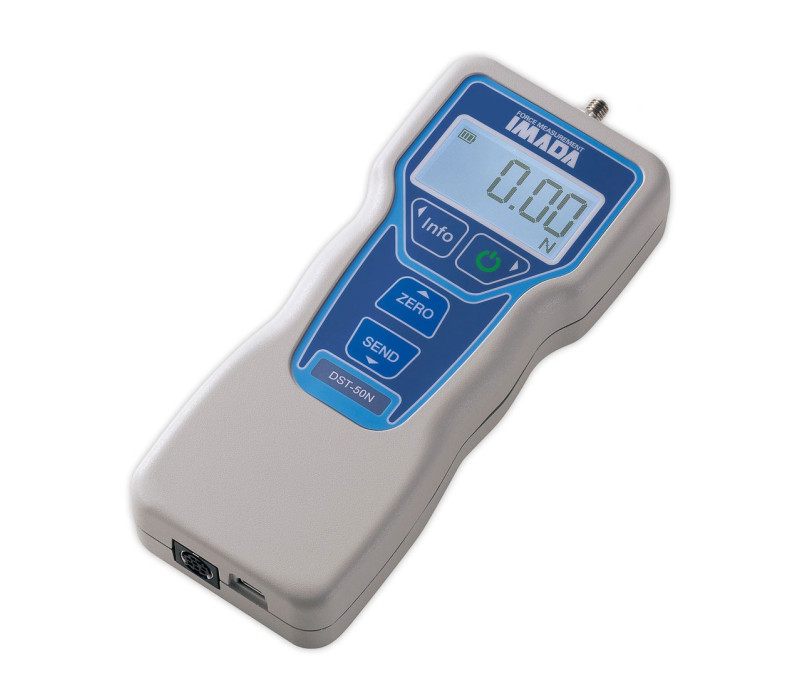

DST DST Digital Force Gauge with 30,000 / sec sampling rate

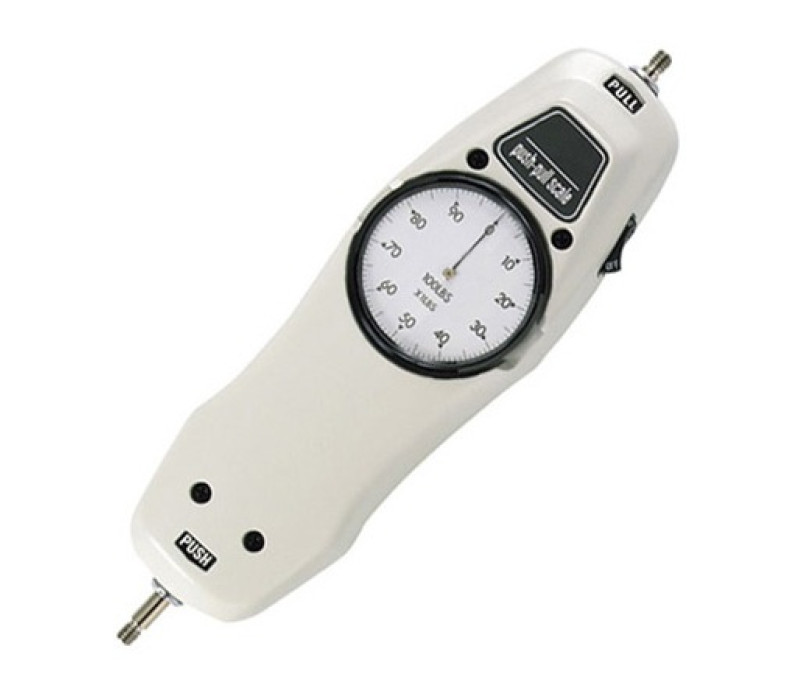

PS Mechanical force gauge for accurate measurements

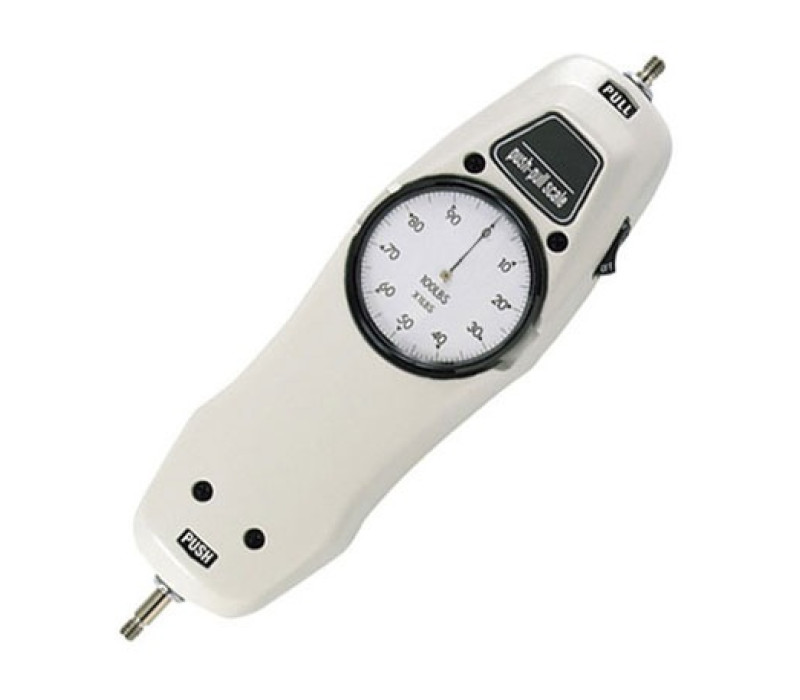

FB Mechanical force gauge
