TSA750 TSA750 Horizontal or Vertical hand lever operated force test stand

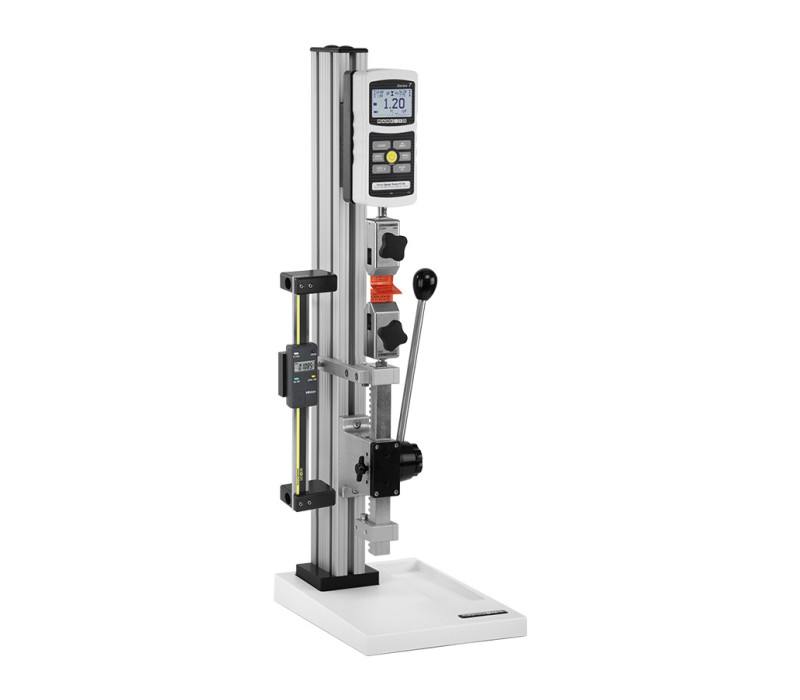

TSA750, equiped with the optional TSA001 digital travel display, in combination with a Series 7 force gauge shown in a typical peel testing application, with G1008 grips.

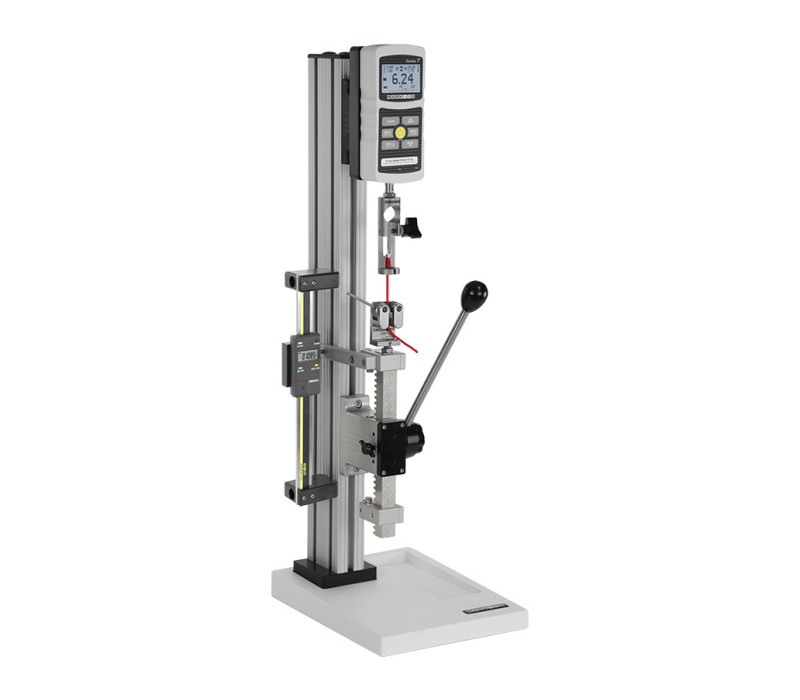

TSA750, equiped with the optional TSA001 digital travel display, engaged in a wire crimp pull test, with G1001 and G1002 grips, and a Series 7 force gauge.

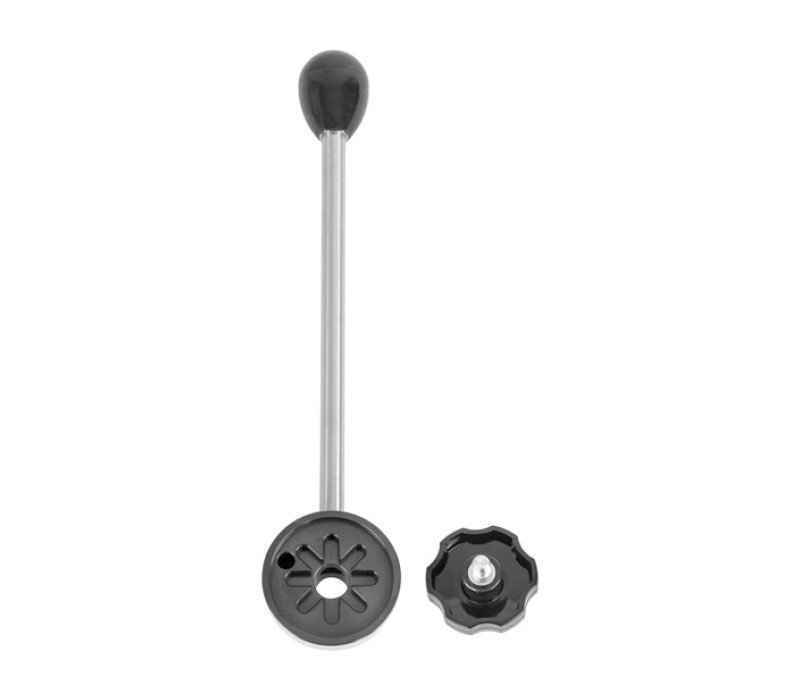

Loading lever can be positioned in 30° increments, ensuring an appropriate orientation for the application.

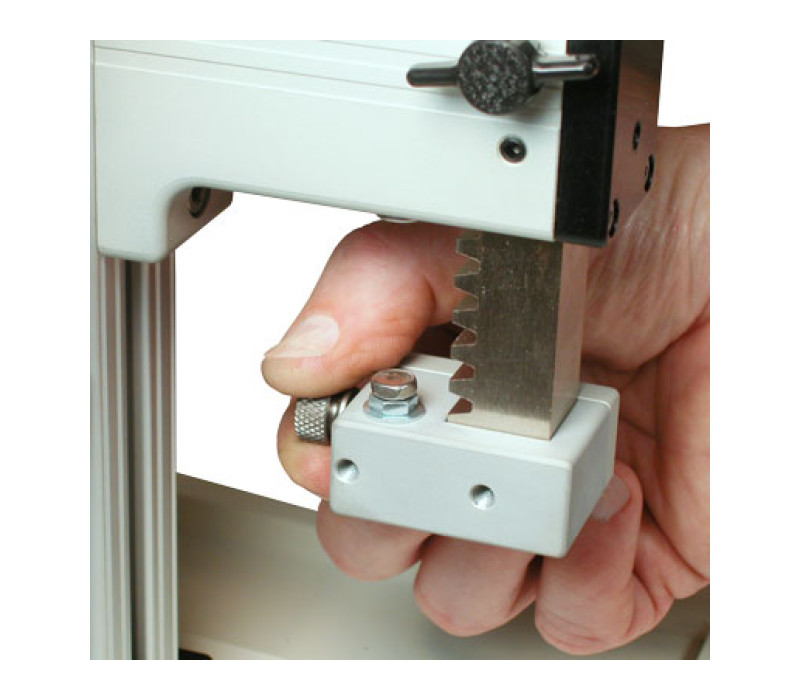

Adjustable upper and lower travel stops are useful for repetitive test requirements.

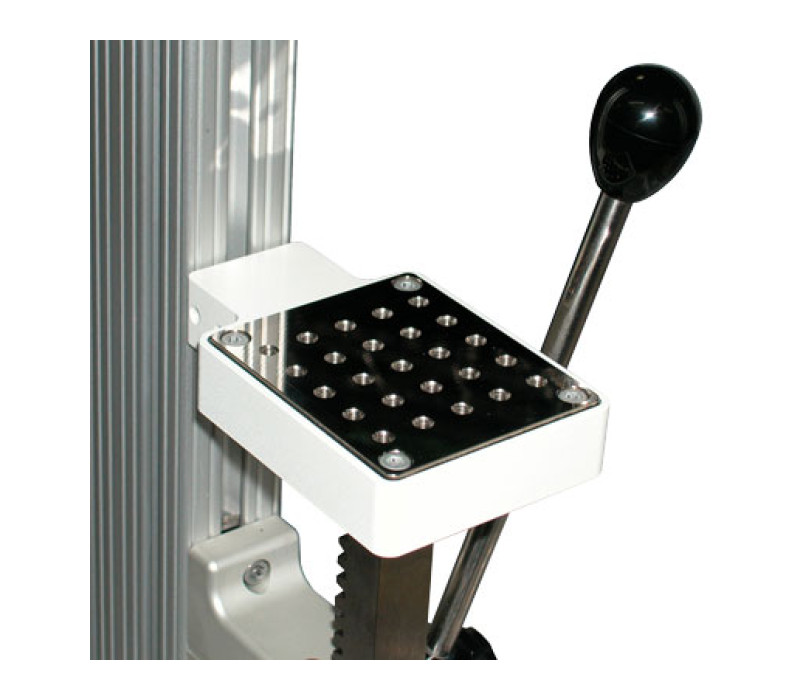

Optional mounting plate contains a matrix of threaded holes for grip and fixture mounting.

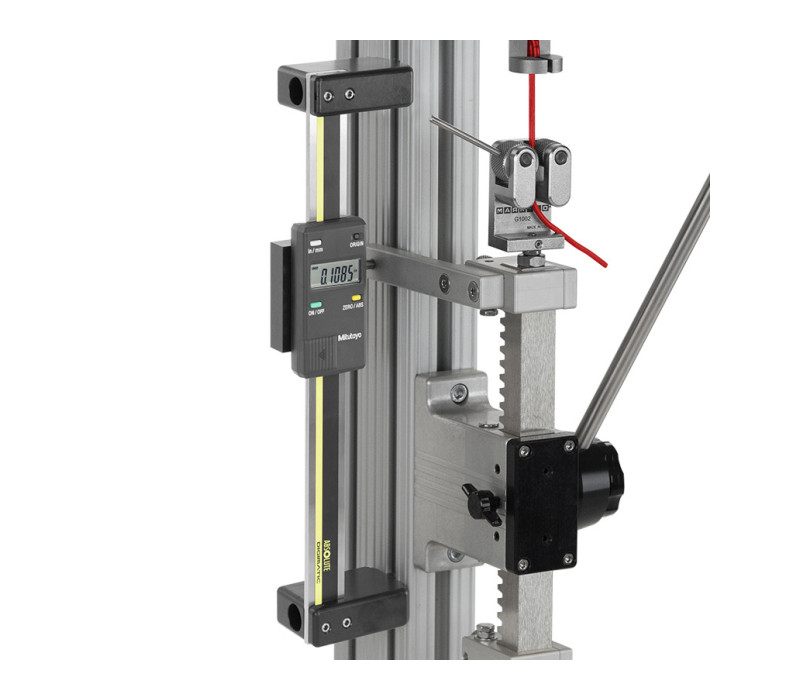

Optional digital travel display option is useful for applications such as tensile testing and spring testing.

TSA750 Horizontal or Vertical hand lever operated force test stand

Discover the TSA750, a robust manual test stand, ideal for both laboratory and production environments. This model offers an excellent capacity of up to 3.75 kN and is designed for precise and efficient tension and compression testing in both horizontal and vertical orientations.

Key Features:

High Capacity: Supports up to 3750 N, suitable for a broad spectrum of force tests.
Durable Construction: Constructed with rugged aluminium components, making it perfect for demanding environments.
Efficient Design: Equipped with a large hand wheel for precise movement adjustment, ensuring accurate and repeatable tests.

Special Features:

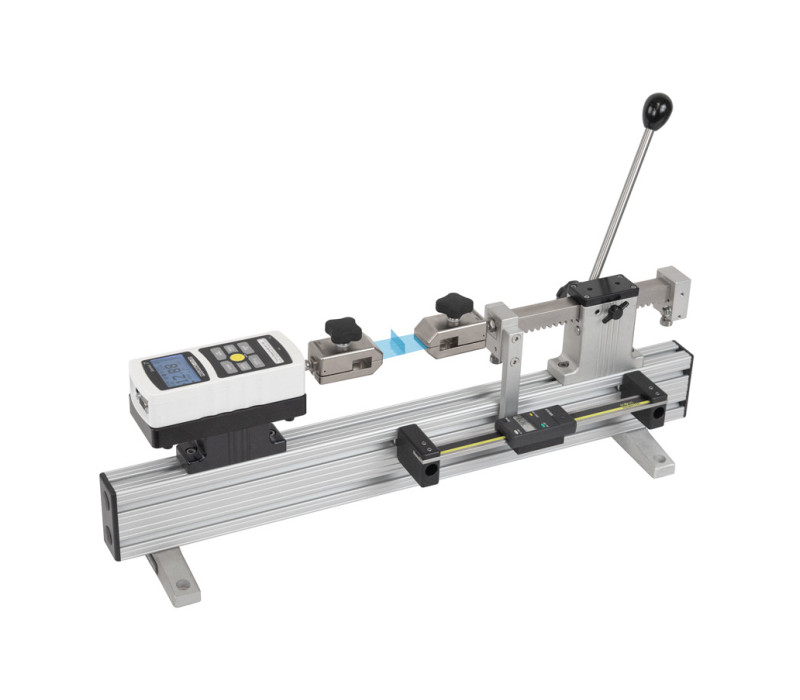

Configuration Versatility: Available in both vertical (TSA750) and horizontal (TSA750H) versions to suit various test types and workspace layouts.
Flexible Configuration: Adaptable to various testing needs, enhancing utility across different settings.

Accessories and Compatibility:

Integration with Force Gauges: Fully compatible with the entire range of Mark-10 force gauges, ensuring accurate measurements and versatile setups.
Compatible Accessories: Uses Mark-10 force gauges and other clamping devices, allowing for complete customization of the testing system.
Customization Options: Equipped with adjustable travel stops and a low-force friction brake for enhanced control.

Discover how the TSA750 / TSA750H can be an essential part of your quality processes. For more information on enhancing your testing capabilities with this model, contact us.

€ 1.263,00

Order now

Compatible with all Mark-10 force gauges, accessories, and grips, ensuring versatile testing setups.
The loading lever can be positioned in 30° increments, enhancing ease of operation.
Includes threaded holes for secure and stable bench mounting.
Equipped with a precision ground rack and pinion mechanism for accurate movement.
Adjustable wear plates ensure smooth and precise motion during tests.
Optional digital travel display available for enhanced measurement accuracy.
Optional competitor force gauge mounting kits available, offering flexibility for various setups.
The optional Mounting Table includes a matrix of tapped holes for versatile grip and fixture mounting.

The TSA750 and/or TSA750H test stands come with the following accessories:

G1009 compression plate, 2” dia.
G1028 small hook
G1030 thread adapter, 5/16-18M to #10-32F
G1035 large hook
G1038 medium hook
G1041 thread adapter, 5/16-18M to #1/2-20M
G1042 extra large hook
G1091 thread coupler, 1/2-20F, 1/2-20F
5/16-18 stud with jam nuts
#10-32 stud with jam nuts
Wrench 5/16-3/8
Base (TSA750)
2 Mounting leg with hardware (TSA750H)
Additional column cap with hardware (TSA750H)
4 Thumb screw for force gauges with 0.12 - 500 lbF capacities
4 Thumb screw for force gauges with 1,000 - 2,000 lbF capacities
Allen wrench set

Manual test stand comparison

Model	Force capacity	Maximum test travel	Loading method	Travel rate	Maximum, sample clearance
ES05	150N	38mm	Spring lever	25.4mm per lever turn	223mm
ES10	500N	229mm	Spring lever	26.7mm per lever turn	229mm
ES20	500N	229mm	Upper manual wheel	1.5mm per wheel turn	229mm
ES30	1000N	330mm	Side manual wheel	1.3mm per wheel turn	356mm
TSA750(H)	3750N	95mm (with travel stops) 152mm (without travel stops)	Rack and pinion lever, adjustable in 30° increments	76.2mm per lever turn	Vertical: 267mm Horizontal: 368mm
TSB100	500N	95mm (with travel stops) 152mm (without travel stops)	Rack and pinion lever, adjustable in 30° increments	76.2mm per lever turn	330mm
TSC1000(H)	5000N	89mm	Inline manual wheel	2.5mm per wheel turn	Vertical: 254mm Horizontal: 330mm
TSF(H)	5000N	102mm	Side manual wheel	0.34mm per wheel turn	Vertical: 356mm Horizontal: 459mm
- Maximum test travel and/or free space depend on the grips or accessories used during testing. The dimensions specified are without grips or accessories. - Column extensions available for all models except ES05, ES10, and ES20. - Models marked with (H) are available in both vertical and horizontal versions.

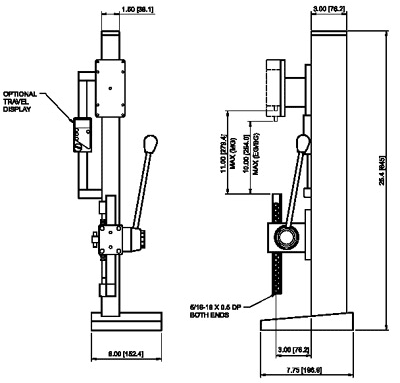

Size measurements for the TSA750 Manually operated Force Test Stand

All sizes in inch and (mm)

Column extensions of 305, 610 and 1065 mm available. (does not increase the travel distance)

Size measurements for the TSA750H Horizontal manually operated Force Test Stand

All sizes in inch and (mm)

Column extensions of 305, 610 and 1065 mm available. (does not increase the travel distance)

Video

▶

TSA750/H User manual

TSA750 - Solid Models

TSA750H - Solid Models

TSA750/H Data sheet

Load capacity:	3.75 kN (750 lbs)
Maximum travel:	152 mm without stops 95mm with stops
Dimensions:	152 mm x 197 mm x 645 mm
Loading method/rate:	Rack & pinion / 76,2 mm per rev.
Weight:	TSA750: 7.3 kg (16 lbs) TSA750H: 5,9 kg (13 lbs)
Shipping weight	TSA750: 10.9 kg (24 lbs) TSA750H: 8,6 kg (19 lbs)
Travel display:	Optional
Horizontal mount:	Optional
Warranty	3 Years

Products

Item	Product	Price	Quantity	Action
126525	TSA750 Lever-operated Test Stand, 750 lbF / 3750 N, vertical	€ 1.263,00
131100	TSA750H Lever-operated Test Stand, 750 lbF / 3750 N, horizontal	€ 1.263,00

Accessories

Item	Product	Price
131908	TSA001 - Travel Display for TSA750(H), 6"/150 mm	€ 799,00
131909	TSA002 - Horizontal/wall mounting kit for TSA750/TSC1000	€ 174,00
131910	TSA003 - Table assembly for TSA750(H)	€ 239,00
131957	AC1004 Mounting kit, indicator/TT03 to Series TS stands	€ 92,00
140091	SP-2734-12 Column Extension, 12 in. / 305 mm for TSA/B/C	€ 211,00
140090	SP-2734-24 Column Extension, 24 in. / 610 mm for TSA/B/C	€ 271,00
138108	SP-2734-42 Column Extension, 42 in. / 1065 mm for TSA/B/C	€ 372,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
