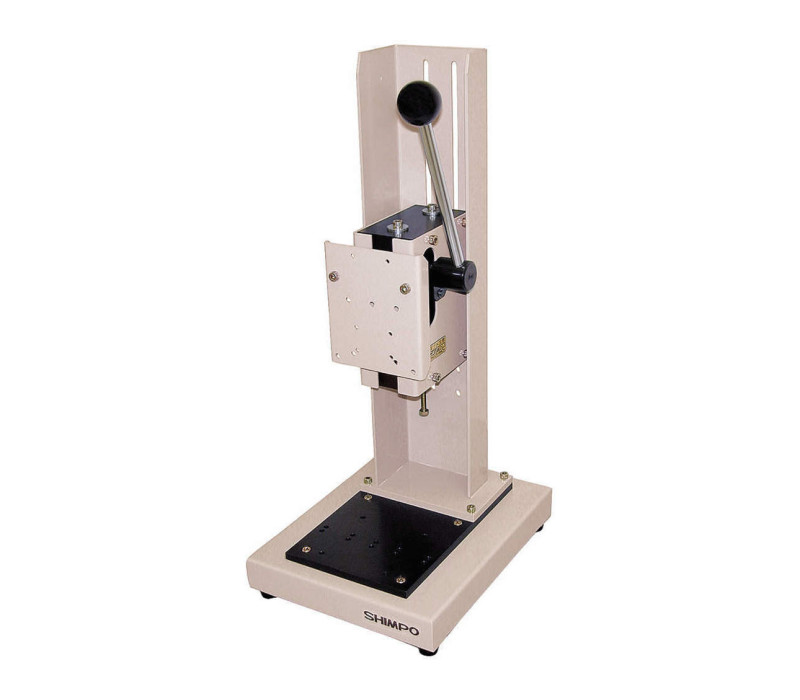

    FGS-100L Manual Lever Test Stand

    Discover the FGS-100L at Checkline, a manual force test stand ideal for achieving precise and consistent measurements across a variety of materials. This device combines efficiency and affordability, offering a cost-effective solution without sacrificing the quality of results.

    Key Features:
    • Adjustable Capacity: Suitable for applications up to 100 kg (1000 N), ideal for testing materials such as wire, plastic, and composites.
    • Robust Design: With sturdy construction and a manual lever for efficient and precise handling.
    Special Features:
    • Versatile Compatibility: Compatible with nearly all force gauges, which broadens its use in various testing setups.
    • Ergonomic Design: Equipped with a reversible base plate that allows for use on irregular surfaces, facilitating testing in any environment.


    If you would like to learn more about how the FGS-100L can enhance the efficiency and precision of your testing processes, contact us.
    € 1.020,00
    Order now

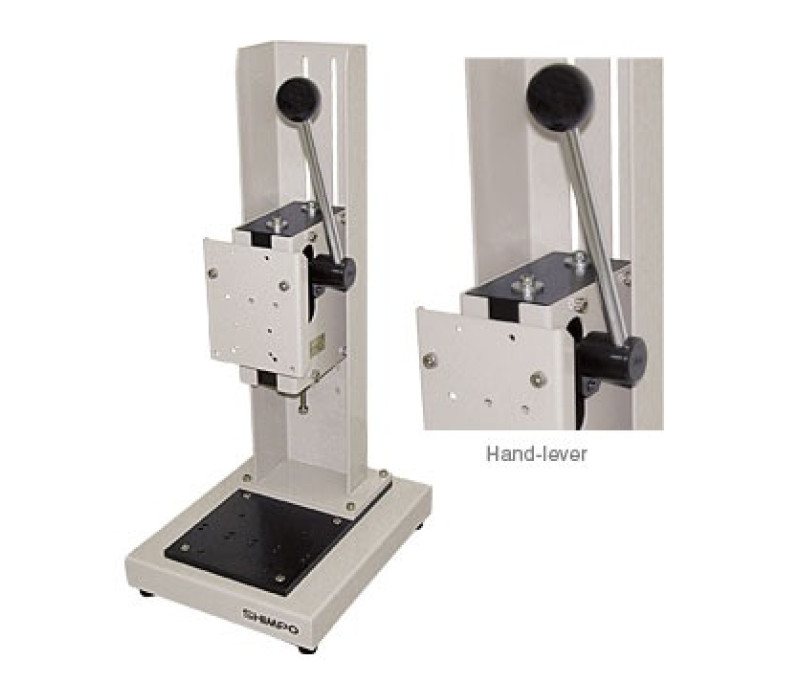

    • Manual lever operation for compression (push) measurements
    • Adjustable clearance setting enables testing on a wide range of samples
    • Sturdy all steel construction allows exceptional durability and extended life of the product
    • Versatile bottom mount mounting plate permits acceptance of both standard and custom-made attachments
    • Precision gear movement provides a consistent linear motion that produces repetitively accurate results
    • Modular, compact design
    • Compatibility with many vendors’ force gauges facilitates flexibility when replacing older test stands

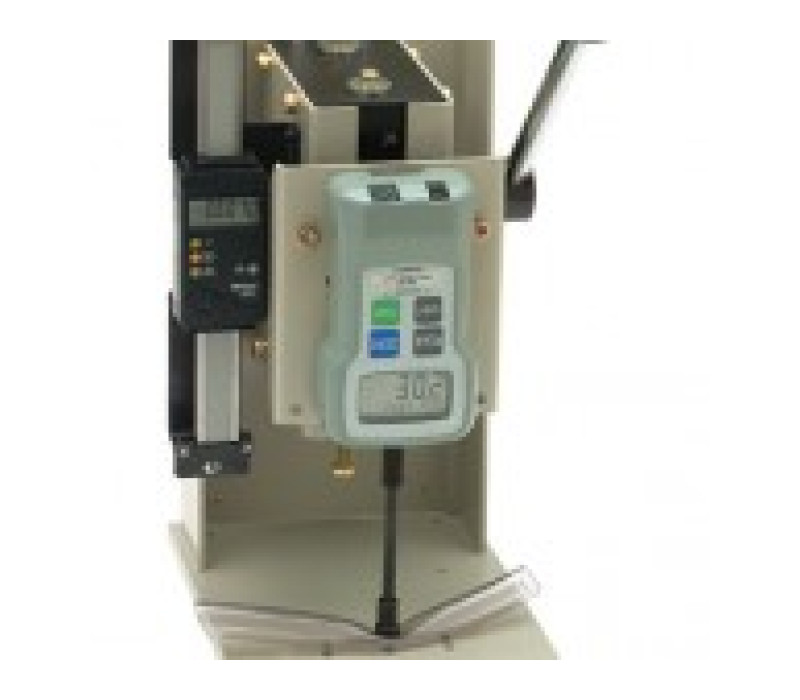

    • Optional digital length meter added to stand creates deflection measurement testing for applications such as spring rate testing
    Complete Kit

    Included Items:

    • Mounting Bracket
    • Cable Holder
    • 5mm Allen wrench
    • 4x Philips head screw M4x8
    • 3x Philips head screw M5x6
    • 2 Year Warranty
    • User Manual
    Manual FGS-100L
    Capacity100 kg / 1000N
    Stroke50 mm
    Vertical Clearance84 – 294 mm / 8 steps - 30 mm/step
    Dimensions230 x 290 x 562 mm (L x W x H)
    Weight15 kg
    Warranty2 Years

    Related Products

    Browse Related Products

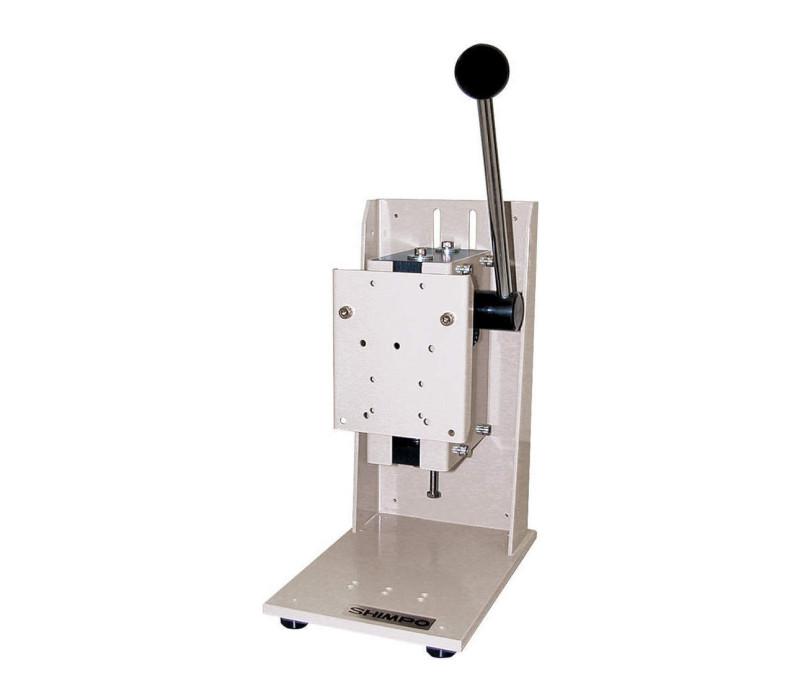

    FGS-50S Manual Lever Test Stand
