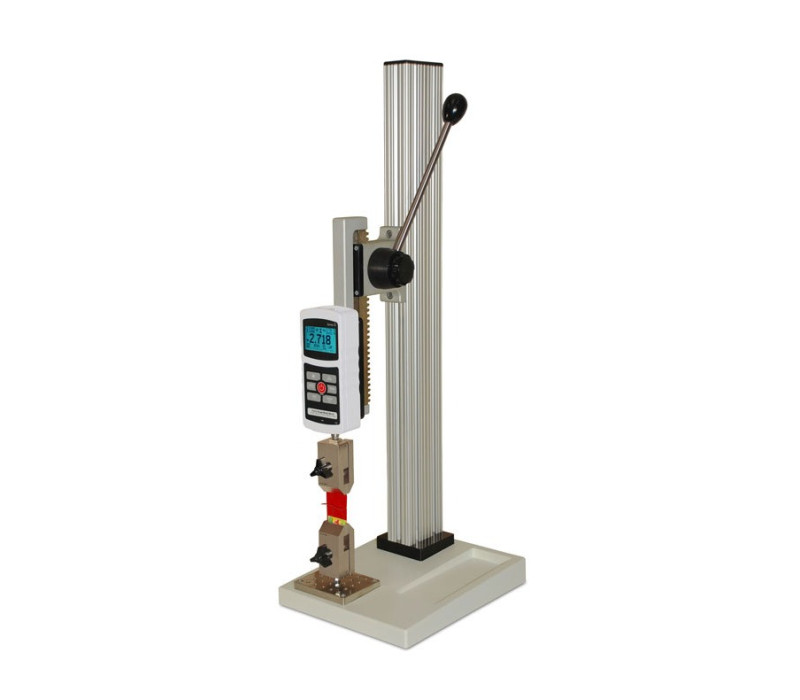

TSB100 Manual force test stand

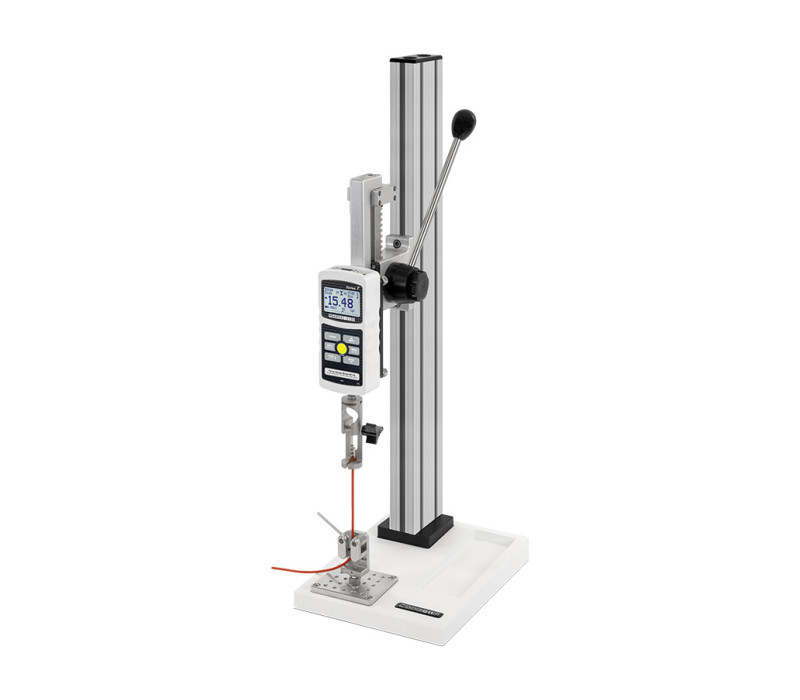

The TSB100 is shown in a typical wire crimp pull testing application, with Series 7 force gauge, G1001 wire terminal grip and G1002 dual roller grip.

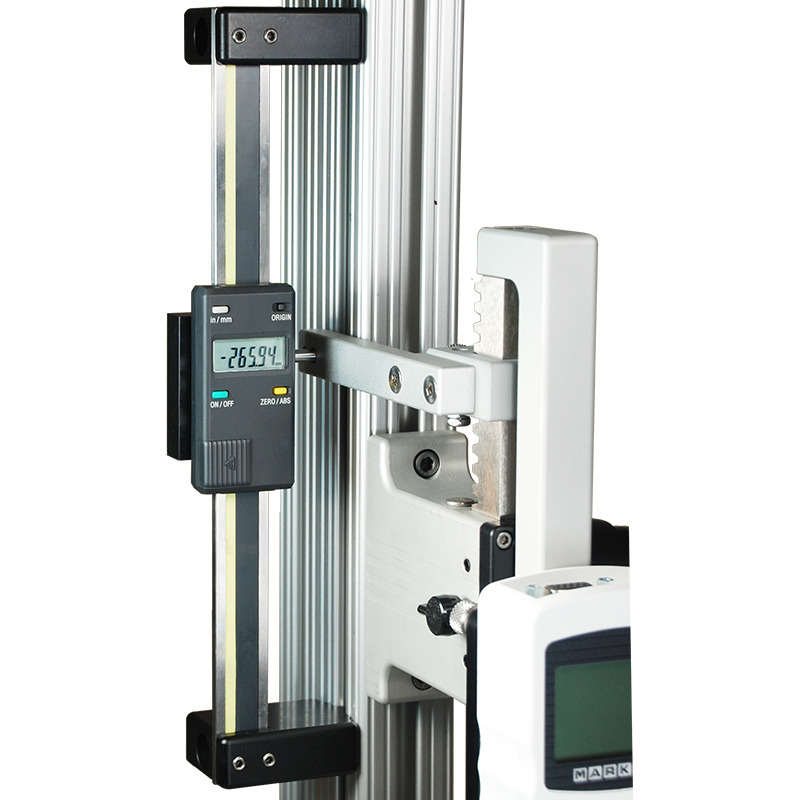

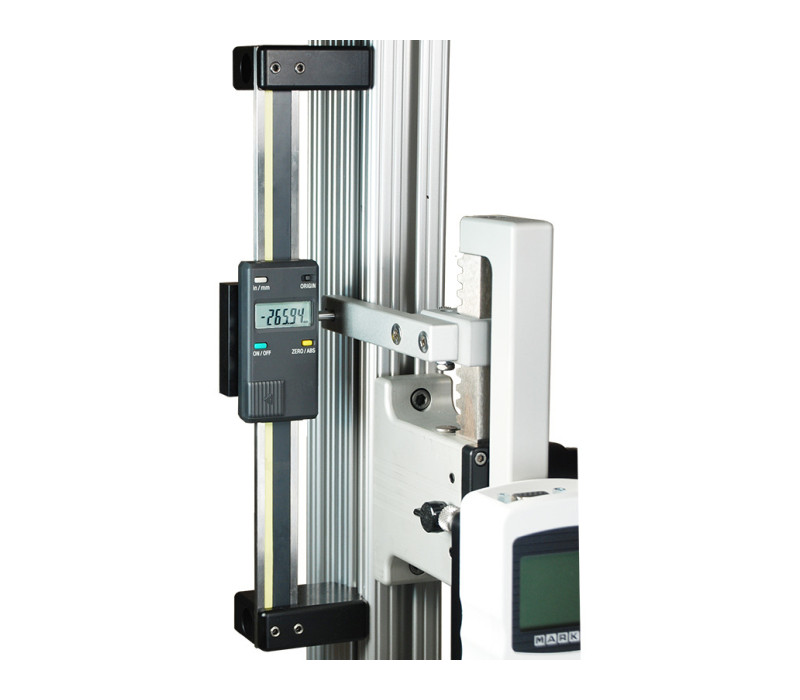

Optional digital travel display option is useful for applications such as tensile testing and spring testing.

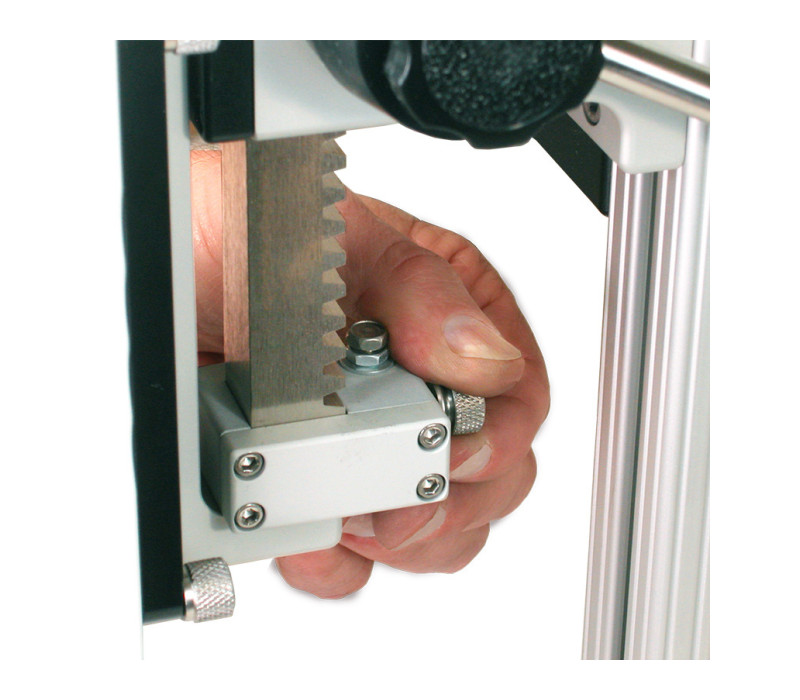

Optional adjustable upper and lower travel stops may be positioned along the length of the rack.

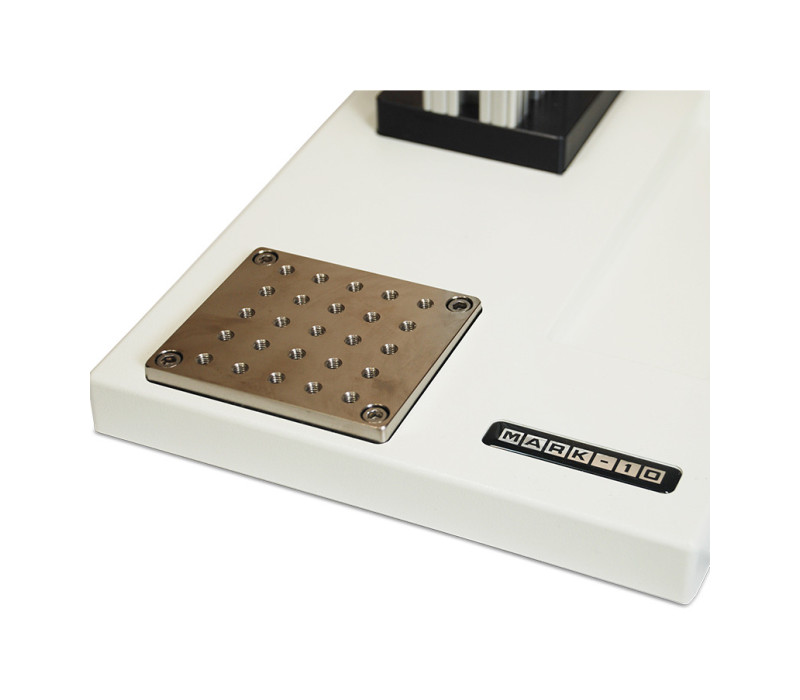

Mounting plate contains a matrix of threaded holes for grip and fixture mounting.

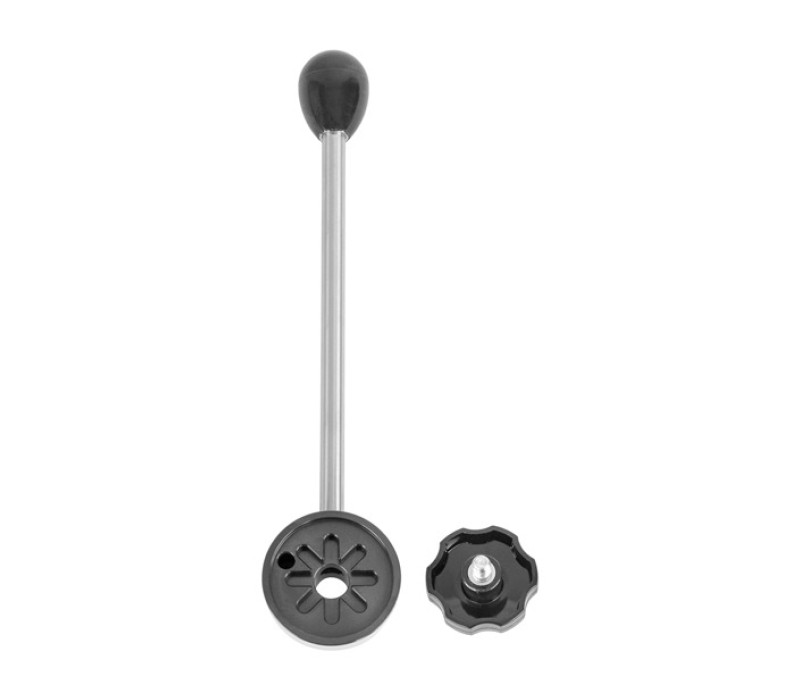

Lever can be set in increments of 30 degrees

TSB100 hand lever operated vertical force test stand

Explore our TSB100 at Checkline, a manually operated test stand designed for performing both tension and compression tests with ease and precision. Capable of handling forces up to 500 N (100 lbF), this stand is perfectly suited for diverse applications in laboratory and production settings.

Key Features:

Effective Manual Operation: The loading lever, adjustable in 30° increments, ensures flexibility across various testing scenarios.
Robust Construction: Built with durable materials, the TSB100 is engineered to withstand demanding work conditions.

Special Features:

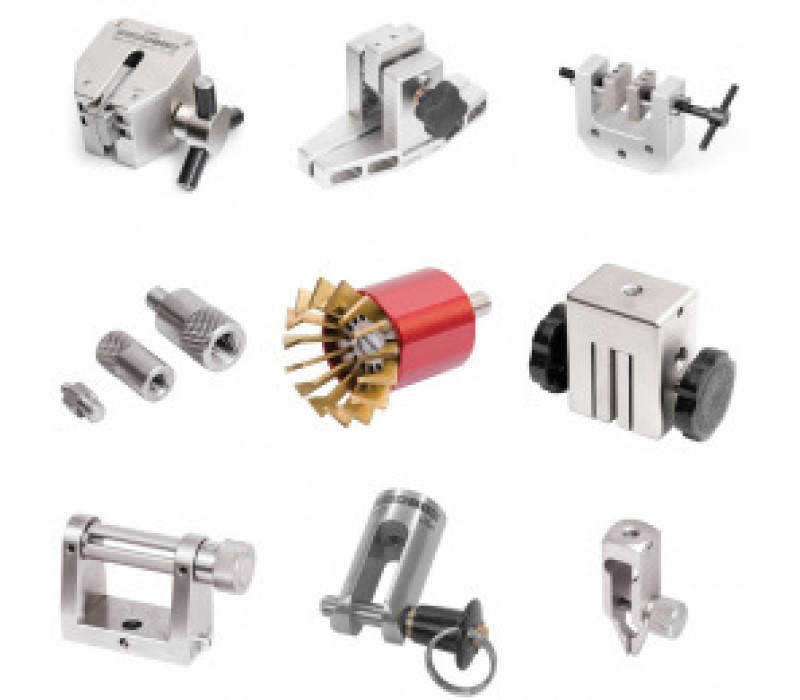

Broad Instrument Compatibility: Fully compatible with all Mark-10 force gauges, accessories, and gripping fixtures, the TSB100 enables tailored and precise setups for your specific testing needs.
Customizable Adjustments: Features include adjustable travel stops and a base plate with multiple threaded holes, providing versatile testing configurations.

For more information on how the TSB100 can meet your specific measurement requirements, contact us.

€ 1.004,00

Shop now

Precision ground rack ensures smooth and precise motion, facilitating accurate testing.
Loading lever is adjustable in 30° increments, significantly enhancing operational ease.
Includes a low force friction brake, enabling more controlled testing environments.
Fully compatible with all Mark-10 force gauges, fixtures, and accessories, ensuring a versatile and customizable test setup.
Features mounting holes for stable and secure bench mounting, adding to its reliability.
Comes with a removable base plate that includes 25 #10-32 UNF holes, allowing for flexible fixture mounting options.
Optional adjustable travel stops are available, providing customized testing configurations to meet specific needs.
An optional digital travel display can be added for improved measurement visibility and accuracy, enhancing overall usability.

The TSB100 test stand comes with the following accessories:

G1030 thread adapter, 5/16-18M to #10-32F
4 Thumb screw for force gauge
Allen wrench set

Manual test stand comparison

Model	Force capacity	Maximum test travel	Loading method	Travel rate	Maximum, sample clearance
ES05	150N	38mm	Spring lever	25.4mm per lever turn	223mm
ES10	500N	229mm	Spring lever	26.7mm per lever turn	229mm
ES20	500N	229mm	Upper manual wheel	1.5mm per wheel turn	229mm
ES30	1000N	330mm	Side manual wheel	1.3mm per wheel turn	356mm
TSA750(H)	3750N	95mm (with travel stops) 152mm (without travel stops)	Rack and pinion lever, adjustable in 30° increments	76.2mm per lever turn	Vertical: 267mm Horizontal: 368mm
TSB100	500N	95mm (with travel stops) 152mm (without travel stops)	Rack and pinion lever, adjustable in 30° increments	76.2mm per lever turn	330mm
TSC1000(H)	5000N	89mm	Inline manual wheel	2.5mm per wheel turn	Vertical: 254mm Horizontal: 330mm
TSF(H)	5000N	102mm	Side manual wheel	0.34mm per wheel turn	Vertical: 356mm Horizontal: 459mm
- Maximum test travel and/or free space depend on the grips or accessories used during testing. The dimensions specified are without grips or accessories. - Column extensions available for all models except ES05, ES10, and ES20. - Models marked with (H) are available in both vertical and horizontal versions.

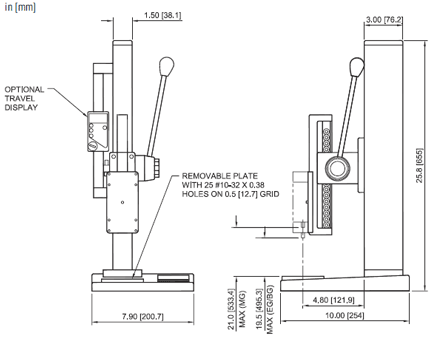

Size measurements for the TSB100 Manually operated Force Test Stand,

All sizes in inch and (mm)

Column extensions of 305, 610 and 1065 mm available. (does not increase the travel distance)

TSB100 Data sheet

TSB100 User manual

TSB100 Solid models

Capacity	500 N (50 kg / 100 lb)
Stroke	152 mm without travel stops 69.9 mm with travel stops
Dimensions	Refer to dimensions above
Weight:	5.4 kg (12 lb)
Shipping weight	11.3 kg (25 lb)
Warranty	3 years

Products

Item	Product	Price	Quantity	Action
126529	TSB100 Lever-operated Test Stand, 100 lbF / 500 N, vertical	€ 1.004,00

Accessories

Item	Product	Price
131908	TSA001 - Travel Display for TSA750(H), 6"/150 mm	€ 798,00
131909	TSA002 - Horizontal/wall mounting kit for TSA750/TSC1000	€ 174,00
131912	TSB003 - Travel stops kit for TSB100	€ 105,00
140091	SP-2734-12 Column Extension, 12 in. / 305 mm for TSA/B/C	€ 211,00
140090	SP-2734-24 Column Extension, 24 in. / 610 mm for TSA/B/C	€ 271,00
138108	SP-2734-42 Column Extension, 42 in. / 1065 mm for TSA/B/C	€ 371,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

TSB100 hand lever operated vertical force test stand

Features

Manual test stand comparison

Dimensions

Specifications

Manual test stand comparison

Series-3 Digital Force Gauge

Series-4 Advanced Digital Force Gauges

Series-5 Advanced Digital Force Gauge

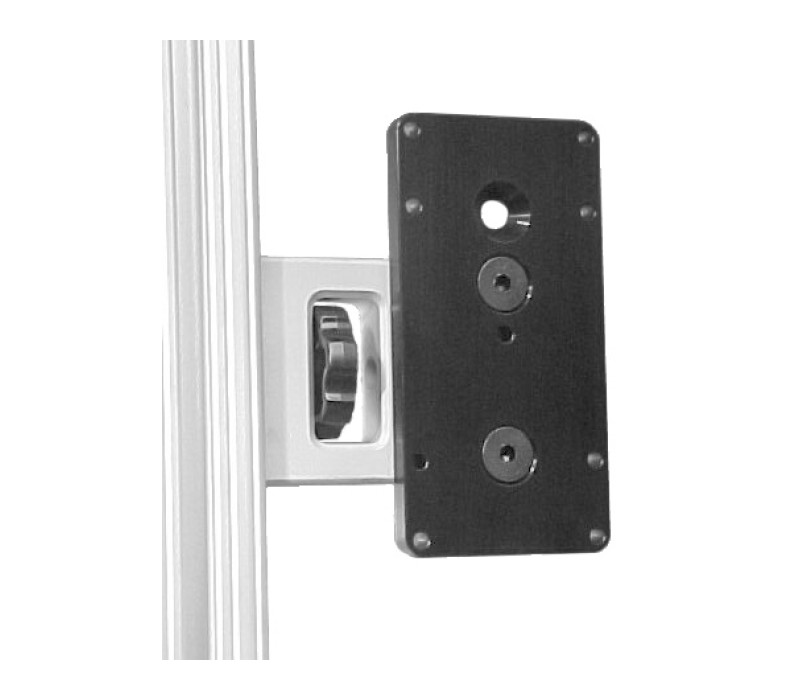

AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands
