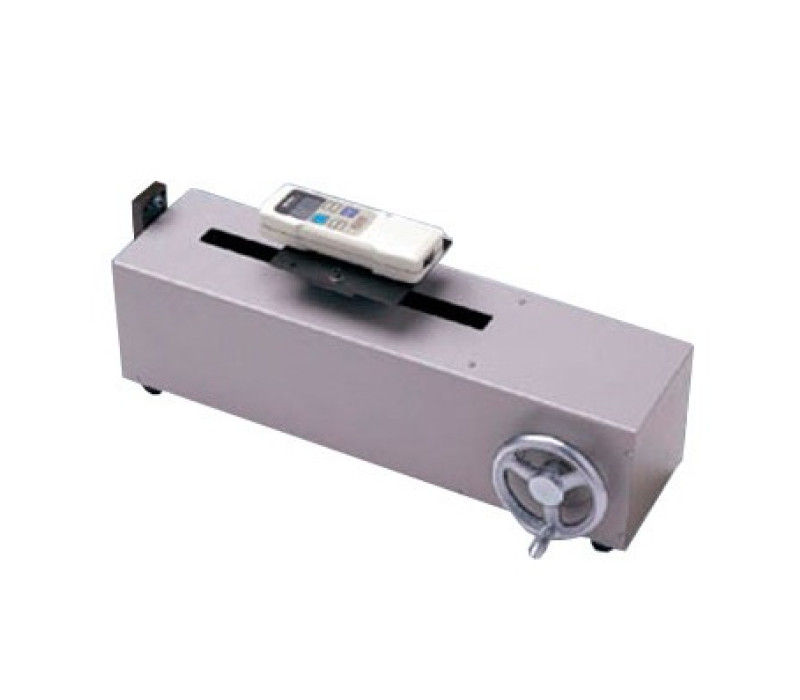

    SH-220 Horizontal Hand Wheel Test Stand

    Discover the SH-220, a horizontal test stand equipped with a handwheel system that ensures constant operation speed and precise positioning. This design facilitates bi-directional movement and exceptional handling during tests, providing maximum precision in each test. Ideal for peel tests and other force measurements where precision is crucial.

    Key Features:
    • Low-Profile Horizontal Design: Perfect for applications where space is a critical factor and ease of access to the test equipment is essential.
    • Handwheel Operation: Offers detailed control over the speed and movement of the gauge, crucial for tests requiring meticulous monitoring and precise adjustments.
    • Compatibility with Dynamometers: The SH-220 is designed to be used with the DS2 and Z2 dynamometers, though they are not included with the purchase. This stand adapts to a wide range of accessories, increasing its versatility.


    Key Benefits:
    • Versatility in Testing: Capable of performing both tension and compression tests, making it suitable for a variety of industrial and laboratory applications.
    • Ease of Sample Change: Its design allows for quick changes between samples during tests, optimizing operation times and increasing productivity.


    Contact us for more information on how the SH-220 test stand can facilitate your force measurement processes and adapt to your operational needs.
    • Precise Control: The handwheel design allows detailed handling and constant operation, ideal for achieving the highest precision in tests.
    • Durability: Constructed with high-quality materials, the SH-220 is designed to last and withstand rigorous use in industrial and laboratory environments.
    • Optional Accessories: Availability of a digital distance meter and an extender plate to expand the testing capability and enhance the functionality of the equipment.
    Dimensions SH-220(S)
    Dimensions-Dimensions SH-220(S)

    All measurements in mm and (inch)

    Capacity1000N
    Stroke300 mm
    Travel rate:1.2mm/rev of hand wheel
    DimensionsSee above
    Compatible GaugesZ2 and DS2
    Warranty2 years

    Related Products

    Browse Related Products

    DST DST Digital Force Gauge with 30,000 / sec sampling rate

    DST DST Digital Force Gauge with 30,000 / sec sampling rate

    ZT Digital Force Gauge with Luminescent EL Display

    ZT Digital Force Gauge with Luminescent EL Display

    PS Mechanical force gauge for accurate measurements

    PS Mechanical force gauge for accurate measurements

    Order Now

    Products
    Item Product Price  Quantity Action
    132309SH-220 Horizontal Test Stand
    140115SH-220-S, Horizontal Test Stand With Distance Gauge

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
