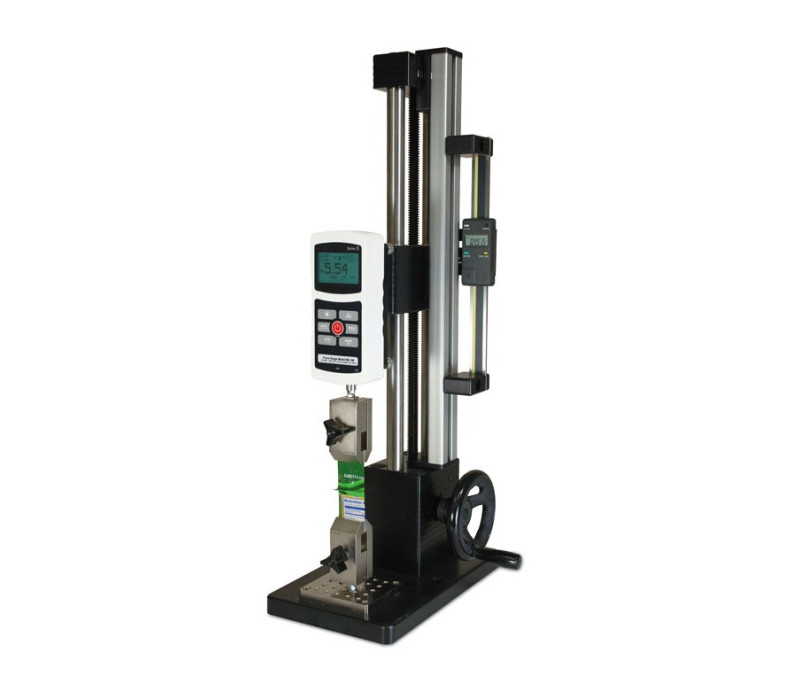

ES30 Precision Hand Wheel Test Stand

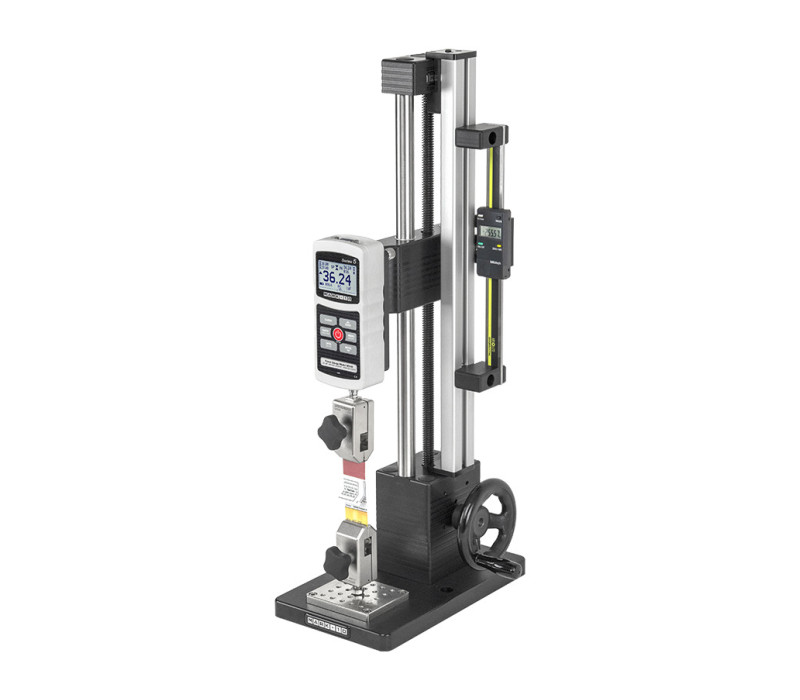

The ES30 manual test stand features an ergonomic side-mounted handwheel and 1 kN capacity. Shown here with a Series 5 digital force gauge and pair of G1008 film & paper grips. And equipd with the optional 150mm digital travel display ESM001

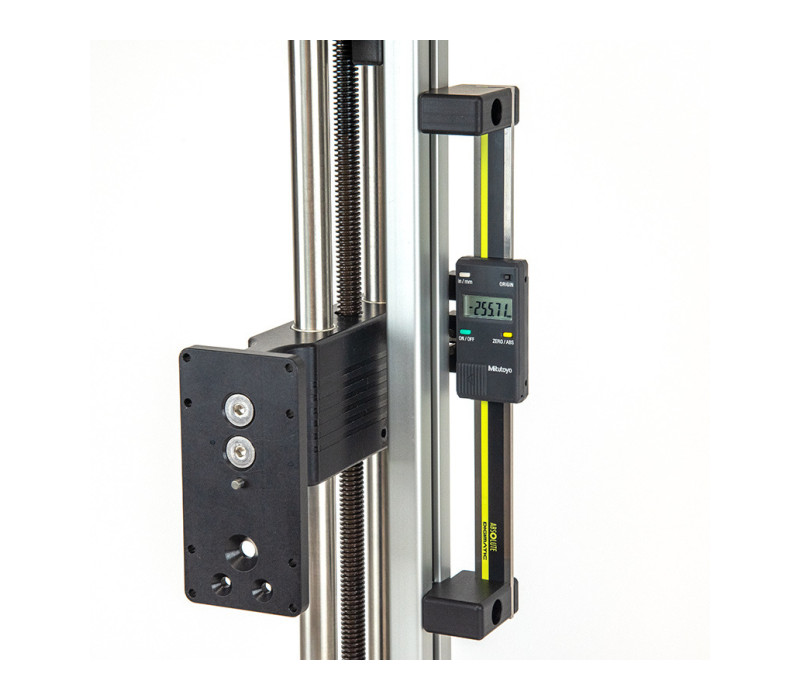

Optional digital travel display option is useful for applications such as tensile testing and spring testing. A wide range of adapters is available including for manufacturers gauges.

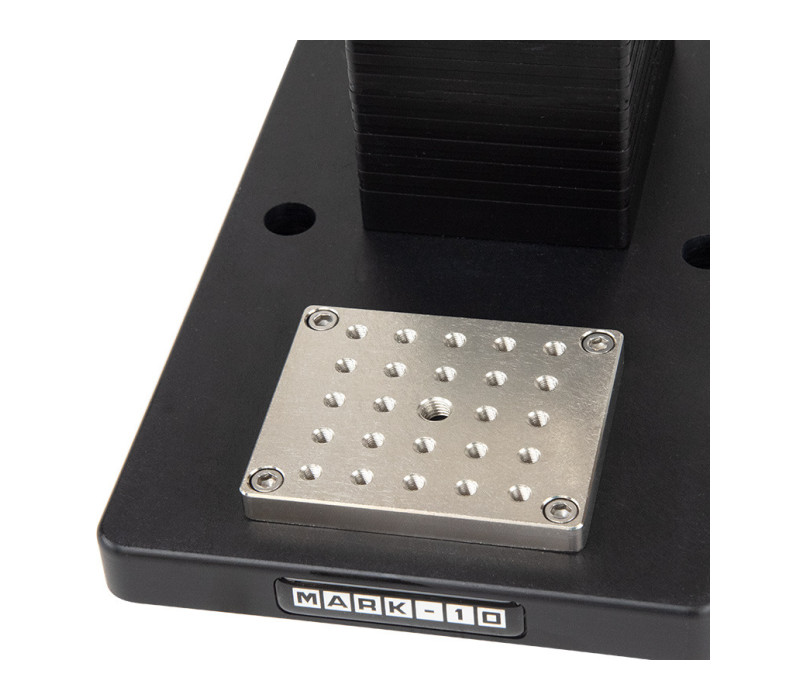

The AC1060 mounting plate contains a matrix of threaded holes for grip and fixture mounting.

ES30 1000N Precision Hand Wheel Operated Force Test Stand

Explore the ES30, a manual test stand designed for tension and compression testing, with a capacity of up to 1000 N and a reach of 330 mm. This model is ideal for a wide range of applications thanks to its manual hand wheel that offers precise movement control and its modular design that allows for versatile configurations.

Key Features:

Capacity and Range: Handles up to 200 lbF with a maximum travel of approximately 13 inches, depending on the equipment used.
Effective Manual Operation: With a side hand wheel for accurate and repeatable tests, adjustable in various configurations.

Special Features:

Extended Compatibility: Use any Mark-10 force gauge along with gripping fixtures to set up a complete testing solution.
Customization Options: Includes digital travel displays and column extensions to accommodate samples of various sizes.

Discover more about how the ES30 test stand can be an effective solution for your measurement needs, contact us.

€ 1.220,00

Order now

Suitable for both tensile and compression testing, accommodating a variety of test types.
Includes mounting holes for secure bench mounting, enhancing stability during use.
Modular design allows for flexible use: the base can be removed to integrate the stand into a larger system or for alternative mounting options.
Maximum force capacity of 1 kN (100 kg / 200 lb), suitable for a wide range of testing requirements.
Features a removable base plate with 25 #10-32 threaded holes, allowing for versatile fixture mounting.
Easily upgradeable to a motorized test stand with the installation of a motor drive kit, providing enhanced functionality.
Comes with a 3-year warranty, ensuring reliability and long-term service.

The ES30 manual test stand comes with the following accessories:

G1009 compression plate, 2” dia.
G1028 small hook
G1030 thread adapter, 5/16-18M to #10-32F
G1038 medium hook
G1039 coupling, #10-32F/F
Hand wheel
4 Thumb screw for force gauge
Allen wrench set

Manual test stand comparison

Model	Force capacity	Maximum test travel	Loading method	Travel rate	Maximum, sample clearance
ES05	150N	38mm	Spring lever	25.4mm per lever turn	223mm
ES10	500N	229mm	Spring lever	26.7mm per lever turn	229mm
ES20	500N	229mm	Upper manual wheel	1.5mm per wheel turn	229mm
ES30	1000N	330mm	Side manual wheel	1.3mm per wheel turn	356mm
TSA750(H)	3750N	95mm (with travel stops) 152mm (without travel stops)	Rack and pinion lever, adjustable in 30° increments	76.2mm per lever turn	Vertical: 267mm Horizontal: 368mm
TSB100	500N	95mm (with travel stops) 152mm (without travel stops)	Rack and pinion lever, adjustable in 30° increments	76.2mm per lever turn	330mm
TSC1000(H)	5000N	89mm	Inline manual wheel	2.5mm per wheel turn	Vertical: 254mm Horizontal: 330mm
TSF(H)	5000N	102mm	Side manual wheel	0.34mm per wheel turn	Vertical: 356mm Horizontal: 459mm
- Maximum test travel and/or free space depend on the grips or accessories used during testing. The dimensions specified are without grips or accessories. - Column extensions available for all models except ES05, ES10, and ES20. - Models marked with (H) are available in both vertical and horizontal versions.

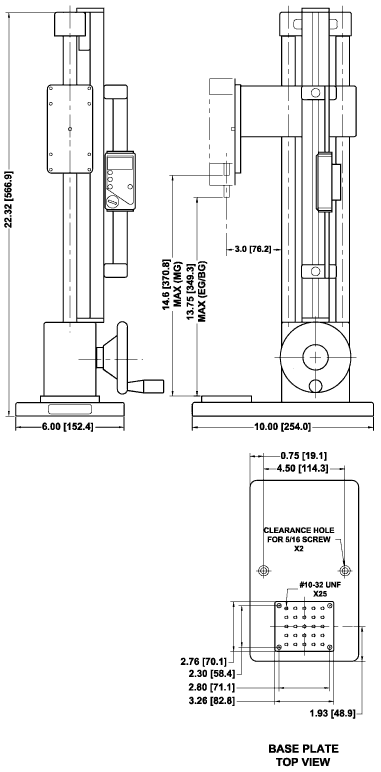

Size measurements for the ES30 Manually operated Force Test Stand

All sizes in inch and (mm)

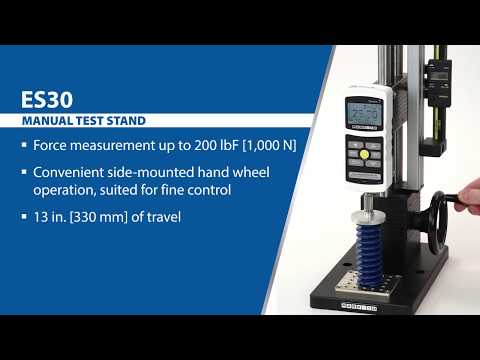

Video

▶

ES30 Data sheet

ES30 User manual

ES30 Solid models

Load capacity:	1000 N (1kN / 100 kg / 200 lb)
Maximum travel:	330 mm (13"), 150mm, 300mm, 600mm extensions available
Travel rate:	1.27 mm (0.05") / hand wheel revolution
Included accessories:	small hook, medium hook, 2" dia. compression plate, and gauge mounting thumbscrews
Dimensions:	152 mm x 254 mm x 567 mm
Weight:	7.7 kg (17 lbs)
Shipping weight	10.4 kg (23 lbs)
Warranty:	3 years

Products

Item	Product	Price	Quantity	Action
126413	ES30 - Manual Test Stand - 200 lbF/1 kN	€ 1.220,00

Accessories

Item	Product	Price
135876	ESM001 - Digital Travel Display for ES30, 6" / 150 mm	€ 884,00
130489	ESM004 - Digital Travel Display for ES30, 12" / 300 mm	€ 1.705,00
131837	ESM003-1 Column extension for ES30, 6” / 150 mm	€ 171,00
131838	ESM003-2 Column extension for ES30, 12” / 300 mm	€ 197,00
131839	ESM003-3 Column extension for ES30, 24” / 600 mm	€ 247,00
136882	AC1060 Base plate with matrix of threaded holes	€ 85,00
137692	M10-TS-MB Metric Base Plate - Metric Threaded Holes, Center M8, others M6	€ 106,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
