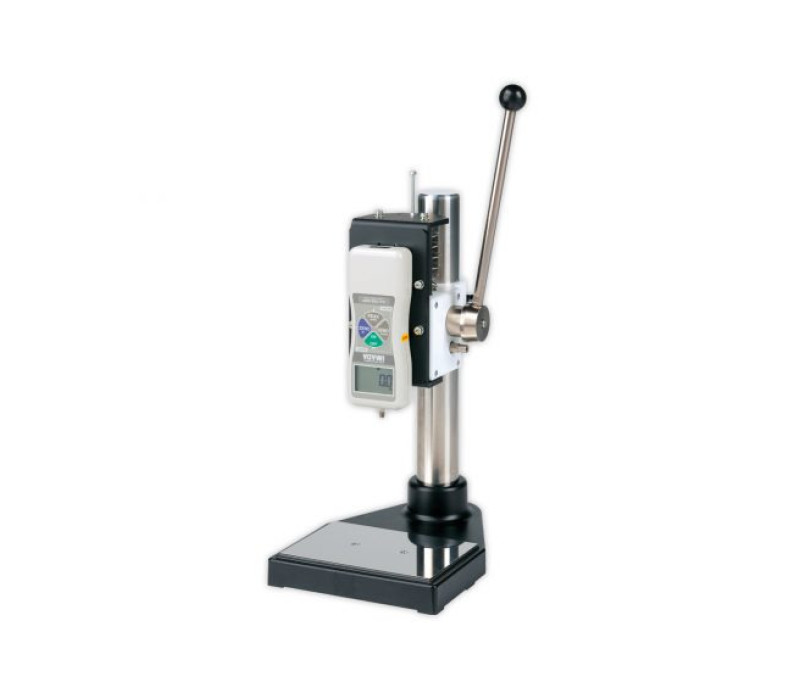

SVL-1000N SVL-1000N Vertical Lever Test Stand

SVL-1000N Vertical Lever Test Stand

Explore the SVL-1000N from Checkline, a vertical test stand with a manual lever designed to measure compression and tension forces. This model stands out for its robust and versatile design, ideal for making precise measurements on a variety of materials.

Key Features:

Capacity and Versatility: Capable of supporting up to 1000 N, the SVL-1000N is perfect for industrial applications, ensuring accurate and consistent measurements.
Functional Design: Equipped with a distance measurement system and a counter unit, this test stand easily adapts to different types of tests and samples.
Compatibility with Dynamometers: Compatible with dynamometers up to 1000 N, including mechanical and electronic models, facilitating integration in various testing environments.

Key Benefits:

Operational Control: The manual lever allows precise control during testing, ideal for applications requiring fine adjustments.
Measurement Versatility: Suitable for both compression and tension tests, offering flexibility in test setups.
Rugged Design: Built to last, the SVL-1000N features a structure that withstands intensive use in industrial and laboratory environments.

Contact us for more information on how the SVL-1000N can adapt to your force measurement needs and enhance your quality control processes.

Price from € 966,00

Order now

Travel Distance: Offers a travel of 60 mm, allowing detailed measurement suitable for a variety of materials.
Adjustable Free Distance: The lever unit is continuously adjustable from 0 to 265 mm, providing great flexibility to accommodate different sample sizes.
Extensive Base Plate: The large base plate facilitates the mounting of a wide variety of clamps and testing devices, increasing the functionality and efficiency of the stand.

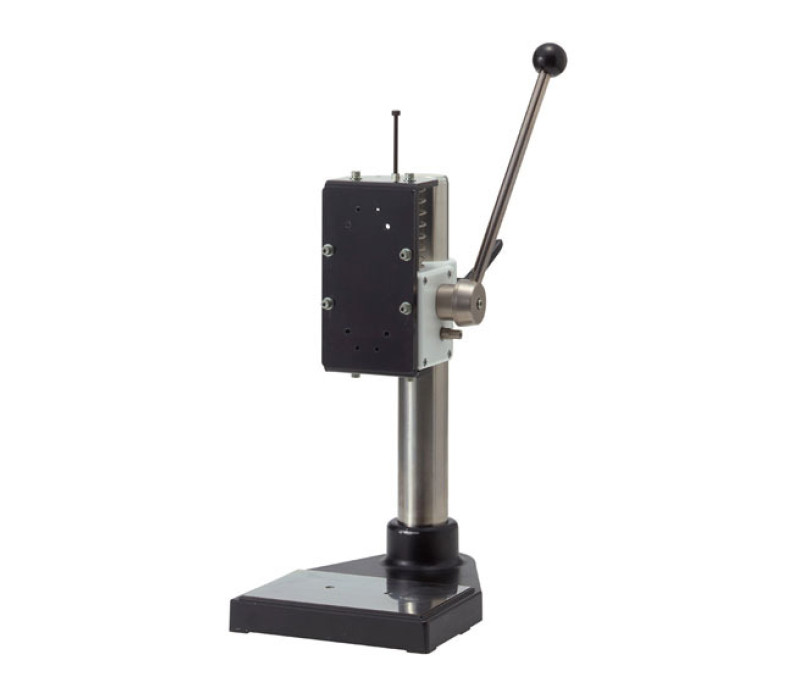

Reversible head

SVL-1000N can be rotated 180 degrees around the column axis so for use without the base interfering on the underside. When located at the edge of workbench, the available working area is unlimited

SVH-220 Vertical Hand Wheel

** (SVH-1000N shown above for illustrative purpose)

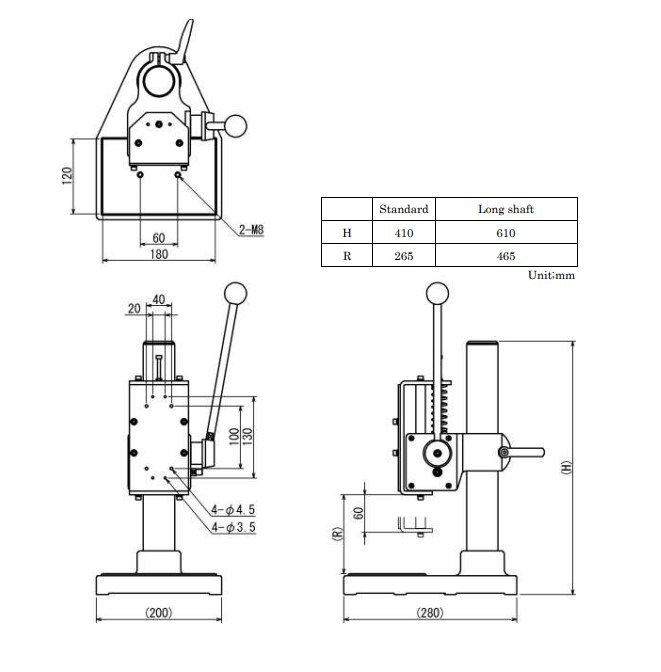

Dimensions SVL-1000N

All sizes in mm

Capacity	Max. 1000N
Travel distance	60 mm
Clearence	0 - 265 mm
Dimensions	200 x 280 x 410 mm (LxWxH)
Weight	Approx. 7.3 kg
Shipping weight	Approx. 9.3 kg

Products

Item	Product	Price
137204	SVL-1000N With lever, stroke 60 mm, max. capacity 1000 N	€ 966,00
140136	SVL-1000N-S Vertical Lever Test Stand with Distance Gauge	€ 1.481,00
140137	SVL-1000N-L Vertical Lever Test Stand with Extended Shaft	€ 1.326,00
140138	SVH-1000N-L Vertical Hand Wheel Test Stand with Extended Shaft	€ 1.326,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
