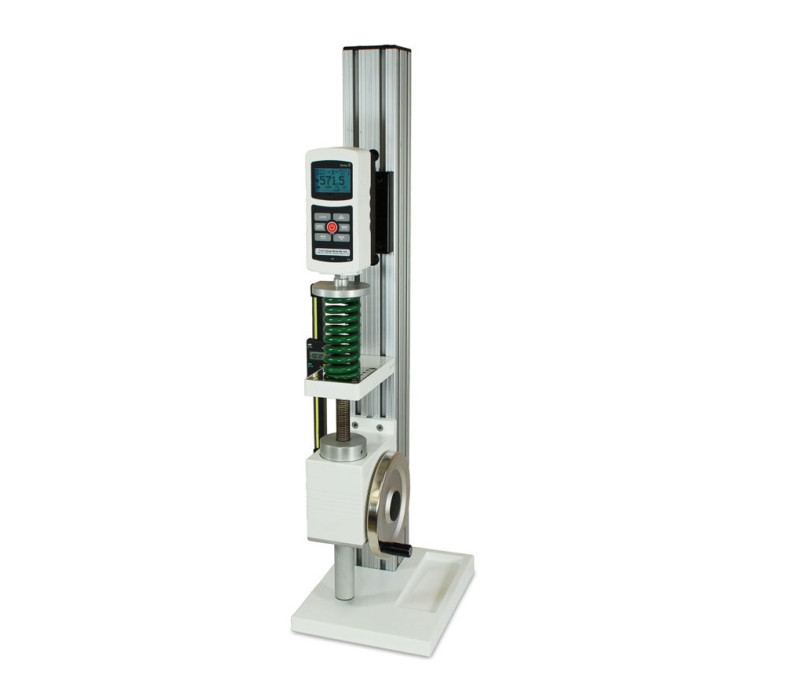

TSF High Capacity Test Stand

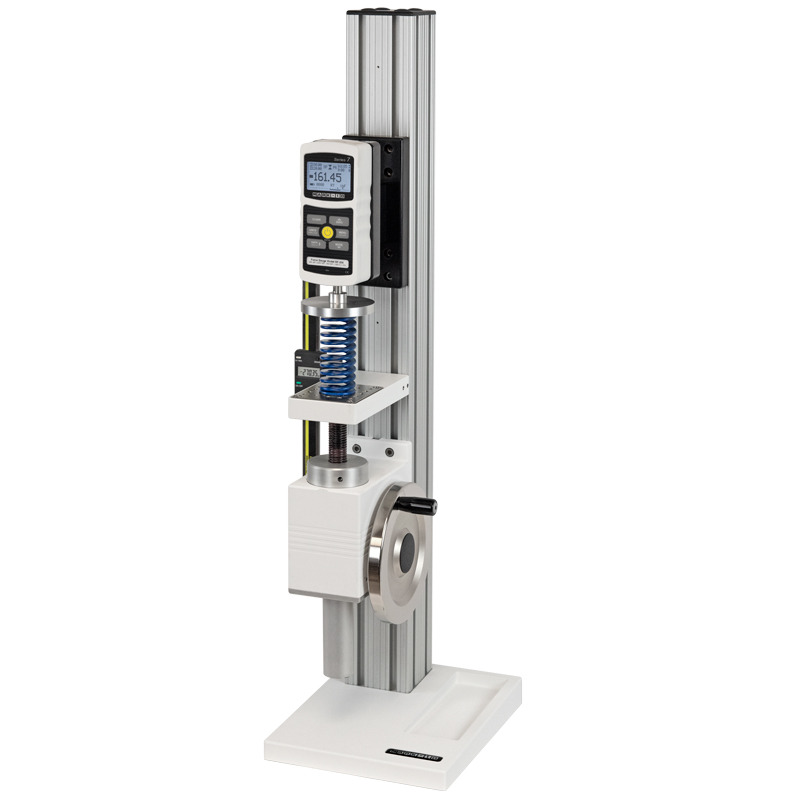

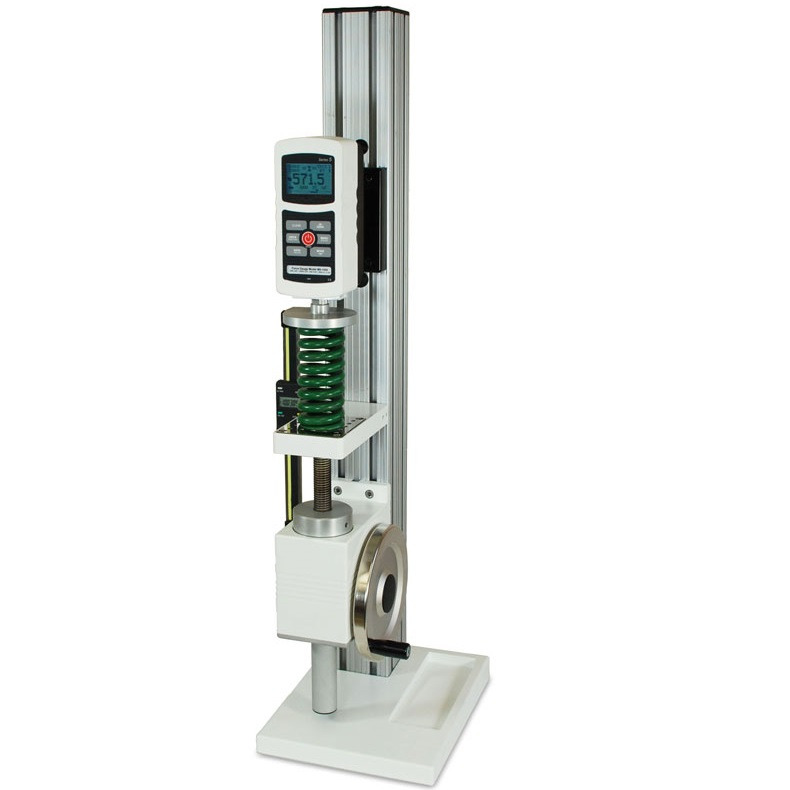

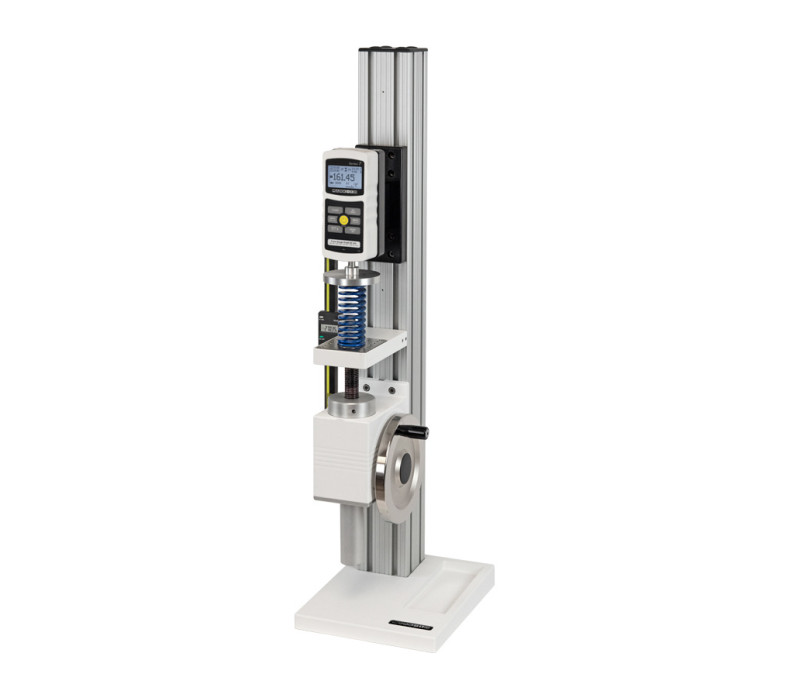

The TSF vertical test stand is shown in a compression spring testing application with Model M7-200 digital force gauge, compression plate, and optional digital travel display.

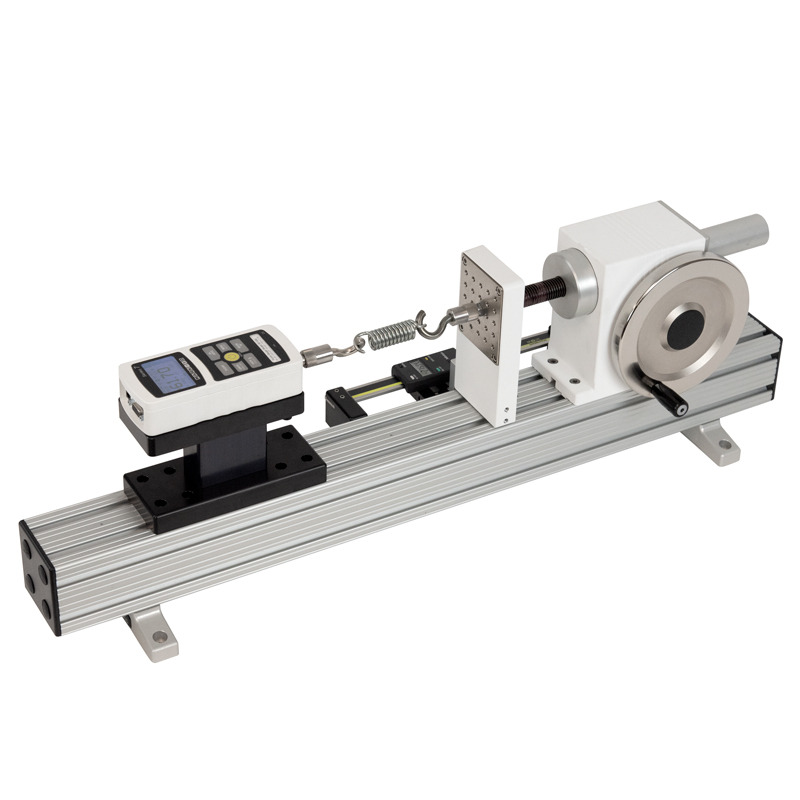

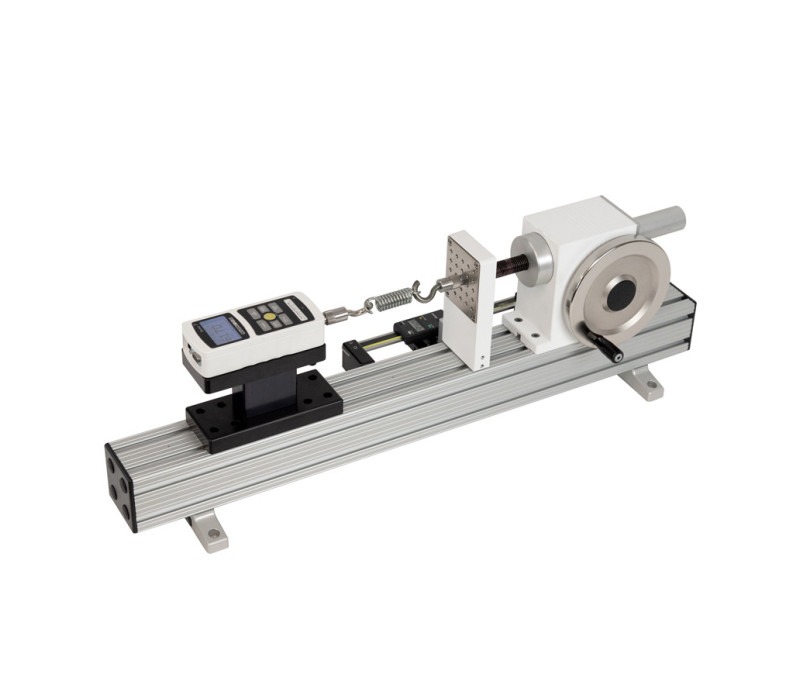

The TSFH horizontal test stand is shown in a tensile testing application with a Model M5-1000 digital force gauge, pair of G1061 wedge grips, and optional digital travel display.

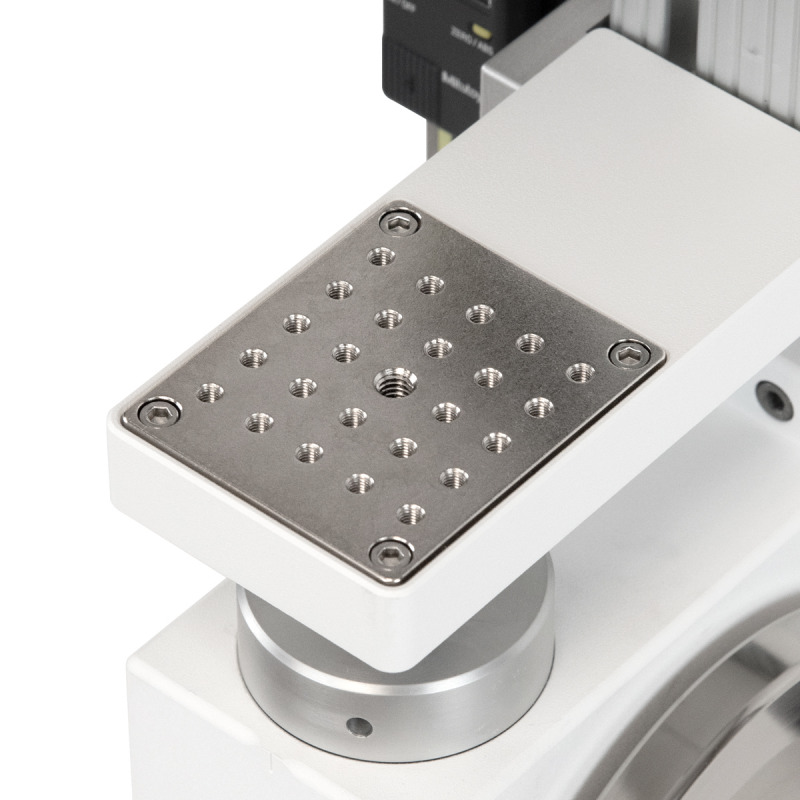

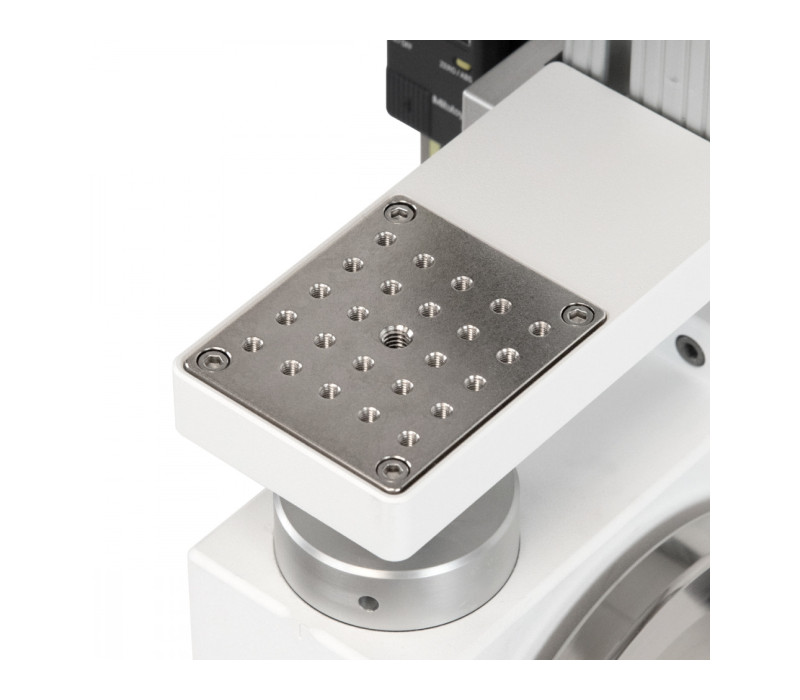

Mounting plate contains a matrix of threaded holes for grip and fixture mounting.

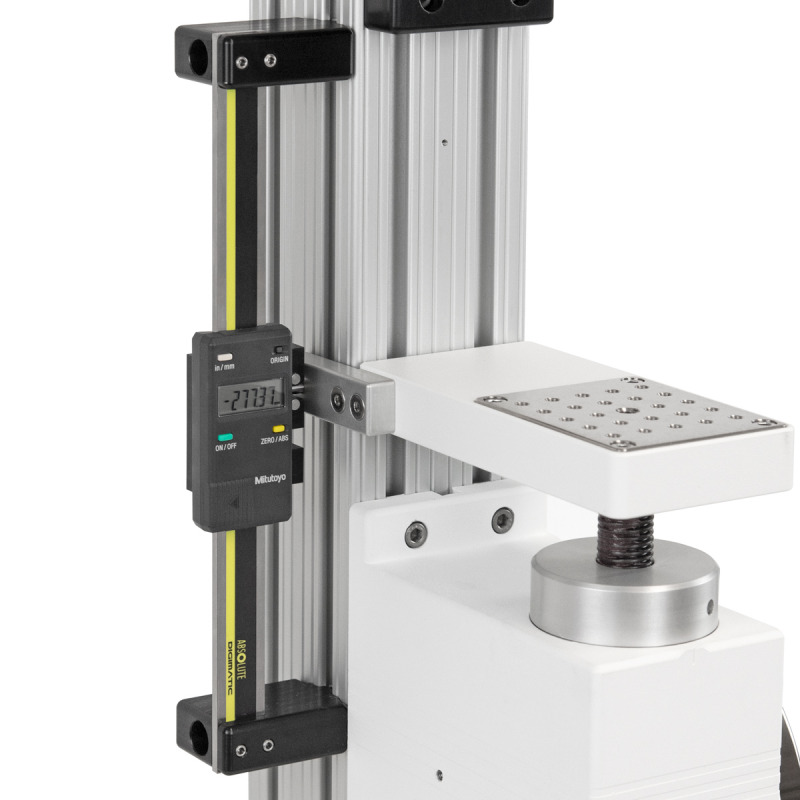

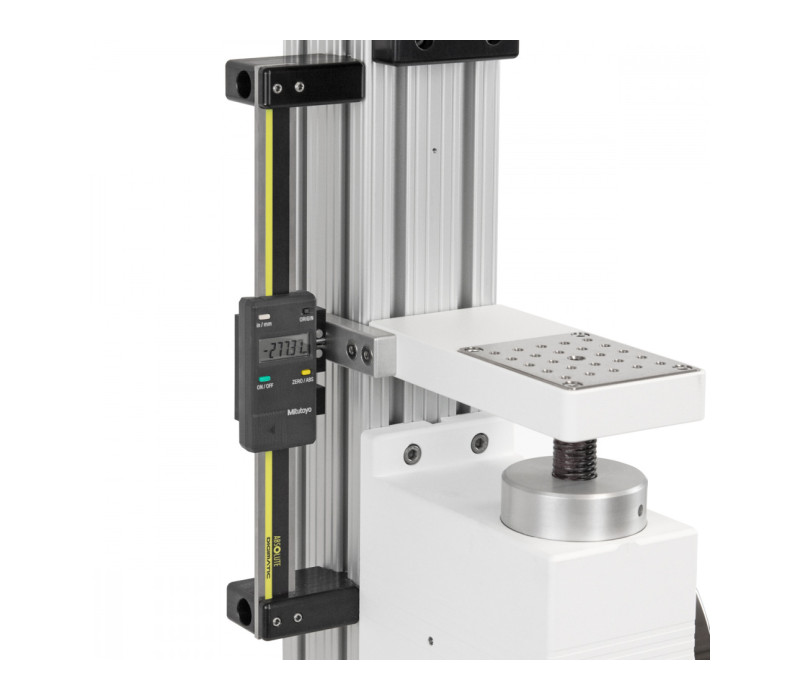

Optional digital travel display option is useful for applications such as tensile testing and spring testing.

TSF/TSFH series manual 5000 N force test stand

Discover the TSF at Checkline, a high-capacity manual test stand that excels in both industrial and laboratory settings. Capable of handling up to 5 kN (5000 N) of force, this stand is ideally suited for a broad range of tests, including destructive and product integrity assessments.

Key Features:

High Capacity and Performance: Capable of supporting significant forces, ideal for both tension and compression testing.
Robust Construction: Features a manually operated hand wheel and a sturdy column, enhancing stability and control during tests.
Versatile Design: Available in both horizontal (TSFH) and vertical (TSF) configurations, this stand is adaptable to diverse applications and environments.

Special Features:

Configuration Flexibility: Offers both vertical and horizontal orientations to suit different workspace setups and testing requirements.
Extensive Compatibility: Accommodates all standard Mark-10 gauges and accessories, enabling custom and precise test setups.
Mounting Flexibility: Features a steel loading surface with threaded holes to accommodate a variety of fixtures and grips.
Precise Motion Control: The side-mounted hand wheel allows for fine adjustments and rapid test actions, optimising efficiency.

Accessories and Options:

Advanced Digitalisation and Automation: Includes options for a digital travel display and versatile mounting kits, enhancing functionality and adaptability.
Optional Digital Displacement Display: Available for automated data collection, improving accuracy and simplifying documentation.
Column Extensions: Enables testing with larger samples, providing greater flexibility without compromising travel distance.

For more detailed information on how the TSF and TSFH test stands can enhance your quality processes and product development, contact us.

€ 2.658,00

Order now

Smooth Hand Wheel Operation for precise control during tests, suitable for both tension and compression settings
Loading Table equipped with 25 #10-32 UNF holes for versatile fixture mounting, accommodating a wide range of test configurations
High Capacity and Travel capable of handling a maximum force of 5 kN (500 kg) with a travel rate of 0.34 mm per wheel revolution and a maximum travel of 102 mm
Versatile Orientation available in both vertical and horizontal configurations to meet diverse workspace and testing requirements
Compatibility fully compatible with all Mark-10 force gauges, accessories, and grips, providing extensive and flexible testing capabilities
Optional Digital Travel Display available to enhance measurement accuracy and visibility, aiding in precise data collection and analysis

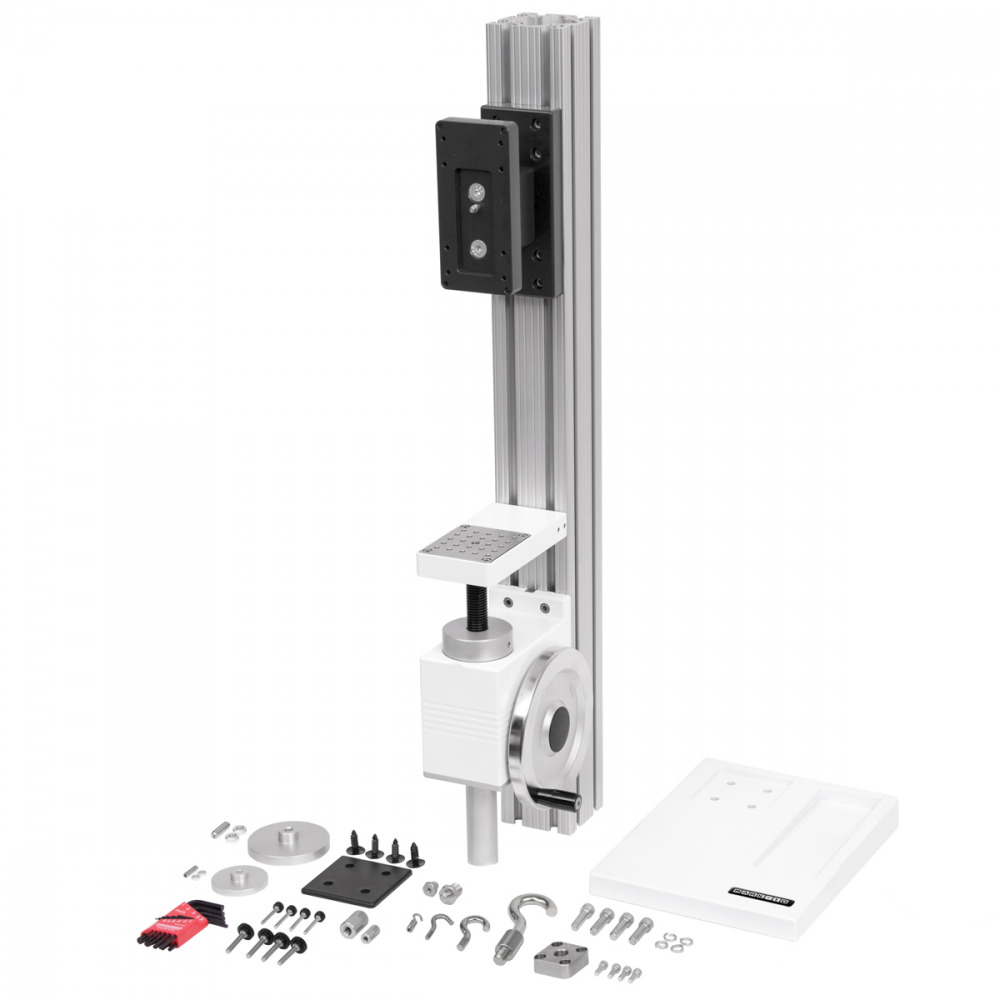

The TSF and/or TSFH test stands come with the following accessories:

G1009 compression plate, 2” dia.
G1009-1 compression plate, 3” dia.
G1028 small hook
G1030 thread adapter, 5/16-18M to #10-32F
G1035 large hook
G1037 coupling, 5/16-18 F/F
G1038 medium hook
G1039 coupling, #10-32 F/F
G1041 thread adapter, 5/16-18M to #1/2-20M
G1042 extra large hook
G1044 1/2-20F adapter plate with mounting hardware
5/16-18 stud with jam nuts
#10-32 stud with jam nuts
Base (TSF)
2 Mounting leg with hardware (TSFH)
Additional column cap with hardware (TSFH)
4 Thumb screw for force gauges with 0.12 - 500 lbF capacities
4 Thumb screw for force gauges with 1,000 - 2,000 lbF capacities
Allen wrench set

Manual test stand comparison

Model	Force capacity	Maximum test travel	Loading method	Travel rate	Maximum, sample clearance
ES05	150N	38mm	Spring lever	25.4mm per lever turn	223mm
ES10	500N	229mm	Spring lever	26.7mm per lever turn	229mm
ES20	500N	229mm	Upper manual wheel	1.5mm per wheel turn	229mm
ES30	1000N	330mm	Side manual wheel	1.3mm per wheel turn	356mm
TSA750(H)	3750N	95mm (with travel stops) 152mm (without travel stops)	Rack and pinion lever, adjustable in 30° increments	76.2mm per lever turn	Vertical: 267mm Horizontal: 368mm
TSB100	500N	95mm (with travel stops) 152mm (without travel stops)	Rack and pinion lever, adjustable in 30° increments	76.2mm per lever turn	330mm
TSC1000(H)	5000N	89mm	Inline manual wheel	2.5mm per wheel turn	Vertical: 254mm Horizontal: 330mm
TSF(H)	5000N	102mm	Side manual wheel	0.34mm per wheel turn	Vertical: 356mm Horizontal: 459mm
- Maximum test travel and/or free space depend on the grips or accessories used during testing. The dimensions specified are without grips or accessories. - Column extensions available for all models except ES05, ES10, and ES20. - Models marked with (H) are available in both vertical and horizontal versions.

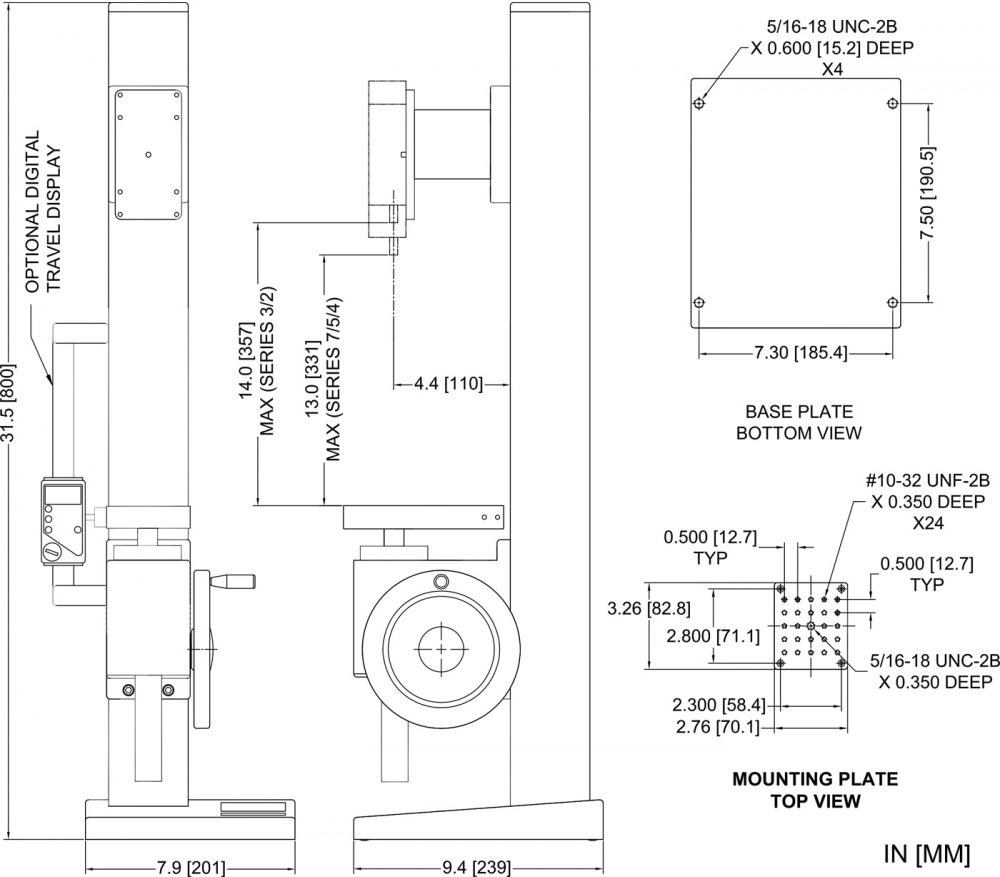

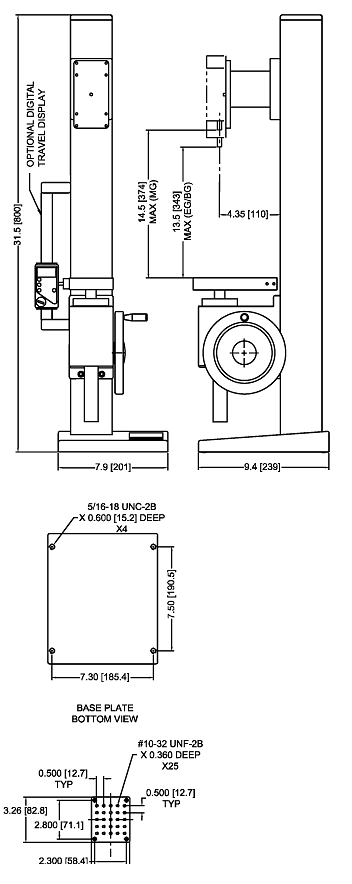

Size measurements for the TSF Manually operated Force Test Stand

All sizes in inch and (mm)

Column extensions of 305, 610 and 1065 mm available. (does not increase the travel distance)

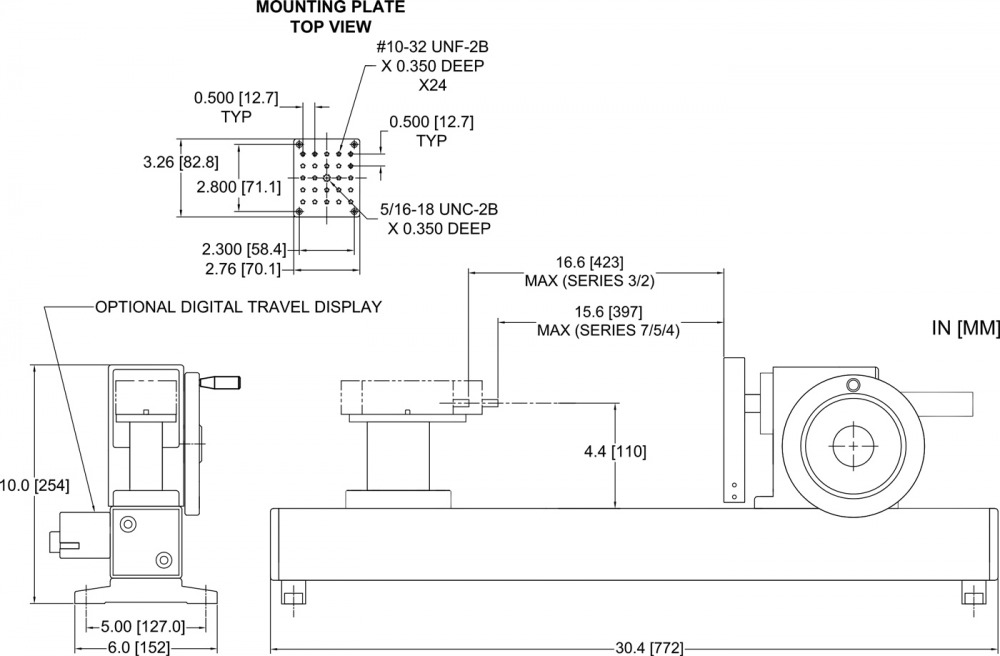

Size measurements for the TSFH Manually operated Force Test Stand

All sizes in inch and (mm)

Column extensions of 305, 610 and 1065 mm available. (does not increase the travel distance)

Capacity:	5.0 Kn (1,000lbs)
Maximum Travel:	100 mm (13.5")
Dimensions:	152mm x 203 mm x 660mm (6"W x 8"D x 26"H)
Travel Rate:	0.34 mm (0.013") / wheel revolution
Weight:	TSF: 16.3 kg TSFH: 13.6 kg
Shipping weight	Approx. 19,5 (43 lbs)
Warranty:	3 years

Products

Item	Product	Price	Quantity	Action
131915	TSF Handwheel-operated Test stand, 1000 lbF/5000 N, vertical	€ 2.658,00
131916	TSFH Handwheel-operated Test stand, 1000 lbF/5000 N, horizontal	€ 2.658,00

Accessories

Item	Product	Price
131863	TSF001 Digital travel display for Series TSF stands	€ 904,00
131904	TSF002 Horizontal/wall mounting kit for Series TSF and TST stands	€ 248,00
140064	SP-2735-12 Column Extension, 12 in. / 305 mm for TSF/TSFH	€ 211,00
140092	SP-2735-24 Column Extension, 24 in. / 610 mm for TSF/TSFH	€ 271,00
140093	SP-2735-42 Column Extension, 42 in. / 1065 mm for TSF/TSFH	€ 588,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
