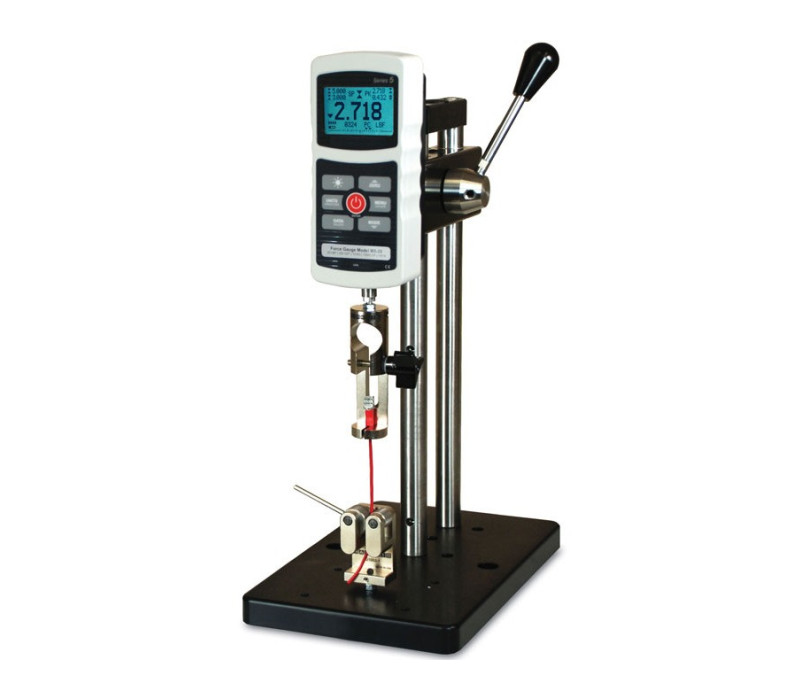

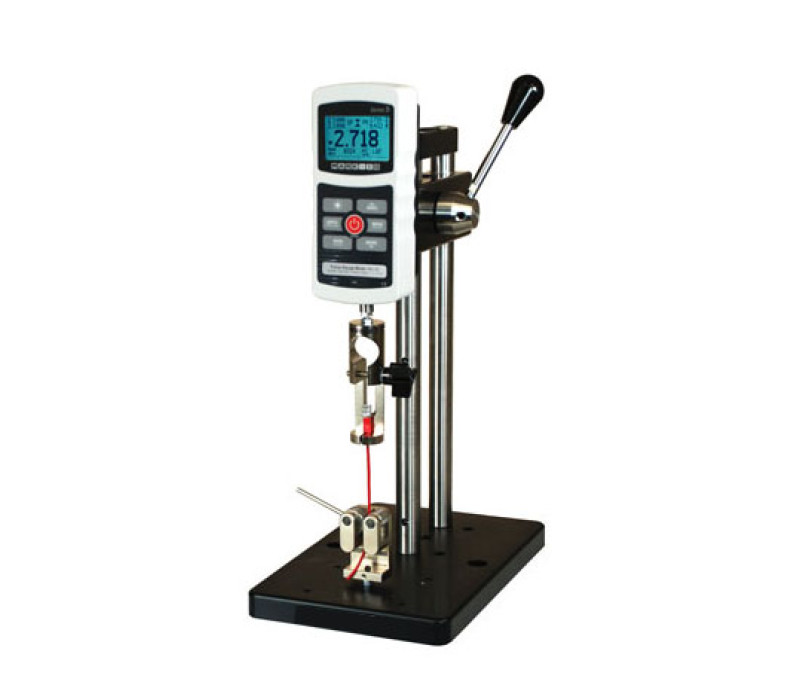

ES10 Lever Operated Force Measurement Test Stand


Discover the ES10, a manually operated test stand ideal for applications requiring precise measurements and efficient space usage. This device is perfect for compression and tension testing with a range of up to 38mm, easily adapting to various samples.

Highlighted Features:

  • Capacity and Construction: Capable of measuring up to 150 N, constructed with an adjustable lever mechanism for different sample sizes.
  • Total Compatibility: Designed for use with Mark-10 force gauges and other devices, ensuring versatility and precision.



Practical Advantages:

  • Compact and Portable: Ideal for laboratories with limited space or for mobile applications such as field audits.
  • Diverse Uses: From switch activation testing to peel testing, offering multiple functionalities.



Contact us to learn more about how the ES10 test stand can be integrated into your quality processes.


Features

  • Compact and lightweight design ensures easy handling and suitability for small spaces.
  • Includes mounting holes for stable and secure bench mounting.
  • Loading lever can be adjusted to three positions, enhancing operational ease and flexibility.
  • Suitable for measuring tensile and compression force.
  • Features a large baseplate with 5 #10-32 UNF holes for versatile fixture mounting.
  • Optional 25.4mm (1") dial indicator travel kit available to enhance measurement capabilities.
  • Compatible with our HP Series Durometers, allowing for broad application use.
  • Competitor force gauge mounting kits also available, providing additional versatility.

Complete Kit

The ES10 Manual Force Test Stand comes with:

  •  Allen wrench set
  •  Lever
  • 4 Thumb screws for force gauge


Manual test stand comparison

Model Force capacity Maximum test travel Loading method Travel rate Maximum, sample clearance
ES05 150N 38mm Spring lever 25.4mm per lever turn 223mm
ES10 500N 229mm Spring lever 26.7mm per lever turn 229mm
ES20 500N 229mm Upper manual wheel 1.5mm per wheel turn 229mm
ES30 1000N 330mm Side manual wheel 1.3mm per wheel turn 356mm
TSA750(H) 3750N 95mm (with travel stops)
152mm (without travel stops)
Rack and pinion lever, adjustable in 30° increments 76.2mm per lever turn Vertical: 267mm
Horizontal: 368mm
TSB100 500N 95mm (with travel stops)
152mm (without travel stops)
Rack and pinion lever, adjustable in 30° increments 76.2mm per lever turn 330mm
TSC1000(H) 5000N 89mm Inline manual wheel 2.5mm per wheel turn Vertical: 254mm
Horizontal: 330mm
TSF(H) 5000N 102mm Side manual wheel 0.34mm per wheel turn Vertical: 356mm
Horizontal: 459mm
- Maximum test travel and/or free space depend on the grips or accessories used during testing. The dimensions specified are without grips or accessories.
- Column extensions available for all models except ES05, ES10, and ES20.
- Models marked with (H) are available in both vertical and horizontal versions.

Dimensions

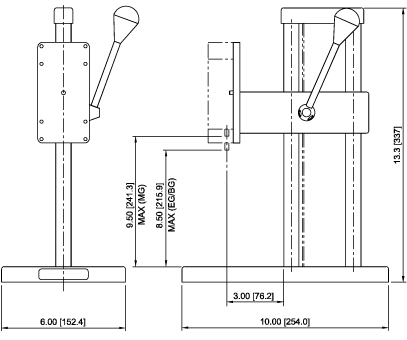

Dimensions-ES10


Size measurements for the ES10 Manual Force Test Stand

All sizes in inch and (mm)


Related Products

Series-3 Digital Force Gauge


  • High-speed 2.000 Hz sampling rate
  • USB data output of continuous or individual data points

More details

Series-3  Digital Force Gauge

Series-4 Advanced Digital Force Gauges


  • High-speed 3.000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs

More details

Series-4  Advanced Digital Force Gauges

Series-5 Advanced Digital Force Gauge


  • ±0,1% accuracy
  • High-speed 7.000 Hz peak sampling rate
  • 1.000-point data memory with statistics and outputs

More details

Series-5  Advanced Digital Force Gauge

Accessories

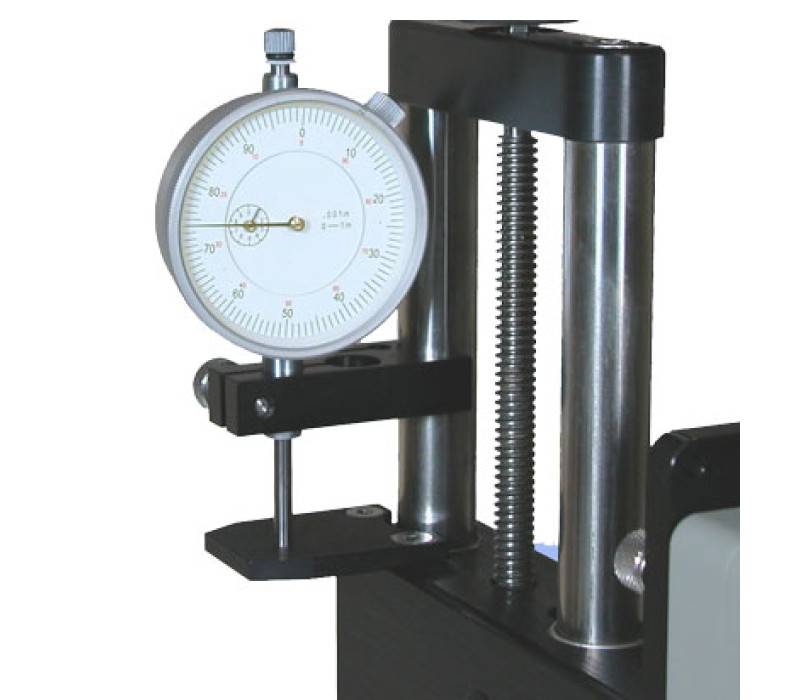

ES001 Dial Indicator / Distance Meter


  • Displays up to 1" of displacement
  • Resolution of 0.001"

More details

ES001 Dial Indicator / Distance Meter 126739

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 0

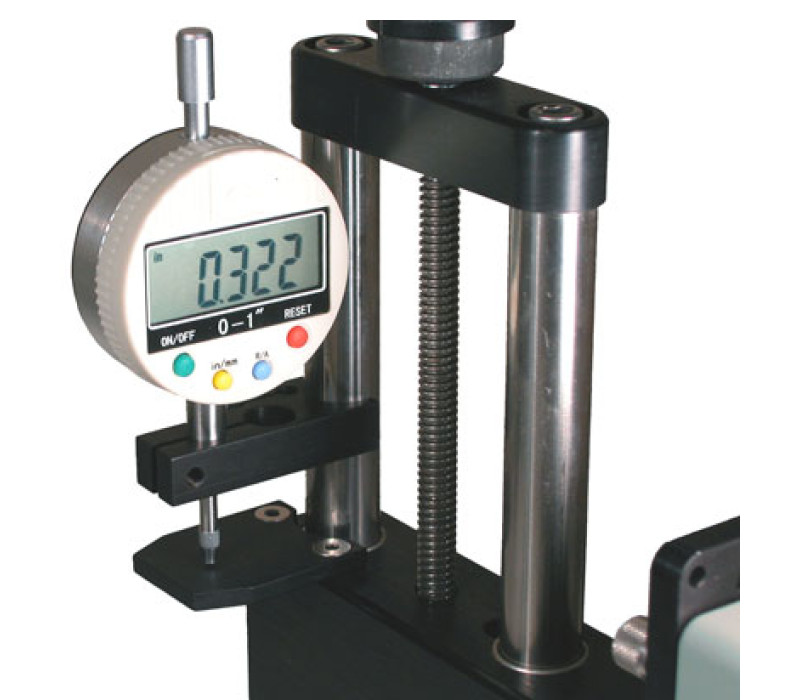

ES002 Digital Indictator / Distance Meter


  • Displays up to 1" (25.4mm) of displacement
  • Resolution of 0.0005" (0.01 mm)

More details

ES002 Digital Indictator / Distance Meter 126740

Video


Downloads

Specifications

Load capacity:500 N (50 kg / 100 lb)
Maximum travel:229 mm (9")
Dimensions:152 mm x 254 mm x 338 mm (6" x 10" x 13.3") - W x D x H
Loading Method:Lever (can be placed in 3 positions for easy operation)
Travel Rate:26,7 mm (1.05") / lever revolution
Weight:4,5 kg (10 lb)
Warranty:3 years
Shipping weight5,4 kg (12 lb)

Buy Now

Product

Product
Price
Quantity
126412
ES10 - Manual Test Stand - 100 lbF/500 N
€ 764,00

Accessories

Product
Price
Quantity
131906
ES001 - Analog Dial indicator kit for ES10/ES20
€ 162,00
130406
ES002 - Digital indicator kit for ES10/ES20, 1" / 25 mm
€ 379,00
133347

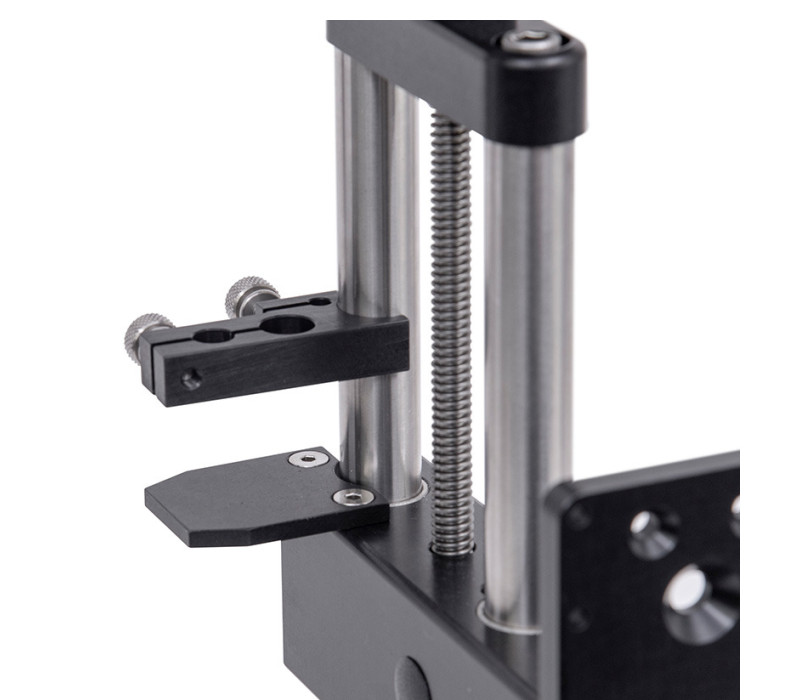

ES001NI Set of brackets for indicator 9.5 mm dia. stem
€ 134,00
136791
ES001NI-8MM Set of brackets for indicator 8 mm dia. stem
€ 134,00
136882

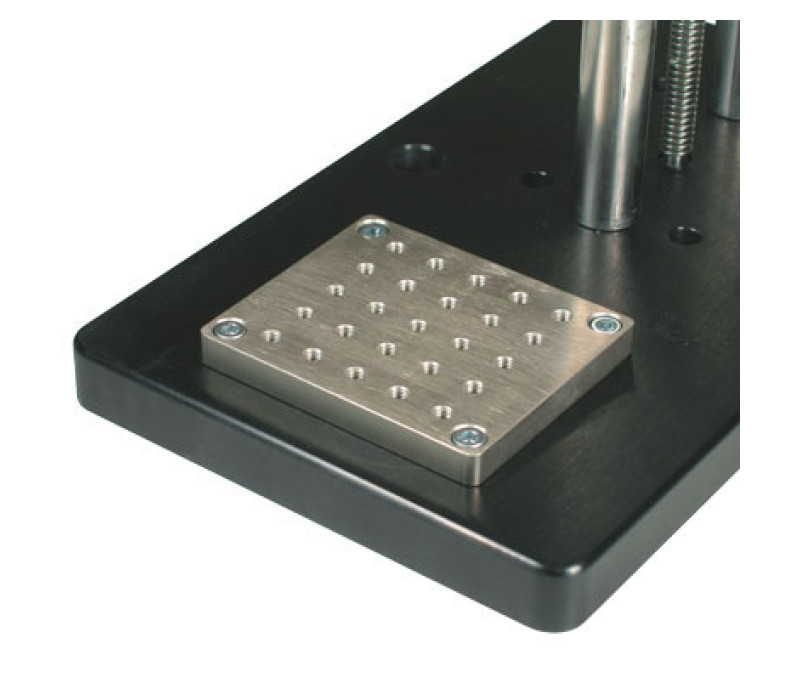

AC1060 Base plate with matrix of threaded holes
€ 88,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
