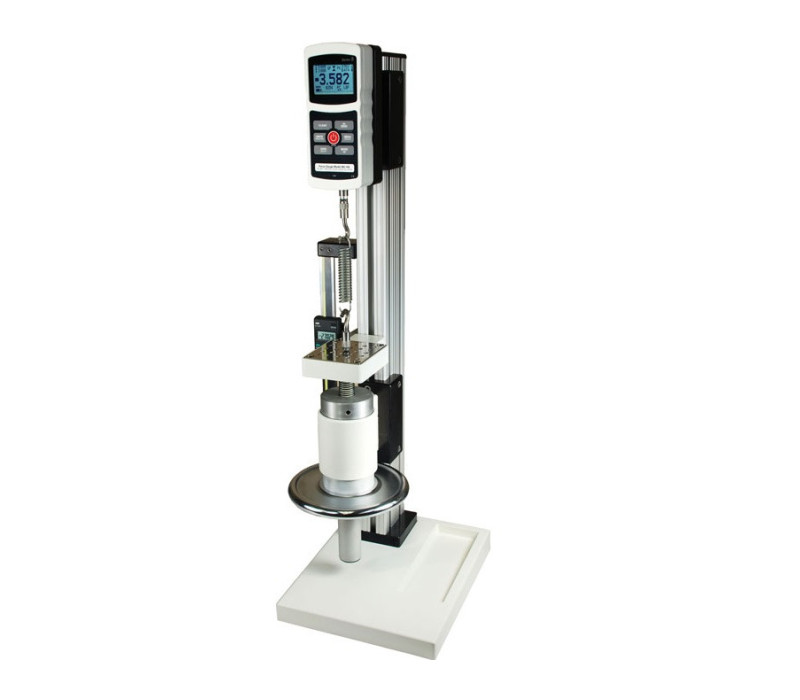

    TSC/TSCH1000 Manual Precision Force Measurement Test Stand

    Discover the TSC, a manual test stand that combines robustness and precision, ideal for applications in both industrial environments and laboratories. This stand facilitates tensile and compression testing with a significant maximum capacity, thanks to its manual operation that ensures precise control during testing.

    Key Features:
    • High Force Capacity: Capable of conducting tests up to 5 kN, the TSC is suitable for a variety of materials and applications, designed to handle significant loads.
    • Robust Construction: Constructed with high-quality materials, the TSC ensures durability and consistent performance under intensive use conditions.
    Special Features:
    • Mounting Flexibility: Offers options for bench or wall mounting, making it adaptable to different workspace setups.
    • Broad Compatibility: Compatible with all Mark-10 dynamometers and accessories, allowing for custom and precise test configurations.
    Key Benefits:
    • Ease of Use: Equipped with a large manual hand wheel and precision lead screw, the TSC provides smooth and exact movement control, facilitating detailed and meticulous testing operations.

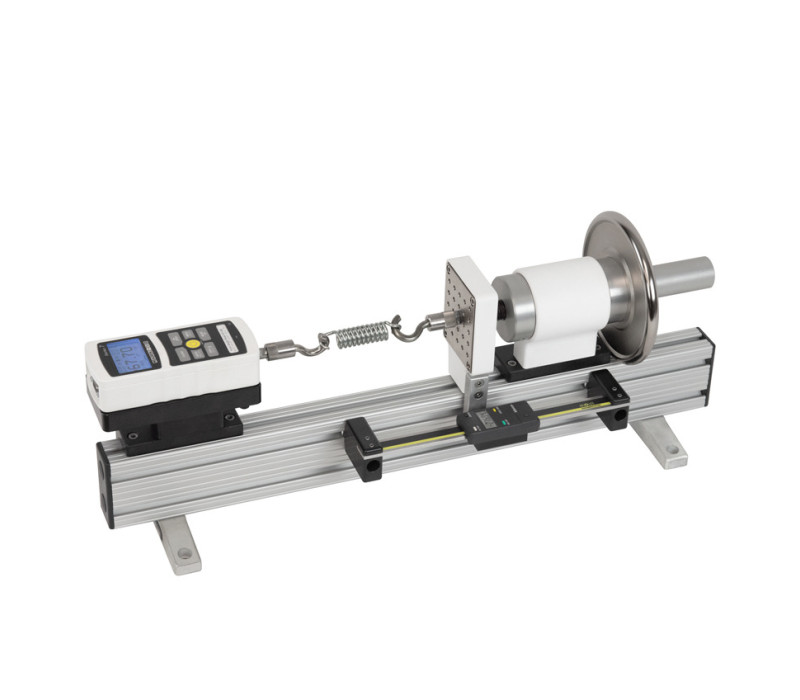

    • Configuration Versatility: Available in both vertical (TSC1000) and horizontal (TSCH1000) configurations, the TSC adapts to the specific testing needs of various industries.


    For more information on how the TSC test stand can enhance your quality processes and product development, contact us.
    € 1.865,00
    Order now
    • Combines high precision with a significant 5 kN capacity, making it suitable for a wide range of testing requirements.
    • Features a precision Acme screw and nut, ensuring smooth and accurate operation.

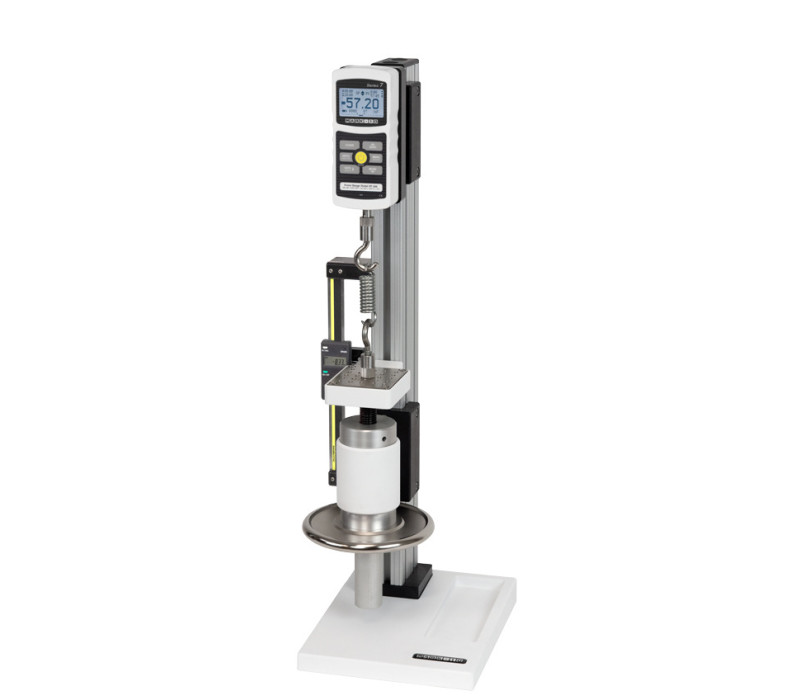

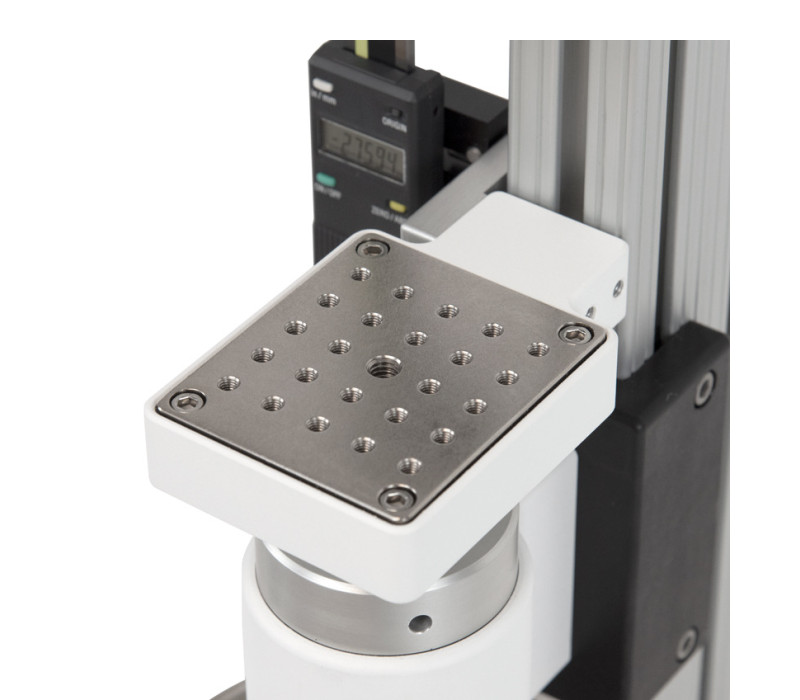

    • Includes a loading table with 25 #10-32 UNF holes, which allows for versatile fixture mounting.
    • Comes with mounting holes for secure and stable bench mounting, enhancing reliability during use.
    • Compatible with all Mark-10 force gauges, fixtures, and grips, ensuring extensive usability across various testing setups.

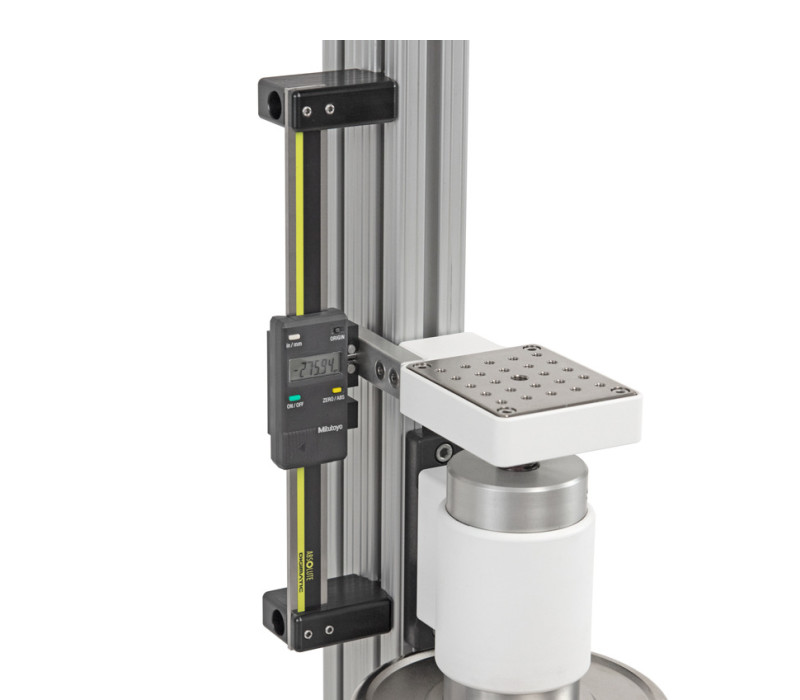

    • An optional digital travel display is available, enhancing measurement visibility and accuracy.
    Complete Kit

    The TSC1000 and/or TSC1000H test stands come with the following accessories:

    • G1009 compression plate, 2” dia.
    • G1009-1 compression plate, 3” dia.
    • G1028 small hook
    • G1030 thread adapter, 5/16-18M to #10-32F
    • G1035 large hook
    • G1037 coupling, 5/16-18 F/F
    • G1038 medium hook
    • G1039 coupling, #10-32 F/F
    • G1041 thread adapter, 5/16-18M to #1/2-20M
    • G1042 extra large hook
    • G1044 1/2-20F adapter plate with mounting hardware
    • 5/16-18 stud with jam nuts
    • #10-32 stud with jam nuts
    • Base (TSC1000)
    • 2 Mounting leg with hardware (TSC1000H)
    • Additional column cap with hardware (TSC1000H)
    • 4 Thumb screw for force gauges with 0.12 - 500 lbF capacities
    • 4 Thumb screw for force gauges with 1,000 - 2,000 lbF capacities
    • Allen wrench set

    Manual test stand comparison

    Model Force capacity Maximum test travel Loading method Travel rate Maximum, sample clearance
    ES05 150N 38mm Spring lever 25.4mm per lever turn 223mm
    ES10 500N 229mm Spring lever 26.7mm per lever turn 229mm
    ES20 500N 229mm Upper manual wheel 1.5mm per wheel turn 229mm
    ES30 1000N 330mm Side manual wheel 1.3mm per wheel turn 356mm
    TSA750(H) 3750N 95mm (with travel stops)
    152mm (without travel stops)    		 Rack and pinion lever, adjustable in 30° increments 76.2mm per lever turn Vertical: 267mm
    Horizontal: 368mm
    TSB100 500N 95mm (with travel stops)
    152mm (without travel stops)    		 Rack and pinion lever, adjustable in 30° increments 76.2mm per lever turn 330mm
    TSC1000(H) 5000N 89mm Inline manual wheel 2.5mm per wheel turn Vertical: 254mm
    Horizontal: 330mm
    TSF(H) 5000N 102mm Side manual wheel 0.34mm per wheel turn Vertical: 356mm
    Horizontal: 459mm
    - Maximum test travel and/or free space depend on the grips or accessories used during testing. The dimensions specified are without grips or accessories.
    - Column extensions available for all models except ES05, ES10, and ES20.
    - Models marked with (H) are available in both vertical and horizontal versions.

    Dimensions-TSC
    TSC
    Dimensions-TSC

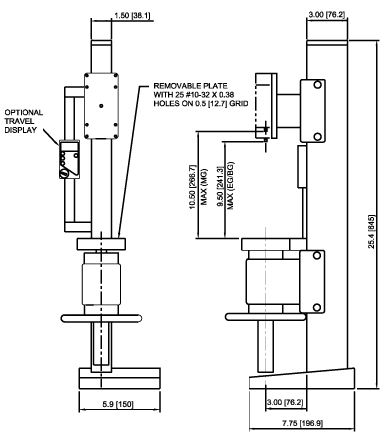

    Size measurements for the TSC1000 Manually operated Force Test Stand

    All sizes in inch and (mm)

    Column extensions of 305, 610 and 1065 mm available. (does not increase the travel distance)

    TSCH
    Dimensions-TSCH

    Size measurements for the TSC1000H Manually operated Force Test Stand

    All sizes in inch and (mm)

    Column extensions of 305, 610 and 1065 mm available. (does not increase the travel distance)

    TSC1000 Data sheet
    TSC1000 User manual
    TSC1000 Solid models
    TSC1000H Solid models
    Load capacity:5 kN (500kg / 1,000 lb)
    Maximum travel:89 mm (3.5”)
    Dimensions:152 mm x 203 mm x 660 mm (6”W x 8”D x 26”H)
    Travel Rate:2,5 mm (0.1") per revolution
    Weight:TSC1000 11.3 kg (25 lbs)
    TSC1000H 9,1 kg (20 lbs)
    Shipping weightTSC1000 13.6 kg (30 lbs)
    TSC1000H 12,7 kg (28 lbs)
    Waranty3 years

    Related Products

    Browse Related Products

    Series-3 Digital Force Gauge

    Series-3 Digital Force Gauge

    Series-4 Advanced Digital Force Gauges

    Series-4 Advanced Digital Force Gauges

    Series-5 Advanced Digital Force Gauge

    Series-5 Advanced Digital Force Gauge

    Accessories

    Browse Accessories

    AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands
    AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands

    Order Now

    Products
    Item Product Price  Quantity Action
    131913TSC1000 Handwheel-operated Test stand, 1000 lb/4500 N, vertical € 1.865,00
    131099TSC1000H Handwheel-operated Test stand, 1000 lb/4500 N, horizontal € 1.865,00
    Accessories
    Item Product Price  Quantity Action
    131914TSC001 - Digital travel display for TSC1000(H), 6"/150 mm € 753,00
    131909TSA002 - Horizontal/wall mounting kit for TSA750/TSC1000 € 174,00
    140091SP-2734-12 Column Extension, 12 in. / 305 mm for TSA/B/C € 211,00
    140090SP-2734-24 Column Extension, 24 in. / 610 mm for TSA/B/C € 271,00
    138108SP-2734-42 Column Extension, 42 in. / 1065 mm for TSA/B/C € 372,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
