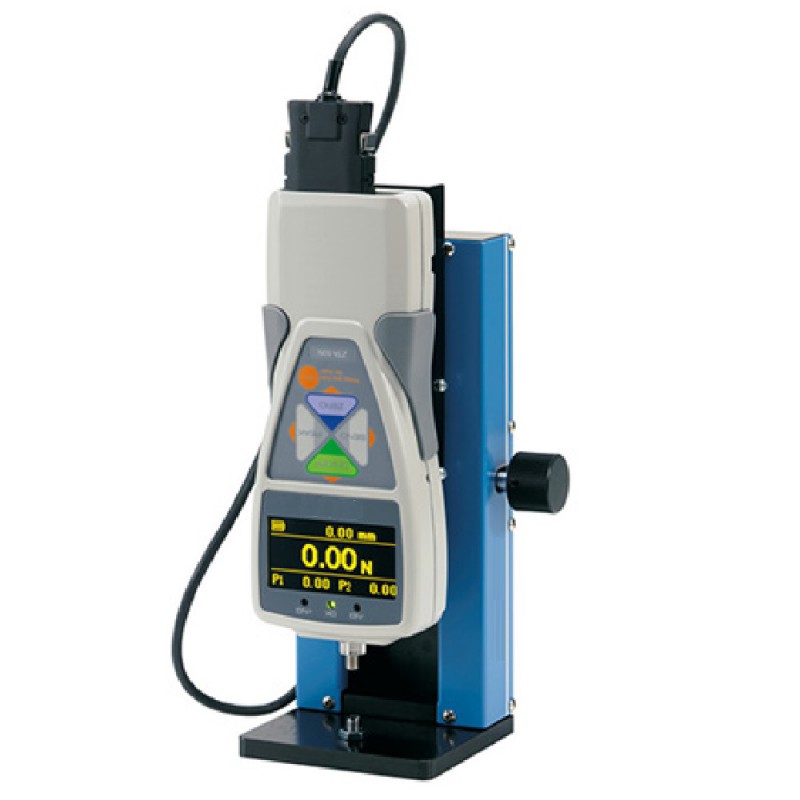

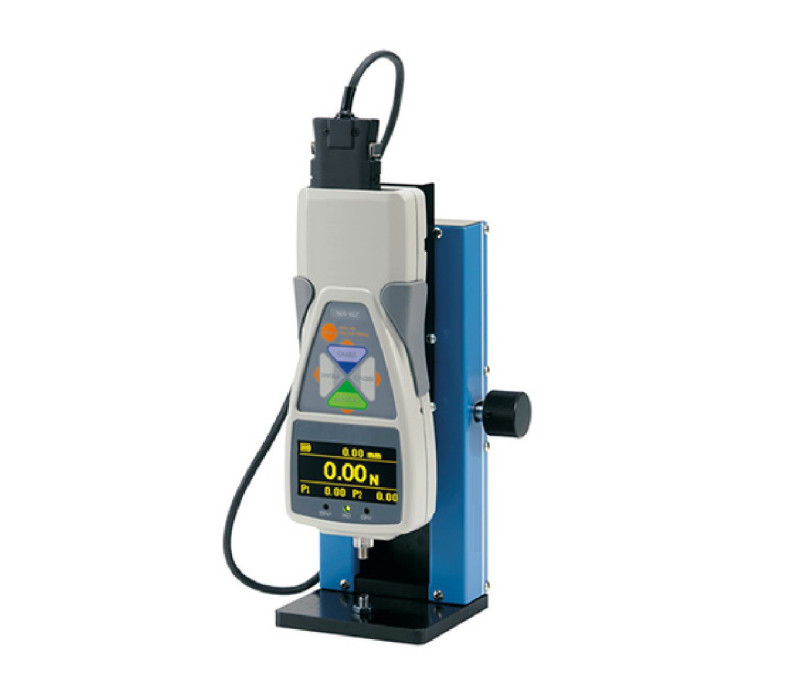

FSA-MSL: Force-Displacement Measurement Unit

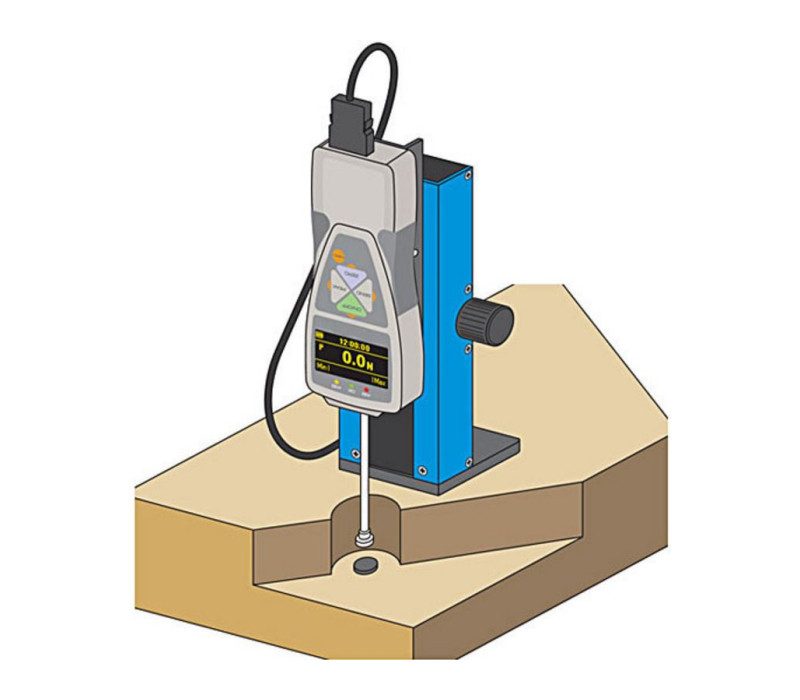

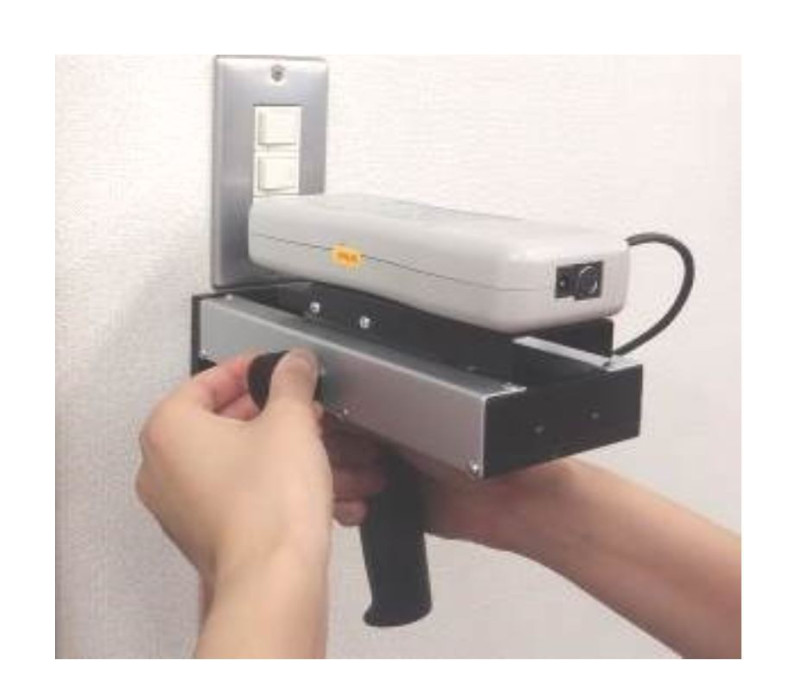

Explore the FSA-MSL at Checkline, a portable force and displacement tester designed to perform precise measurements on materials such as switches, cushions, metals, and tapes. This device is perfect for tests requiring minimal displacement, offering a compact and easy-to-handle solution in any setting, from desks to production lines.
Key Features:- Measurement Versatility: Capable of measuring forces up to 50N with options for 2N, 5N, 20N, and 50N.
- Compact and Ergonomic Design: Its small size and space-saving design make it ideal for use on crowded workbenches or on the move.
- High-Visibility EL Display: Enhances the readability of force and displacement values, with menus in eight languages for quick and simple setup.

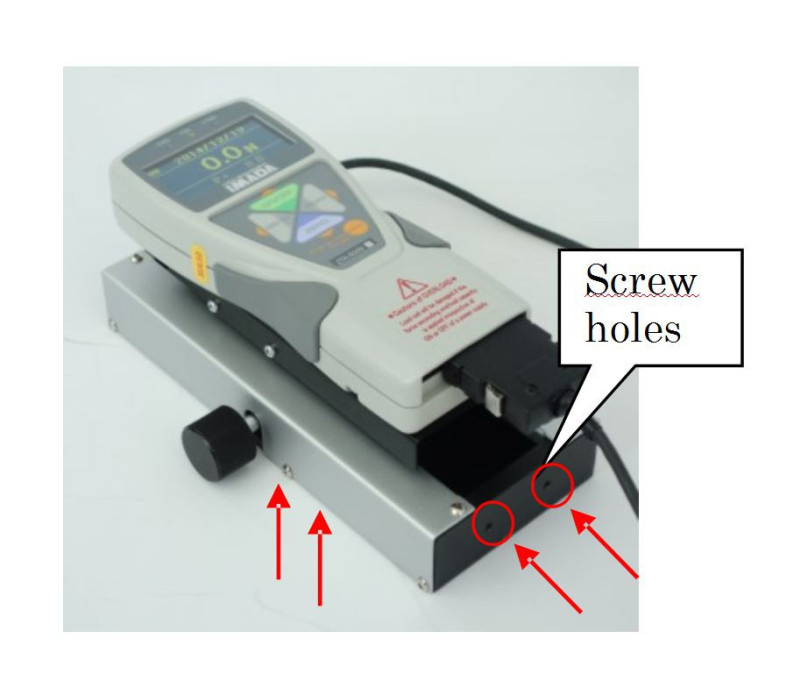

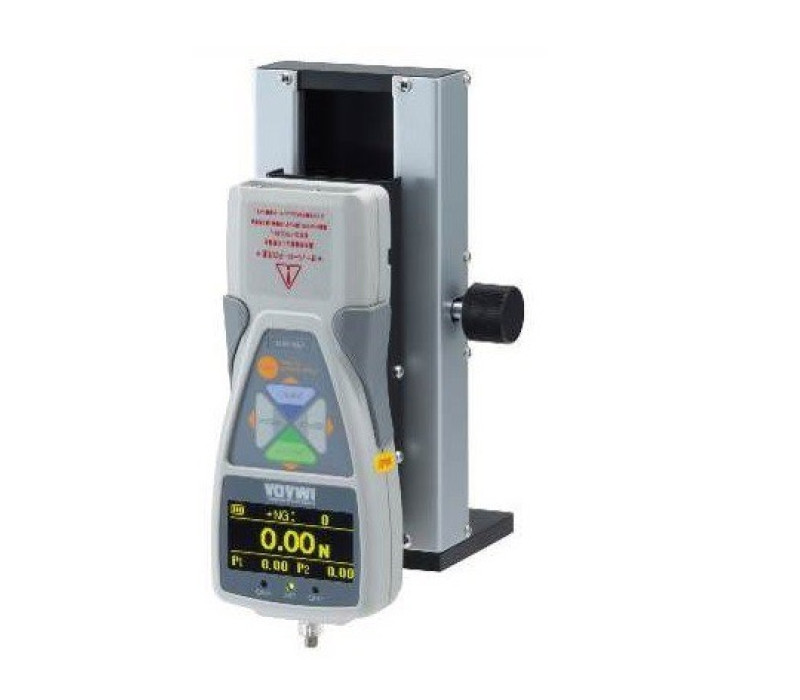

- Customisable Test Configuration: Offers displacement stops and mounting options that add flexibility for various testing applications.
- High Precision Measurements: Equipped with advanced technology to provide accurate and consistent readings.
- Ease of Use: Designed to be intuitive and straightforward, enabling quick and efficient measurements anywhere.
- Exceptional Portability: Lightweight and compact, this unit can be easily transported between different work areas.
Contact us to learn how the FSA-MSL can be an integral part of your testing processes, providing high precision measurements and ease of use.
Features
- Included Software: Comes with Force Recorder (Professional Version) Software to capture force vs distance data at up to 2000hz.
- Multilingual Compatibility: Program menus available in English, Spanish, French, Chinese, German, Italian, Korean, and Japanese.
- Versatile Data Outputs: Includes USB, RS-232C, Digimatic, and analog outputs, facilitating integration with other systems.
- Certifications: Comes with a NIST-compliant calibration certificate, with an optional ISO-17025 certificate available.
All Models are sold as a complete system. System includes,
- Test stand
- Force gauge
- Set of six measuring attachments
- AC adapter/charger
- 3-Point Certificate traceable to NIST
- Plastic carrying case
- English owners manual
(ISO Certificates are available at an additional charge)
Dimensions
FSA-MSL Series
All sizes are in mm and (inch)
| Ranges | lbf | kgf | N |
|---|---|---|---|
| FSA-MSL-0.4 | 7ozf | 200.0 gf | 2N |
| FSA-MSL-1 | 18 ozf | 500.0 gf |
5N |
| FSA-MSL-2 | 2,2 lbf | 1000 kgf | 10N |
| FSA-MSL-4 | 4.4 lbf | 2.000 kgf | 20N |
| FSA-MSL-11 | 11 lbf | 5.000 kgf | 50N |
Specifications
| Accuracy | Force: ±0.2% F.S. ±1 digit Displacement: ±0.1mm ±1 digit (under no load) |
| Selectable Units | Newtons, kgf (gf) or lbf (ozf) |
| Overload Capacity | 200% of F.S. (Overload indicator flashes beyond 110% of F.S.) |
| Power | Rechargeable Ni-MH battery pack or AC adapter |
| Battery Indicator | Indicates three charge states high, med and low |
| Memory | Non-volative, recall up to 1,000 data |
| Setpoints | Programmable high/low setpoints w/ color-coded LEDs & output signal |
| Outputs | Outputs USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output |
| Display | 4-digit Organic EL |
| Display update | 10 / sec |
| Sampling rate | 2000 data / sec at maximum |
| Weight | 1,2 kg |
| Dimensons | 204 x 109,4 x 72 mm |
| Warranty | 1 year |
| Resolution | Force: 4 digit (e.g. Resolution of 5N force gauge is 0.001N) Displacement: 0.001mm (on Force Recorder Pro) 0.01mm (on force gauge display) |
| Ranges (select one) | 2N, 5N, 10N, 20N, or 50N |
| Stroke | Approx: 80mm max. |

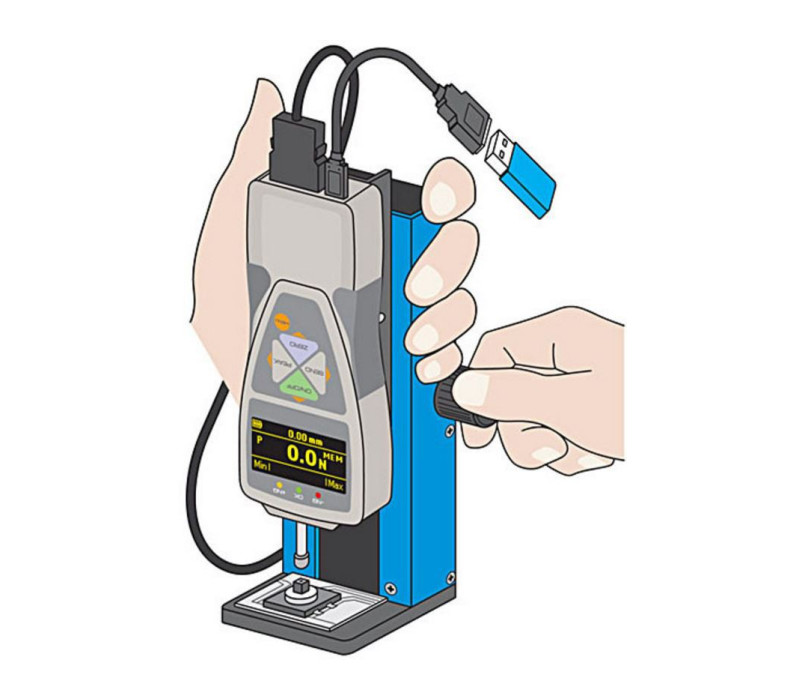

| Travel | Manual knob, 18mm per 1 complete turn |
