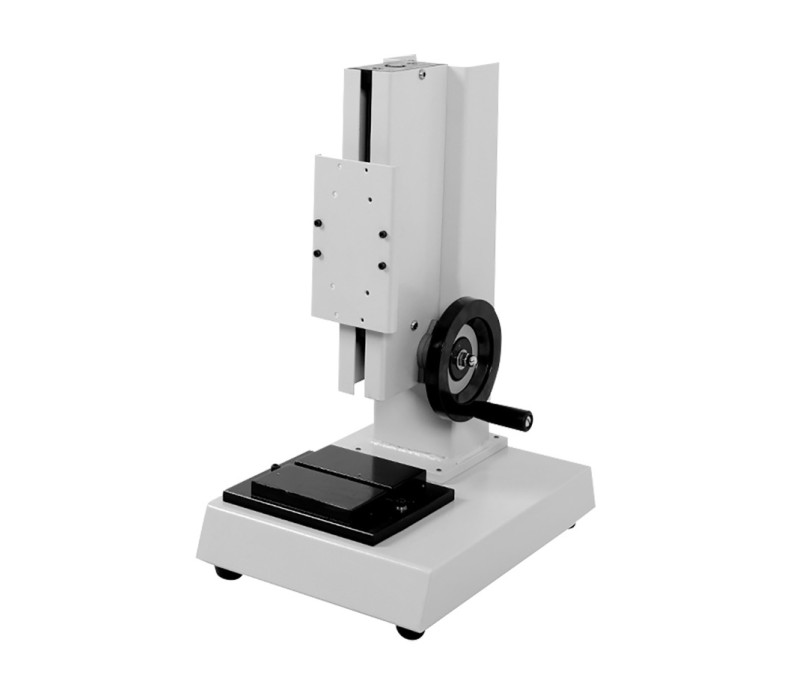

FGS-200W Manual Test Stand with Handwheel

Important Note: The FGS-100H Manual Hand Wheel Operated Test Stand has been discontinued and replaced by the FGS-200W Manual Test Stand with Handwheel.

The FGS-200W(-EX) manual test stand is specifically designed to deliver optimal performance with both mechanical and digital dynamometers in varied industrial environments and laboratories. With its robust structure and wide, stable base, this test stand facilitates a broad range of push-pull, compression, tension, and destructive testing.

Available Versions:

FGS-200W: Manual test stand with handwheel.
FGS-200W-EX: Manual test stand with handwheel, extended height version.

Features:

Compact and Lightweight Design: Its small size is perfect for use in various settings, from laboratories to production spaces.
Precise Control: The side handwheel allows meticulous adjustment of movement, crucial for high-precision testing.
High Capacity: Suitable for handling loads up to 100 kg (220 lb), making it versatile for various industrial applications.
Quick and Efficient Setup: Equipped with a slot that includes two M6 threaded sliding connectors, facilitating the installation and setup of tests.

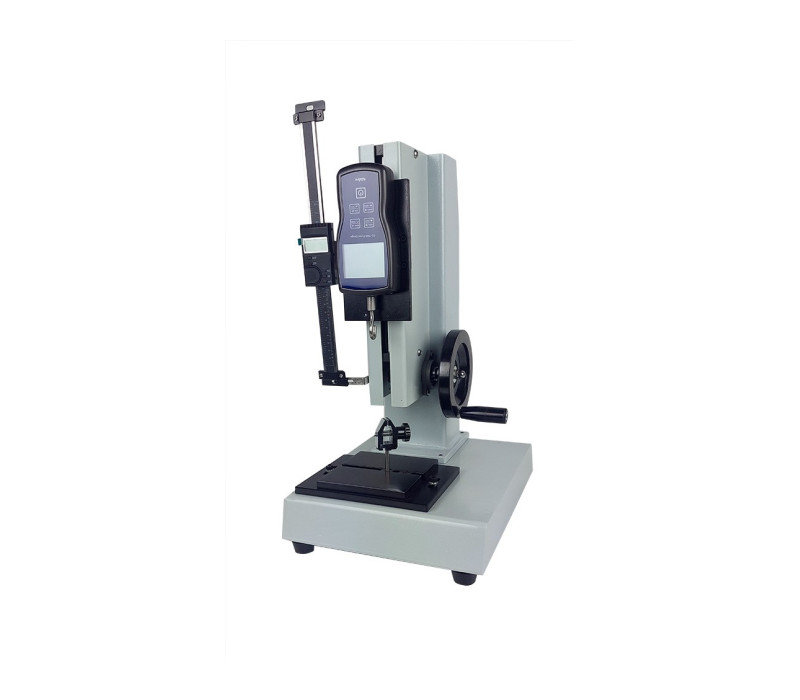

Option for Digital Scale: Availability of a digital scale kit for detailed displacement tracking (sold separately).

Key Benefits:

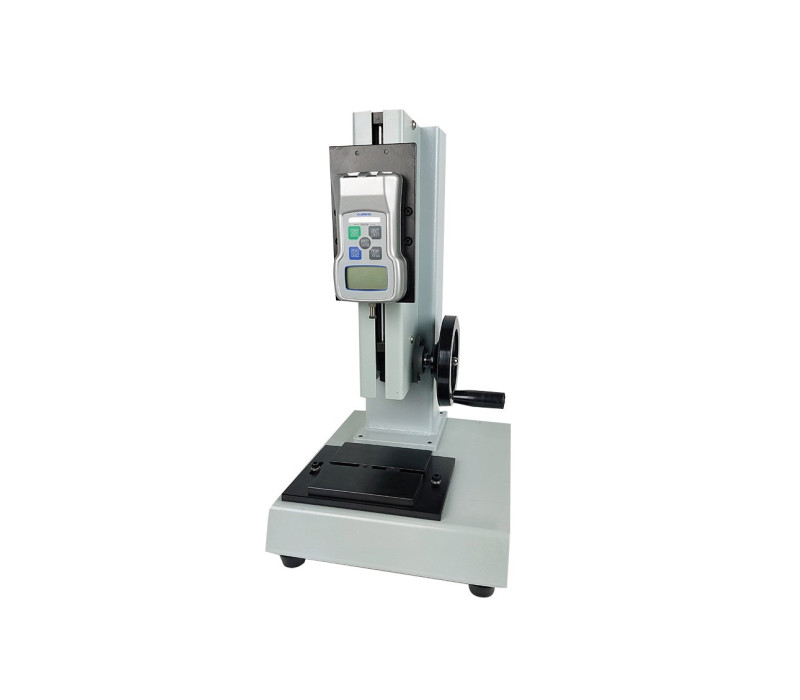

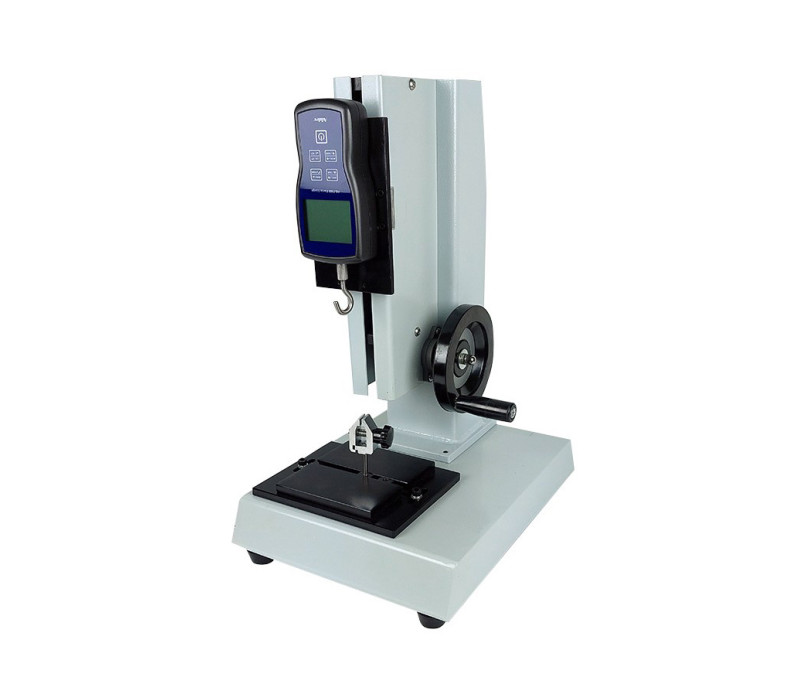

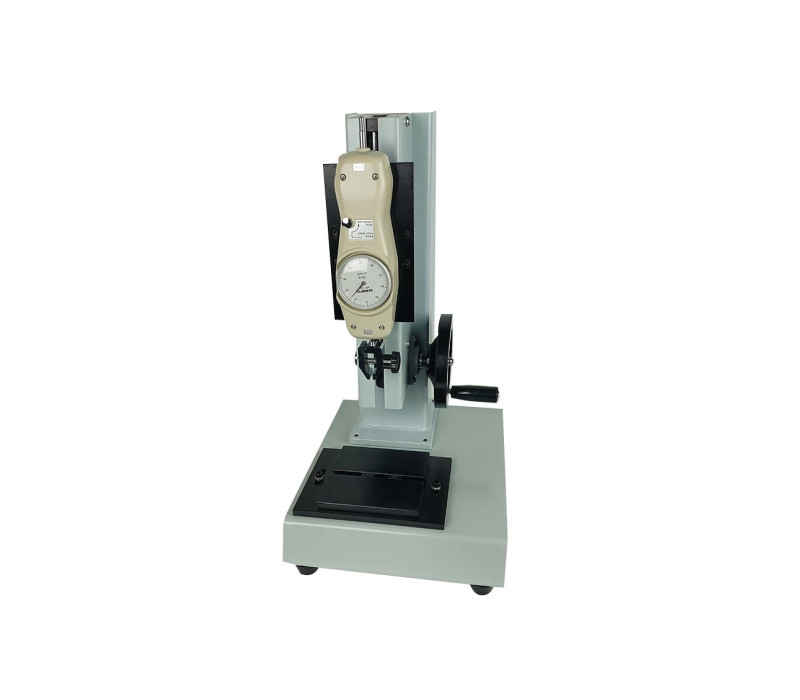

High Flexibility: Compatible with various types of dynamometers, both mechanical and digital, for a wide range of force testing applications.
Assured Performance: Its robust construction ensures durability and reliability in repetitive and precision measurements.

Contact Us for more information on the FGS-200W and how it can enhance the efficiency and precision of your push and pull tests.

Accessory Integration: Easy to add different types of grips or accessories, optimizing the bench for various tests and applications.
Mobility and Stability: Its base equipped with a four-direction adjustment mechanism allows precise and quick alignment, improving operational efficacy.

Accessories included:

FGS-200W(-EX) Hand-Wheel Operated Manual Force Test Stand
Flat Chuck Grip,
M6 x M6 male 45 mm threaded base connector,
Gauge and bracket mounting screws and bolts,
Allen wrenches
Mounting brackets and screws for digital scale (Digital Scale FGS-200W-DSK sold seperately)

Capacity	100 kg
Travel / Stroke	180 mm
Travel Pitch	1.5 mm per revolution of the hand wheel
Clearance	FGS-200W: 285,75 mm FGS-200W-EX: 570 mm
Weight	FGS-200W: 18 kg FGS-200W-EX: 30 kg
Dimensions	FGS-200W: 260 x 352 x 490 mm FGS-200W-EX: 260 x 352 x 780 mm

Products

Item	Product	Price	Quantity	Action
140094	FGS-200W Manual Hand Wheel Operated Force Measurement Test Stand
140097	FGS-200W-EX Manual Hand Wheel Operated Force Measurement Test Stand, Extended Height

Accessories

Item	Product	Price	Quantity	Action
140096	FGS-200W-DSK - Digital Distance Meter for FGS-200W Manual Force Test Stand

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
