    Analog Tension Meters

    Analog tension meters show running-line tension on a calibrated dial, needing no batteries and giving an immediate read for quick setup and spot checks on thread, yarn and wire. Robust and simple, they trade data output and peak capture for low cost and reliability, with tension range and roller configuration the main choices.

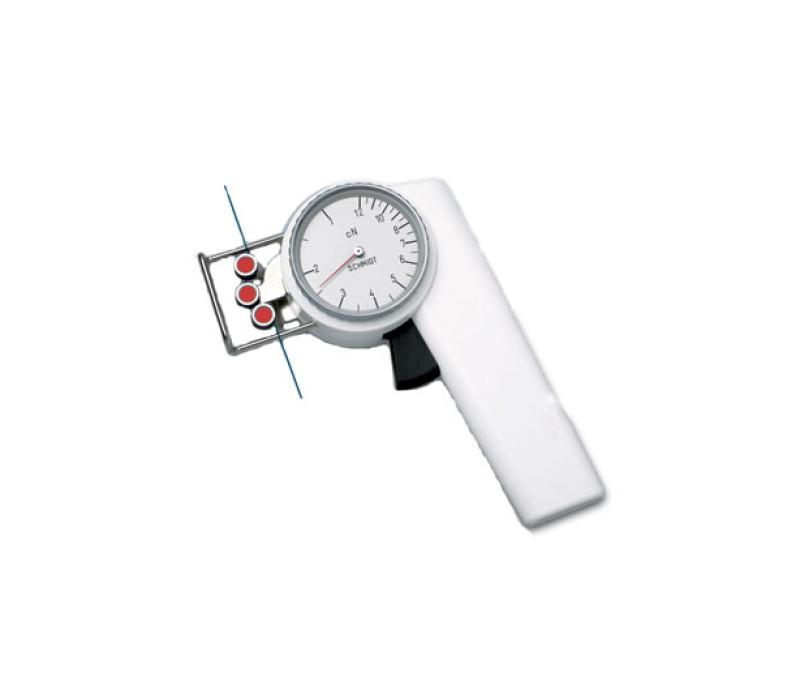

    Product: ZF2 Product: ZF2

    ZF2 Economical tension meter for fiber, yarn and wire testing

    • Most popular tension meter in the textile industry with small rollers
    • Economical low tension measuring instrument for checking fibers, yarns and fine wires
    • Tension ranges
      from 1 - 5 cN
      to 10 - 100 cN

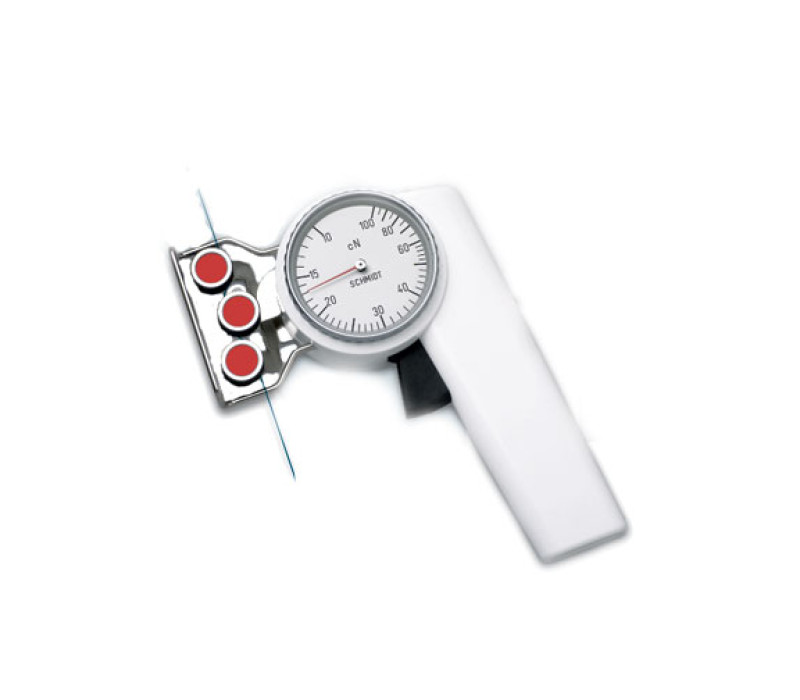

    Product: ZD2 Product: ZD2

    ZD2 Universal tension meter for checking fibers, yarns and fine wires

    • Tension meter with bigger rollers for universal use
    • Economical low tension measuring instrument for checking fibers, yarns and fine wires
    • Tension ranges
      from 3 - 30 cN
      to 20 - 300 cN

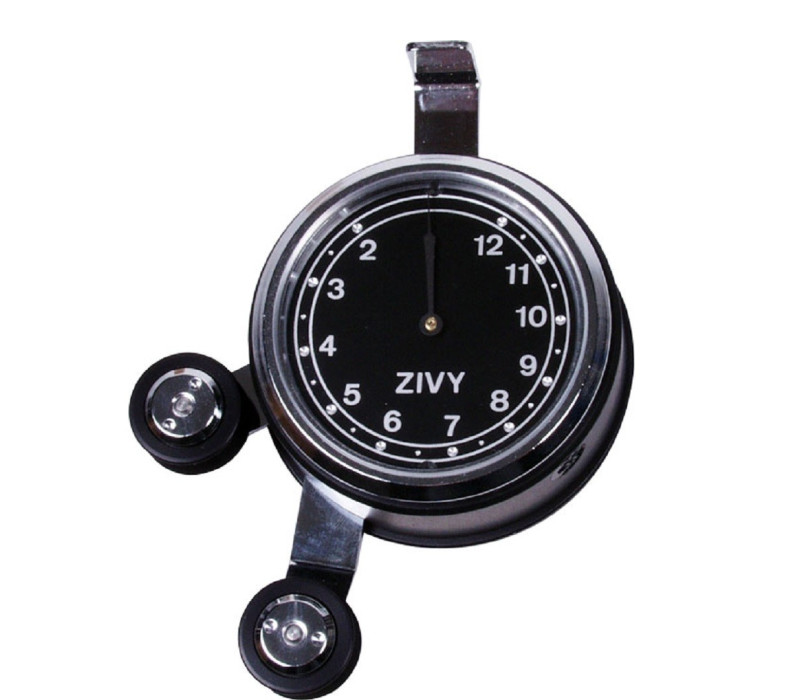

    Product: Zivy Product: Zivy

    Zivy Hand-held Tension Meter

    • Hand-held Tension Meter for yarns and filaments
    • 11 measuring ranges from 0.5 - 3 cN up to 50 - 170 cN
    • Large enlacement of thread
    • Extremely compact and lightweight
    • V-grooved aluminum guide rollers, ball-bearing mounted

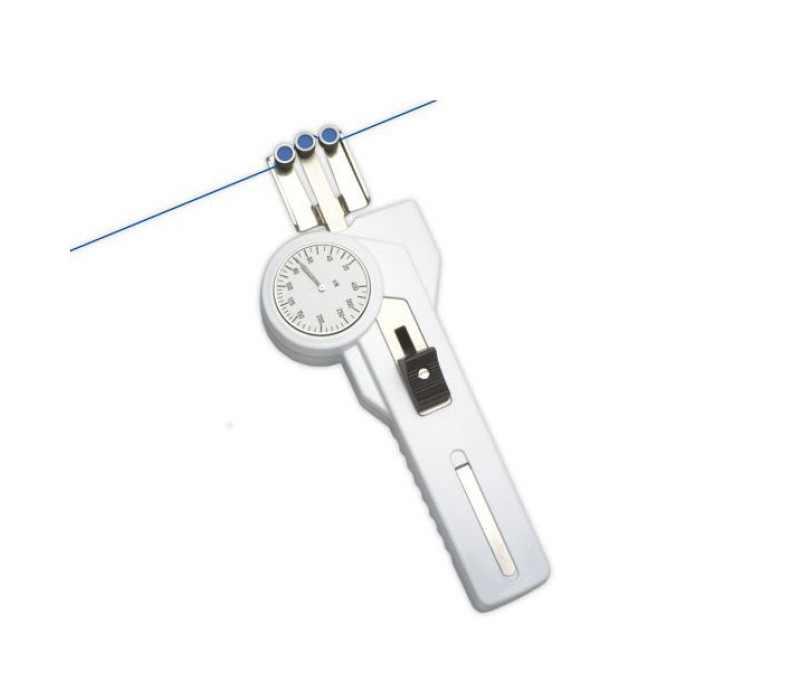

    Product: DXE Product: DXE

    DXE Special tension meter for limited access space

    • For limited access space
    • Tension meter with small measuring head, where access space is limited or where filaments run close together
    • Tension ranges
      from 10 - 50 cN
      to 200 - 2000 cN

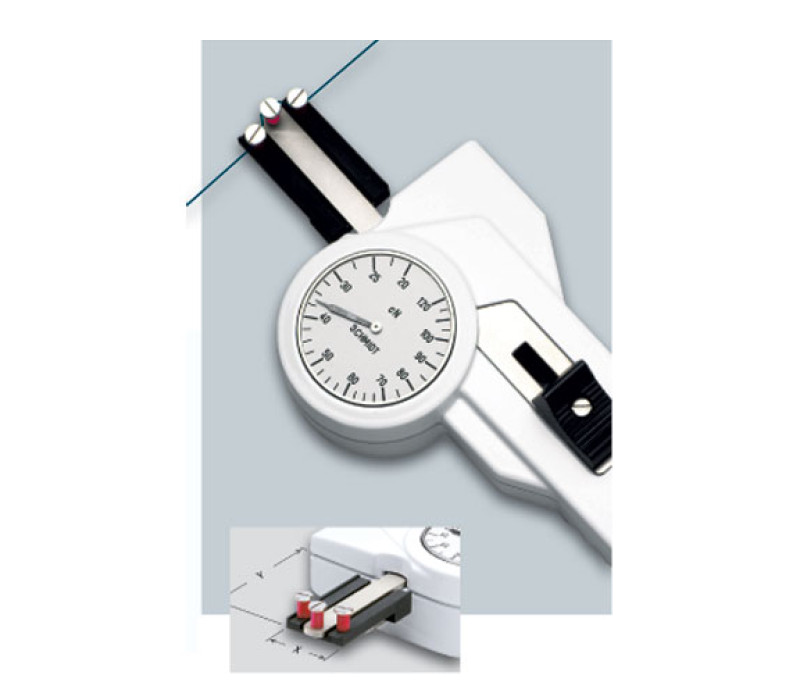

    Product: DXP Product: DXP

    DXP Tension meter with smallest measuring head possible

    • Ceramic pins permit line speeds up to 6000 m/min
    • Tension meter with small measuring head, where access space is limited or where filaments run close together
    • Tension ranges
      from 10 - 50 cN
      to 20 - 200 cN

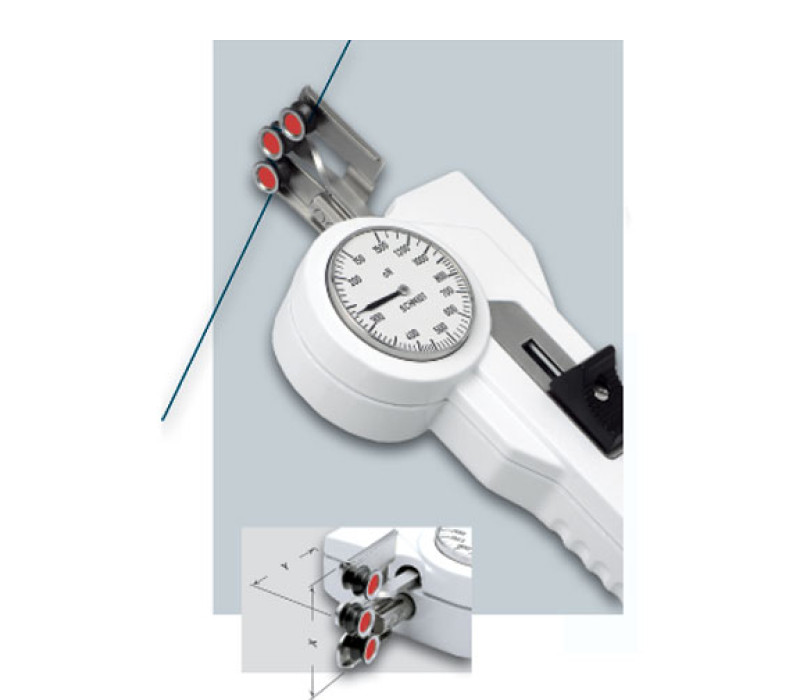

    Product: DXV Product: DXV

    DXV Tension meter with measuring head rotated by 90º

    • With measuring head rotated by 90º
    • Tensiometer with small measuring head, for limited access or when the filaments move close together
    • Tension ranges
      from 10 - 50 cN
      to 200 - 2000cN

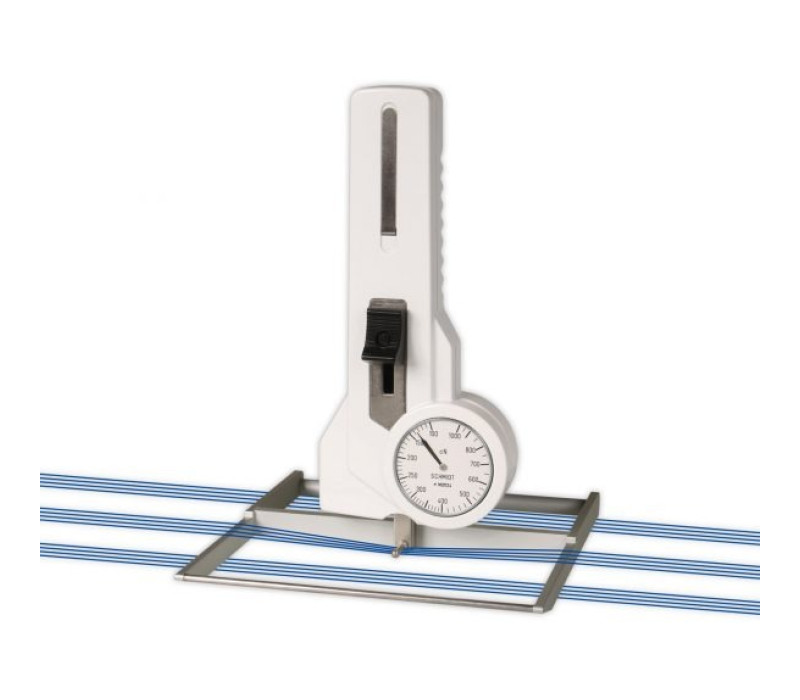

    Product: DXK Product: DXK

    DXK Warp Tension Meter

    • Warp Tension Meter
    • Frame rests on warp while center pin scoops up ends for measurement

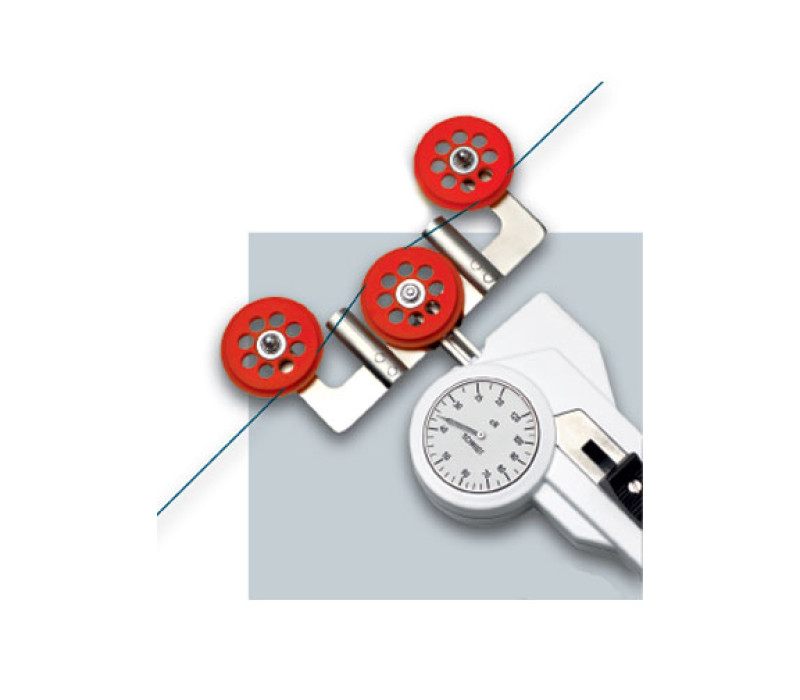

    Product: DXF Product: DXF

    DXF Tension meter with large rollers for minimized material deflection

    • With large rollers 32 mm Ø
    • Tension meter with large rollers to minimize bending of materials like fiber optics, carbon and technical fibers
    • Tension ranges
      from 20 - 120 cN
      to 50 - 1000 cN

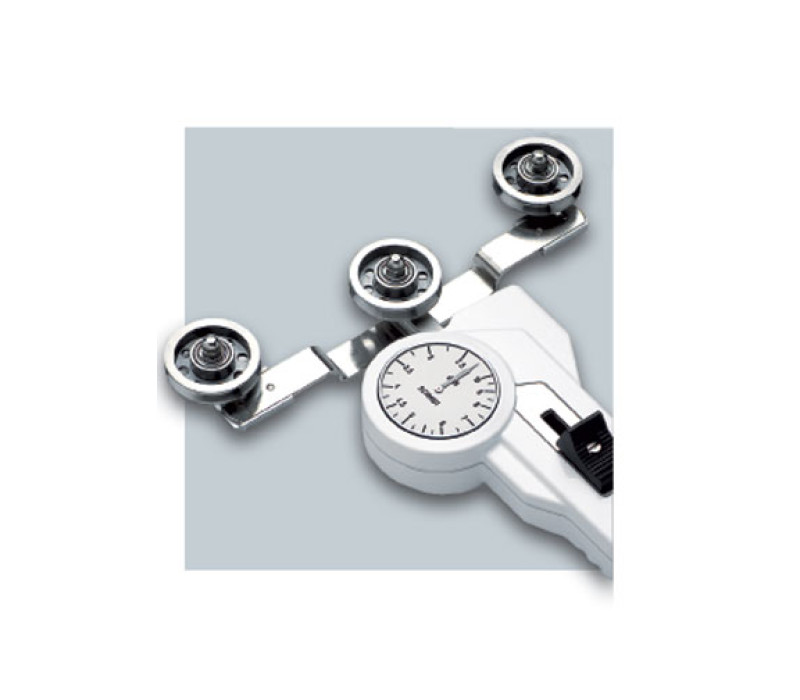

    Product: DXL Product: DXL

    DXL Tension meter with large rollers for minimized material deflection

    • With large rollers 30 mm Ø
    • Tension meter with large rollers to minimize bending of materials like fiber optic cables and buffer tubes up to 8 mm Ø
    • Tension ranges
      from 200 - 2000 cN
      to 2.5 - 10 daN

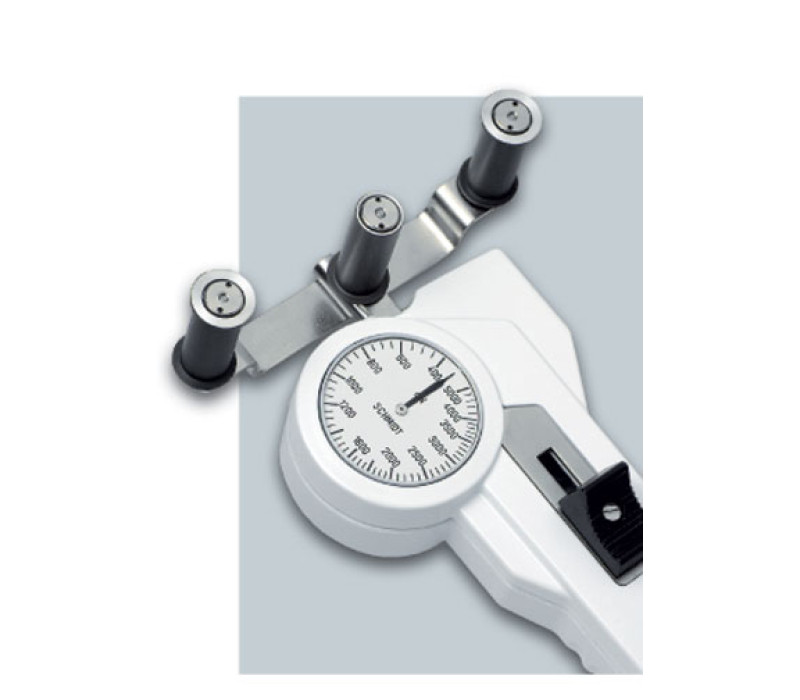

    Product: DXB Product: DXB

    DXB Tension meter with Cylindrical rollers pointing toward the operator

    • Cylindrical rollers pointing toward the operator
    • Tension meter for measuring all kinds of tapes and bands, such as textile ribbons, films, foils, fiber bunches, etc.
    • Tension ranges
      from 10 - 50 cN
      to 5 - 20 daN

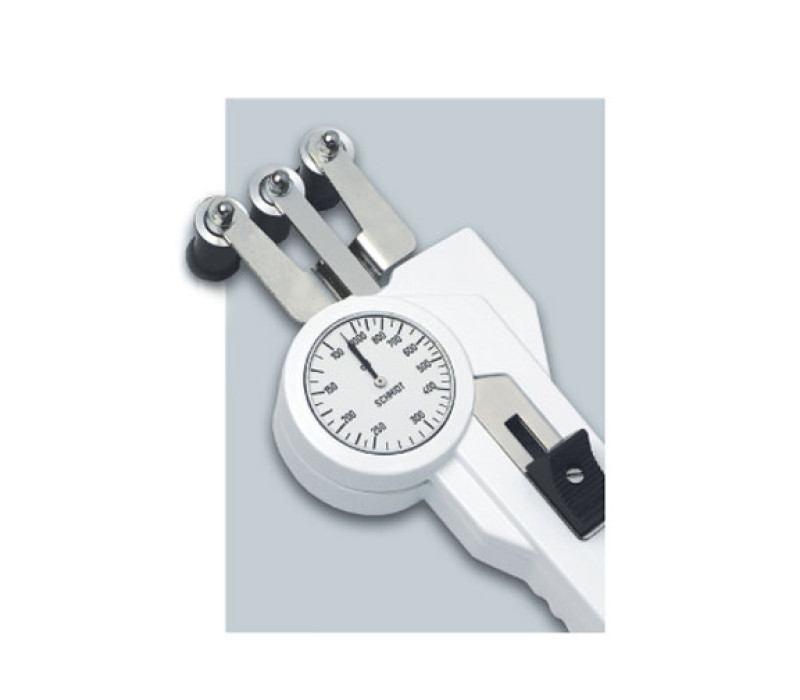

    Product: DXT Product: DXT

    DXT Tension meter with Cylindrical rollers pointing away from the operator

    • Cylindrical rollers pointing away from the operator
    • Tension meter for measuring all kinds of tapes and bands, such as textile ribbons, films, foils, fiber bunches, etc.
    • Tension ranges
      from 10 - 50 cN
      to 5 - 20 daN

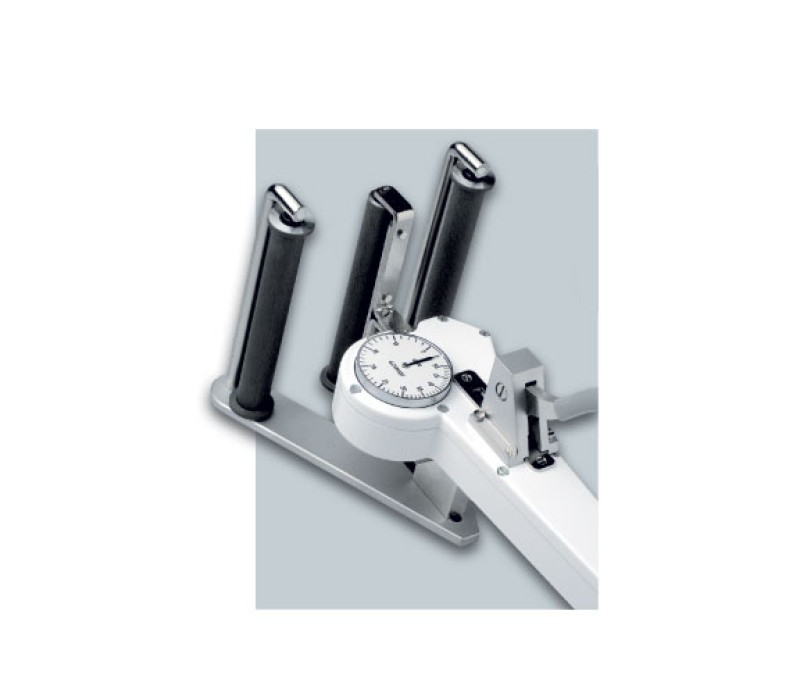

    Product: DXR Product: DXR

    DXR Tension meter with special roller support

    • With rollers up to 100 mm width
    • Tension meter for measuring all kinds of tapes and bands, such as textile ribbons, films, foils, fiber bunches, etc.
    • Tension ranges
      from 200 - 2000 cN
      to 5 - 50 daN

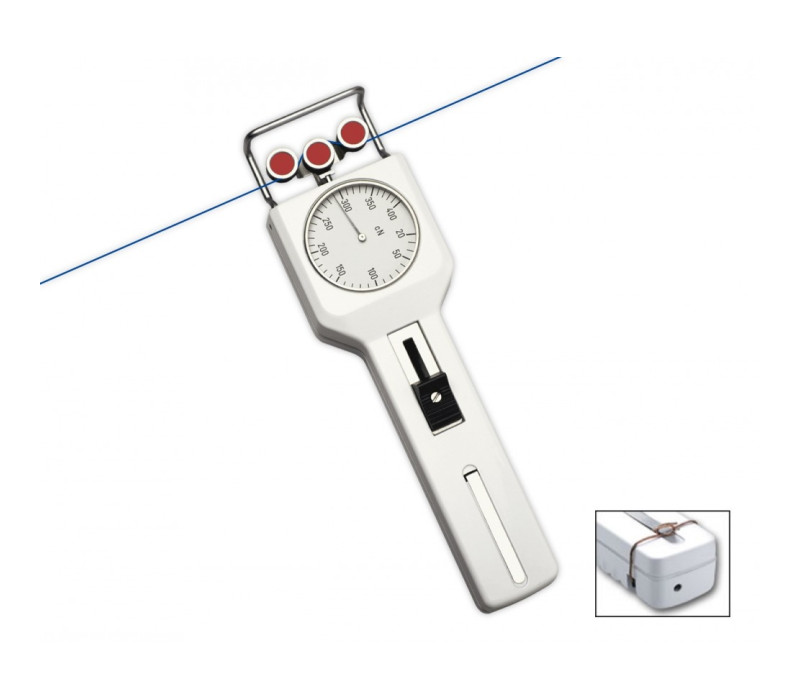

    Product: DN1 Product: DN1

    DN1 Durable tension meter for high tensions

    • For high tensions up to 50 daN -- large easy to read scale
    • Durable tension meters for a wide range of applica-tions in the textile, fiber and wire industries
    • Tension ranges
      from 20 - 120 cN
      to 5 - 50 daN

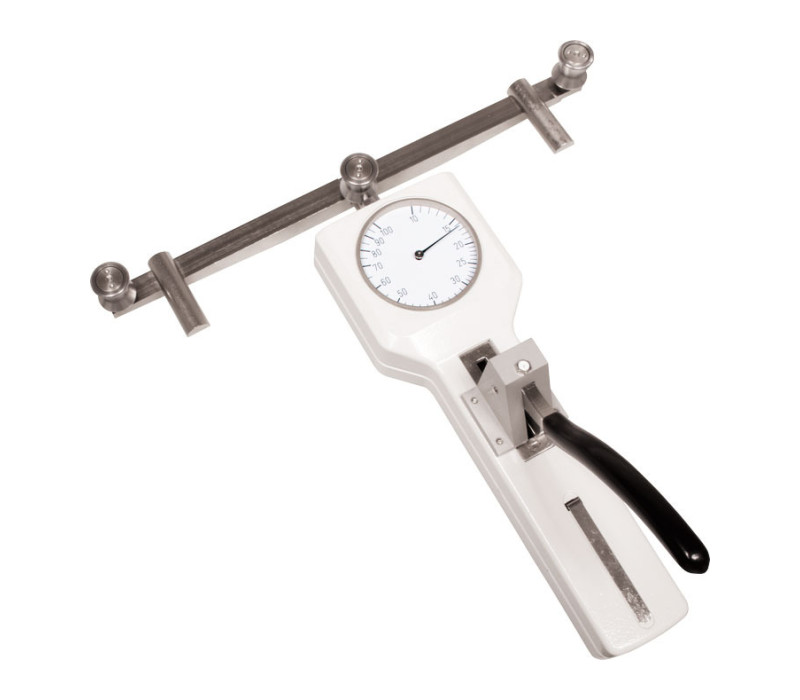

    Product: DNW Product: DNW

    DNW Rope tension meter for pre-tensioned ropes / cables

    • Analog rope tension meter
    • Measuring range:
      4 measuring ranges up to 4000 Newton / 400 daN
    • Accuracy:
      ± 3% of the capacity or ± 1 scale value

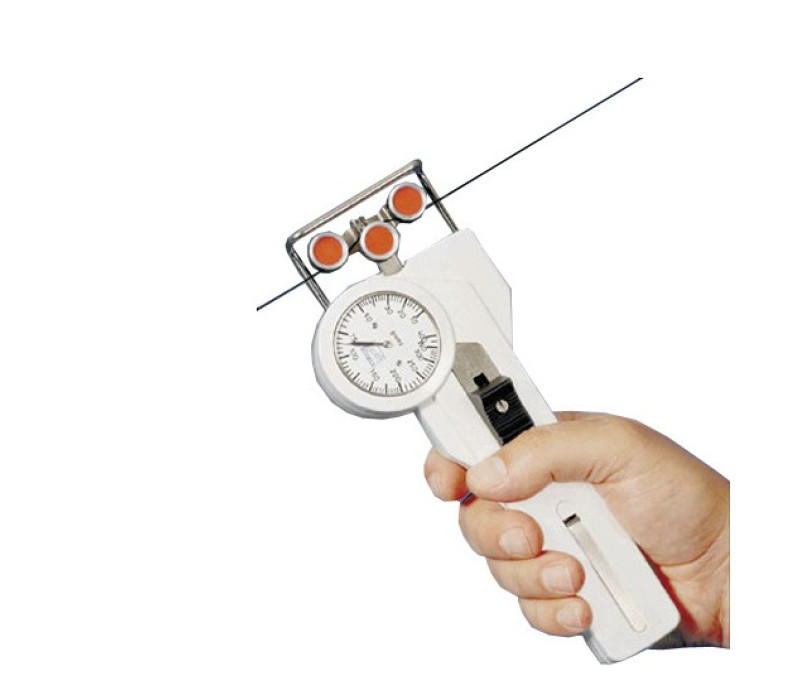

    Product: DX2 Product: DX2

    DX2 Tension meter

    • Universal tension meter
    • For use in many industrial applications
    • Tension ranges
      from 10 - 50 cN
      to 5 - 20 daN

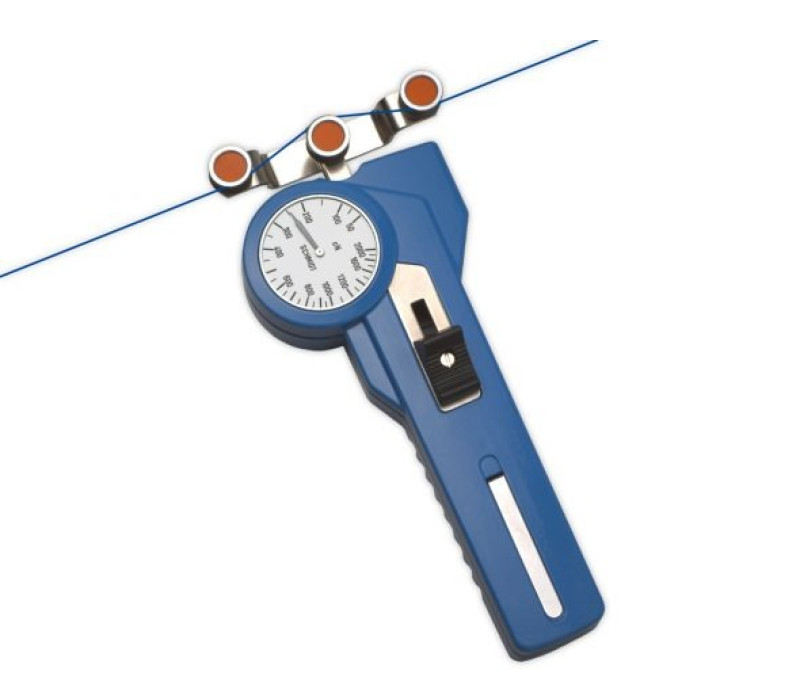

    Product: DX2-EDM Product: DX2-EDM

    DX2-EDM Wire EDM Tension Meter

    • Most popular EDM tension meter
    • Mechanical tension meter for most EDM machines for wire diameter approximately 0.25 mm
    • Tension ranges
      from 50 - 2000 cN
      to 200 - 4000 cN
    Showing 16 item(s)
