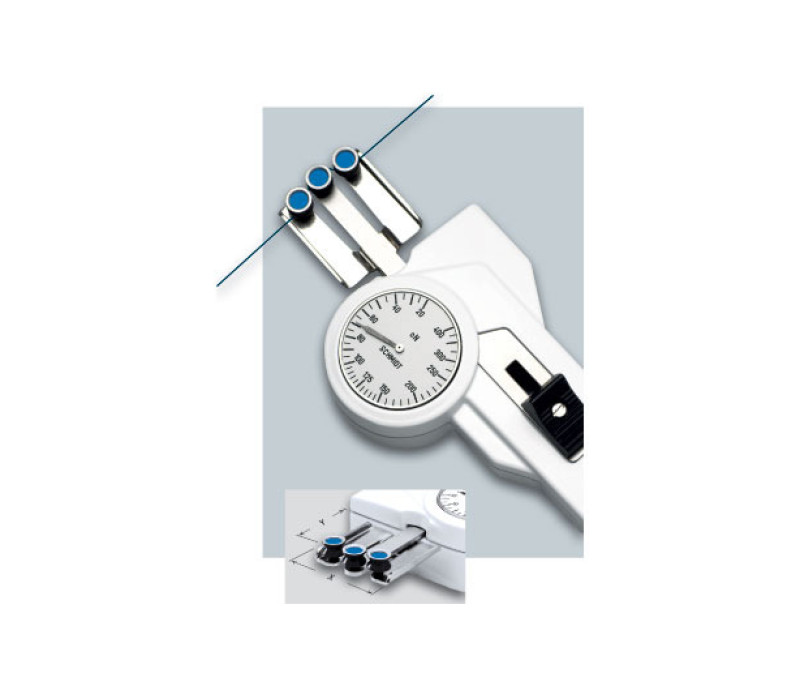

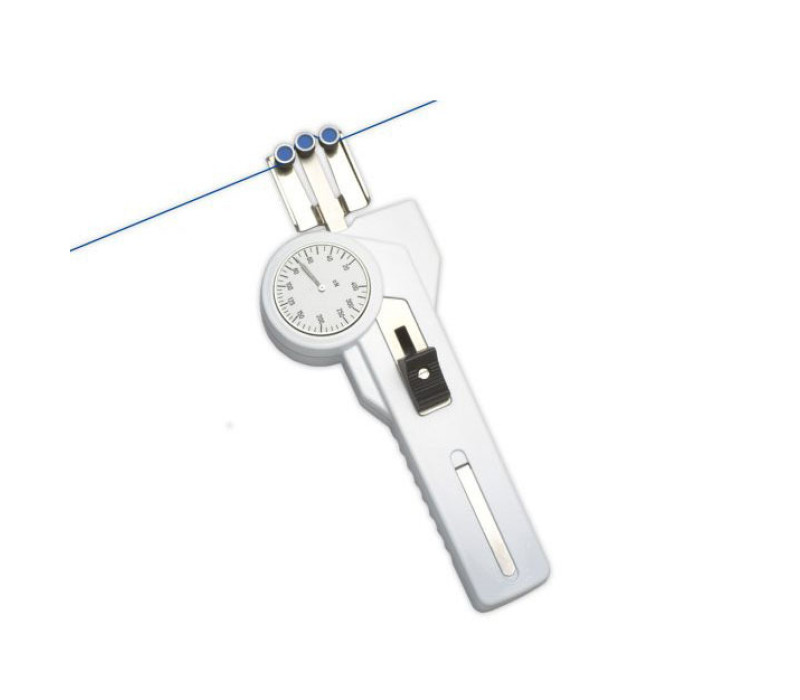

DXE Special tension meter for limited access space

DXE Special tension meter for limited access space

Special purpose models feature small measuring heads, where access space is limited or where filaments run close together.

These tension meters are recommended where the standard Model DX2 cannot be used

Note: This model does not include a material thickness compensator

Turned-up outer finger edges guide the running filament into the roller grooves
Special finger support located on the rear side reduces the effort to move the outer roller assembly
Everything in operator's view:
- the guide rollers
- the measured material
- the readings
41 mm Ø scale
Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report
Small, ball-bearing mounted, V-grooved guide rollers
Built-in mounting holes permit fixed installation for continuous tension measurement
Each instrument is individually calibrated for highest accuracy
Rugged aluminum housing
Certificate of Compliance with the order 2.1 according DIN EN 10204 is included

Delivery includes:
Tension meter with carrying case, operating instructions in English or German as requested

Calibration:	According to SCHMIDT factory procedure
Accuracy:	±1% full scale or ±1 graduation on scale
Scale diameter:	41 mm
Temperature range:	10-45ºC
Air humidity:	85% RH, max.
Housing material:	Die-cast aluminum
Housing dimensions:	188 x 85 x 45 mm (L x W x H)
Weight, net (gross):	approx. 470 g (1000 g)

Tension Ranges

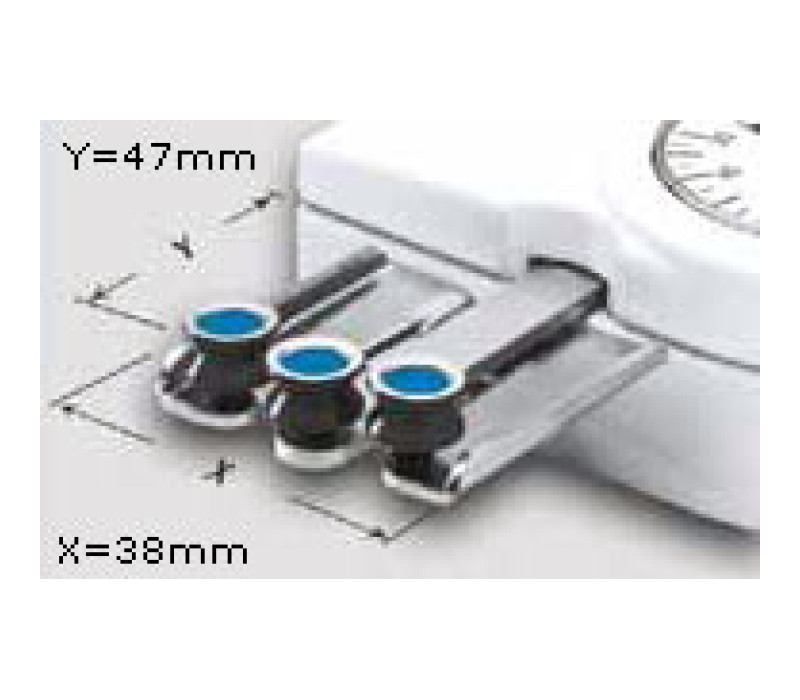

Model	Ranges	Measuring Head Width X* approx. mm	Measuring Head Length Y approx. mm	SCHMIDT Calibration Material**
DXE-50	10-50	38	47	PA: 0.12 mm Ø
DXE-120	20-120	38	47	PA: 0.12 mm Ø
DXE-200	20-200	38	47	PA: 0.12 mm Ø
DXE-400	20-400	38	47	PA: 0.20 mm Ø
DXE-1000	50-1000	38	47	PA: 0.30 mm Ø
DXE-2000	200-2000	38	47	PA: 0.50 mm Ø
Other tension ranges available on request. Other units of measure available, such as g. * Width of bracket assembly ** Suitable for 95% of applications - PA = Polyamide Monofilament Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

Products

Item	Product	Price	Quantity	Action
133473	DXE-50 Tension Meter 10-50 cN
133474	DXE-120 Tension Meter 20-120 cN
133475	DXE-200 Tension Meter 20-200 cN
131931	DXE-400 Tension Meter 20-400 cN
131237	DXE-1000 Tension Meter 50-1000 cN
130476	DXE-2000 Tension Meter 200-2000 cN
132326	DXE-2000-A Tension Meter

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
