DXP Tension meter with smallest measuring head possible

DXP Tension meter with smallest measuring head possible

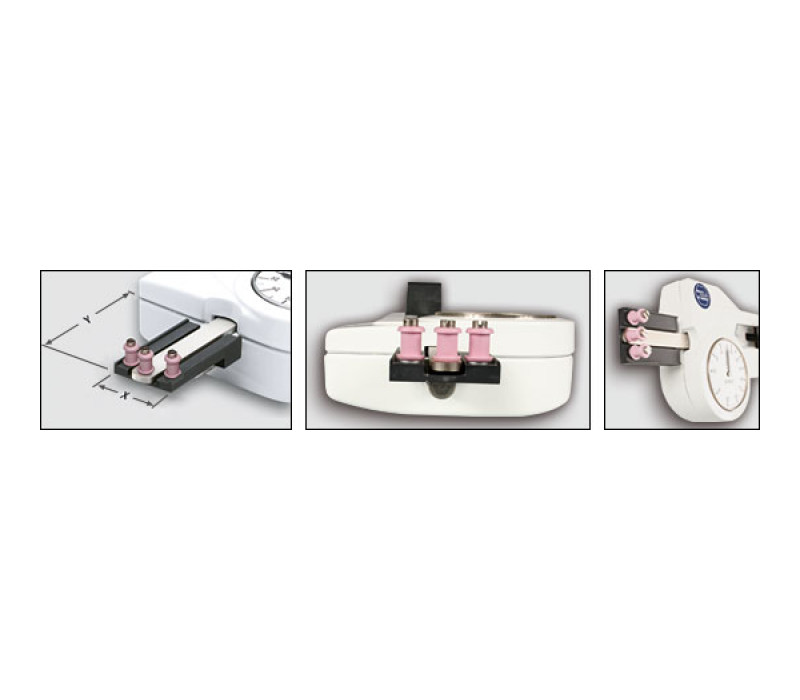

Ceramic pins permit line speeds up to 6000 m/min Tension meter with small measuring head, where access space is limited or where filaments run close together.
Only for textile applications.

Note: This model does not include a material thickness compensator.

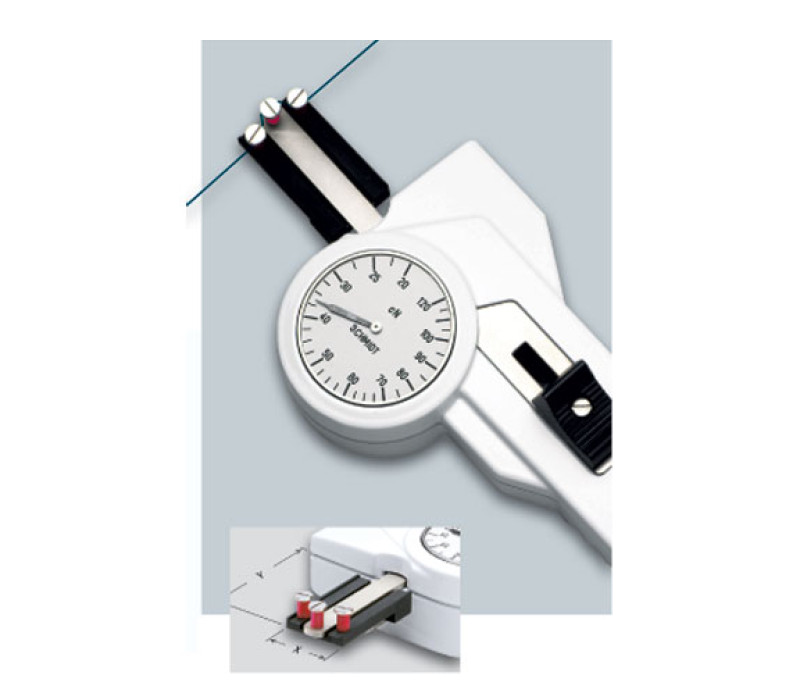

Non-rotating ceramic pins permit line speeds up to 6000 m/min
Built-in mounting holes permit fixed installation for continuous tension measurement
41mm Ø scale
Ball-bearing mounted, V-grooved guide rollers
Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
Filament guide and roller shifting mechanism ensure easy acquisition of the running material
Everything in operator's view:
- the guide rollers
- the measured material
- the readings
Each instrument is individually calibrated for highest accuracy
Rugged aluminum housing
Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

Delivery includes:
Tension meter with carrying case, operating instructions in English or German as requested

Calibration:	According to SCHMIDT factory procedure
Accuracy:	±1% full scale or ±1 graduation on scale
Scale diameter:	41 mm
Temperature range:	10-45ºC
Air humidity:	85% RH, max.
Housing material:	Die-cast aluminum
Housing dimensions:	188 x 85 x 45 mm (L x W x H)
Weight, net (gross):	approx. 440 g (900 g)

Tension Ranges

Model	Ranges	Measuring Head Width X* approx. mm	Measuring Head Length Y approx. mm	SCHMIDT Calibration Material**
DXP-50	10-50	27	46	PA: 0.12 mm Ø
DXP-120	20-120	27	46	PA: 0.12 mm Ø
DXP-200	20-200	27	46	PA: 0.12 mm Ø
Other tension ranges available on request. Other units of measure available, such as g. * Width of bracket assembly ** Suitable for 95% of applications - PA = Polyamide Monofilament

Products

Item	Product	Price	Quantity	Action
136469	DXP-200 Tension Meter 20-200 cN

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out
