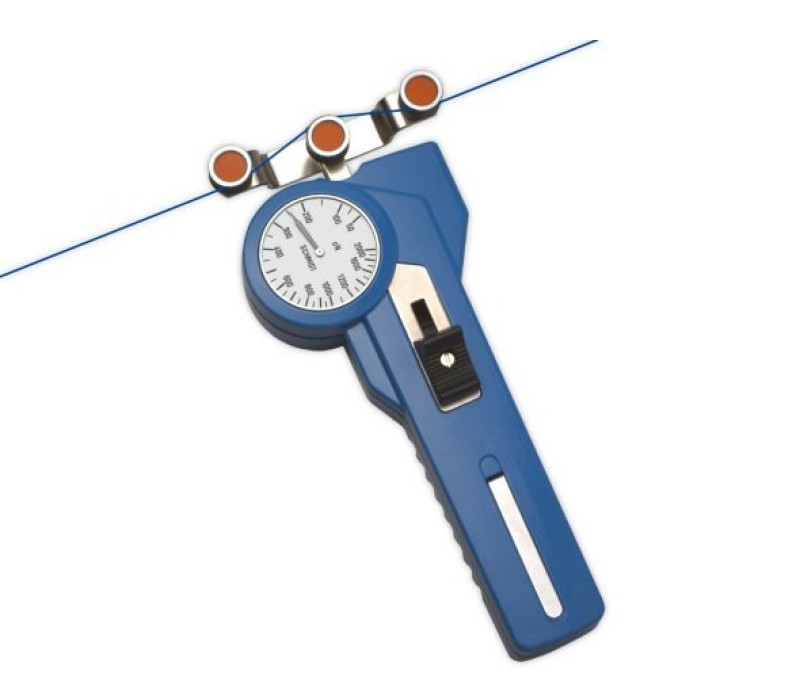

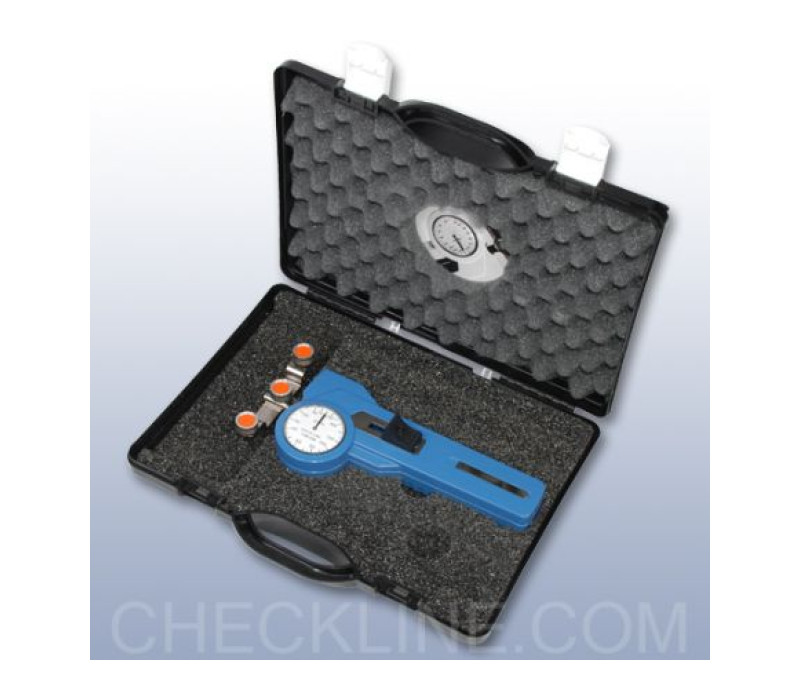

DX2-EDM Wire EDM Tension Meter

DX2-EDM Wire EDM Tension Meter

Manufacturers of wire-EDM machines recommend checking the erosion wire tension once a week. Depending on the machine type as well as the wire material and diameter, the measured tension should lie between 50 and 3000 g.

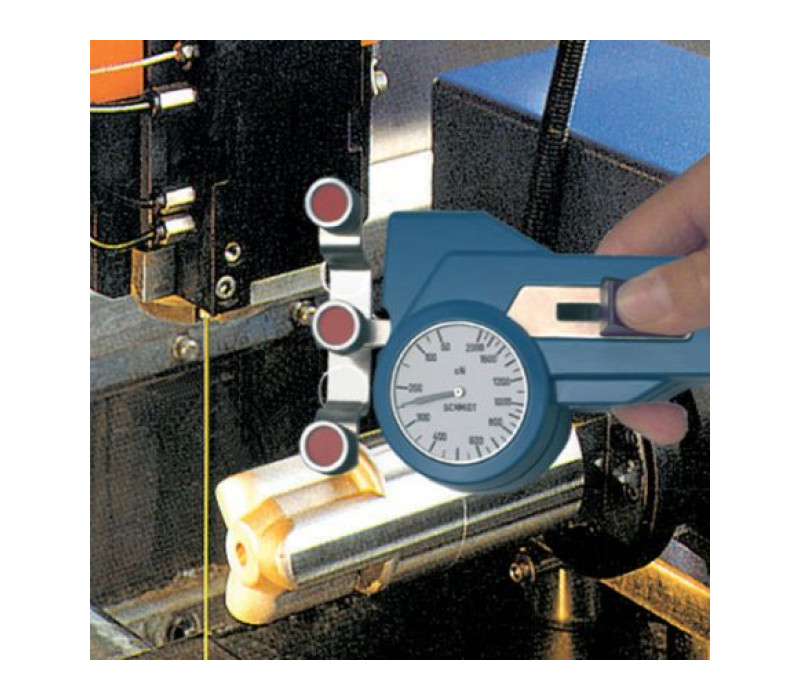

The correct erosion wire tension reduces wire oscillation and guarantees a pinpoint accuracy of your machines. Always check the tension in calibration mode on the moving wire. Make sure the generator is switched off for the tension check.

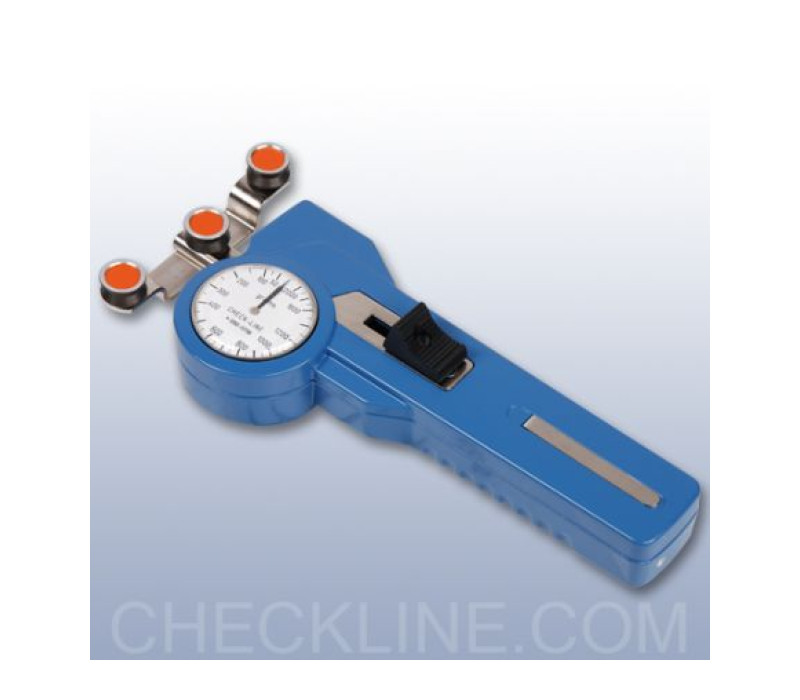

Easy to operate and read analog scale
Special finger support located on the rear side reduces the effort to move the outer roller assembly

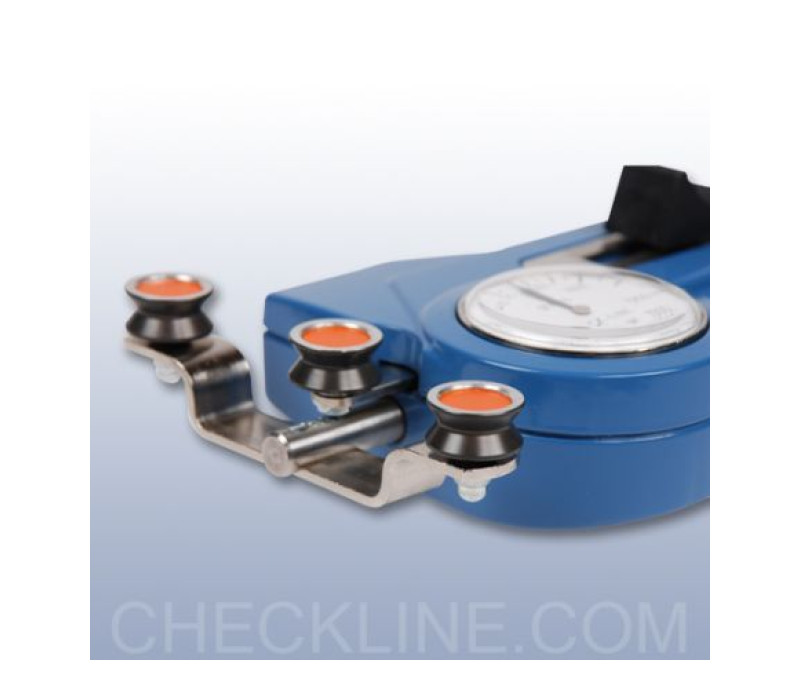

Ball-bearing mounted, V-grooved guide rollers
Roller shifting mechanism ensure easy acquisition of the running material
Everything in operator's view:
- the guide rollers
- the measured material
- the readings
Each instrument is individually calibrated for highest accuracy
Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
Rugged aluminum housing
Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

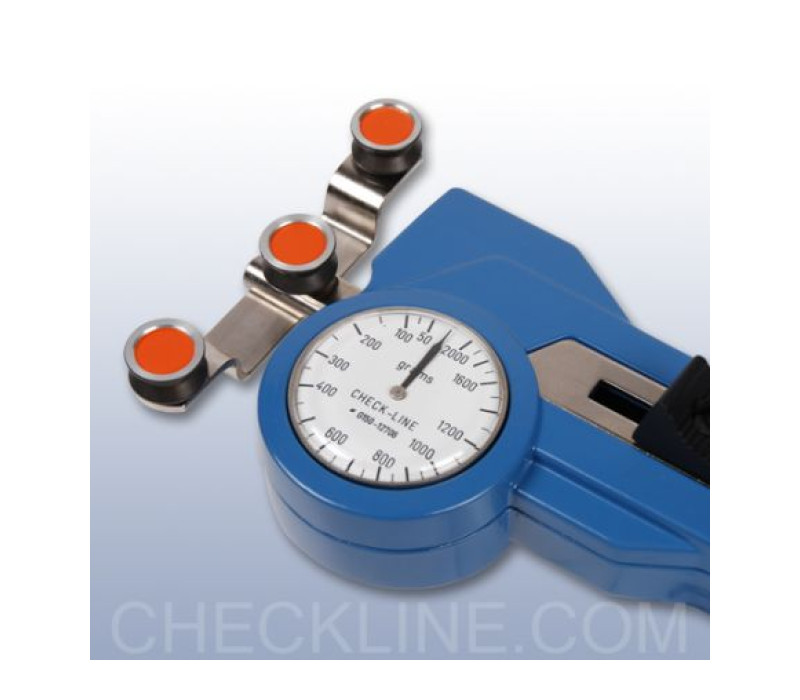

Dial Faces

Dial faces

Tension Ranges

Model	Ranges cN	Measuring Head	SCHMIDT Calibration	Material Thickness Compensator
DX2-2000-EDM	50-2000	91	PA: 0.30 mm Ø	no
DX2-3000-EDM	100-3000	91	PA: 0.30 mm Ø	no
DX2-4000-EDM	200-4000	116	PA: 0.30 mm Ø	yes
Other tension ranges and measuring head widths available on request. Other units of measure available, such as g. * Depending on model, either width of wire guide or outer distance between outside guide rollers ** Suitable for 95% of applications - PA = Polyamide Monofilament Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

Calibration:	According to SCHMIDT factory procedure
Accuracy:	±1% full scale or ±1 graduation on scale
Scale diameter:	41 mm
Temperature range:	8 - 45ºC
Air humidity:	85% RH, max.
Housing material:	Die-cast aluminum
Housing dimensions:	188 x 85 x 45 mm (LxWxH)
Weight, net (gross):	approx. 470 g (1000 g)
Rollers:	Material : Hard coated aluminum Diameter: 12 mm
