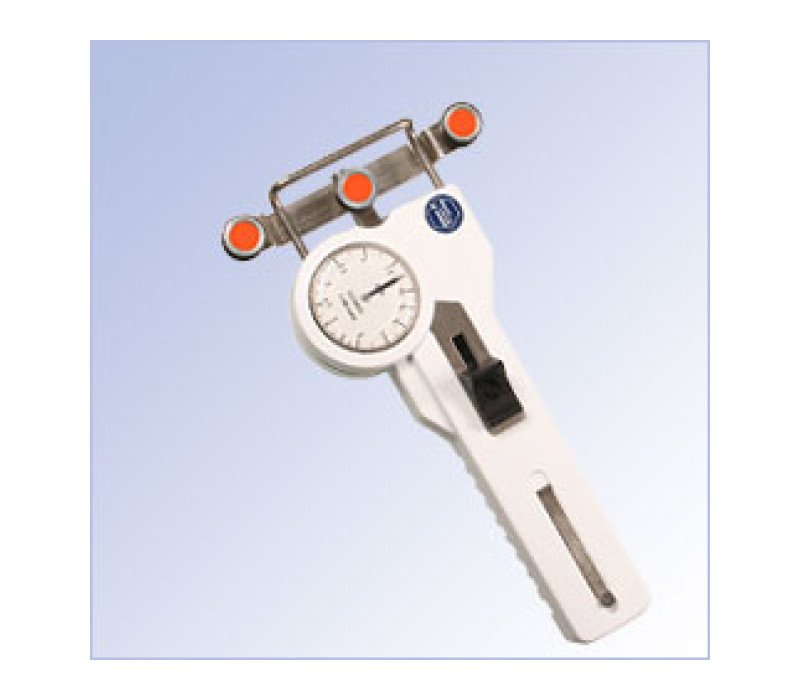

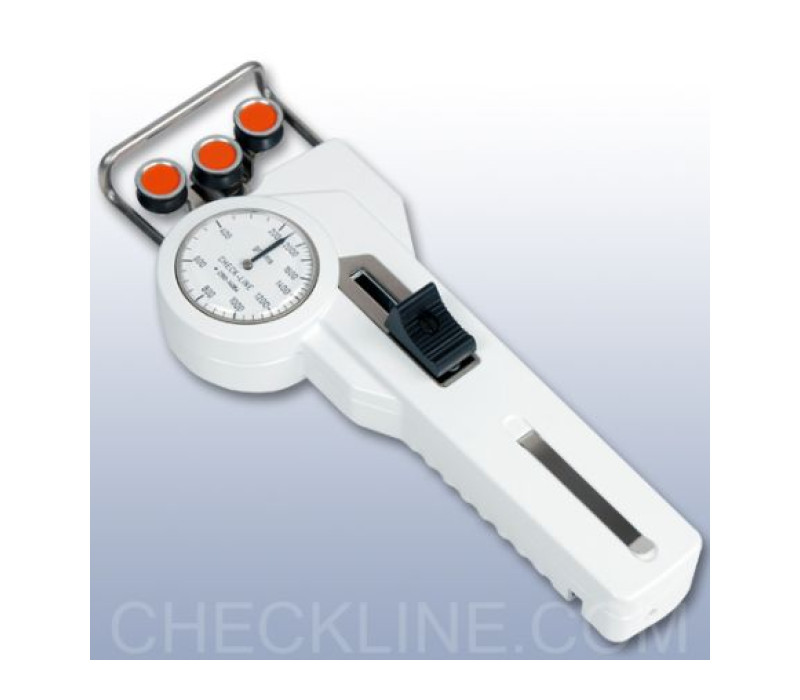

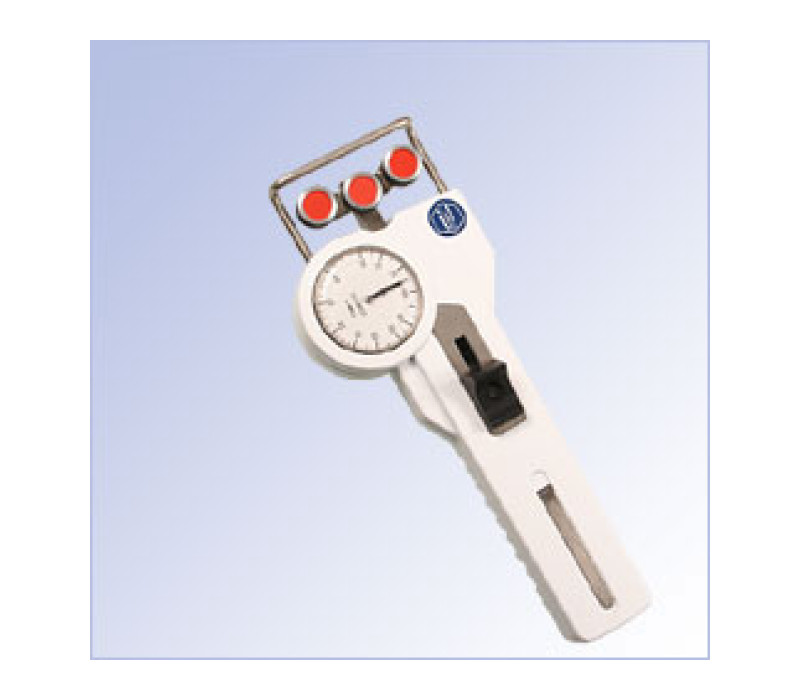

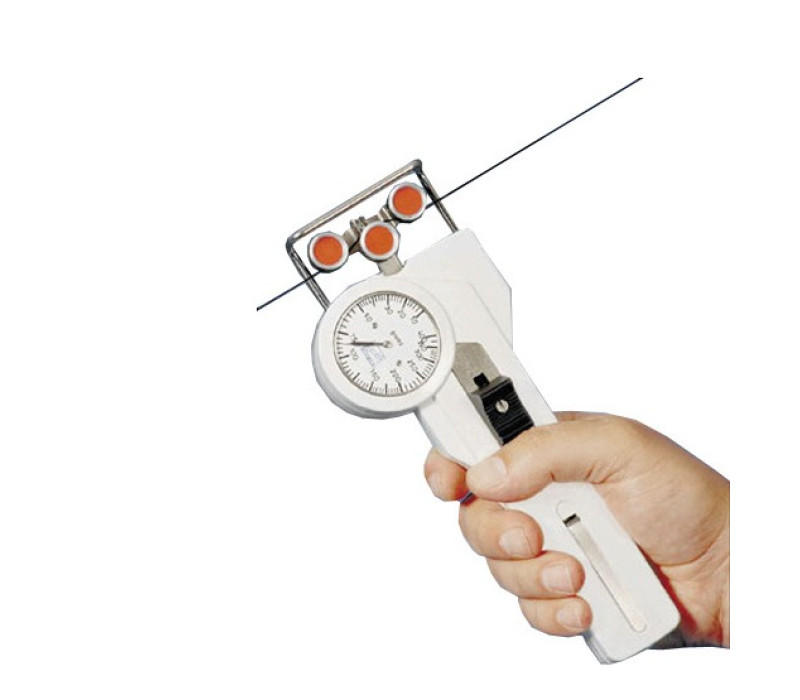

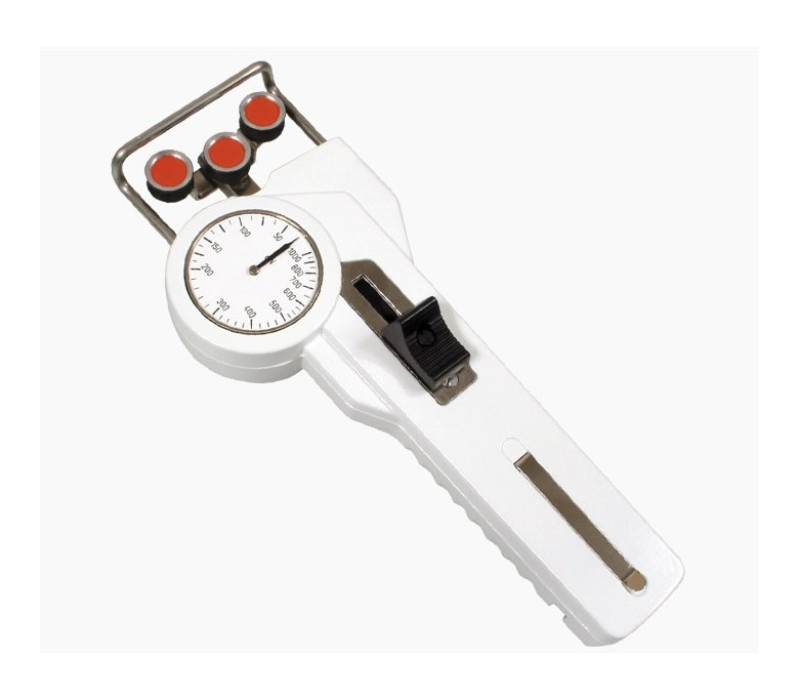

DX2 Tension meter

DX2 Tension meter

A precise jeweled movement, choice of ball bearing mounted rollers and rugged cast aluminum housing makes the DX2 ideal for the toughest production floor application.

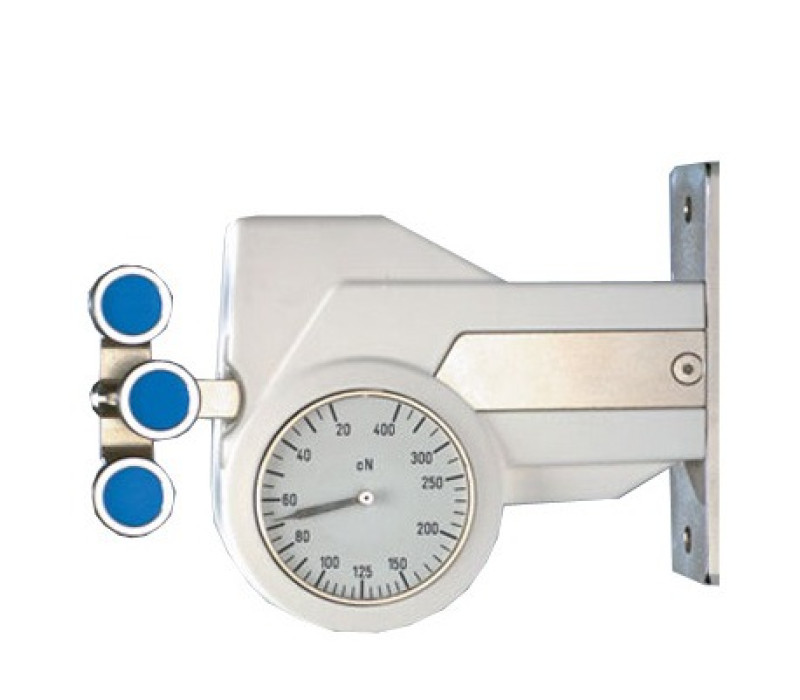

Built-in mounting holes permit fixed installation for continuous in-line use.

Built-in material thickness compensator maximizes accuracy when using filaments of different diameters. (Standard on model DX2-SP and higher ranges).

Request price >>

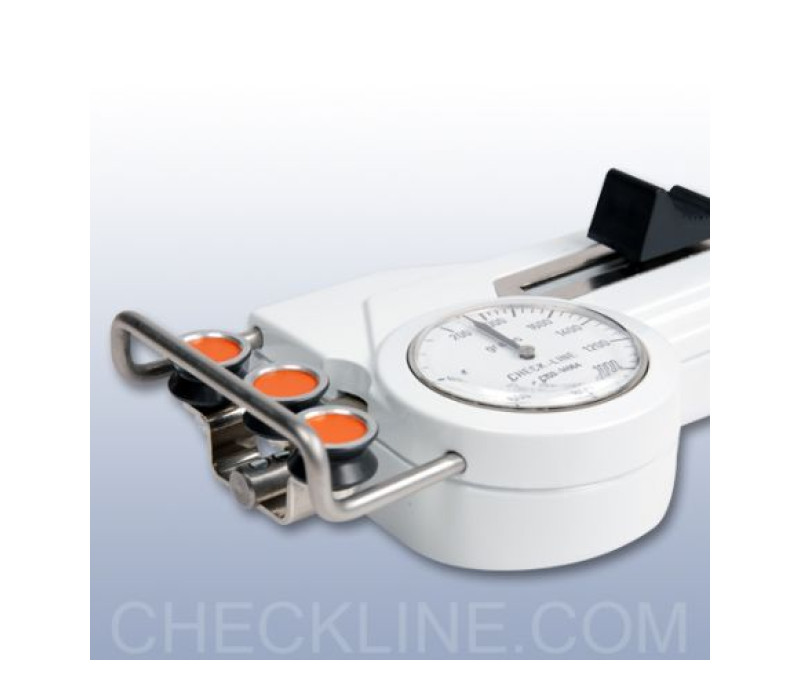

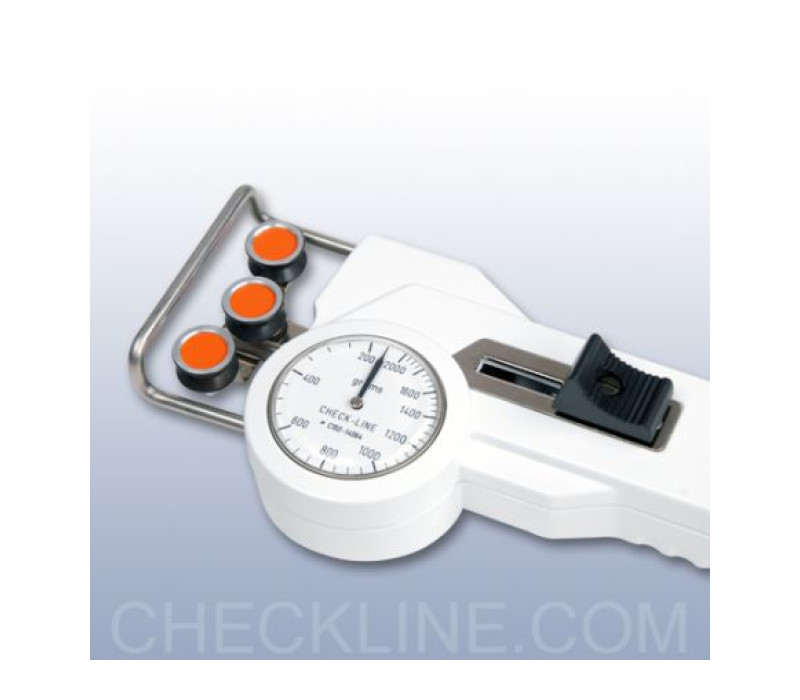

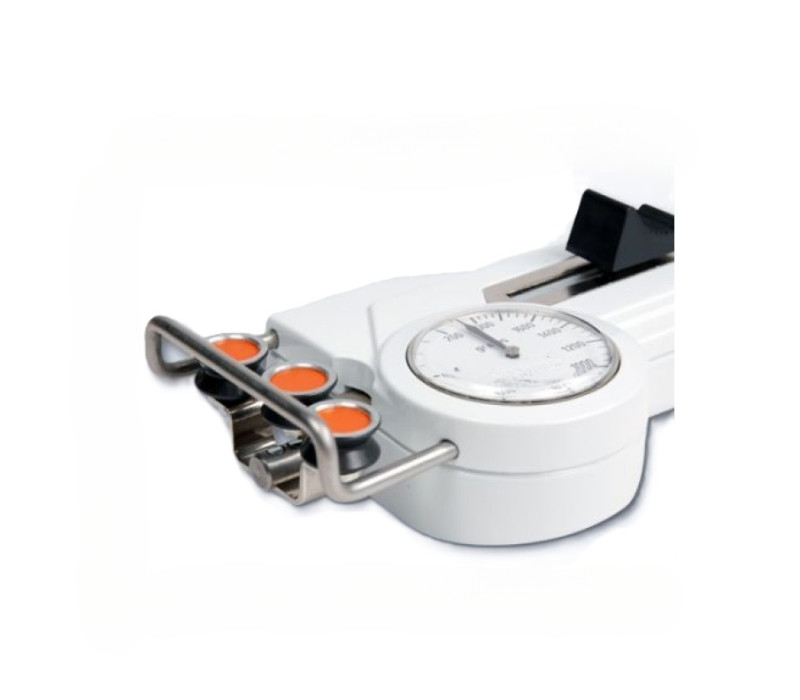

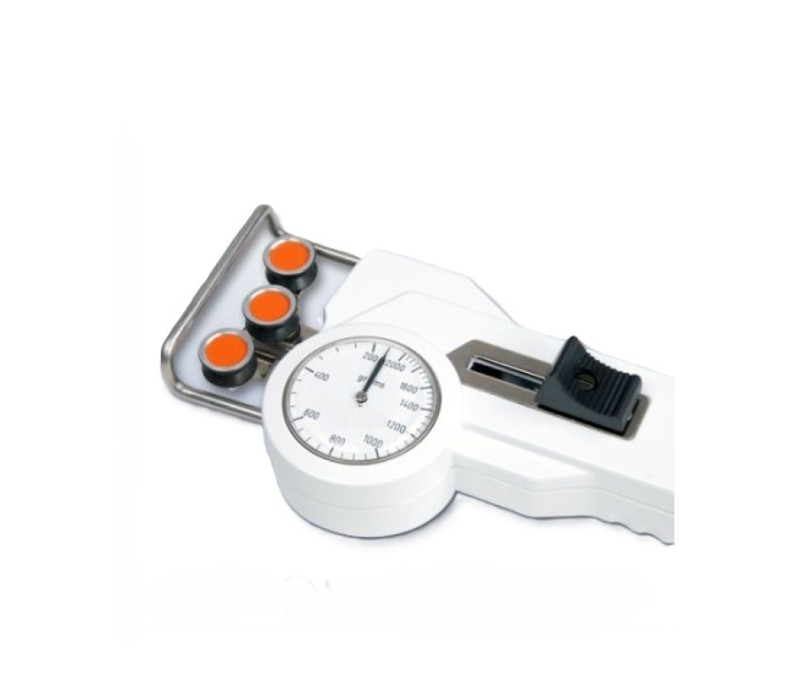

Thumb-operated, roller shifting mechanism and exclusive snare-guide automatically guides the moving filament into the V-grooves eliminating breaks and snags
Front filament loading permits the operator to observe running material, rollers and dial face at all times
DX2's are individually calibrated for highest accuracy

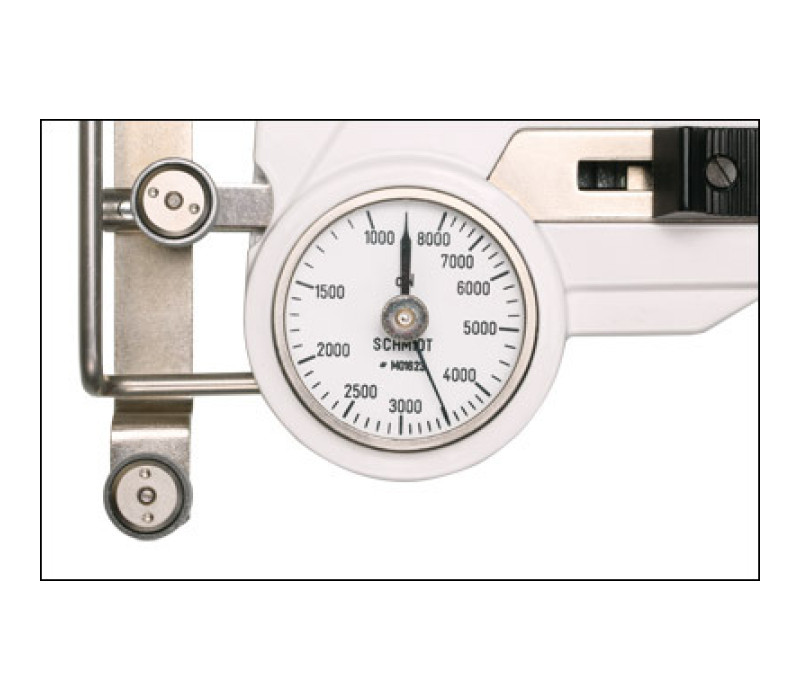

41mm Ø scale
DX2's hard-coated aluminum, V-grooved rollers are rated for speeds up to 2000 m/min or, optionally, up to 5000 m/min
Finger Support: We recommend mounting a finger support for higher tension ranges (included)
Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

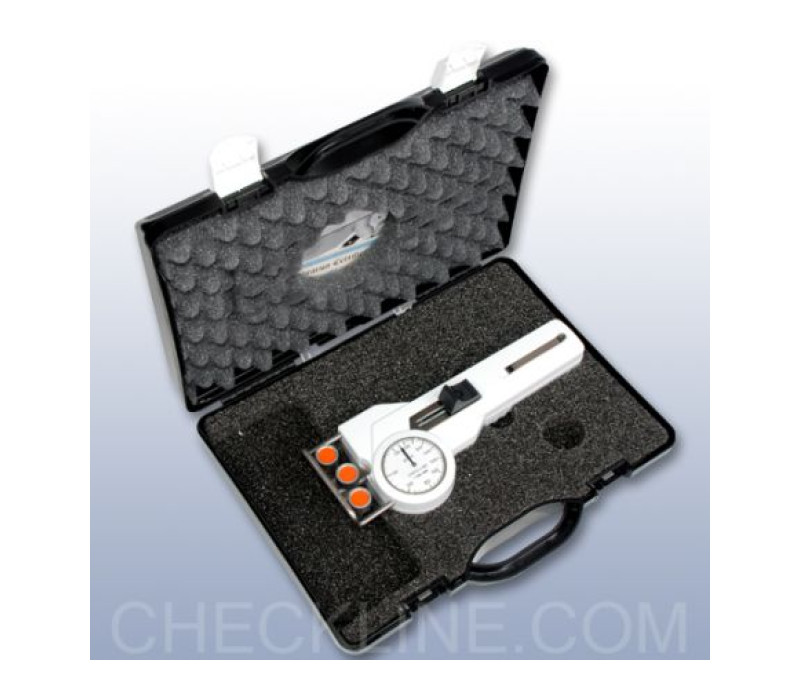

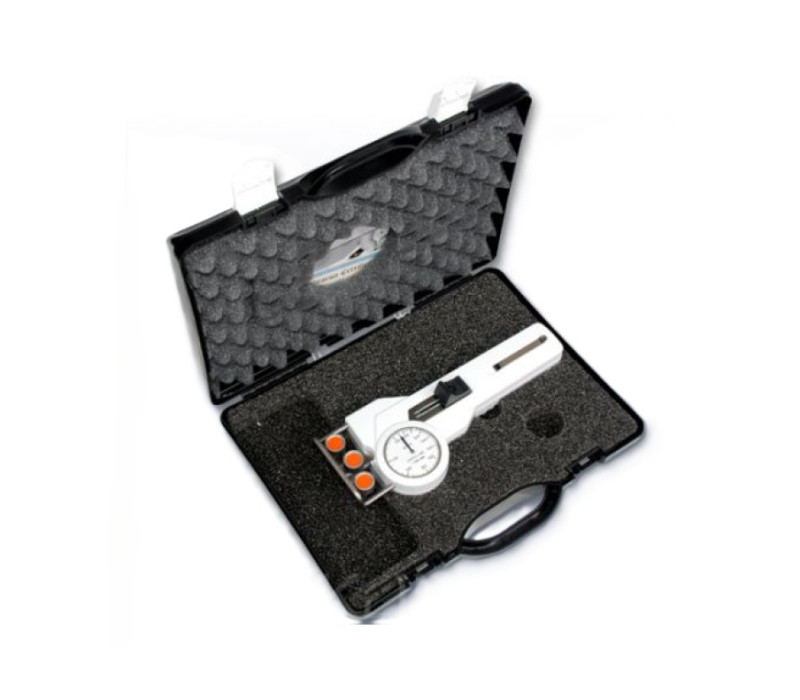

The DX2 Tension Meter is supplied as a complete kit including meter and instruction manual in a foam-fitted hard-plastic carrying case.

Tension Ranges

Model	Ranges	Measuring Head Width* mm	SCHMIDT Calibration Material**	MTC***
DX2-50	10-50 cN	66	PA: 0.12 mm Ø	no
DX2-120	20-120 cN	66	PA: 0.12 mm Ø	no
DX2-200	20-200 cN	66	PA: 0.12 mm Ø	no
DX2-400	20-400 cN	66	PA: 0.20 mm Ø	no
DX2-1000	50-1000 cN	66	PA: 0.30 mm Ø	yes
DX2-2000	200-2000 cN	116	PA: 0.50 mm Ø	yes
DX2-5000	400-5000 cN	116	PA: 0.80 mm Ø	yes
DX2-8000	1-8 daN	116	PA: 1.00 mm Ø	yes
DX2-10K	2.5-10 daN	116	PA: 1.00 mm Ø	yes
DX2-20K-L	5-20 daN	216	PA: 1.50 mm Ø	yes
Other tension ranges and measuring head widths available on request. Other units of measure available, such as g or kg. * Depending on model, either width of filament guide or outer distance between outside guide rollers Suitable for 95% of applications - PA = Polyamide Monofilament *MTC = Material Thickness Compensator <b>Special calibration using customer supplied samples</b> is recommended, if process material differs significantly from the <b>SCHMIDT</b> calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

Product options

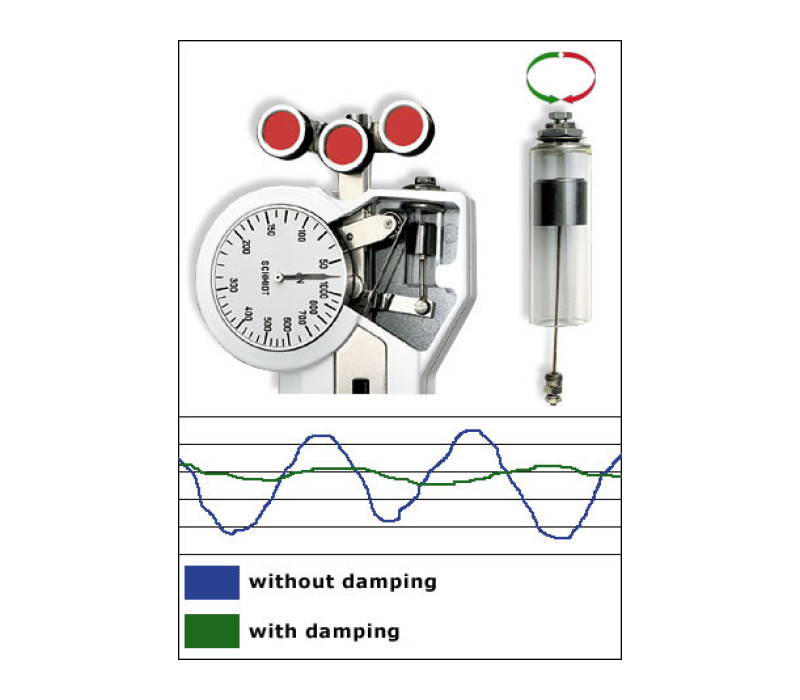

Code A: Air Damping

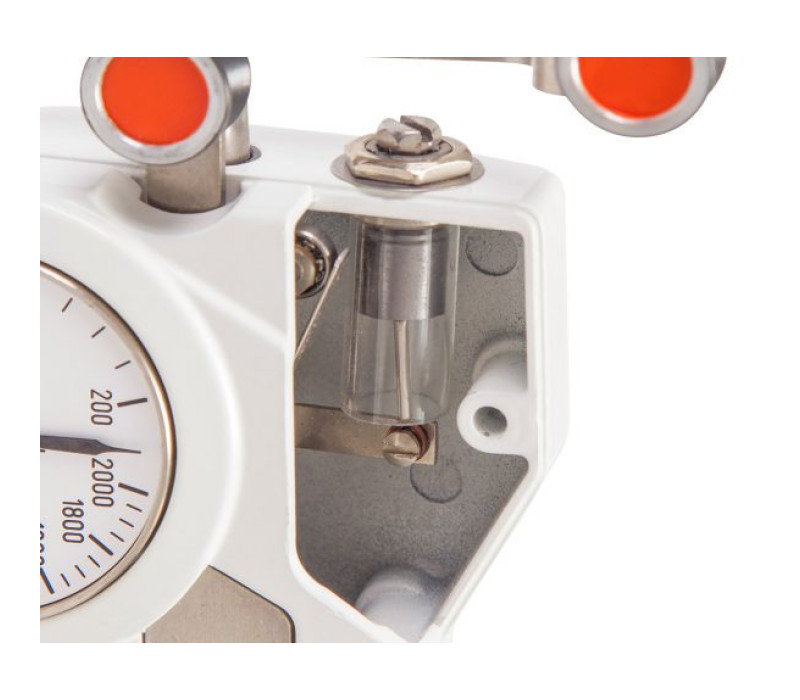

This adjustable mechanical air dashpot is recommended for applications in which great fluctuations of the measured tension occur, as in spooling and winding machines. This assures steady tension readings on the scale.

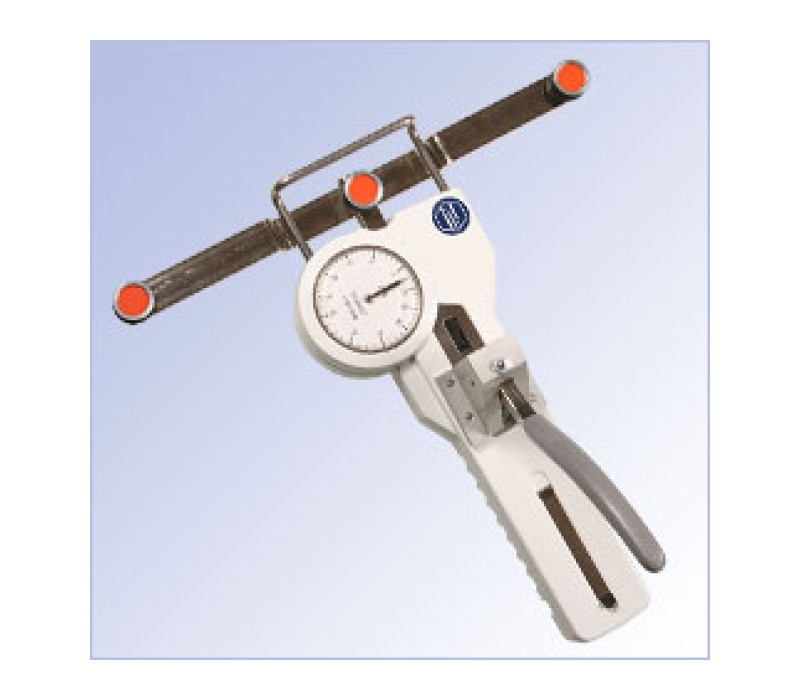

Code L: Special Lever

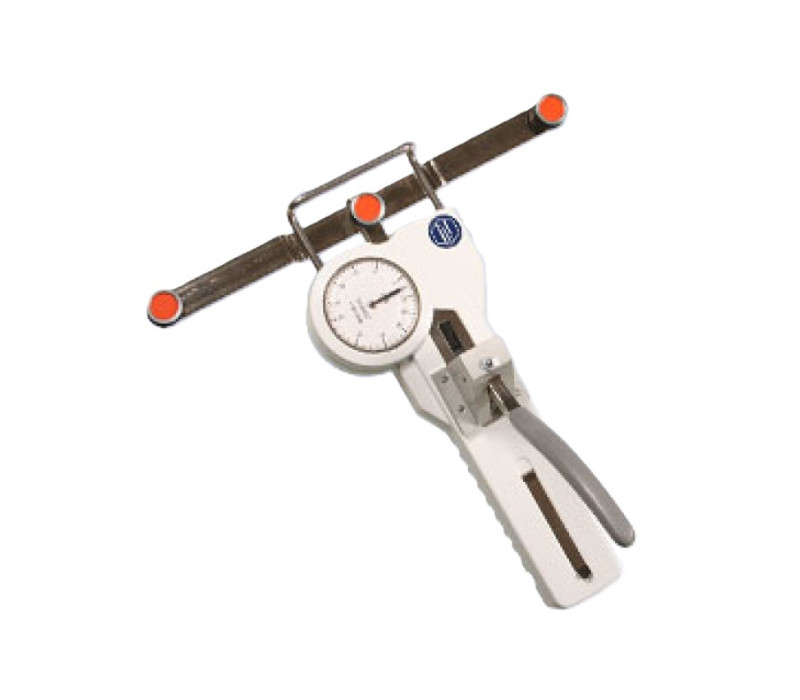

Facilitates acquisition of the running material when measuring high tensions. Reduces force necessary to extend outer rollers: Recommended for tension ranges of 10 daN and higher.

Code M: Memory Pointer

Retains the highest measured value (PEAK). Available for mechanical tension meters.

DX2 Data Sheet

Calibration:	According to SCHMIDT factory procedure
Accuracy:	±1% full scale or ±1 graduation on scale
Scale diameter:	41 mm
Temperature range:	10-45ºC
Air humidity:	85% RH, max.
Housing material:	Die-cast aluminum
Housing dimensions:	188 x 85 x 45 mm (LxWxH)
Weight, net (gross):	up to DX2-10K approx. 470 g (1000 g) DX2-20K-L approx. 580 g (2000 g)
Maximum Speed:	2000 m/min (Standard) 2500 m/min (U)

Products

Item	Product
132480	DX2-50 - Tension Meter 10-50 cN
130794	DX2-120 - Tension Meter 20-120 cN
132500	DX2-200 Tension Meter 20-200 cN
130393	DX2-400 Tension Meter 20-400 cN
140439	DX2-400-A Tension Meter 20-400 cN (with Air Damping)
125863	DX2-1000 Tension Meter 50-1000 cN
130031	DX2-2000 Tension Meter 200-2000cN
126908	DX2-5000 Tension Meter 400-5000cN
130057	DX2-8000 Tension Meter 1000-8000cN
134889	DX2-10K Tension Meter 2.5-10 daN
130682	DX2-20K-L Tension Meter 5-20 DaN

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
