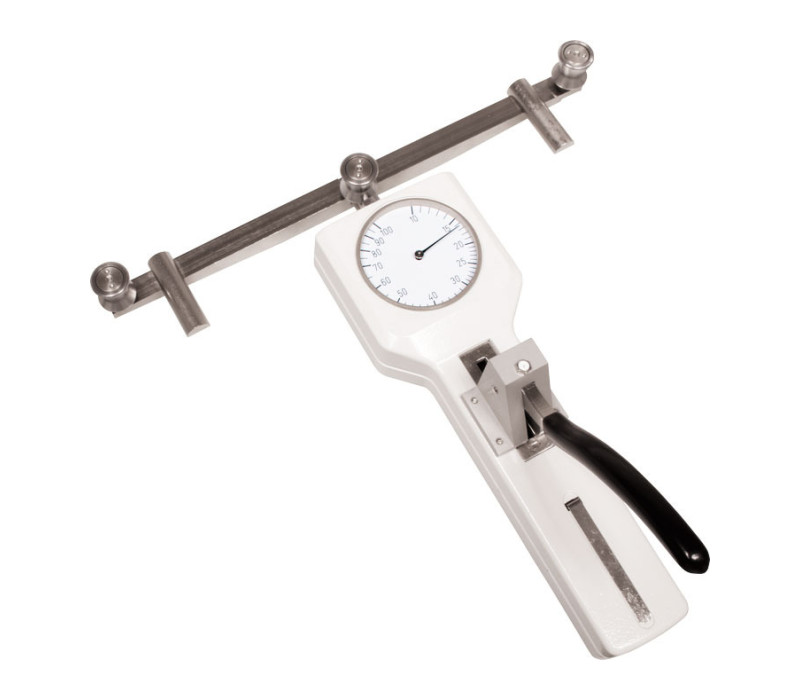

DNW Rope tension meter for pre-tensioned ropes / cables

Name: DNW Rope tension meter for pre-tensioned ropes / cables
SKU: 127379

The analog DNW rope tension meter enables tension measurement in pre-tensioned ropes and cables up to 4000 Newton. The easily readable 54mm analog scale allows for the measured value to be read in real time.

The DNW cable force gauges are calibrated in the factory on a steel cable of 2-4mm (depending on the capacity). The factory calibration is suitable for 95% of the applications, especially for comparative measurements. If the material to be tested differs greatly from the factory calibration, an optional calibration to a sample provided by the customer is possible.

For measurement on pre-tensioned, stationary ropes
Due to the low material deflection, the accuracy is approx. 3% of the capacity
Factory calibration takes place in a closed force system
Easy material threading using a lever handle

Model versions:

Model	Measurement range	Measuring head width	Factory calibration
DNW-100K	10 - 100 daN	265	Steel rope (diameter 2mm)
DNW-200K	20 - 200 daN	265	Steel rope (diameter 2mm)
DNW-300K	30 - 300 daN	265	Steel rope (diameter 3mm)
DNW-400K	40 - 400 daN	265	Steel rope (diameter 4mm)

Accuracy:	± 3% of the capacity or ± 1 scale value
Scale size:	54 mm
Measuring head width:	265 mm (middle - middle outer rollers)
Housing material:	Die-cast aluminum
Weight:	Net: 1100 g Gross: 2400 g

Products

Item	Product	Price	Quantity	Action
136675	DNW-100K Tension Meter 10-100 daN
134799	DNW-200K Tension Meter 20-200 daN
137139	DNW-300K Tension Meter 30-300 daN
135697	DNW-400K Tension Meter 40-400 daN

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
