ZF2 Economical tension meter for fiber, yarn and wire testing

ZF2 Economical tension meter for fiber, yarn and wire testing

Precision movement and light-weight, hard plastic housing makes the Type Z Series ideal for accurately checking the operating or static tensions of a wide variety of process material including delicate yarns, fibers, filaments, wires, etc.

Request price >>

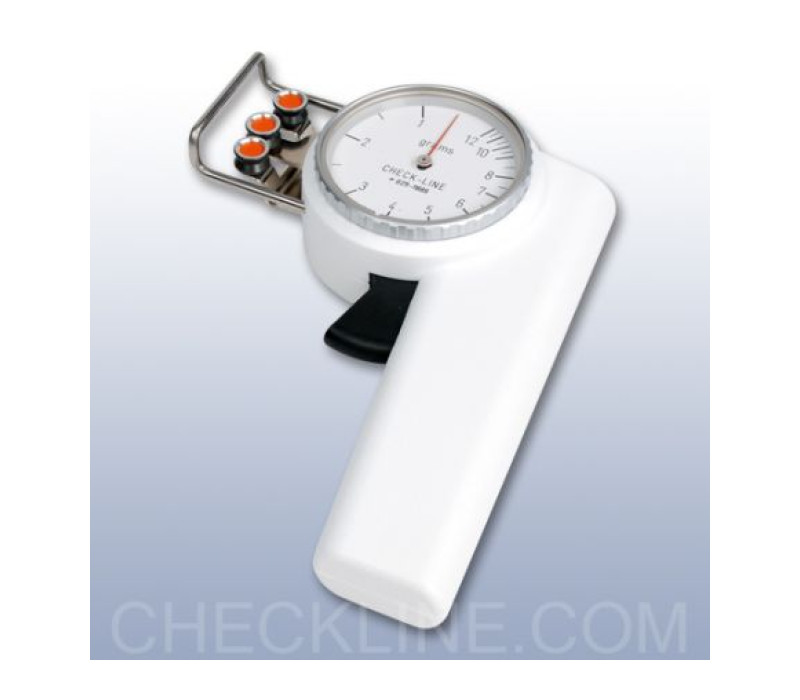

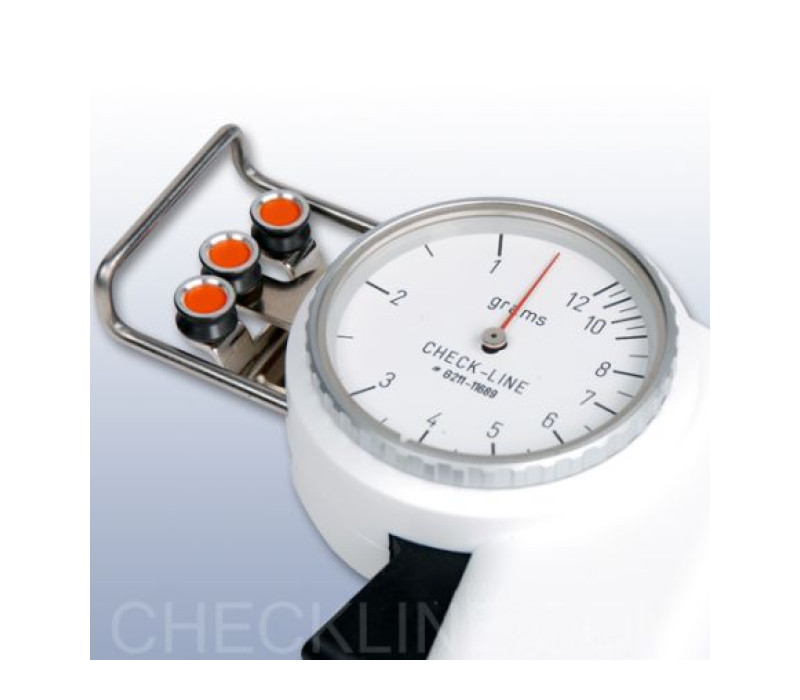

Slim filament guide with small guide rollers - ideal for limited access space
Large, easy to read scale (54 mm Ø)
Everything in operator's view:
- the guide rollers
- the measured material
- the readings
Each instrument is individually calibrated for highest accuracy
Inspection Certificate 3.1 according DIN EN 10204 with calibration report optionally available
Light weight

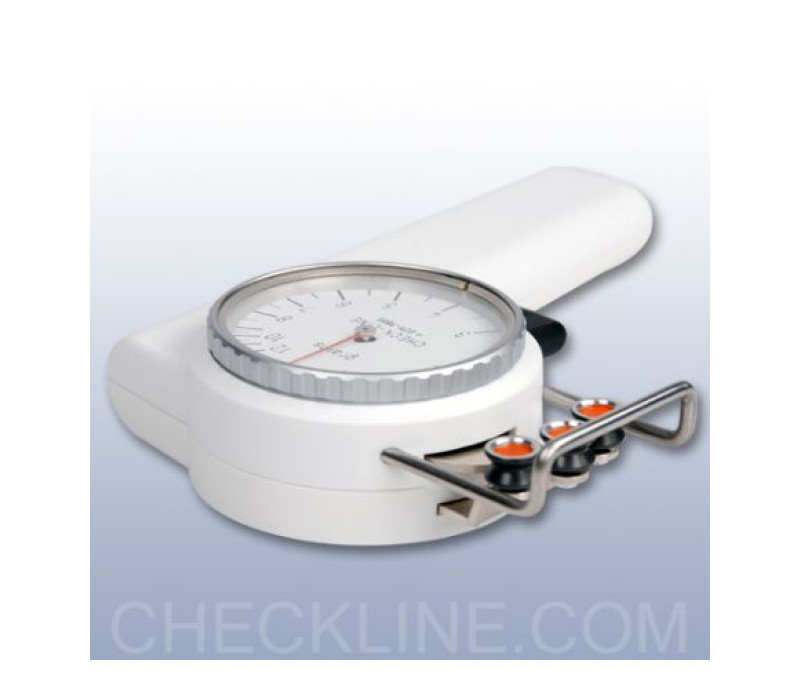

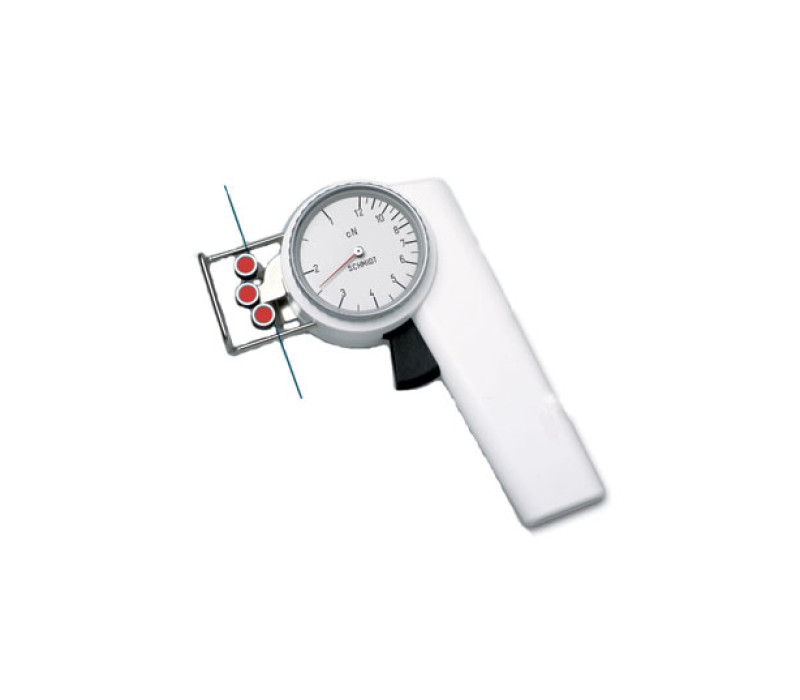

Filament guide and roller shifting mechanism ensure easy acquisition of the running material
Ball-bearing mounted, V-grooved guide rollers
Housing made of high-strength plastic
Certificate of Compliance with the order 2.1 according DIN EN 10204 is included

Delivery includes:

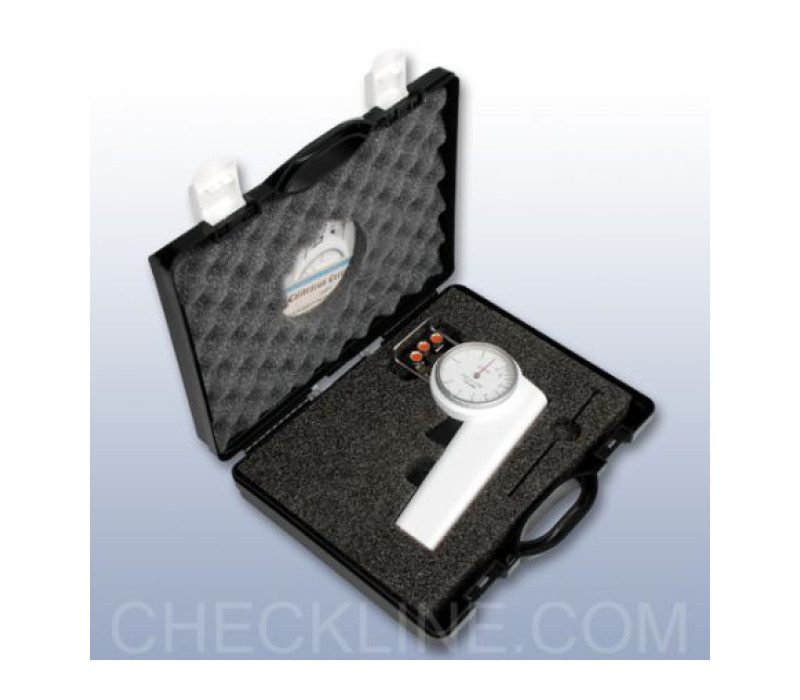

Tension meter with carrying case
operating instructions in English or German as requested

Calibration:	According to SCHMIDT factory procedure
Accuracy:	±1% full scale or ±1 graduation on scale
Scale diameter:	54 mm
Temperature range:	10-45ºC
Air humidity:	85% RH, max.
Housing material:	Plastic (POM)
Housing dimensions:	157 x 85 x 32 mm (LxWxH)
Weight, net (gross):	approx. 200 g (600 g)

Tension Ranges

Model	Ranges	Measuring Head Width* mm	SCHMIDT Calibration Material**
ZF2-5	1-5	43	Filament: 25 tex
ZF2-10	1-10	43	Filament: 25 tex
ZF2-12	1-12	43	Filament: 25 tex
ZF2-20	2-20	43	Filament: 25 tex
ZF2-30	3-30	43	PA: 0.12 mm Ø
ZF2-50	5-50	43	PA: 0.12 mm Ø
ZF2-100	10-100	43	PA: 0.12 mm Ø
Other tension ranges available on request. Other units of measure available, such as g. * Width of filament guide ** Suitable for 95% of applications - PA = Polyamide Monofilament <b>Special calibration using customer supplied samples</b> is recommended, if process material differs significantly from the <b>SCHMIDT</b> calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

Applications

	ZF2 Models Miniaturized rollers make these models ideal for delicate fibers, low tension or when access space is limited.
	ZD2 Models Recommended for all other applications where miniaturized rollers are not needed.
