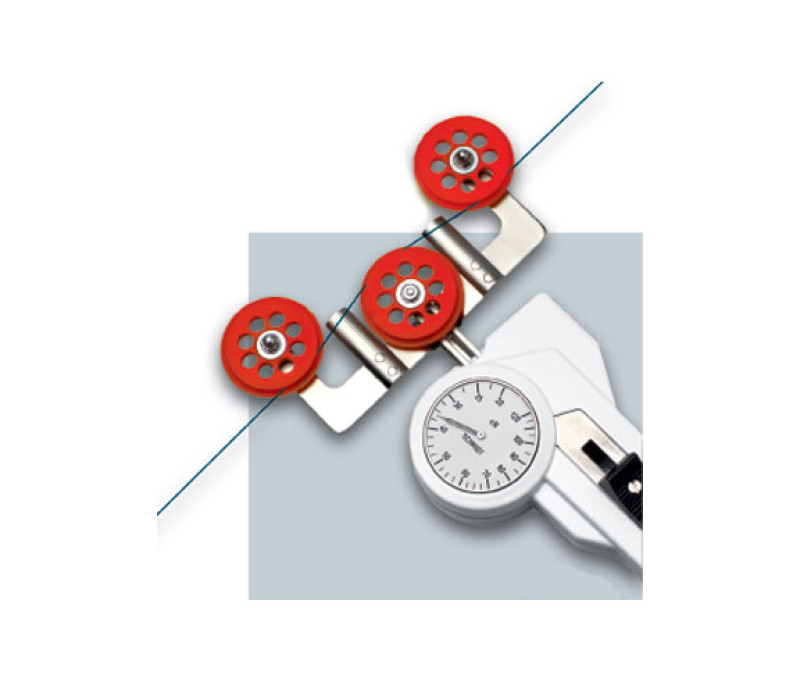

DXF Tension meter with large rollers for minimized material deflection

Special purpose model features large rollers to minimize bending of materials like optics, carbon and technical fibers.

Fragile filaments such as fiber optics and other technical fibers may require large roller diameters and a wide roller spacing.

Note: This model does not include a material thickness compensator

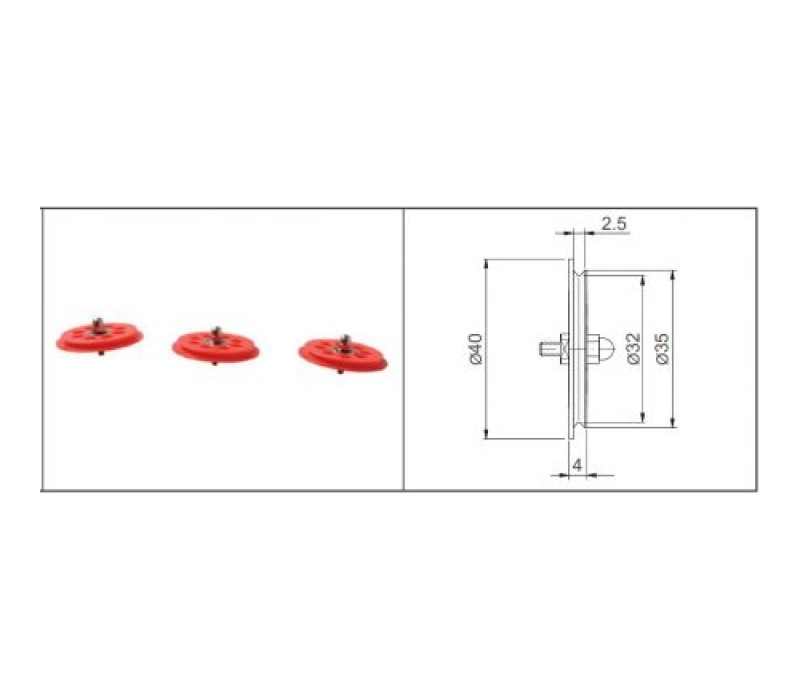

Large, V-grooved guide rollers with 32 mm groove diameter, ball-bearing mounted
Filament guide and roller shifting mechanism ensure easy acquisition of the running material

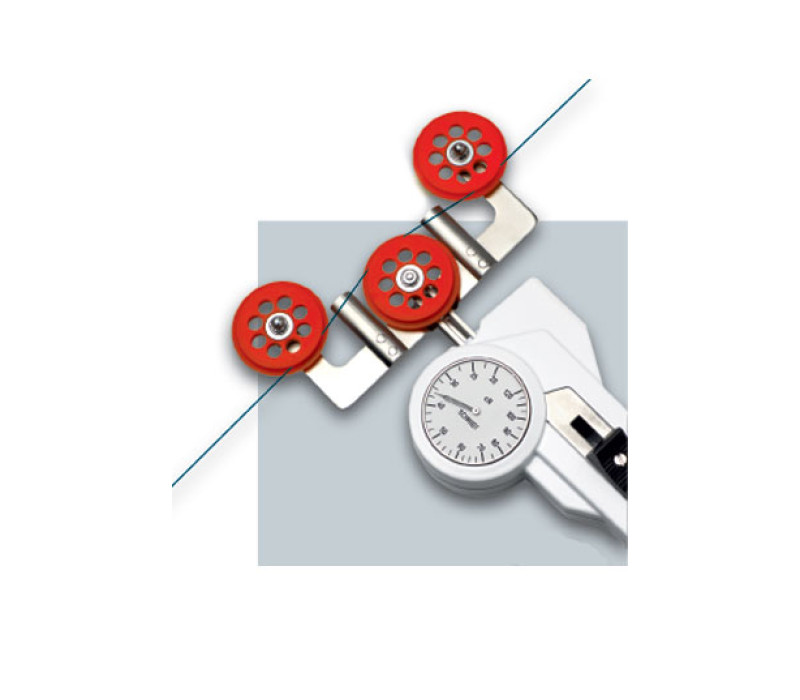

Ball-bearing mounted, V-grooved guide rollers
41mm Ø scale
Large bending radius assures gentle handling of the material being measured
Everything in operator's view:
- the guide rollers
- the measured material
- the readings
Each instrument is individually calibrated for highest accuracy
Rugged aluminum housing
Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

Delivery includes:

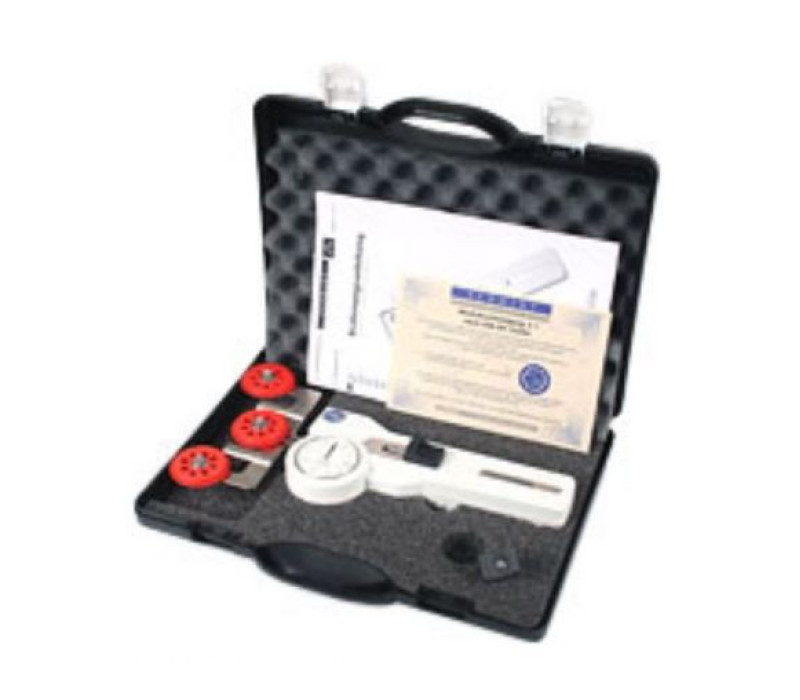

Tension meter with carrying case, operating instructions in English or German as requested

Calibration:	According to SCHMIDT factory procedure
Accuracy:	±1% full scale or ±1 graduation on scale
Scale diameter:	41 mm
Temperature range:	10-45ºC
Air humidity:	85% RH, max.
Housing material:	Die-cast aluminum
Housing dimensions:	188 x 85 x 45 mm (L x W x H)
Weight, net (gross):	approx. 500 g (1000 g)
Line speed:	4000 m/min

Tension Ranges

Model	Ranges	Measuring Head Width* mm	SCHMIDT Calibration Material**
DXF-120	20-120 cN.	140	PA: 0.12 mm Ø
DXF-200	20-200 cN.	140	PA: 0.12 mm Ø
DXF-400	20-400 cN.	140	PA: 0.20 mm Ø
DXF-1000	50-1000 cN.	140	PA: 0.30 mm Ø
Other tension ranges available on request. Other units of measure available, such as g. * Outer distance between outside guide rollers ** Suitable for 95% of applications - PA = Polyamide Monofilament Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

Products

Item	Product	Price	Quantity	Action
133476	DXF-120 Tension Meter 20-120 cN
133383	DXF-200 Tension Meter 20-200 cN
130522	DXF-400 Tension Meter 20-400 cN
132792	DXF-1000 Tension Meter 50-1000 cN

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
