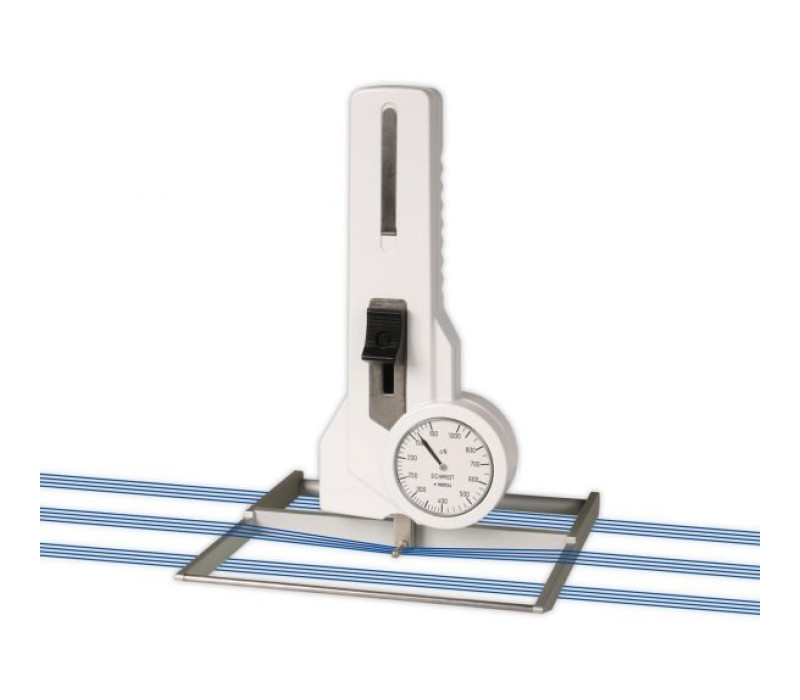

DXK Warp Tension Meter for Weaving Machines

DXK Warp Tension Meter

Analogue tension meter for static warp-thread measurements on stopped weaving machines

The DXK is a mechanical hand-held tension meter for measuring the tension of a single warp thread or several threads while the weaving machine is stopped. Three models cover measuring ranges from 20–300 cN to 200–2000 cN.

Its 15 × 17 cm reference frame rests directly on the warp to provide a stable measuring position, while the roller shifting mechanism helps engage the selected threads. For repeatable results, the same number of ends should be measured each time and the threads should remain in their normal alignment during measurement.

Analogue mechanical tension measurement for warp threads on stopped weaving machines
Measures the tension of a single warp thread or several threads
Three measuring ranges from 20–300 cN to 200–2000 cN
Large 15 × 17 cm reference frame provides a stable measuring position on the warp
10 mm sensing pin
Roller shifting mechanism facilitates acquisition of the material
41 mm analogue scale keeps the measured material and reading in the operator’s view
Each instrument is individually calibrated according to the manufacturer’s factory procedure
No material thickness compensator

DXK tension meter
Special finger support
Certificate of Compliance with the order 2.1 according to EN 10204
Instruction manual
Carrying case

Measuring Ranges	DXK-300: 20–300 cN DXK-1000: 100–1000 cN DXK-2000: 200–2000 cN
Calibration	According to manufacturer factory procedure; standard calibration with fabric tape
Accuracy	±1% full scale or ±1 graduation on scale
Reference Frame	15 × 17 cm
Sensing Pin Width	10 mm
Scale Diameter	41 mm
Temperature Range	10–45°C
Air Humidity	85% RH max.
Housing Material	Die-cast aluminium
Housing Dimensions	188 × 85 × 45 mm (L × W × H), without measuring frame
Weight	Approx. 470 g net (1000 g gross)

Options

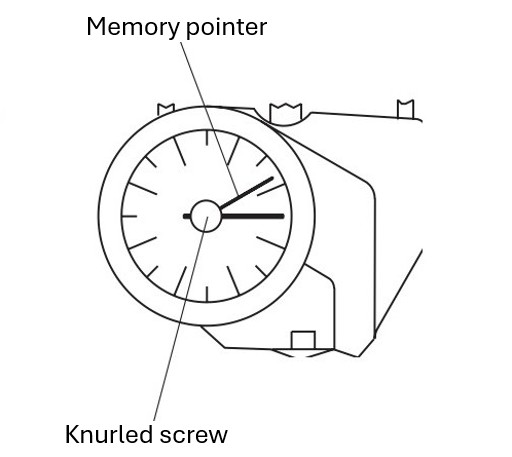

Code M memory pointer Retains the highest measured value during a measurement period and can be manually reset.
Inspection Certificate 3.1 Inspection Certificate 3.1 according to EN 10204 with calibration report, available on request.
