Analogue Tension Meter with Wide Tape Rollers DXR

DXR Analogue Tension Meter for Tapes and Bands

Mechanical analogue tension meter for tapes, ribbons, films, foils and other flat materials

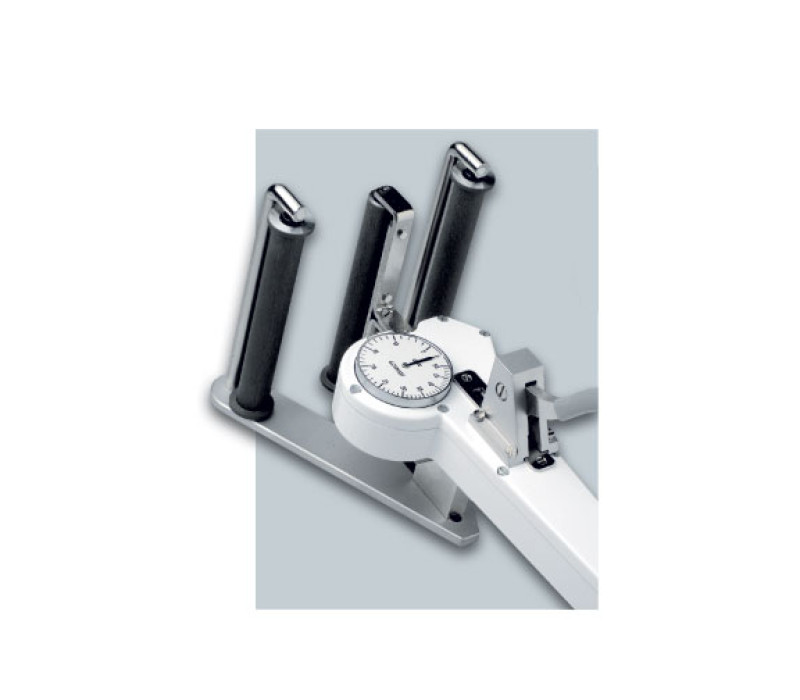

The DXR is a hand-held mechanical tension meter for measuring running tension in tapes, textile ribbons, films, foils, fibre bundles and similar flat materials.

Cylindrical tape rollers supported on both sides provide a robust measuring arrangement, while dual-flanged outer guide rollers help guide the running material. The roller-shifting mechanism simplifies insertion and removal of the material during measurement.

Roller width is selected to suit the material being measured. The DXR is available with 50 mm or 100 mm rollers, which are specified when requesting a quotation and are not interchangeable by the user.

Practical note: The DXR does not include a separate filament guide or material thickness compensator.

Mechanical analogue dial responds quickly to changing and fluctuating tension
Dual-flanged outer guide rollers supported on both sides help guide the running material
Ball-bearing-mounted tape rollers for smooth material travel
Roller-shifting mechanism simplifies insertion and removal of the running material
Guide rollers, measured material and tension reading remain visible to the operator
Each instrument is individually calibrated according to the factory procedure
41 mm analogue scale for clear direct readings
Rugged die-cast aluminium housing

DXR tension meter (fitted with the Code L special lever on the -L models)
Carrying case
Operating instructions in English or German
Certificate of Compliance with the order 2.1 according to EN 10204

Measuring Ranges	DXR-2000: 200–2000 cN DXR-5000: 400–5000 cN DXR-10K-L: 2.5–10 daN DXR-20K-L: 5–20 daN DXR-30K-L: 5–30 daN DXR-50K-L: 5–50 daN
Measuring Head Width	DXR-2000 / DXR-5000 / DXR-10K-L: 135 mm DXR-20K-L / DXR-30K-L / DXR-50K-L: 200 mm
Roller Width	50 or 100 mm
Roller Material	Hard-coated aluminium
Maximum Line Speed	1000 m/min
Calibration	According to factory procedure
Accuracy	±1% full scale or ±1 graduation on scale
Scale Diameter	41 mm
Temperature Range	10–45 °C
Relative Humidity	85% RH max.
Housing Material	Die-cast aluminium
Housing Dimensions	188 × 85 × 45 mm (L × W × H)
Weight, Net (Gross)	Approx. 980 g (2200 g)

Options

Code L special lever	Reduces the force required to move the outer guide rollers when inserting or removing material at higher tensions. Fitted as standard on the DXR-10K-L, DXR-20K-L, DXR-30K-L and DXR-50K-L; available on request for the DXR-2000 and DXR-5000.
Code M memory pointer	Retains the highest measured value (PEAK). Available on request.
Code CF Topocrom® roller coating	Special roller coating for carbon fibre. Available with 50 mm rollers; 100 mm available on request.
Other roller materials and coatings	Alternative roller materials and coatings, including Code AH anti-adhesive coating, are available on request.
Inspection Certificate 3.1 according to EN 10204	Inspection Certificate 3.1 with calibration report available on request.

Roller widths

Every DXR model is available with 50 mm or 100 mm rollers. State the required roller width when requesting a quotation.

Model	Measuring range	Measuring head width	Roller widths
DXR-2000	200–2000 cN	135 mm	50 mm or 100 mm
DXR-5000	400–5000 cN	135 mm	50 mm or 100 mm
DXR-10K-L	2.5–10 daN	135 mm	50 mm or 100 mm
DXR-20K-L	5–20 daN	200 mm	50 mm or 100 mm
DXR-30K-L	5–30 daN	200 mm	50 mm or 100 mm
DXR-50K-L	5–50 daN	200 mm	50 mm or 100 mm

Code CF Topocrom coating for carbon fibre is supplied with 50 mm rollers; 100 mm is available on request. Other roller coatings are available on request.

Products

Item	Product	Price	Quantity	Action
139346	DXR-2000_Analogue Tension Meter 200-2000 cN
137297	DXR-5000_Analogue Tension Meter 400-5000 cN
135503	DXR-10K-L_Analogue Tension Meter 2,5-10 daN
135504	DXR-20K-L_Analogue Tension Meter 5-20 daN
135401	DXR-30K-L_Analogue Tension Meter 5-30 daN
137298	DXR-50K-L_Analogue Tension Meter 5-50 daN

Accessories

Item	Product	Price	Quantity	Action
130472	Code L_Special Lever
130570	Code M_Memory Pointer Tension Meter
133261	50 mm_Hardcoated aluminium Roller - 1000 m/min
133421	Code CF_Special Topocrom® coating for carbon fibre
136966	Code EM1_Calibration from one customer-supplied sample
140726	CIC-E-TENSION_Calibration certificate for new instruments

All prices shown exclude VAT and shipping costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
