DXL Tension meter with large rollers for minimized material deflection

DXL Tension meter with large rollers for minimized material deflection

For fiber optic cables and buffer tubes up to 8mm max

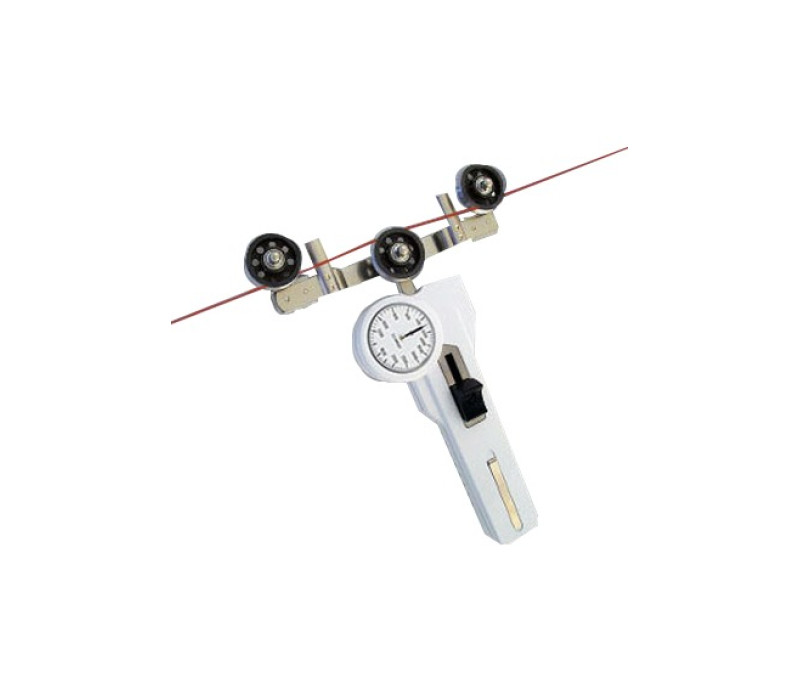

Special purpose model features large rollers to minimize bending of materials like optics, carbon and technical fibers.

Fragile filaments such as fiber optics and other technical fibers may require large roller diameters and a wide roller spacing.

Note: This model does not include a material thickness compensator

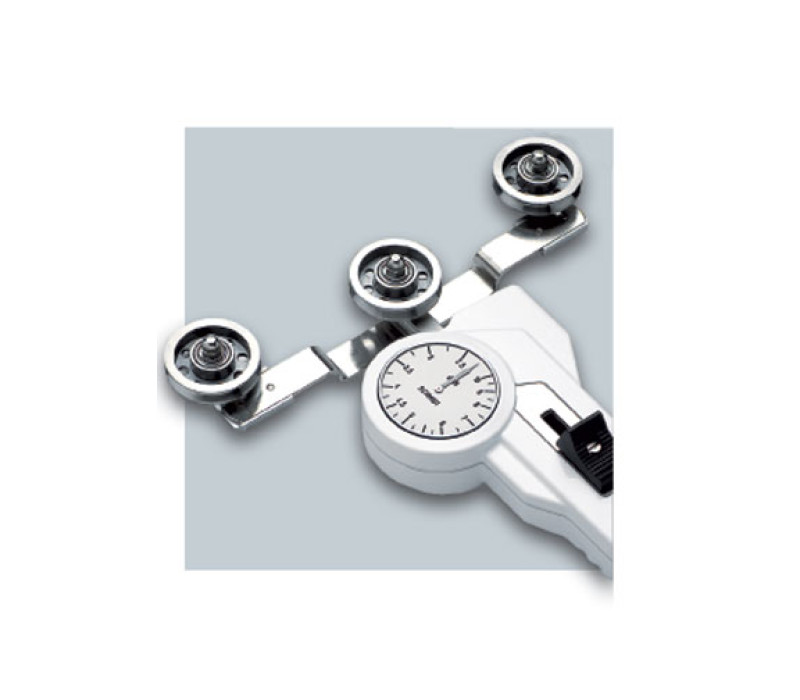

Large, V- or U-grooved guide rollers with 30 mm groove diameter, ball-bearing mounted
Custom-built configurations are available
Ball-bearing mounted V- or U-grooved guide rollers
41 mm Ø scale
Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
Large bending radius assures gentle handling of the material being measured
Everything in operator's view:
- the guide rollers
- the measured material
- the readings
Each instrument is individually calibrated for highest accuracy
Rugged aluminum housing
Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

Delivery includes:
Tension meter with carrying case, operating instructions in English or German as requested

Calibration:	According to SCHMIDT factory procedure
Accuracy:	±1% full scale or ±1 graduation on scale
Scale diameter:	41 mm
Temperature range:	10-45ºC
Air humidity:	85% RH, max.
Housing material:	Die-cast aluminum
Housing dimensions:	188 x 85 x 45 mm (L x W x H)
Weight, net (gross):	approx. 640 g (1100 g)

Tension Ranges

Model	Ranges	Measuring Head	SCHMIDT Calibration
DXL-2000	200-2000	235	PA: 2.3 mm Ø or customer sample
DXL-5000	400-5000	235	PA: 2.3 mm Ø or customer sample
DXL-10K	2.5-10 daN	288	PA: 4.8 mm Ø or customer sample
Other tension ranges available on request. Other units of measure available, such as g and kg. * Outer distance between outside guide rollers ** Suitable for 95% of applications - PA = Polyamide Monofilament Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.
