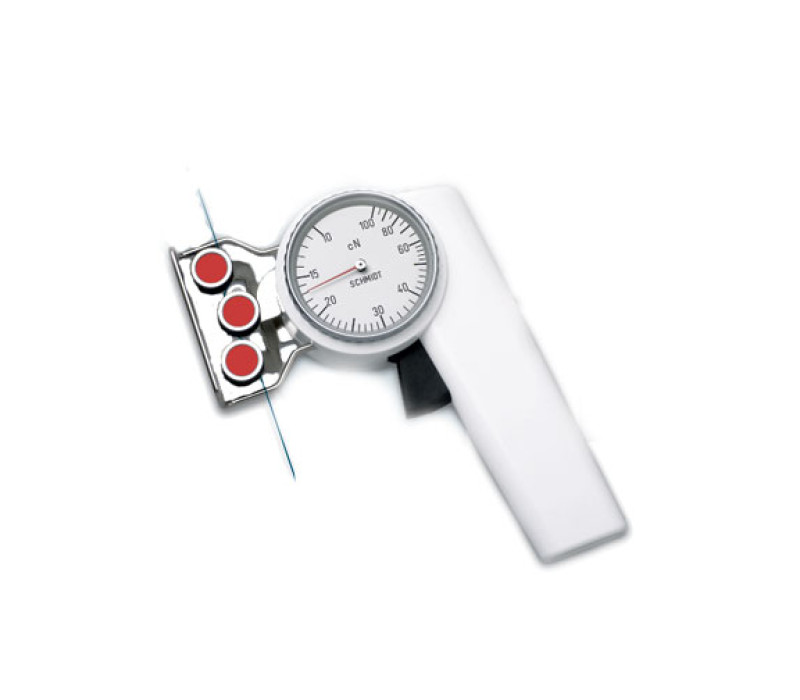

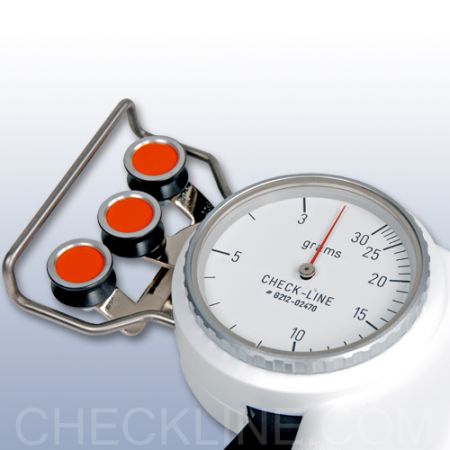

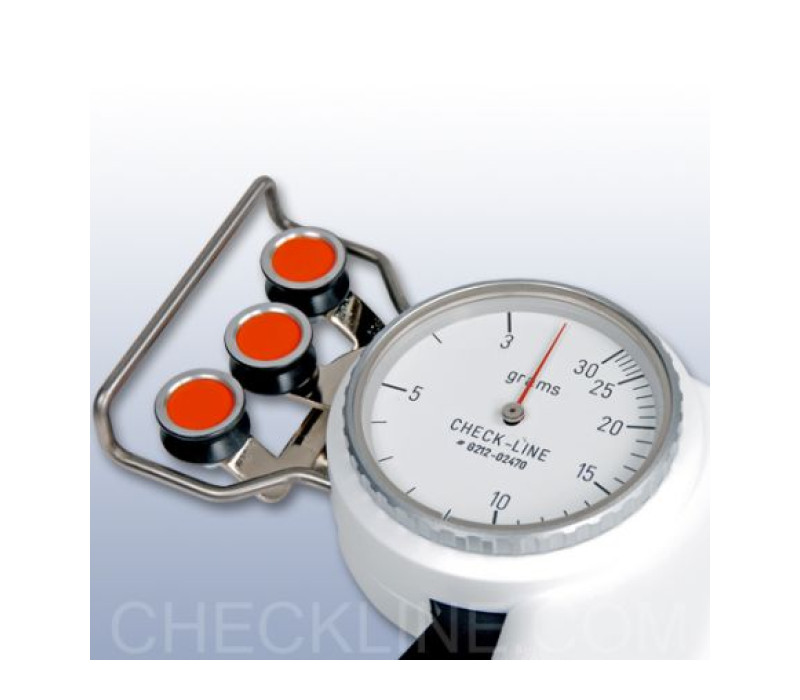

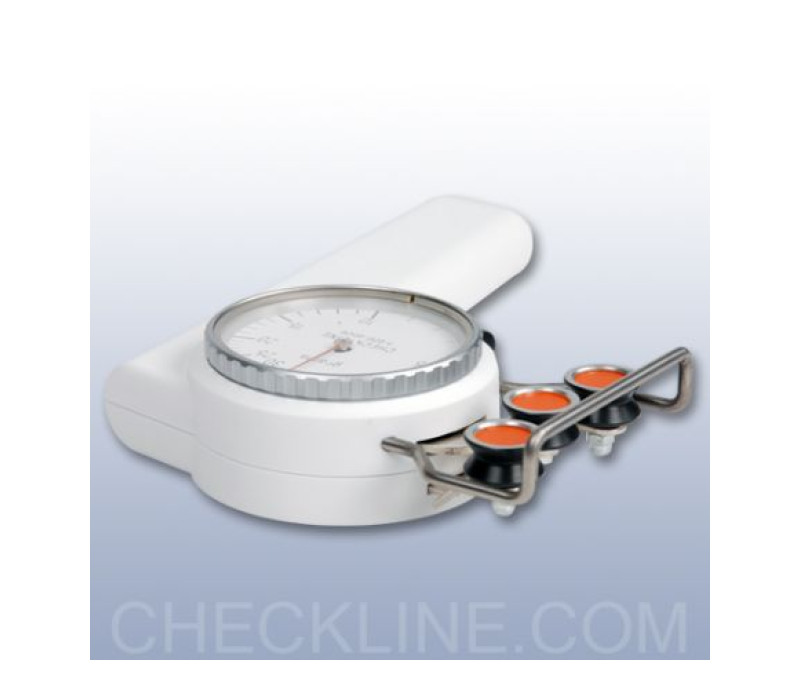

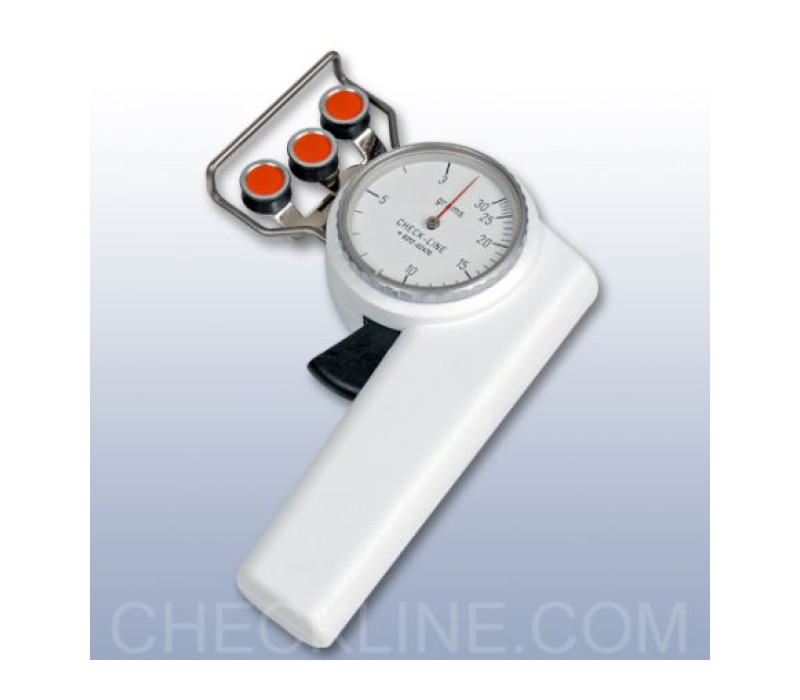

ZD2 Universal tension meter for checking fibers, yarns and fine wires
Precision movement and light-weight, hard plastic housing makes the Type Z Series ideal for accurately checking the operating or static tensions of a wide variety of process material including delicate yarns, fibers, filaments, etc. Features
- Large, easy to read scale (54 mm Ø)
- A trigger-operated, roller-shifting mechanism and exclusive snare-guide automatically guide the moving filament into the roller V-grooves eliminating breaks and snags
- Certificate of Compliance with the order 2.1 according EN 10204 is included
- Front filament loading permits the operator to observe the filament, rollers and dial at all times
- Each instrument is individually calibrated with each scale hand marked to provide the highest reading accuracy
- Each instrument is individually calibrated with each scale hand marked to provide the highest reading accuracy
- Inspection Certificate 3.1 according EN 10204 with calibration report is optionally available
 |
ZF2 Models Miniaturized rollers make these models ideal for delicate fibers, low tension or when access space is limited. |
 |
ZD2 Models Recommended for all other applications where miniaturized rollers are not needed. |
| Model | Ranges | ||||
| ZD2-30 | 3-30 cN | ||||
| ZD2-50 | 5-50 cN | ||||
| ZD2-100 | 10-100 cN | ||||
| ZD2-150 | 20-150 cN | ||||
| ZD2-200 | 20-200 cN | ||||
| ZD2-300 | 20-300 cN |

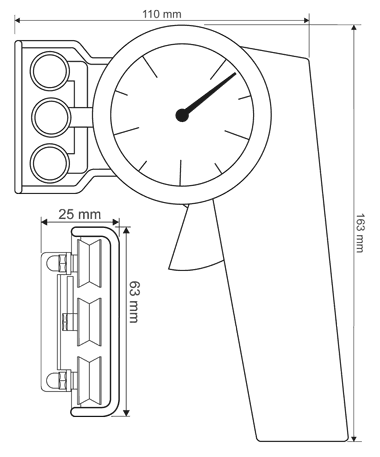

Dimensions
Specifications
| Calibration: | According to SCHMIDT factory procedure |
| Accuracy: | ±1% full scale or ±1 graduation on scale |
| Scale diameter: | 54 mm |
| Dimensions: | 150 x 120 x 30 mm |
| Weight, net (gross): | approx. 230 g |
| Roller material: | Standard - Hard coated aluminium |
| Maximum Linear Speed: | Standard - 2000 meters/min Optional - 3500 meters/min (K) Optional - 5000 meters/min (HS) |
| Other Options: | Calibration for horizontal material path (rollers pointing down) (D) Memory pointer |
