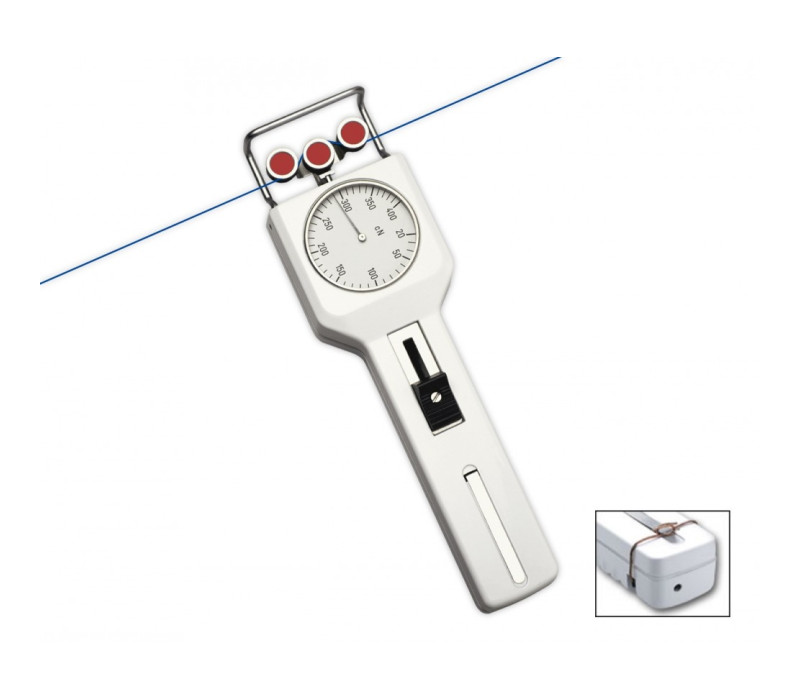

DN1 Durable tension meter for high tensions

DN1 Durable tension meter for high tensions

Durable tension meters for a wide range of applications in the textile, fiber and wire industries.

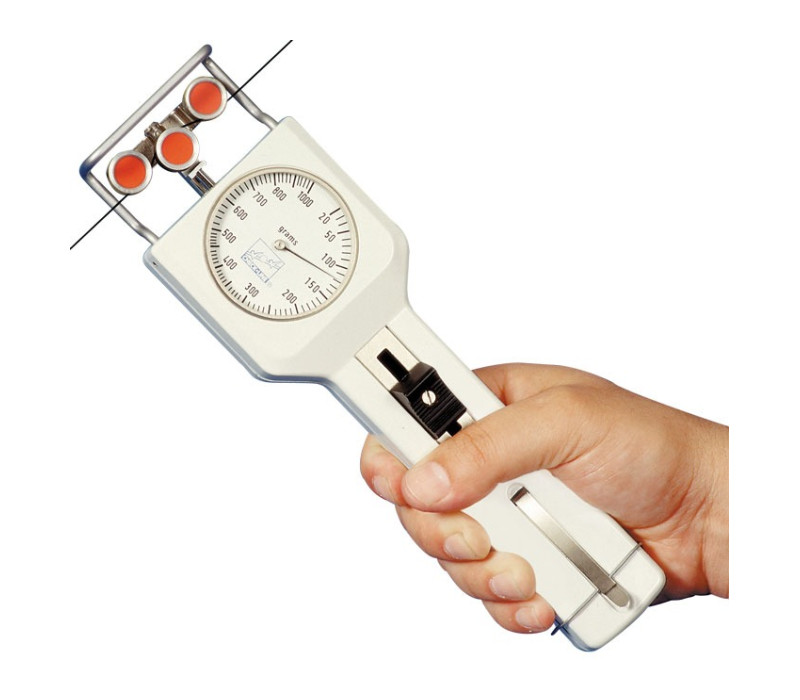

The DN1 analog tension meter shows changing and fluctuating tensions fast, it enables an optimal process adjustment .The built-in material thickness compensator compensates different material diameters for a particular range (only DN1-1000 and higher ranges). The scale (54 mm Ø) is easy to read, the linearized scale provides a clear reading. The filament guide and roller shifting mechanism ensure easy acquisition of the running material.

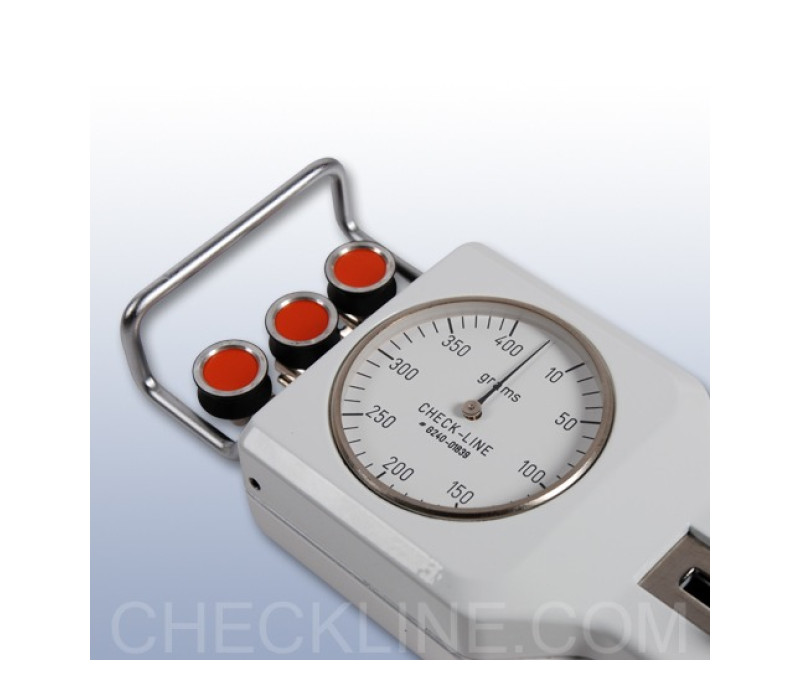

Large, easy to read scale (54 mm Ø)
Shock-resistant movement

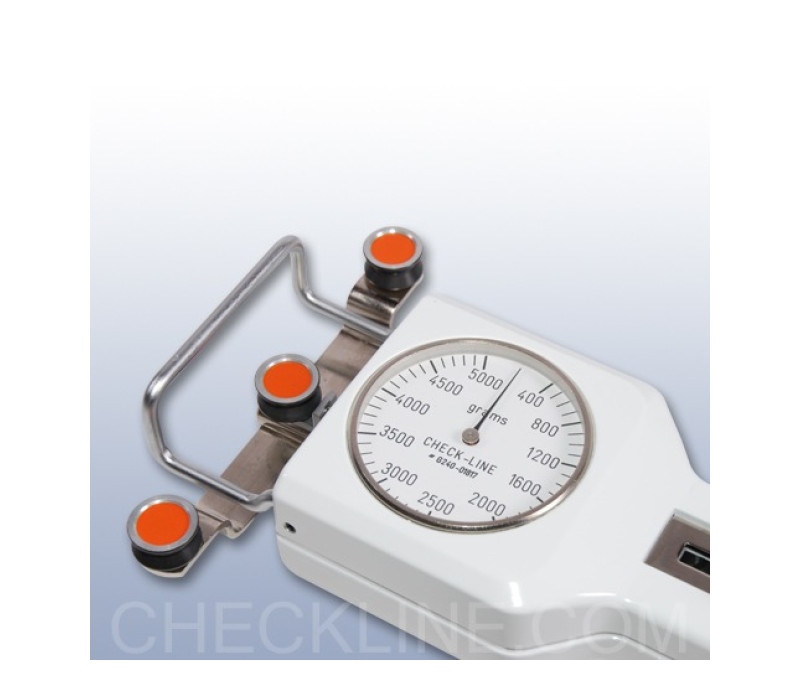

Filament guide and roller shifting mechanism ensure easy acquisition of the running material

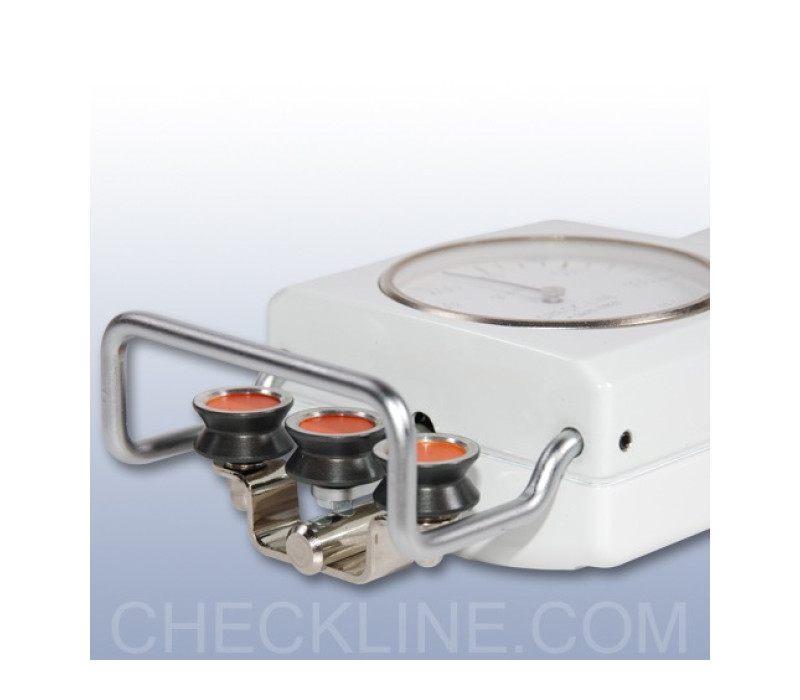

Ball-bearing mounted, V-grooved guide rollers
Special calibration is available
Specific Test Report with calibration test report optionally available
Linearized scale provides a better reading
Built-in material thickness compensator improves accuracy for changing diameters on DN1-1000 and higher ranges
Everything in operator's view:
- the guide rollers
- the measured material
- the readings
Each instrument is individually calibrated for highest accuracy
Rugged aluminum housing

Tension Ranges

Model	Ranges	Measuring Head Width* mm	SCHMIDT Calibration Material**
DN1-120	20-120	65	PA: 0.12 mm Ø
DN1-200	20-200	65	PA: 0.12 mm Ø
DN1-400	20-400	65	PA: 0.20 mm Ø
DN1-1000	50-1000	65	PA: 0.30 mm Ø
DN1-2000	200-2000	116	PA: 0.50 mm Ø
DN1-3500	400-3500	116	PA: 0.80 mm Ø
DN1-5000	400-5000	116	PA: 0.80 mm Ø
DN1-8000	500-8000	116	PA: 1.00 mm Ø
DN1-10K	2-10 daN	116	PA: 1.00 mm Ø
DN1-20K-L	5-20 daN	216	PA: 1.50 mm Ø
DN1-30K-L	5-30 daN	265	PA: 1.50 mm Ø
DN1-50K-L	5-50 daN	265	Steel rope: 1.50 mm Ø (7x7x0.20)
Other tension ranges and measuring head widths available on request. Other units of measure available - g or kg. * Depending on model, either width of filament guide or outer distance between outside guide rollers Suitable for 95% of applications - PA = Polyamide Monofilament *MTC = Material Thickness Compensator Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

Product options

Code A: Air Damping

This adjustable mechanical air dashpot is recommended for applications in which great fluctuations of the measured tension occur, as in spooling and winding machines. This assures steady tension readings on the scale.

Code L: Special Lever

Facilitates acquisition of the running material when measuring high tensions. Reduces force necessary to extend outer rollers: Recommended for tension ranges of 10 daN and higher.

Delivery includes:
Tension meter with carrying case, operating instructions in English or German as requested

Note: Models DN1-30K and DN1-50K are delivered with roller R12013 as default

Calibration:	According to SCHMIDT factory procedure
Accuracy:	±1% full scale (FS) or ±1 graduation on scale
Scale diameter:	54 mm
Temperature range:	10-45ºC
Air humidity:	85% RH, max.
Housing material:	Die-cast aluminum
Housing dimensions:	220 x 74 x 42 mm (L x W x H)
Weight, net (gross):	up to DN1-10K approx. 700 g (1200 g) DN1-20K-L and higher ranges (approx.) 900 g (2200 g)
