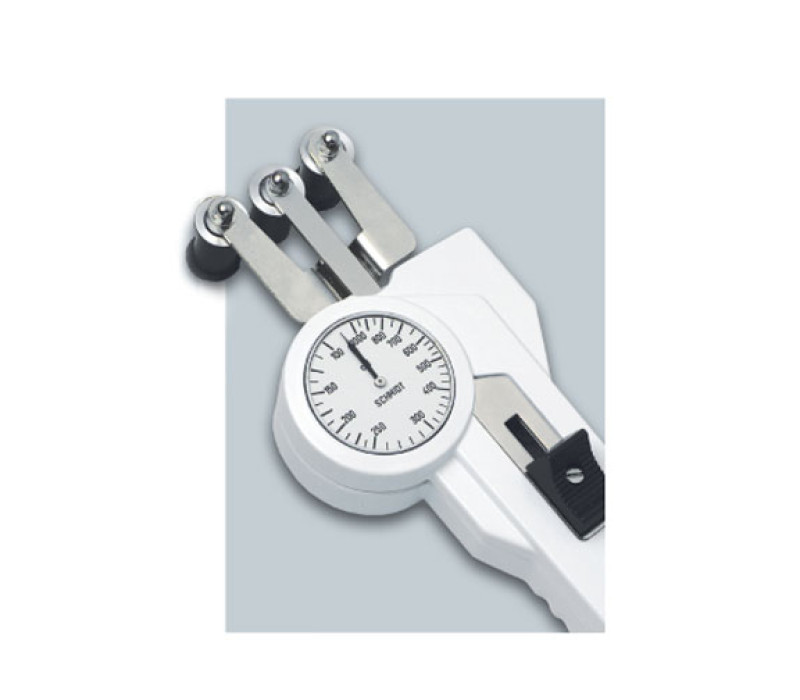

DXT Tension meter with Cylindrical rollers pointing away from the operator

Name: DXT Tension meter with Cylindrical rollers pointing away from the operator
SKU: 125922

Tension meter for measuring all kinds of tapes and bands, such as textile ribbons, films, foils, fiber bunches, etc.

Note: This model does not include a material thickness compensator and filament guide

Dual-flanged outer guide rollers with various widths, from 7 mm to 50 mm (single-flanged rollers optional)
Built-in mounting holes permit fixed installation for continuous tension measurement
Ball-bearing mounted, tape rollers
41mm Ø scale
Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
Special finger support located on the rear side reduces the effort to move the outer roller assembly
Everything in operator's view:
- the guide rollers
- the measured material
- the readings
Each instrument is individually calibrated for highest accuracy
Rugged aluminum housing
Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

Delivery includes:
Tension meter with carrying case, operating instructions in English or German as requested

Calibration:	According to SCHMIDT factory procedure
Accuracy:	±1% of full scale or ±1 graduation on scale
Scale diameter:	41 mm
Temperature range:	10-45ºC
Air humidity:	85% RH, max.
Housing material:	Die-cast aluminum
Housing dimensions:	188 x 85 x 45 mm (L x W x H)
Weight, net (gross):	approx. 520 g (1300 g)

Tension Ranges

Model	Ranges	Measuring Head Width** mm	Roller Widths mm
DXT-50	10-50 cN	57	7
DXT-120	20-120 cN	57	7,10,15,20,30
DXT-200	20-200 cN	57	7,10,15,20,30
DXT-400	20-400 cN	57	7,10,15,20,30
DXT-1000	100-1000 cN	57	7,10,15,20,30,36,41,50
DXT-2000	200-2000 cN	117	7,10,15,20,30,36,41,50
DXT-5000	400-5000 cN	117	7,10,15,20,30,36,41,50
DXT-10K	2.5-10 daN	117	7,10,15,20,30
DXT-20K-L	5-20 daN	117	7,10,15,20
Other tension ranges, measuring head widths and material path calibrations available on request. Other units of measure available, such as g or kg. * SCHMIDT calibration material textile ribbon or film, depending on tension range and roller width ** Outer distance between outside guide rollers Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

Products

Item	Product	Price	Quantity	Action
136697	DXT-120-7 Tension Meter 20-120 cN
137304	DXT-120-10 Tension Meter 20-120 cN
136565	DXT-200-7 Tension Meter 20-200 cN
137305	DXT-200-10 Tension Meter 20-200 cN
136096	DXT-400 Tension Meter 20-400 cN
136097	DXT-1000 Tension Meter 100-1000 cN
139797	DXT-2000-7 Tension Meter 200-2000 cN
136755	DXT-2000-50 Tension Meter 200-2000 cN
133260	DXT-5000 Tension Meter 400-5000 cN
138883	DXT-5000-50 Tension meter 400-5000 cN with 50 mm roller

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
