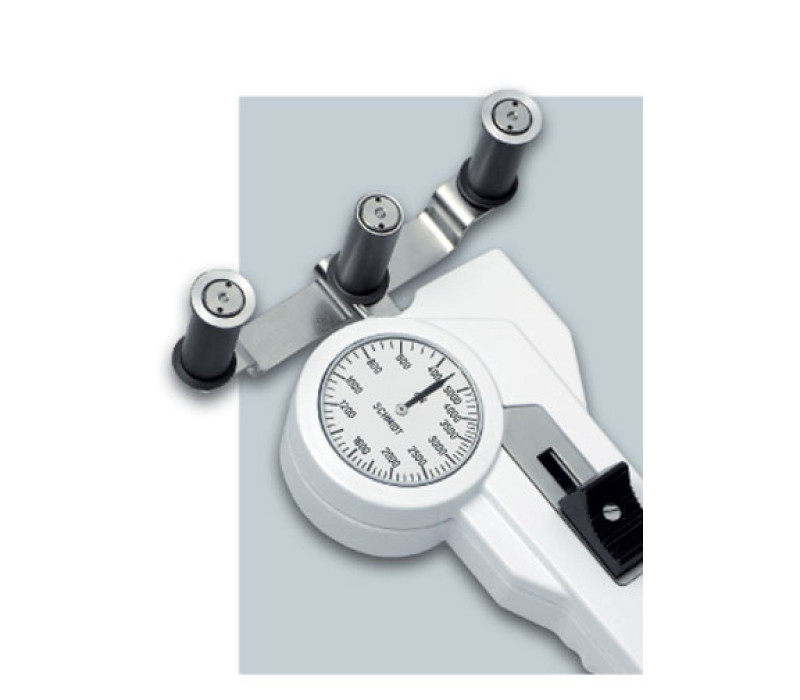

DXB Tension meter with Cylindrical rollers pointing toward the operator

Name: DXB Tension meter with Cylindrical rollers pointing toward the operator
SKU: 125920

Tension meter for measuring all kinds of tapes and bands, such as textile ribbons, films, foils, fiber bunches, etc.

When selecting the instrument for your specific application, please keep in mind that:
1. Rollers of different widths are not interchangeable by the user.
2. The roller width should correspond with the width of the material to be measured. Otherwise incorrect measuring results may occur and the instrument may be damaged.

SCHMIDT has the solution to any tension measuring problem! Please contact us to discuss your application requirements.

To assist you in selecting the right tension meter for your specific application, please furnish:

Kind and dimensions of the material to be measured
Expected tension range
Material sample of about 5 m

Note: This model does not include a material thickness compensator and filament guide.

Dual-flanged outer guide rollers with various widths, from 7 mm to 50 mm (single-flanged rollers optional)
Built-in mounting holes permit fixed installation for continuous tension measurement
Ball-bearing mounted, tape rollers
41mm Ø scale
Each instrument is individually calibrated for highest accuracy
Special finger support located on the rear side reduces the effort to move the outer roller assembly
Everything in operator's view:
- the guide rollers
- the measured material
- the readings
Rugged aluminum housing
Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

Delivery includes:
Tension meter with carrying case, operating instructions in English or German as requested

Calibration:	According to SCHMIDT factory procedure
Accuracy:	±1% full scale or ±1 graduation on scale
Scale diameter:	41 mm
Temperature range:	10-45ºC
Air humidity:	85% RH, max.
Housing material:	Die-cast aluminum
Housing dimensions:	188 x 85 x 45 mm (L x W x H)
Weight, net (gross):	approx. 520 g (1300 g)

DXB Data Sheet

Tension Ranges

Model	Ranges	Measuring Head Width** mm	Roller Widths mm
DXB-50	10-50 cN	55	7
DXB-120	20-120 cN	55	7,10,15,20,30
DXB-200	20-200 cN	55	7,10,15,20,30
DXB-400	20-400 cN	55	7,10,15,20,30
DXB-1000	100-1000 cN	55	7,10,15,20,30,36,41,50
DXB-2000	200-2000 cN	117	7,10,15,20,30,36,41,50
DXB-5000	400-5000 cN	117	7,10,15,20,30,36,41,50
DXB-10K	2.5-10 daN	117	7,10,15,20,30,36,41
DXB-20K-L	5-20 daN	167	7,10,15,20,30
Other tension ranges, measuring head widths and material path calibrations available on request. Other units of measure available, such as g or kg. * SCHMIDT calibration material textile ribbon or film, depending on tension range and roller width ** Outer distance between outside guide rollers Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

Products

Item	Product	Price	Quantity	Action
135263	DXB-50-7 Tension Meter with 7mm roller width
133836	DXB-400-7 Tension Meter with 7mm roller width
134955	DXB-400-15 Tension Meter with 15mm roller width
132791	DXB-1000-7 Analog Tension Meter 100-1000 cN - 7 mm Rollers
130225	DXB-1000-20 Tension Meter with 20mm roller width
140275	DXB-1000-30 Tension Meter with 30mm roller width
139491	DXB-1000-50 Tension Meter with 50mm roller width
134195	DXB-2000-10 Tension Meter with 10mm rollers
138866	DXB-2000-20 Tension Meter with 20mm rollers
134987	DXB-2000-36 Tension Meter with 36mm rollers
133770	DXB-2000-50 Tension Meter with 50mm rollers
133256	DXB-5000-15 Tension Meter with 15mm roller width
130466	DXB-5000-20 Tension Meter with 20mm roller width
135569	DXB-5000-30 Tension Meter with 30mm roller width
138987	DXB-5000-36 Tension Meter with 36mm roller width
135022	DXB-5000-50 Tension Meter with 50mm roller width
137761	DXB-10K-7 Tension Meter with 7mm roller width
133835	DXB-10K-30 Tension Meter with 30mm roller width
135023	DXB-10K-41 Tension Meter with 41mm roller width
137250	DXB-10K-50 Tension Meter with 50mm roller width
137274	DXBS-20K-10 Stationary Tension Meter with 10mm roller width
133978	DXB-20K-L-20 Tension Meter 20 daN with 20mm roller width
137135	DXB-20K-L-30 Tension Meter 20 daN with 30mm roller width

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
