CAP-MTG Motorized Cap Torque Tester

The CAP-MTG Motorized Cap Torque Tester is no longer available and has been replaced by CAP-TSTM.
Click here to see the CAP-TSTM.

3 Ranges up to 85 lbf-in / 100.0 kgf-cm / 1000 N-cm

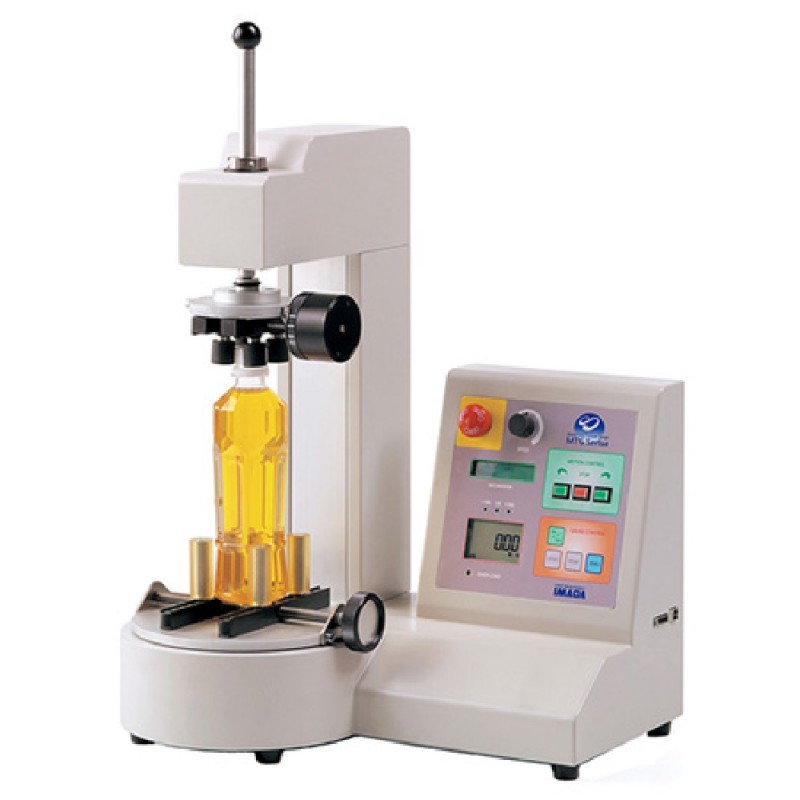

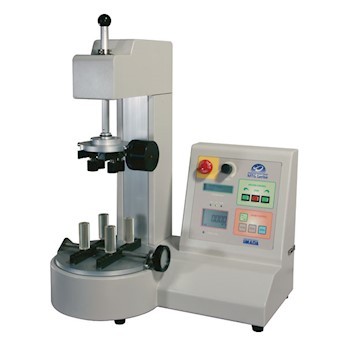

The CAP-MTG motorized cap torque tester accommodates sample containers up to 17,7 cm diameter and up to 23,9cm height. Torque markings on the cap vise enable consistent gripping of the cap. Operate in either clockwise or counterclockwise directions.

The CAP-MTG has programmable high/low setpoints to enable go/no-go testing. YELLOW lights up for measurements less than Low setpoint, GREEN for between High and Low setpoints, and RED for over High setpoint and testing automatically stops.

Use the real time mode to display torque transients, or the peak mode to capture the peak torque. Selectable measuring units of lbf-in, kgf-cm, or N-cm. Store up to 1,000 values in memory, which can be transmitted using USB output.

The CAP-MTG motorized cap torque testers include an extension shaft for short containers and 2" high pegs.

  • Programmable high/low setpoints with color-coded LED indicators and output signal for quick go/no go testing
  • Both CW and CCW operation
  • Overload capacity 150% of F.S. with alarm at 110% F.S.
  • Sample container diameters from 2,0 - 17,8 cm; cap diameters .2,0 - 8,9 cm ; container height 8,1 - 23,9 cm
  • Sampling speed 1,000 per second
  • lbf-in, kgf-cm, and N-cm units are selectable n USB, RS-232C, Digimatic and Analog outputs
  • Real time and peak mode (selectable)
  • Rotating speed 3~90° per second
  • Heavy duty all-metal construction for exceptional durability
  • 1,000 Data memory for computer download

Torque Ranges
Model Capacity (Resolution)
  lbf-in kgf-cm N-cm
CAP-MTG-15 15.00 (0.01) 20.00 (0.01) 200.0 (0.1)
CAP-MTG-40 40.00 (0.01) 50.00 (0.01) 500.0 (0.1)
CAP-MTG-85 85.0 (0.1) 100.0 (0.1) 1000 (1)
