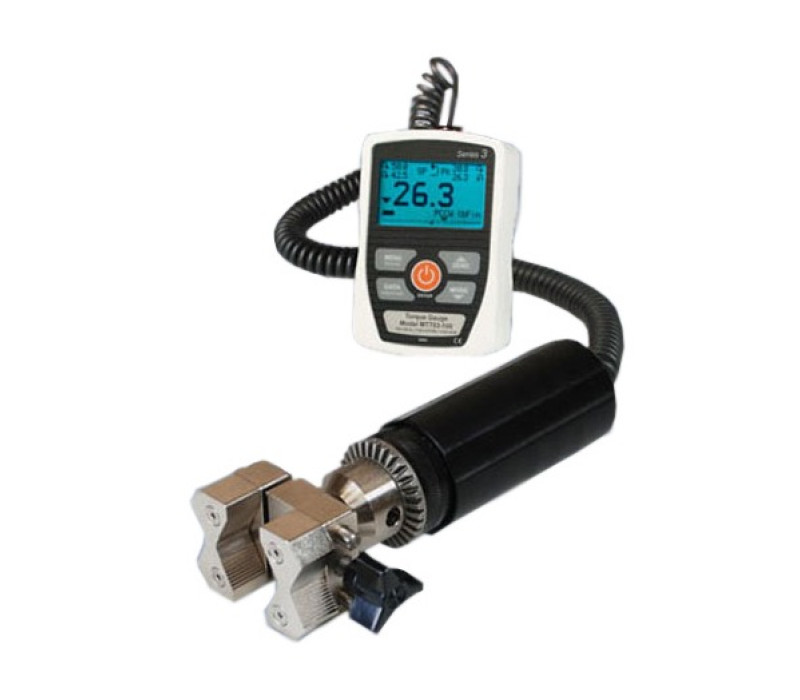

CAP-TT03 Hand-held Cap Torque Meter

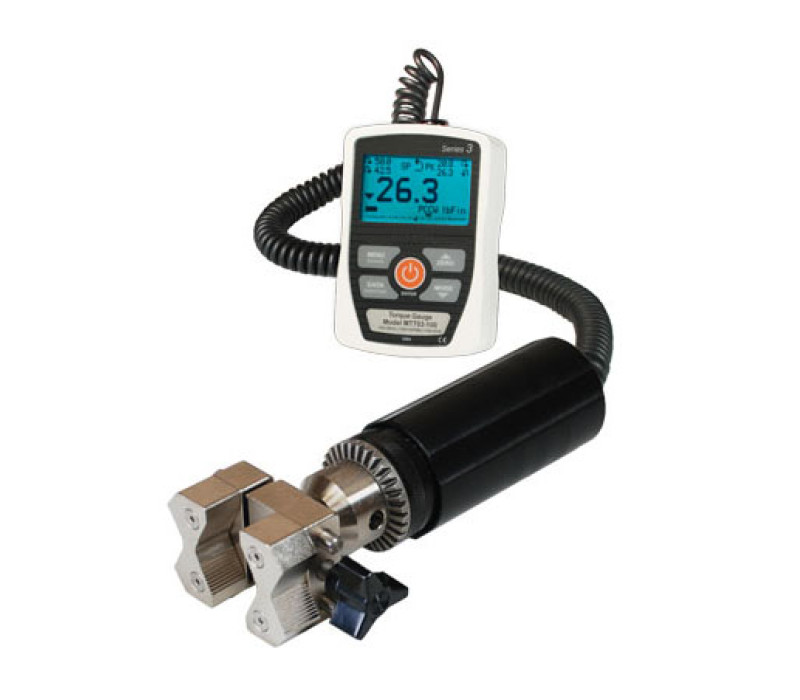

Series TT03C digital cap torque gauges are quick and economical solutions for basic handheld cap torque testing.

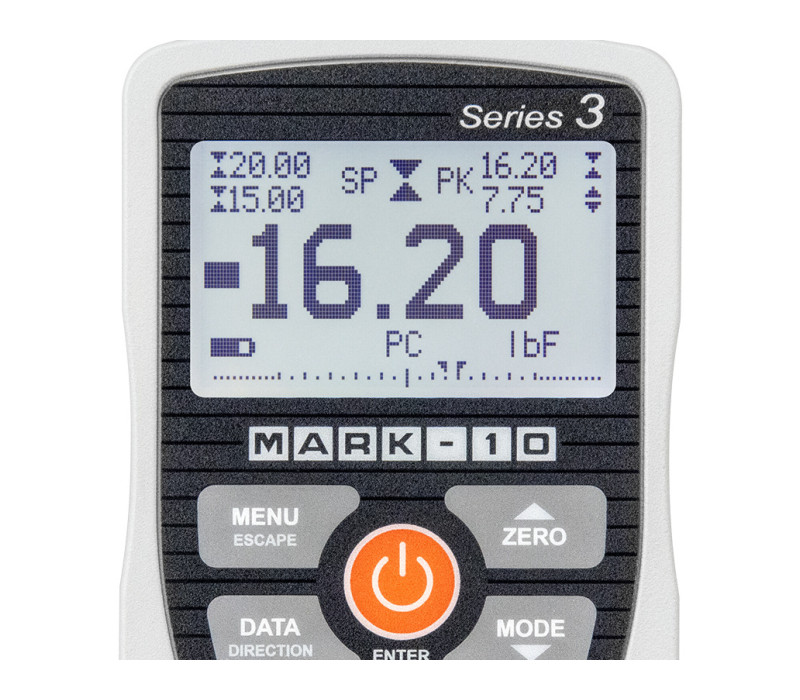

The backlit display features large, easily legible digits, peak readings, set point indicators, analog load bar graph, and more.

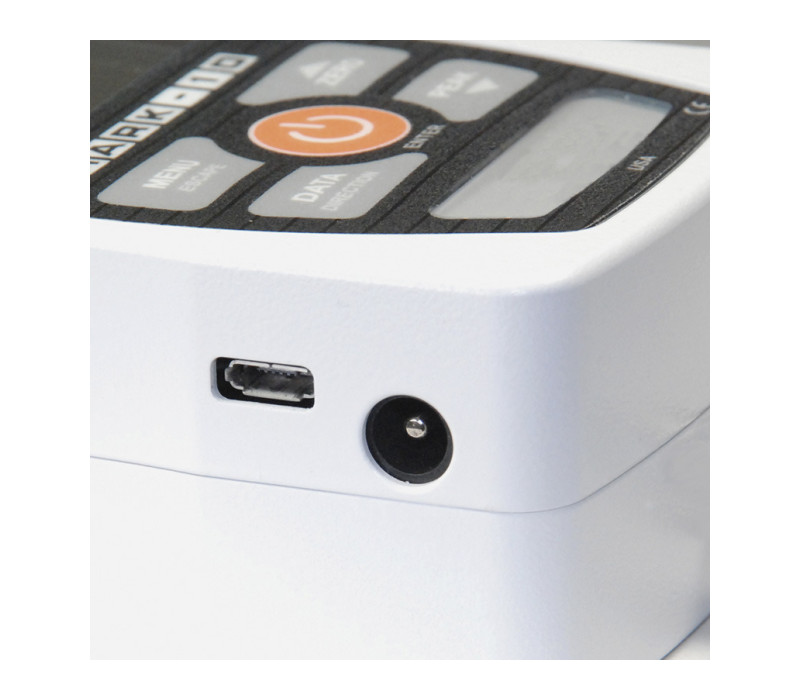

USB connector and AC power input jack are conveniently located in the side of the gauge housing.

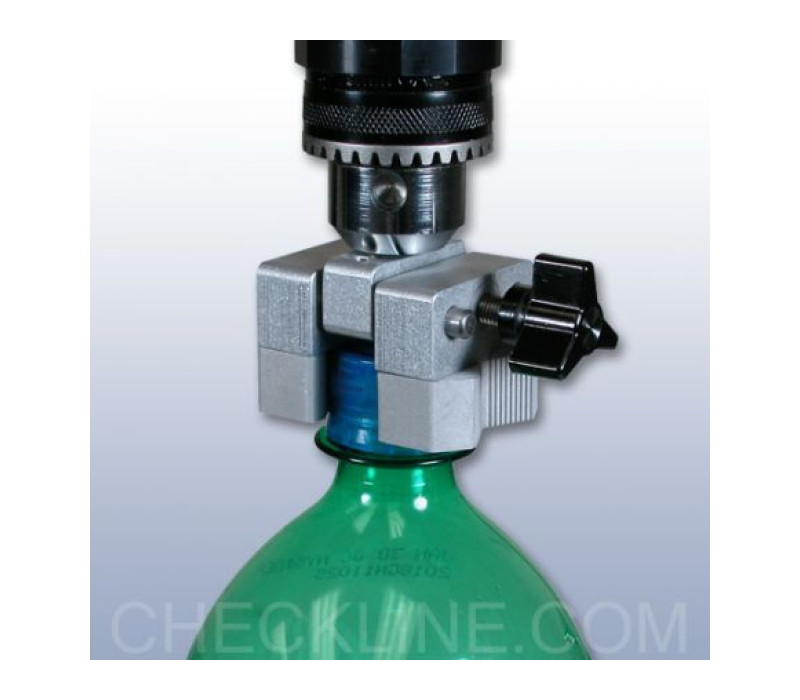

The botlle cap grip G1053 is included in the kit

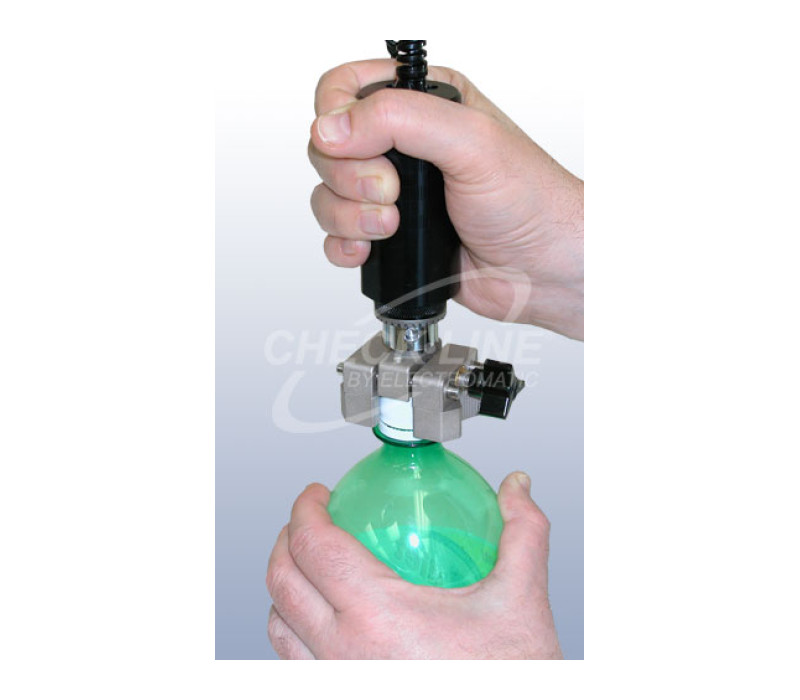

To operate, tighten the grip onto the cap, then twist to obtain a torque measurement.

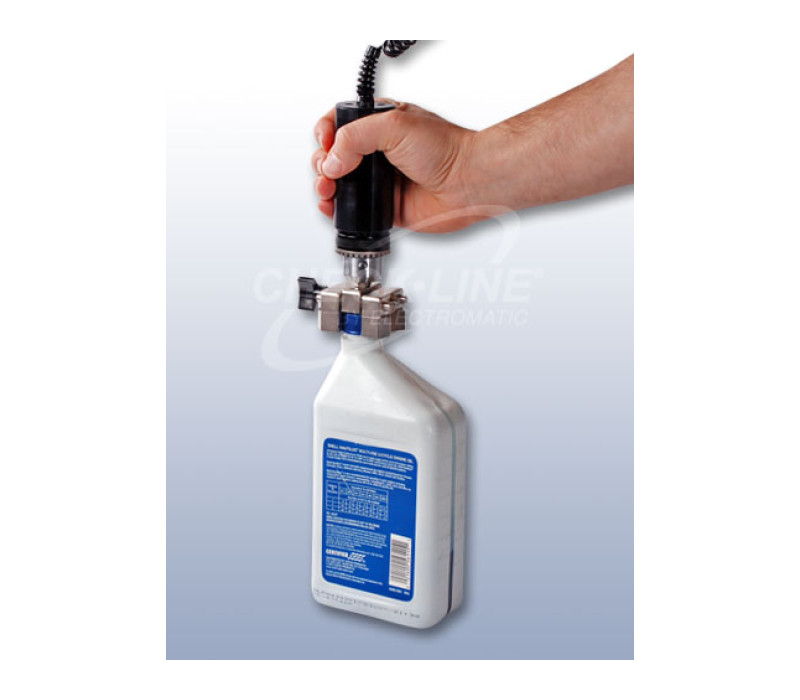

Quick and easy operation on a variety of bottle caps

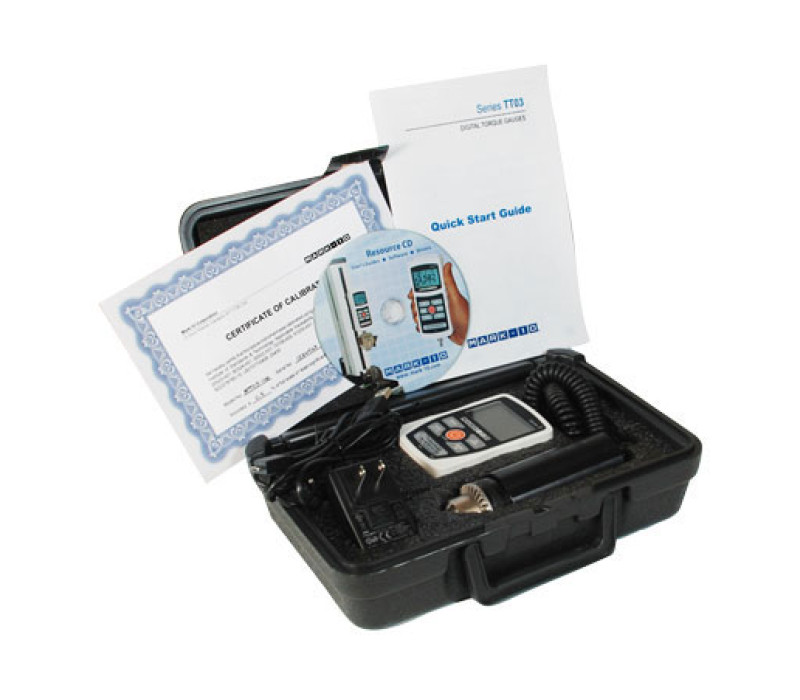

The kit comes complete in a soft padded case

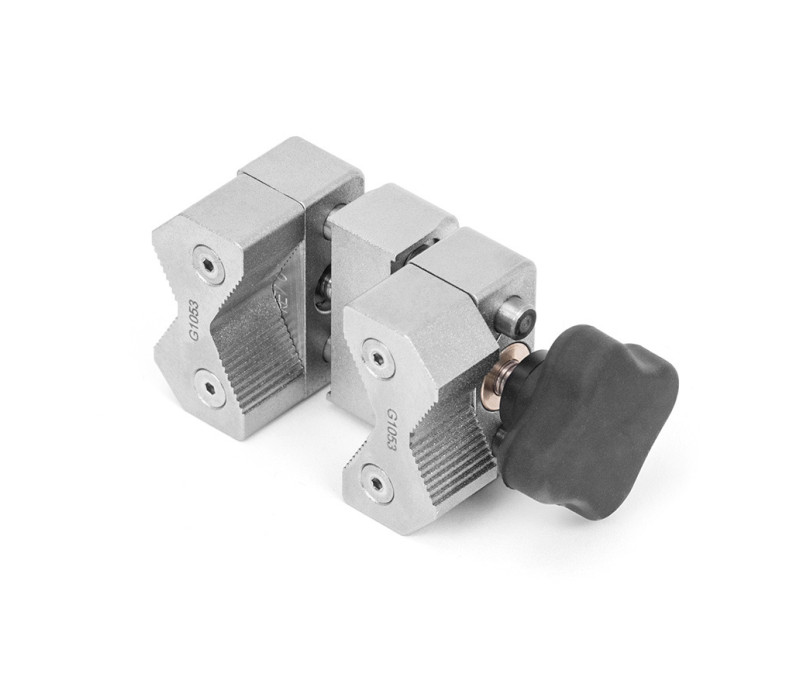

G1053 - (16.5 - 39.4 mm) fixture

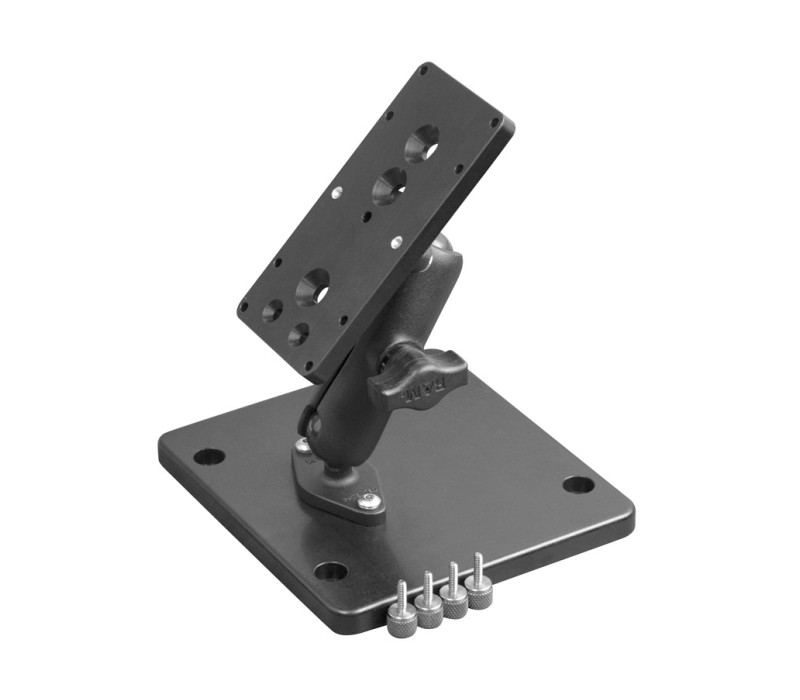

Optional AC1100 features an adjustable angle mount for the indicator or torque gauge.

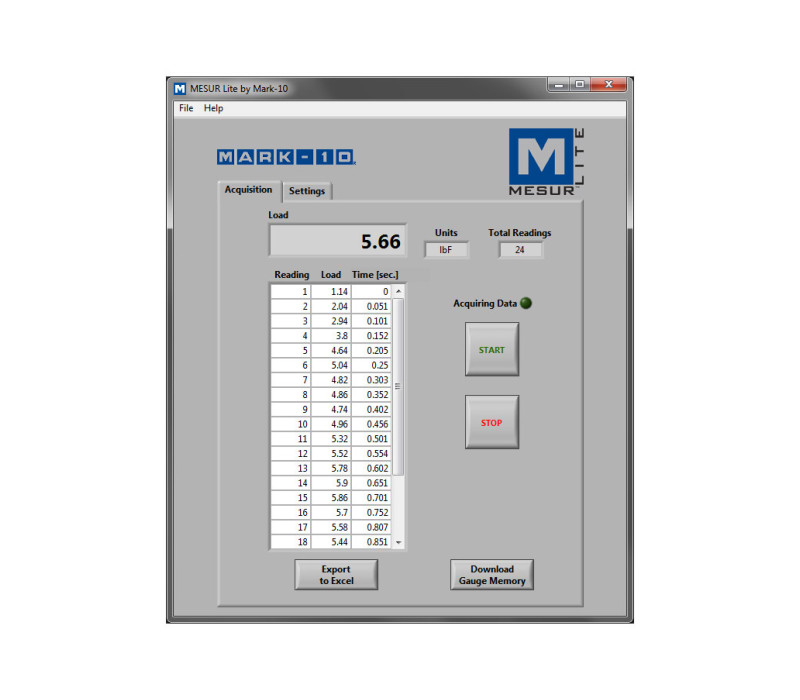

MESUR® Lite is a basic data collection program which tabulates data received from a Mark-10 force or torque gauge and allows for exporting of data to Excel.

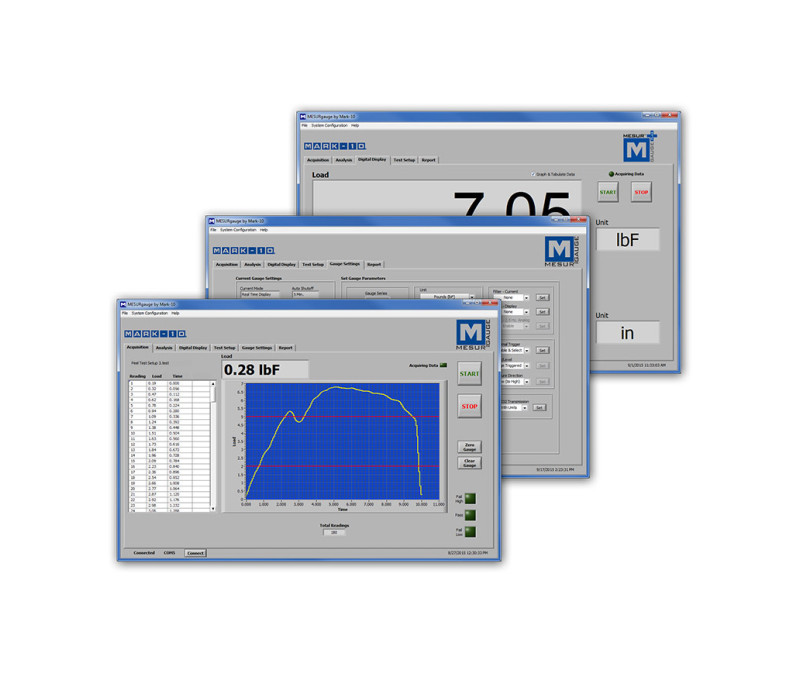

MESUR® gauge is an advanced data collection program designed to interface with Mark-10 gauges and test stands. The program tabulates and plots load vs. time, and provides a number of sophisticated test setup, analysis, and reporting tools.
Hand-held Cap Torque Meter
The CAP-TT03 is developed for easy in-field cap torque testing. It is basically a TT03 Torque gauge combined with a G1053 Universal V-jaw Grip. The compact aluminum housing can be used as handheld device or in a test stand setup.
The torque indicator is connected to a dedicated remote torque sensor with a jacobs chuck. Available in a capacity range from 135 Ncm to 1150 Ncm, it features a 2000 Hz sampling rate and has an accuracy of ±0.5% of full scale. The backlit display shows current and peak torque readings for each direction, set points, pass/fail indicators, rotation direction, units of measurements and an analog load bar with setpoint markers.
The TT03 is overload protected 150% of full scale (display shows “OVER” at 110% and above)
Data is exported through the USB connection with the included USB data cable and the included MESUR® Lite data acquisition software, for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation.
The CAP-TT03C is supplied as a complete kit including:
- Force display with torque sensor
- G1053 cap grip
- Universal AC adapter
- Rechargeable battery
- Chuck key
- Quick-start guide
- USB cable
- Basic data transfer software
- NIST traceable calibration certificate without data
- Soft padded carrying case

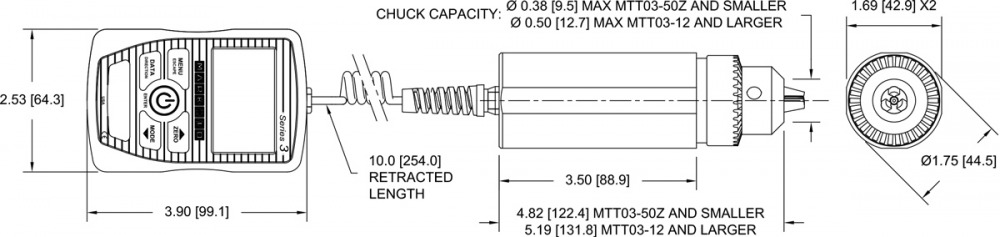

Dimensions of the TT03C Torque Tester ,
All dimensions are noted in Inches with metric sizes in [mm] behind.
