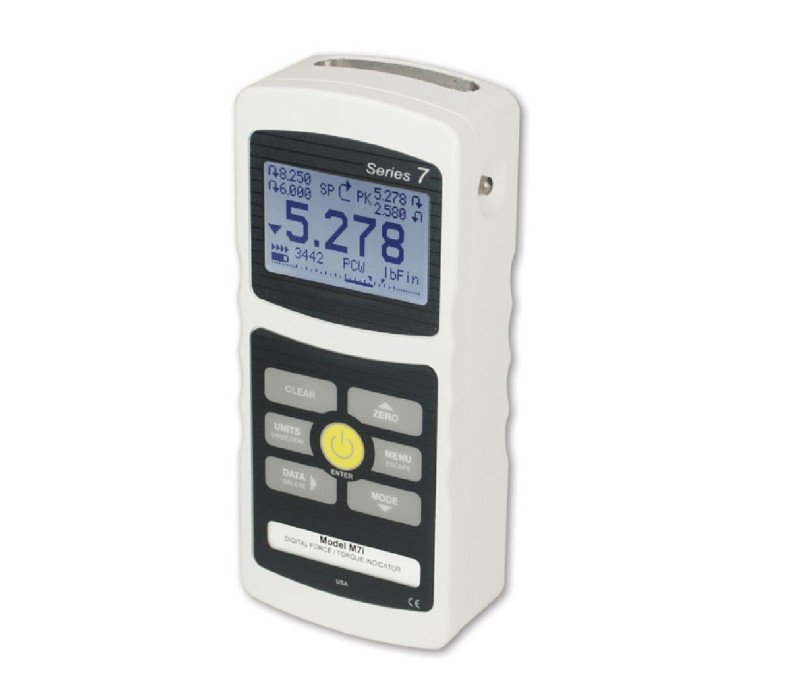

Series-7I Advanced Force/Torque Indicator

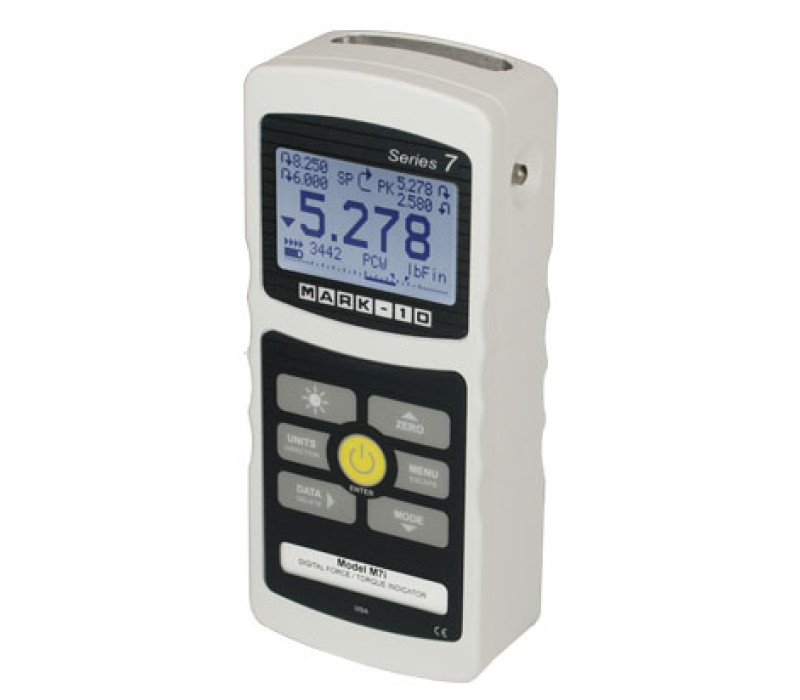

M7I front view

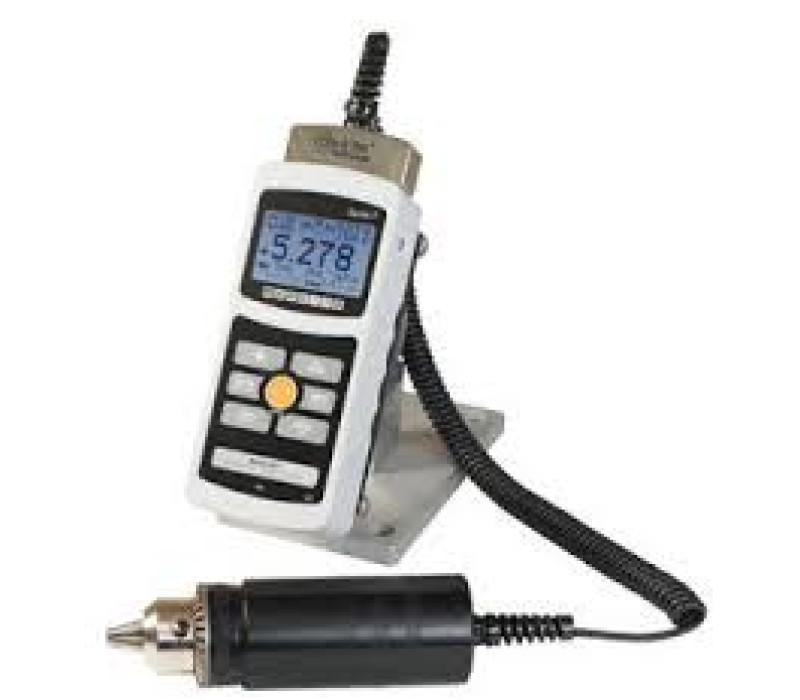

M7I shown mounted to ta tabletop mounting kit in combination with a Series R50 torque sensor (sold separately).

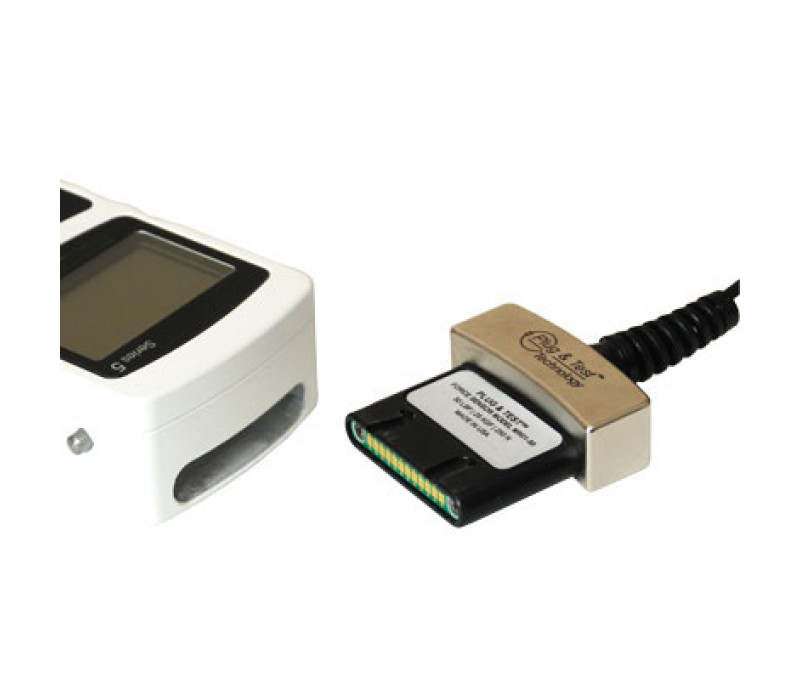

Unique Plug & Test® technology allows for interchangeable sensors to be used with a Mark-10 indicators. All calibration and configuration data is saved in the smart connector. Sensors are sold separately.

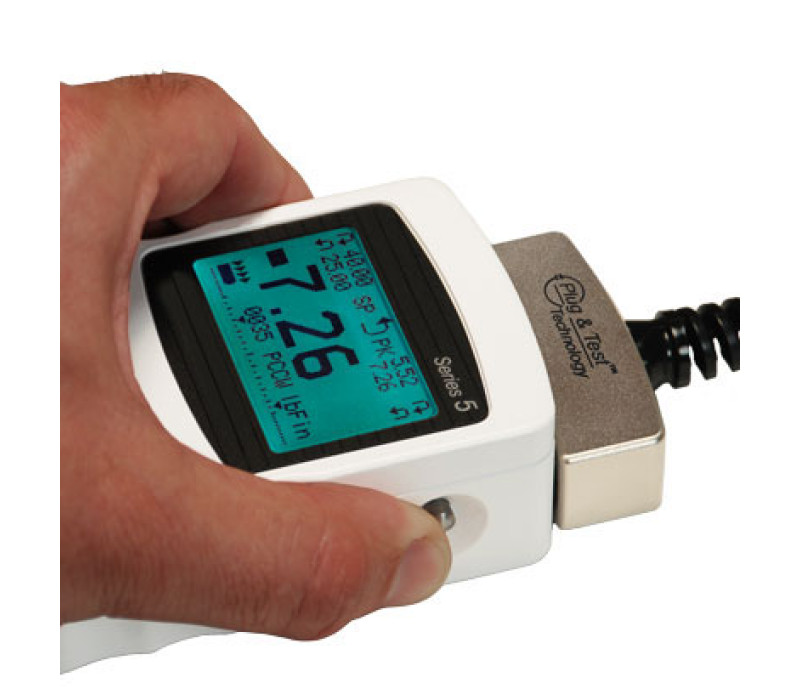

The Plug & Test® connector locks into the receptacle in the indicator when fully inserted. Dual buttons on the indicator housing release the connector for easy removal. Gold plated spring contacts ensure long lasting and reliable connection. Sensors are sold separately.

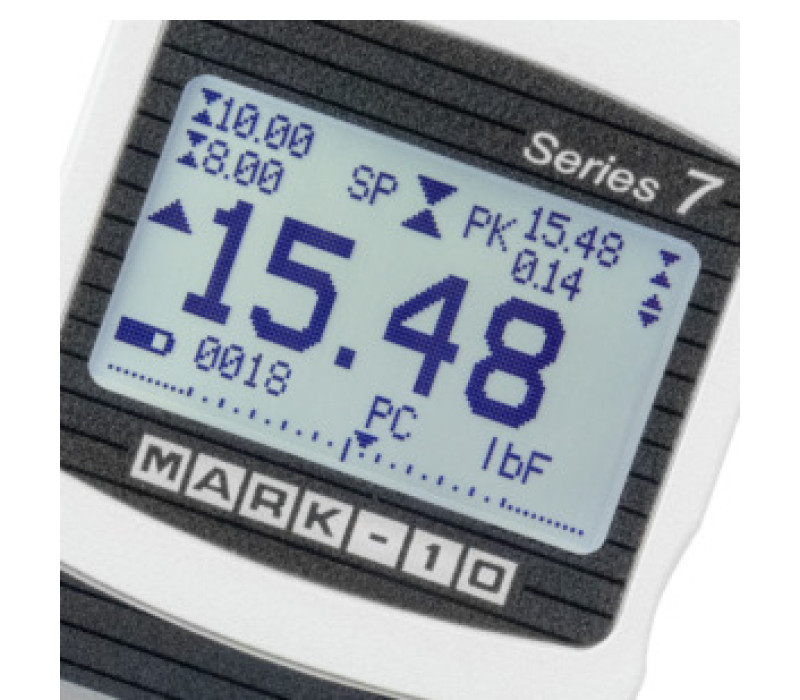

The backlit display features large, easily legible digits,peak readings, set point indicators, analog load bar graph, and more.

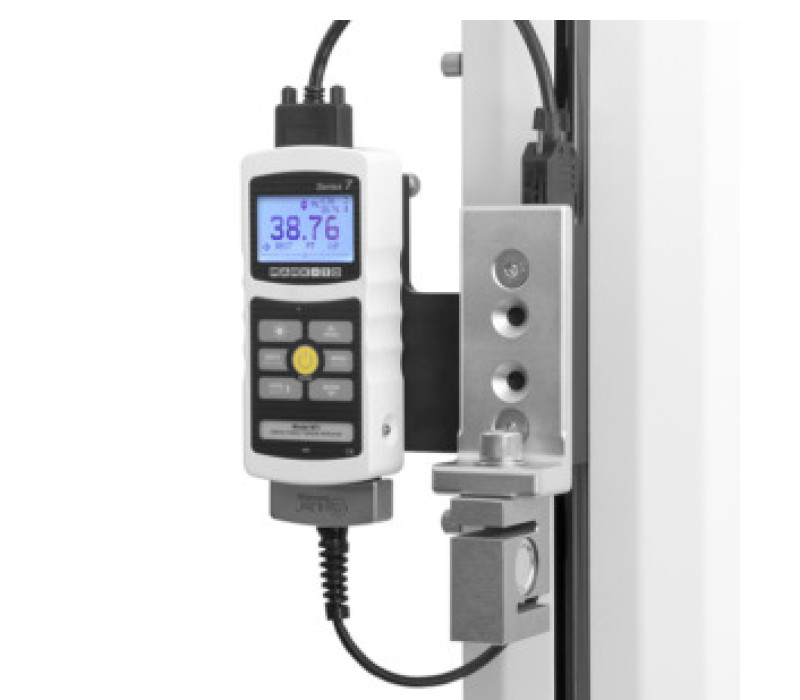

Force measurement setup with series-7I connected to R01 sensor

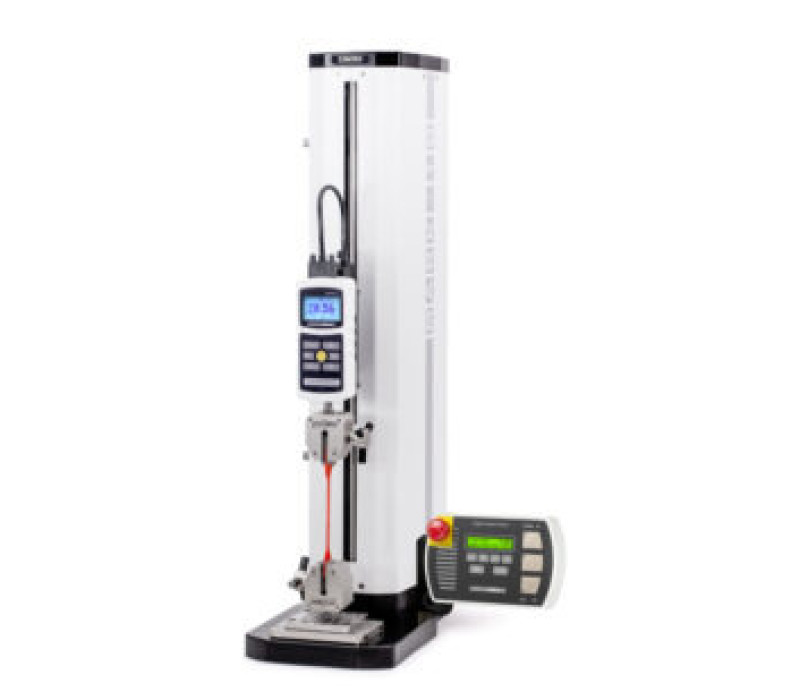

M7I mounted on ESM303 test stand

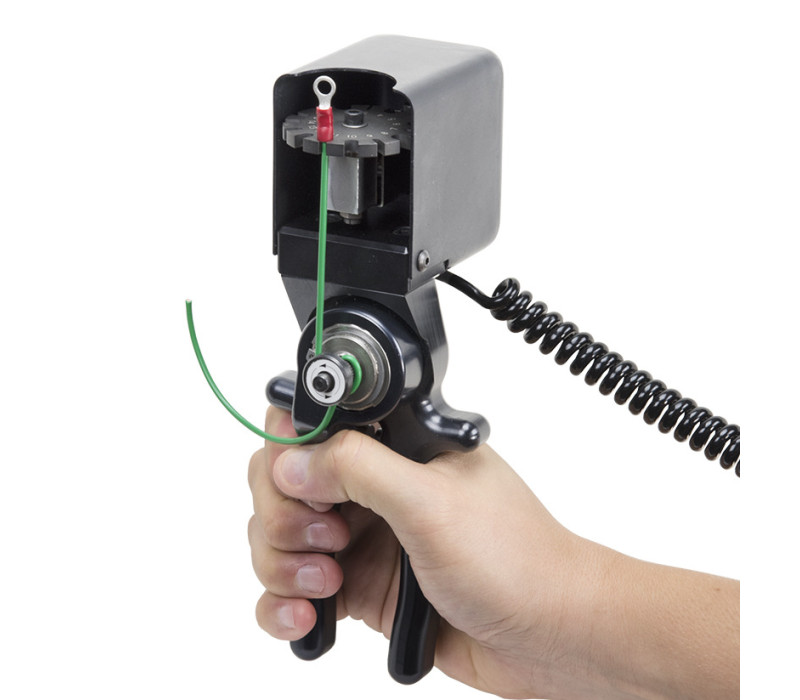

R06 wire crimp force sensor (sold seperately)

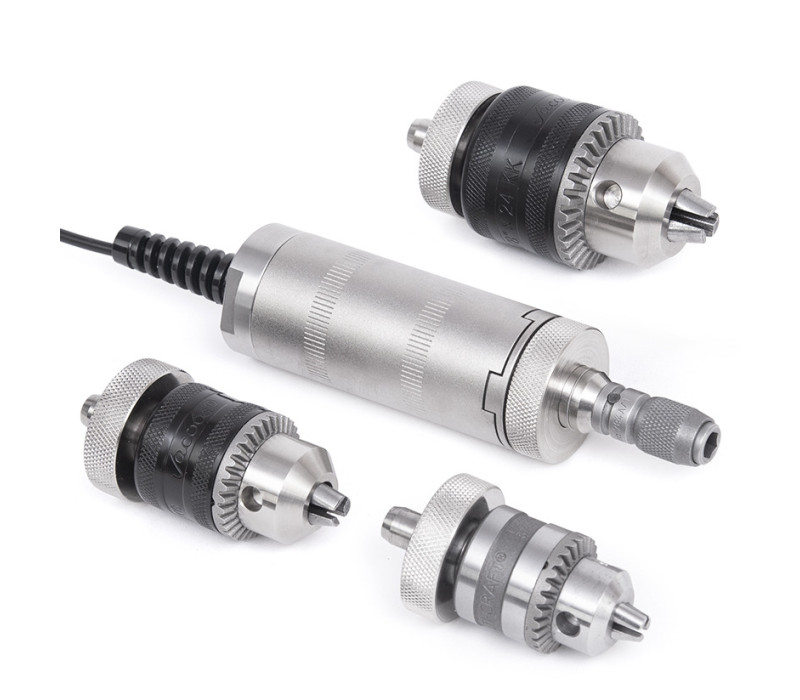

R51 torque sensor (sold seperately)

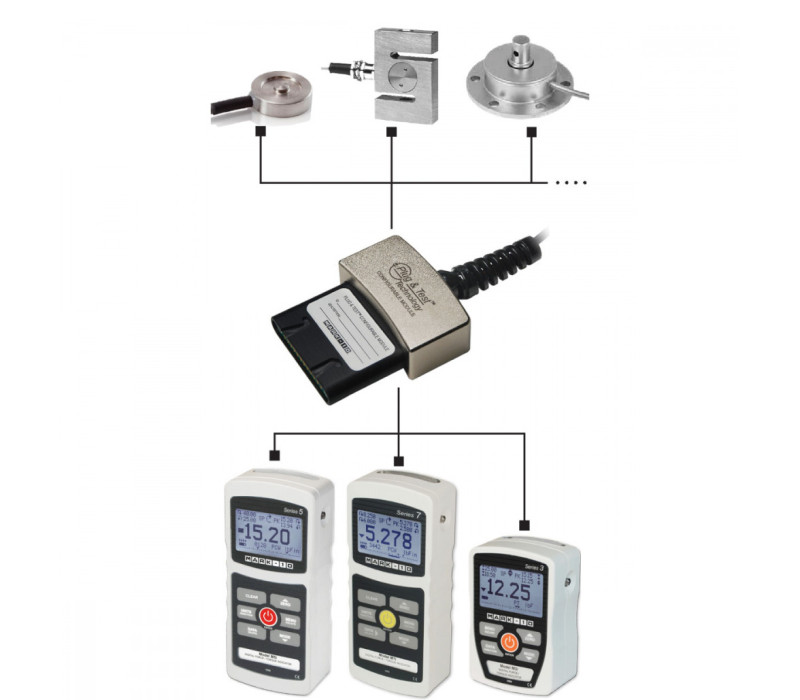

PTA adapter is used to connect 3rd party strain gage-based load cells and torque sensors to Mark-10 indicators.

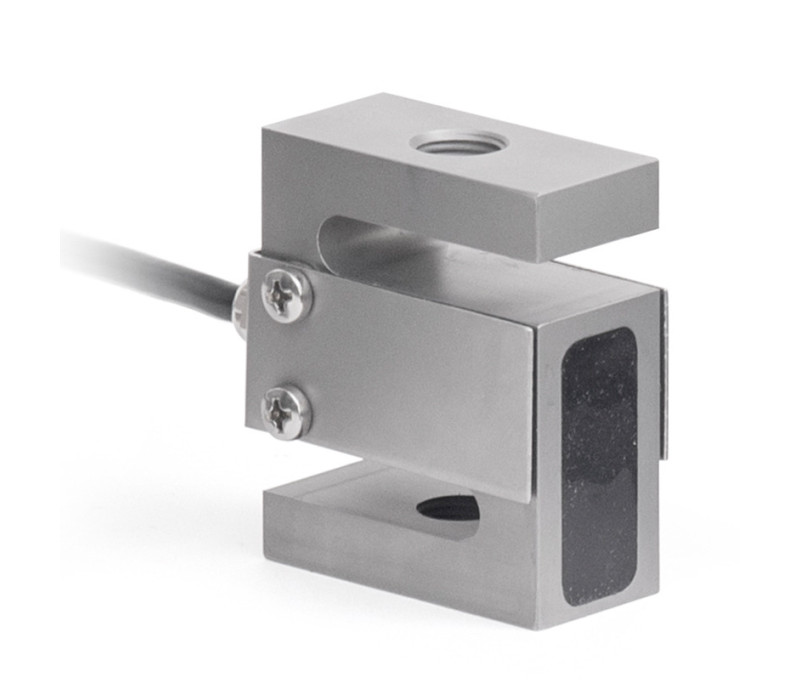

R01 force sensor (sold seperately)

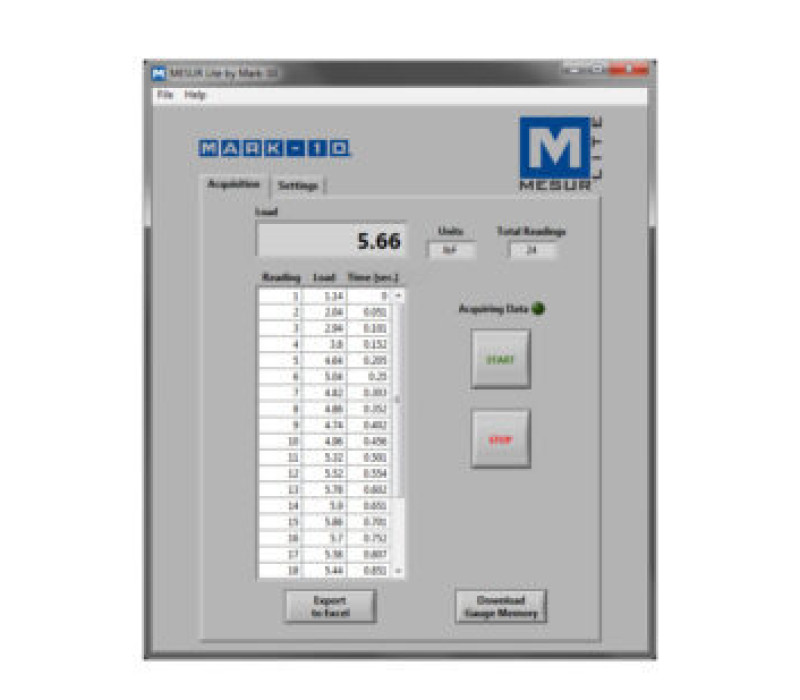

MESUR® Lite is a basic data collection program which tabulates data received from a Mark-10 force or torque gauge and allows for exporting of data to Excel.

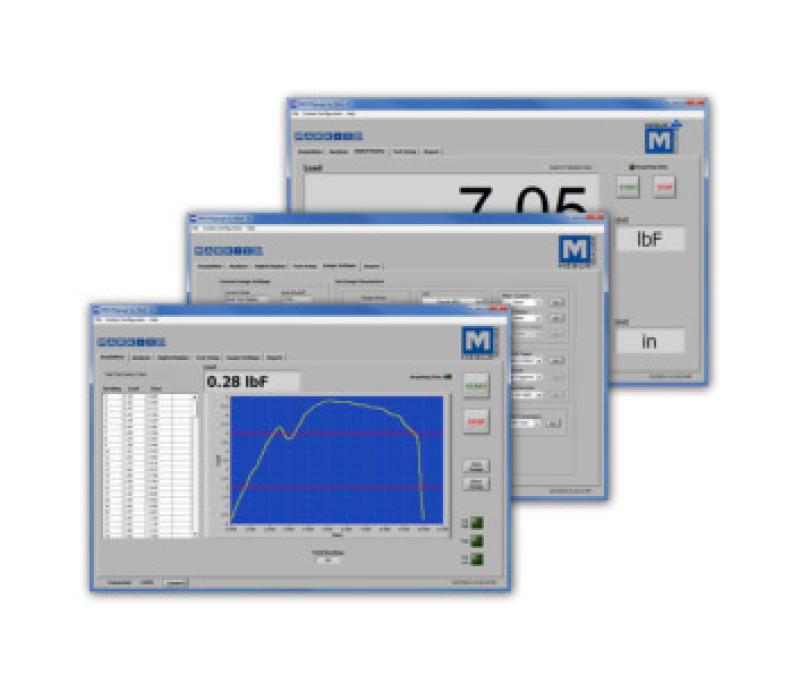

MESUR® gauge is an advanced data collection program designed to interface with Mark-10 gauges and test stands. The program tabulates and plots load vs. time, and provides a number of sophisticated test setup, analysis, and reporting tools.

Model-7i Advanced Force/Torque Indicator

Name: Model-7i Advanced Force/Torque Indicator
SKU: 127113
Price: 1598.00 EUR
Availability: PreOrder

The Professional Model-7I Digital Force/Torque Indicator is the highest specification of the Mark-10 Indicator range.
Based on the Series-7 Force Gauge it shares most of its specifications and is is compatible with a large range of motorized and manual test stands like the ESM and F series.
It uses the interchangeable Plug & Test® sensors that allows a system range of 1 N to 50 kN (0.25 to 10,000 lbF) of force, and from 7 Ncm to 550 Nm (10 ozFin to 5,000 lbFin) of torque.
The M7I Indicator has a sample rate of 14.000Hz and can store up to 5000 data points with continues data capture.

Data connectivity is provided through RS-232, Mitutoyo (Digimatic), USB or analog outputs.

The Digital Mark-10 Force/Torque Indicator Model is available in a variation of 3 gauges and each compare largely with the similar numbered Force Gauge version.

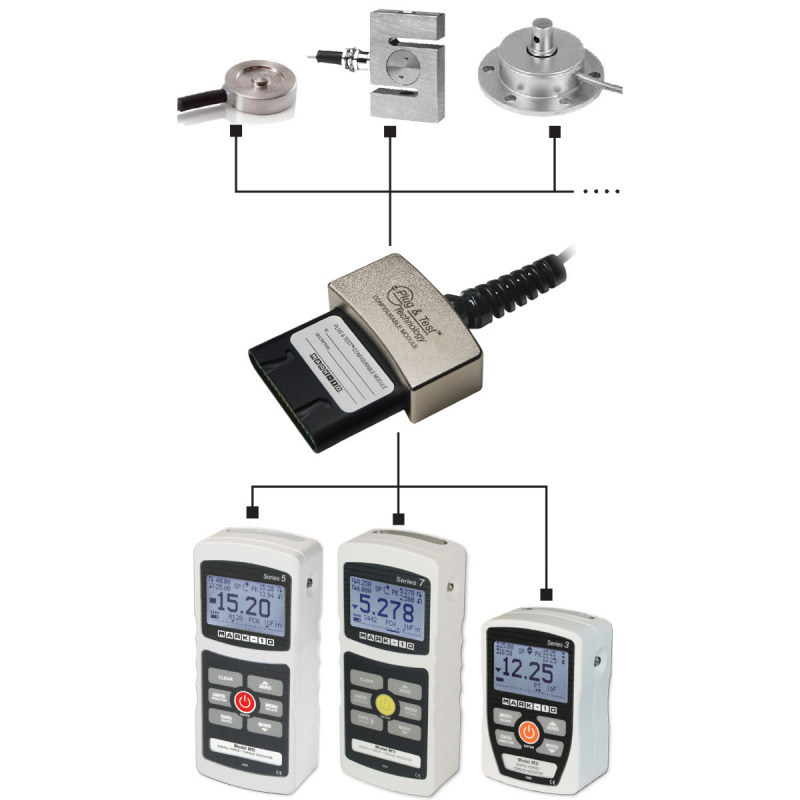

The main difference is the use of a separate Plug & Test® sensors. One of the unique features of the Plug & Test® sensors is that they have their own PCB which stores the calibration and configuration data.
A Plug & Test® sensor can be switched to a different indicator without the need for calibration or re-configuration.

The difference between the 3 indicators can be found in the table below which shows the main specifications of each gauge type.
All gauges types are equipped with a rechargeable battery and a back lit display.
The indicators can be used for measuring tension, compression and torque depending on the type of sensor.

All Indicators come with MESUR^® Lite data acquisition software.
MESUR^® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Mark-10 Digital Indicators are versatile instruments, in a system with a Plug & Test® sensor they are combined with additional equipment to a purposely build test setup to perform the required tasks.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.

€ 1.598,00

Shop now

Interchangeable force and torque sensors through Plug & Test® technology (sensors are sold separately)
Sensor password protection, for preventing use of an unauthorized sensor
Password protection for individual keys and calibration
High-speed 14.000 Hz sampling rate
Continous data capture of up to 5.000 data points, at up to 14.000 Hz, downloadable to a PC
USB, RS-232, Mitutoyo, and analog outputs
Sample break detection with auto functions, including stopping movement of a Mark-10 motorized test stand
1st / 2nd peak detection
5 units of measurement, plus Coefficient of Friction and user-defined unit with configurable name
Individual data point memory for up to 5.000 readings
Programmable footswitch command string, configure up to 3 functions per footswitch activation
Averaging mode - calculates average readings over time
Programmable set points, with indicators and outputs
External trigger mode - for switch contact testing or remotely stopping display update
CE and UKCA mark

The M7I Force/Torque Indicator is shipped as shown, and includes the following accessories:

Carrying case
USB cable
AC adapter
Battery
Certificate of calibration without data

Force and torque sensors are available separately.

Plug & Test® sensors

General information

Mark-10 M7I, M5I, and M3I indicators are used in combination with Plug & Test® sensors and can therefore accommodate numerous force and torque measurement requirements, from 1 N to 50 kN (0.25 to 10,000 lbF) of force, and from 7 Ncm to 550 Nm (10 ozFin to 5,000 lbFin) of torque.

Plug & Test® sensors can be used handheld or mounted to a fixture or test stand for more accurate and repeatable testing results.
The sensors are separately calibrated therefore they can be disconnected from one indicator and connected to another without the need for re-calibration or re-configuration as this is stored in the PCB located inside the smart connector.

As an alternative to the Plug & Test® sensors a PTA/PTAF Plug & Test® adapter can be used to connect common strain gage-based load cells, force sensors, and torque sensors to Models M7I, M5I, and M3I indicators and Series F test frames. Sensor capacity and resolution is configured via an included software utility, which includes a library of common force capacities from 0,5 N to 4.000 kN (0.12 to 750,000 lbF), and torque capacities from 7 Ncm to 57.000 Nm (10 ozFin to 40,000 lbFft).

Accuracy

System accuracy is determined by the combination of Indicator and sensor combined. To determine the total system accuracy the accuracy value of the sensor is added to the value of the indicator.
As the Indicators have different accuracy values the total system accuracy may vary between the different indicator/sensor combinations. Indicator Model Accuracy M7I / M5I ±0,1% of full scale M3I ±0,2% of full scale.

Example 1 Model MR01-100 sensor with Model M5I Indicator MR01-100 ±0,15% of full scale + M5I ±0,1% of full scale = Total ±0,25% of full scale This translates into a fixed error of up to: 0,25% x 500 N = 1,25 N

Example 2 Model MR50-50Z sensor with Model M3I Indicator MR50-50Z ±0,35% of full scale + M3I ±0,2% of full scale = Total ±0,55% of full scale This translates into a fixed error of up to: 0,55% x 50 Ncm = 0,275 Ncm

Because accuracy is defined as a percentage of full scale, the fixed error is possible anywhere on the scale from 0 to the capacity. As such, this value represents an increasingly large error as percentage of reading towards the low end of the scale. It is, therefore, recommended that a sensor is selected with capacity as close as possible to the expected load. The resolution may be different for some sensors depending on whether a M7I, M5I, or M3I indicator is being used. For example, a Series R01 force sensor will display finer resolution when connected to a M5I indicator than when connected to a M3I indicator.

Display

Reversible housing

Specialized Gauge Features

The Model-7I Indicator features several functions typically found in more complex instruments, such as materials testers, data acquisition systems, and PLCs.

The following unique features are highlighted:

	High Speed Data Capture & Storage Model-7I can capture and store up to 5.000 continuous data points at a rate of up to 14.000 readings per second. This unique function is ideal for capturing switch activation forces, sharp breaks, and other short-duration applications. Configurable start and stop triggers are provided. The data acquisition rate is variable and can be slowed to also capture longer events, such as structure relaxation, material expansion, and others. Data from the storage buffer can be exported to data collection software such as MESUR^®gauge for further analysis and graphing. Using a Model-7I gauge could replace cumbersome and expensive data acquisition hardware and software.
	Footswitch Command String Integrate your footswitch / automation system with Model-7I gauge to improve testing ergonomics and efficiency; no need for multiple key presses. Up to three steps may be programmed for a single footswitch activation. Select from several commands, including request peak reading, zero the display, save to memory, and others. Time delays can be inserted between each step.
	Automatic Data Output / Save / Zero / I/O Pin Toggle Upon completion of several event types, the Model-7I can perform the following productivity-enhancing functions: Automatically save the peak reading to memory. Transmit the peak reading via USB, RS-232, or Mitutoyo output. Zero the display. Toggle an I/O pin, for example to stop movement of an ESM303 test stand. Applicable events include: Sample break detection (also applicable to samples which slip, click, or otherwise reach a peak, then fall). Completion of an averaging sequence. External trigger (ex. switch activation). 1st / 2nd peak capture (ex. tensile testing).
	User-defined Unit of Measurement Model-7I gauges display 6 standard units of measurement. One additional user-defined unit is provided for unique applications. A base unit is specified, along with a multiplier, and 5-character name. Typical applications: To measure the torque produced by pressing on a lever in a mechanical assembly, configure the multiplier based on the length of the lever, thereby converting a unit such as N into Ncm. To measure the pressure produced by a circular compression plate on a foam sample, configure the multiplier based on the area of the plate, thereby converting a unit such as lbF into psi.

Model-7I Force/Torque Indicator

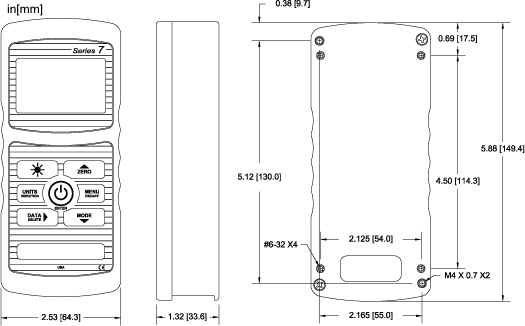

All dimensions are noted in Inches with metric sizes in (mm) behind.

Video

▶

Comparison Model #I Indicators

	Model-7I	Model-5I	Model-3I
Accuracy (% of full scale + sensor)	±0,1%	±0,1%	±0,2%
Sampling rate	14.000 Hz	7.000 Hz	2.000 Hz
Resolution	up to 1/2000, depending on sensor	up to 1/2000, depending on sensor	1/1000
Units of measurement	7, including coefficient of friction unit and user-defined unit	5	3
Compability with Mark-10 sensors via Plug & TestTM Technology	Yes	Yes	Yes
Data outputs	USB, RS-232, Mitutoyo, analog	USB, RS-232, Mitutoyo, analog	USB
- RS-232	Configurable up to 115.200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control.	Configurable up to 115.200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control.	No
- USB	Configurable up to 115.200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control.	Configurable up to 115.200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control.	Configurable up to 115.200 baud
- Mitutoyo (Digimatic)	Serial BCD suitable for all Mitutoyo SPC-compatible devices	Serial BCD suitable for all Mitutoyo SPC-compatible devices	No
- Analog	±1 VDC, ±2% of full scale at capacity.	±1 VDC, ±2% of full scale at capacity.	No
- General purpose I/O	Three open drain outputs, one input.	Three open drain outputs, one input.	No
- Set points	Three open drain lines.	Three open drain lines.	No
Data capture & storage capabilities	Up to 5.000 data points	Up to 1.000 data points	No
Data memory deletion	Any individual data point, or clear all	Any individual data point, or clear all	N/A
Mesur Lite software included	Yes	Yes	Yes
Interface w/MESUR® gauge and MESUR® Lit	Full communication	Full communication	Single point or continuous data output only
ASCII command set for external communication	Full command set	Full command set	“?” command only (for continuous or individual data point output)
Interface with ESM303 test stands	Yes	Yes	No
Statistical calculations and output to PC	Max, min, mean, std. dev., number of readings, with output	Max, min, mean, std. dev., number of readings, with output	No
Averaging mode	Yes with configurable storage, output and zero functions	Yes	No
1st / 2nd peak detection*	Yes	No	No
Set points (for pass / fail indication)	Yes, with high / low indicators, markers on analog bar graph, and outputs	Yes, with high / low indicators, markers on analog bar graph, and outputs	Yes, with high / low indicators, markers on analog bar graph, no output
Peaks and analog load bar always shown on display	Yes	Yes	Yes
External trigger mode	Yes, with auto stop option on motorized test stands	Yes	No
Break detection*	Yes	No	No
stop travel of motorized test stand	Yes	No	No
Programmable footswitch command string	Yes	No	No
Password Protection, for keys and calibration	Yes	Yes	No
Sensor password protection	Yes	Yes	Yes
Overload outputs, w/separate pins for each direction	Yes	Yes	Yes
Included items	Carrying case with AC adapter, rechargeable battery, and certificate of conformance	Carrying case with AC adapter, rechargeable battery, and certificate of conformance	Carrying case with AC adapter, rechargeable battery, and certificate of conformance

Video

▶

Comparisonchart Indicators

M7I data sheet

M7I quick start manual

M7I operations manual

M7I solid model

LabVIEW Serial Write / Read VI

C# Code Example

CE declaration of conformity

UKCA declaration of conformity

Accuracy:	±0,1% of full scale + sensor
Sampling rate:	14.000 Hz
Power:	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life:	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Outputs:	USB / RS-232: Configurable up to 115.200 baud. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices. Analog: ±1 VCD, ±0,2% of full scale at capacity. General purpose: Three open drain outputs, one input. Set points: Three open drain lines.
Configurable Settings:	Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe overload:	150% of full scale (display shows “OVER” at 110% and above)
Weight:	0,3 kg (0.7 lb)
Shipping weight:	1,4 kg (3 lb)
Included items:	Carrying case, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and users guide), NIST-traceable certificate of calibration.
Environmental requirements:	4 - 40°C [40 – 100°F], max. 96% humidity, non-condensing
Warranty:	3 years (see individual statement for further details)

Products

Item	Product	Price	Quantity	Action
134266	M7I-Series 7I Advanced Torque/Force Indicator	€ 1.598,00

Accessories

Item	Product	Price
132825	Cable, serial, Series 7/5/4 to RS-232 DB-9	€ 73,00
132876	Cable, USB, Series 7/5/4/3 to PC	€ 28,00
132826	Replacement battery, 8.4V NiMH	€ 18,00
131954	AC1030 AC adapter/charger, 110V US	€ 41,00
131955	AC1031 AC adapter/charger, 220V Europe	€ 41,00
132878	AC1032 AC adapter/charger, 220V UK	€ 41,00
132879	AC1035 AC adapter/charger, 220V Australia	€ 41,00
131958	AC1008 Stand, indicator/TT03, table top	€ 156,00
131956	AC1002 Double Handle Grips for Force Gauges Series 4/5/7	€ 133,00
126886	AC1002-1 Handle grip for Series 7/5/4 gauges, single grip	€ 124,00
130819	15-1005 MESURgauge PLUS Load & Travel Analysis Software, 1 license	€ 652,00
136830	15-1005-5 MESURgauge Plus Load & Travel Analysis Software, 5 licenses	€ 2.581,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

Model-7i Advanced Force/Torque Indicator

Features

Dimensions

Specifications

Comparison Model #I Indicators

Test stand with IntelliMESUR® F105 / F305 / F505 / F505H

Test Stand with IntelliMESUR® F755 / F1505

PTA PTA/PTAF Plug & Test Load Cell Adapter

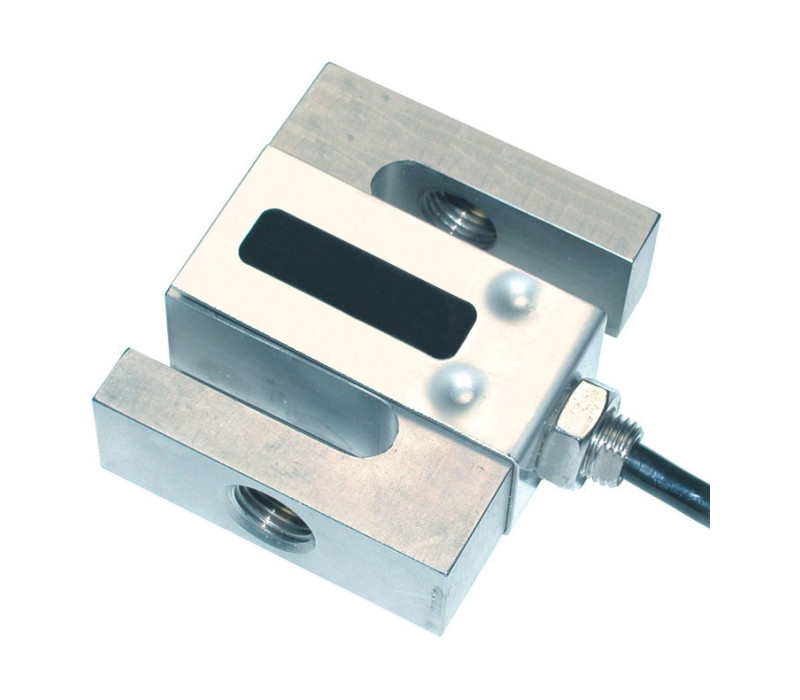

R01 Series S-Beam Force Sensor

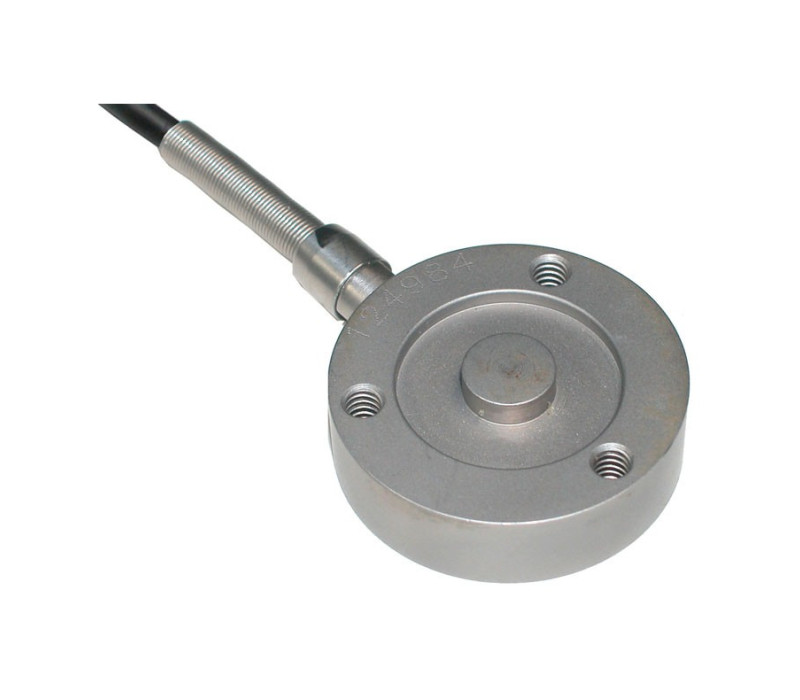

R02 Series Sensor for Compression Force

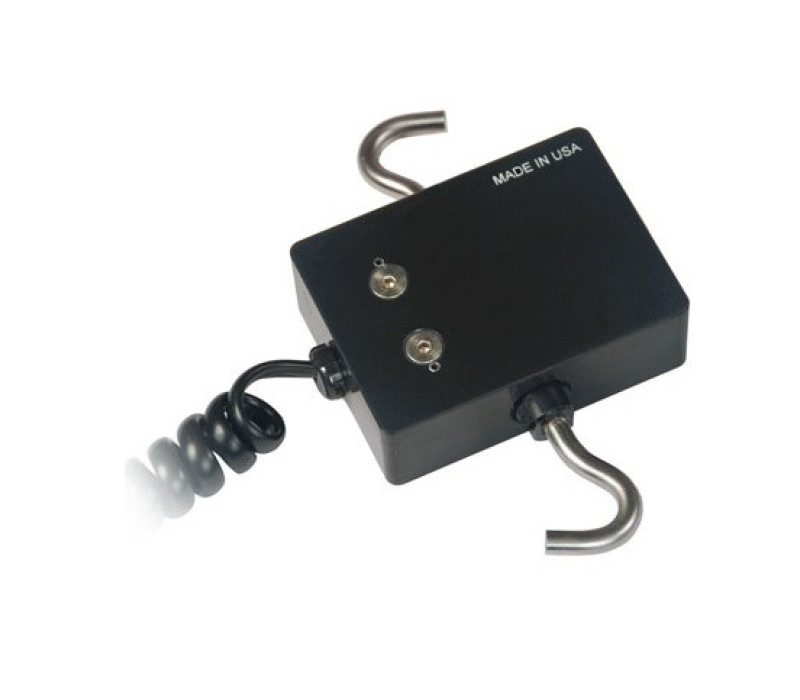

R03 Series Smart sensor for tension and compression force

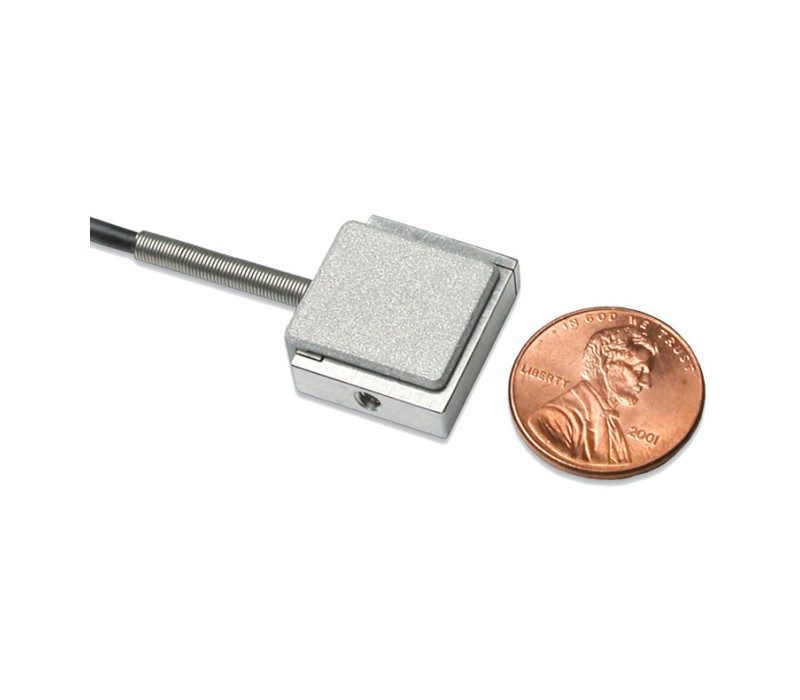

R04 Series Miniature S-Beam Force Sensor

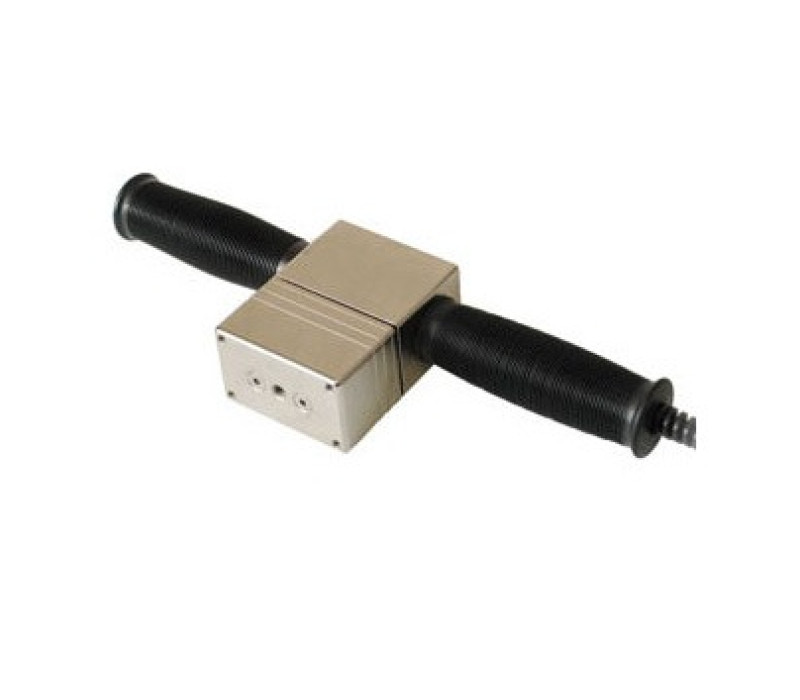

R05 Series Push/Pull Sensors

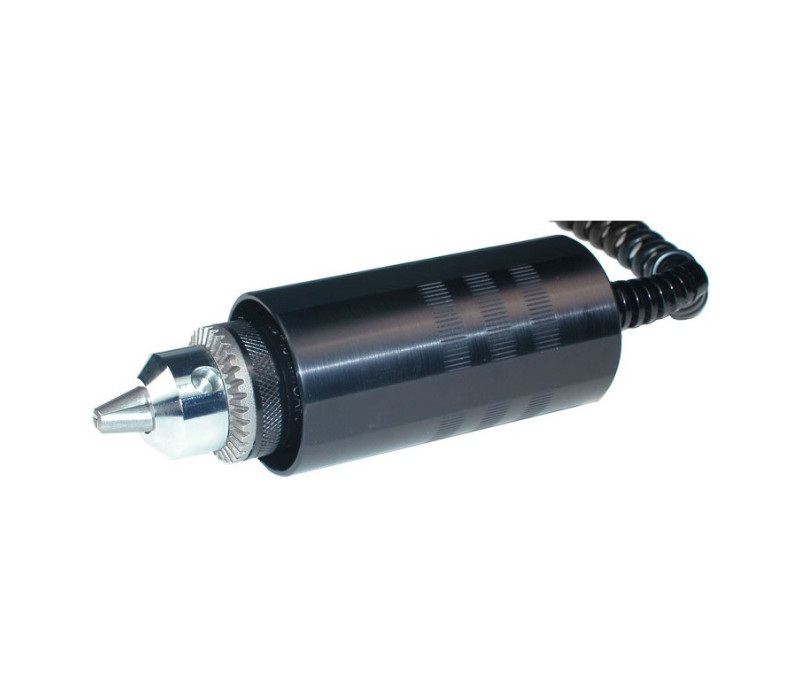

Universal Torque Sensor with Jacobs chuck

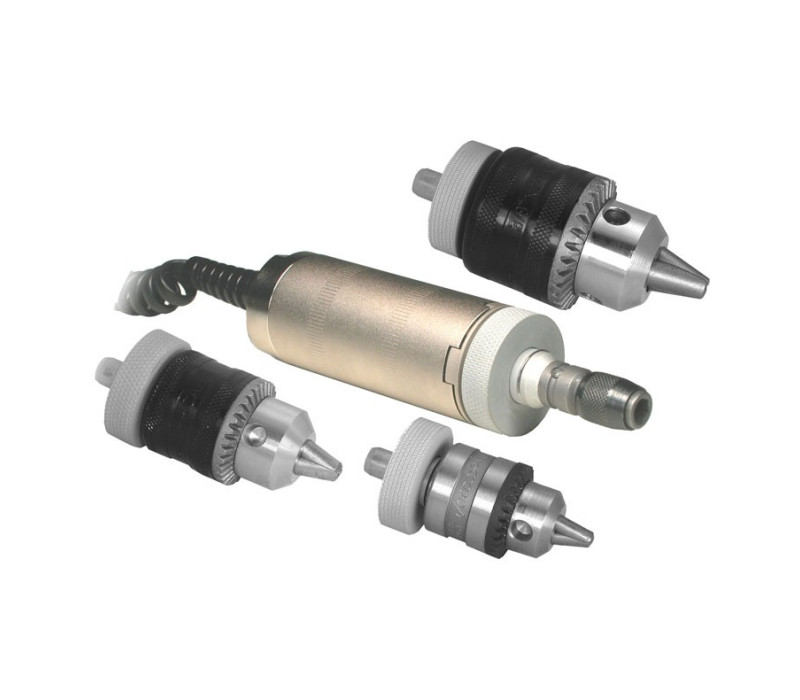

Universal Torque Sensors for bi-directional torque testing

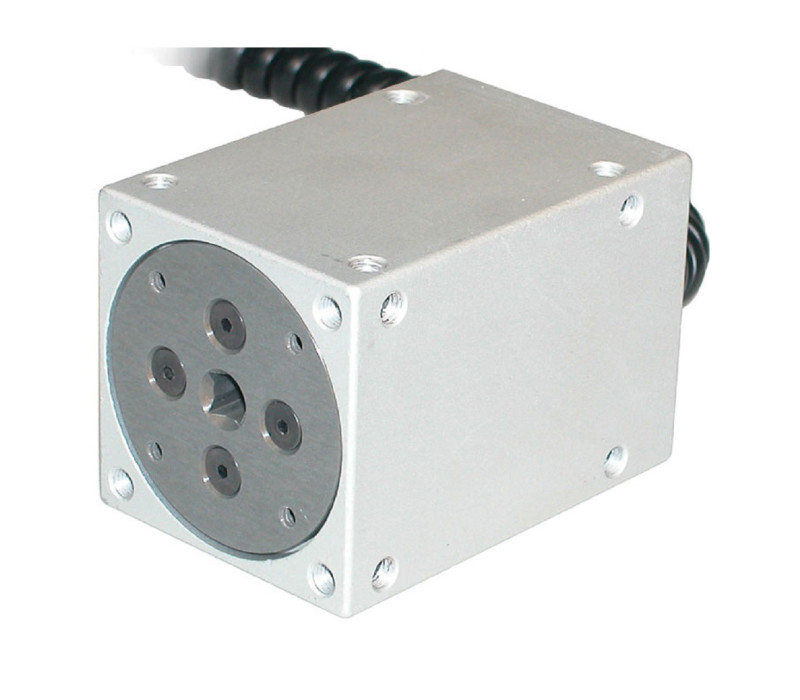

Torque Sensor for calibrating tools

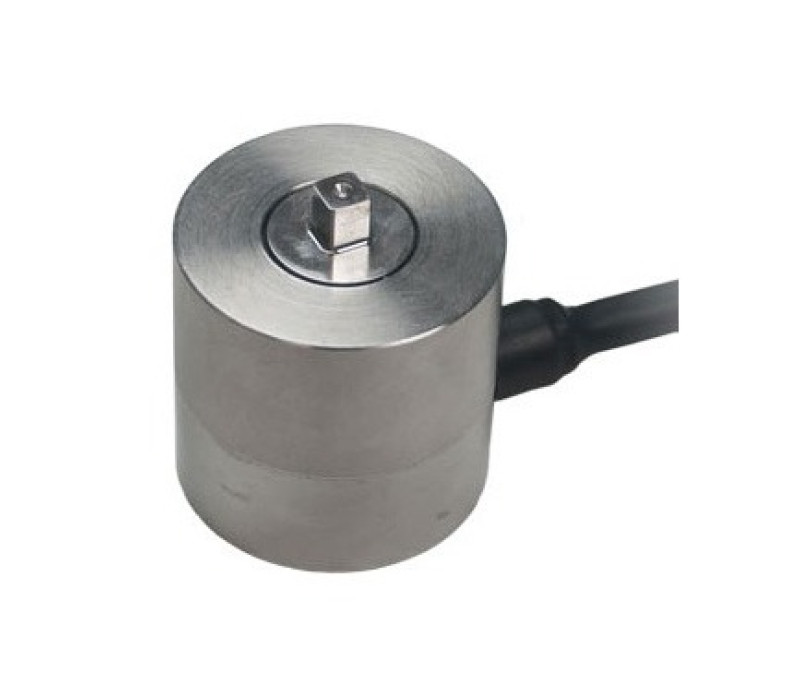

robust Square Drive Torque Sensor
