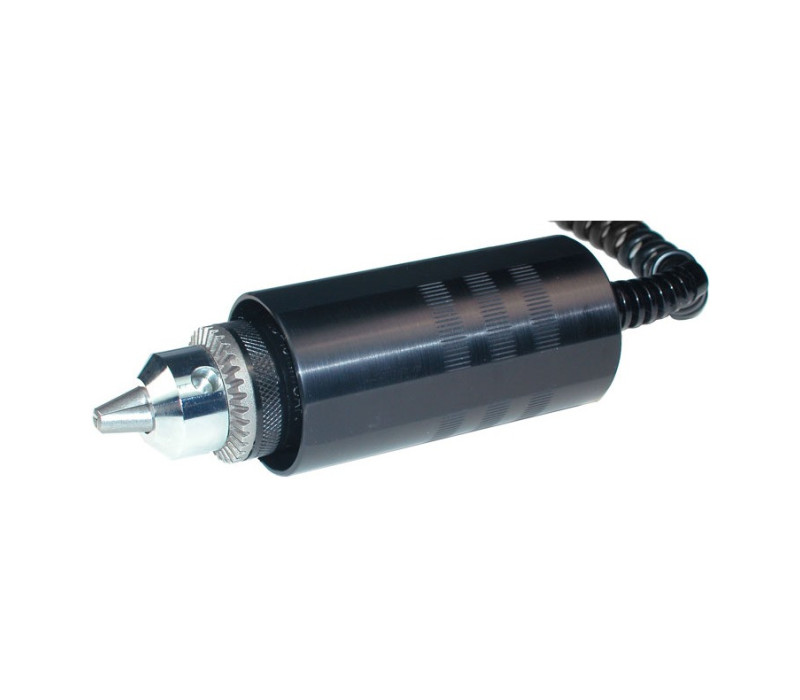

R50 Series Universal Torque Sensor

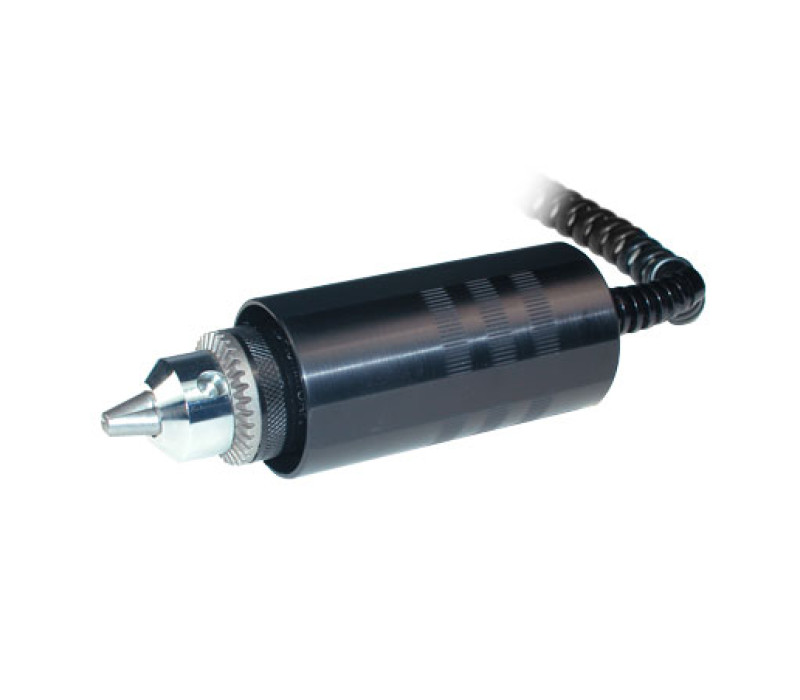

The Series R50 torque sensor is useful for a wide range of torque measurement applications. Aluminum housing contains flat surfaces for mounting to a fixture. Jacobs chuck can accommodate a bit, fixture, or sample as required.

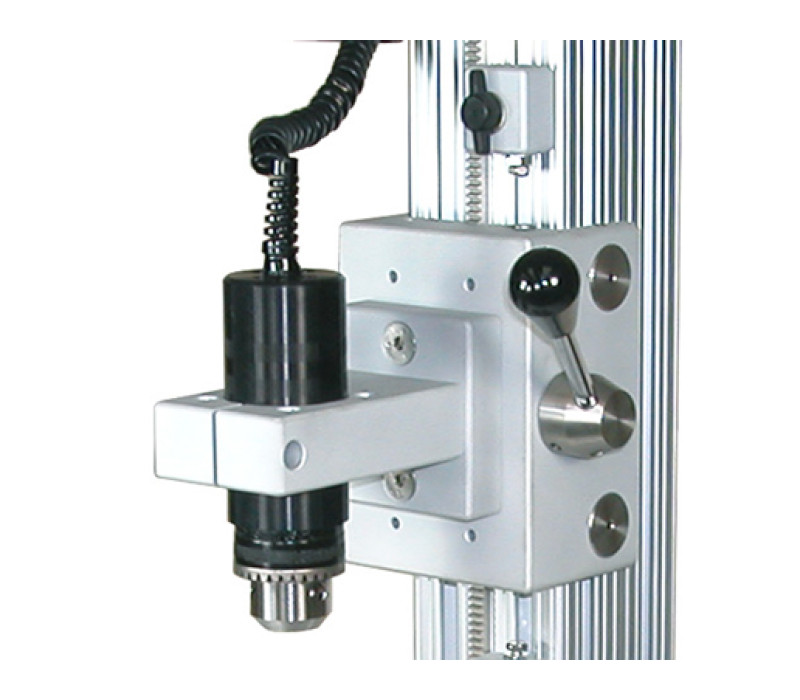

A Series R50 torque sensor is shown mounted to a model TSTM-DC motorized torque test stand. The sensor fits into this stand without the need for additional adapters.

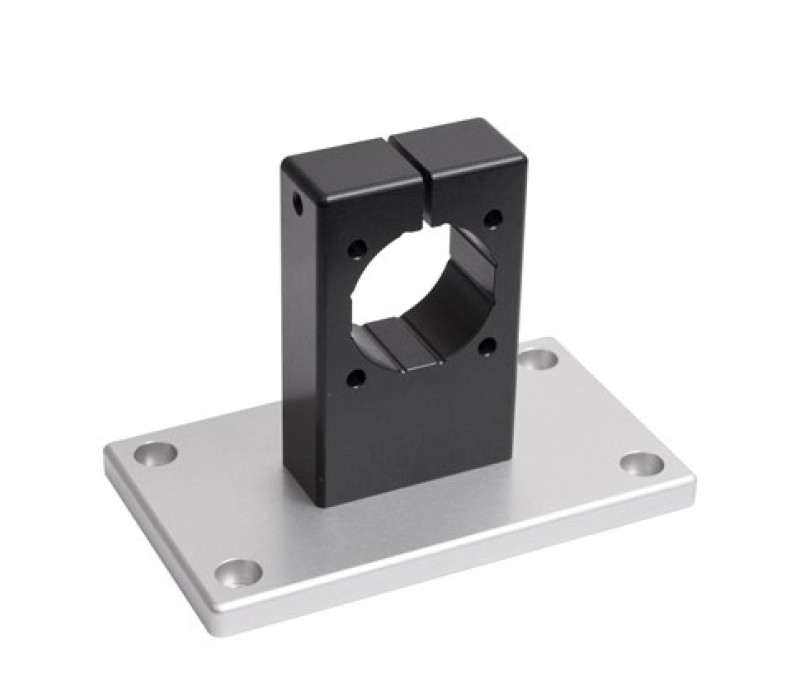

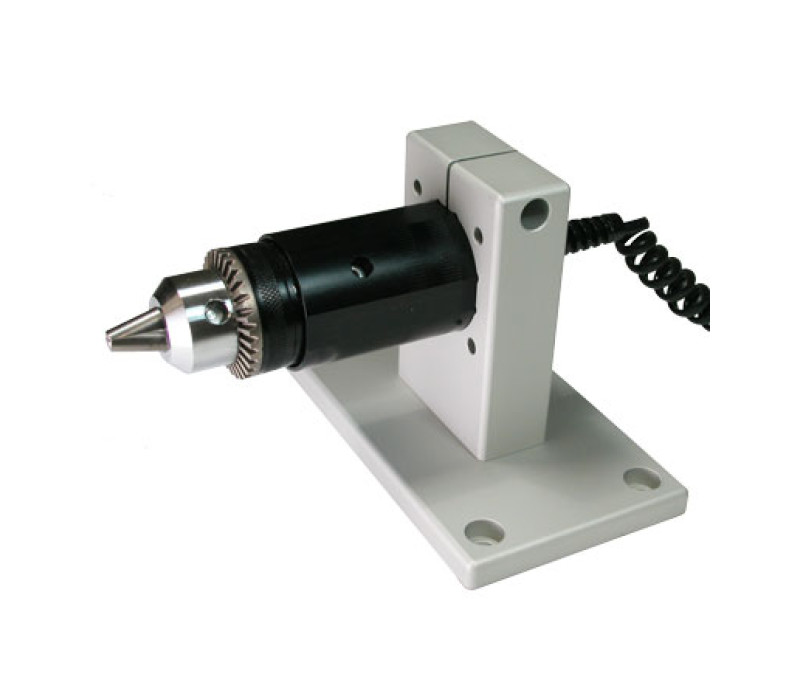

AC1007 optional tabletop mounting kit may be used to hold the sensor in place.

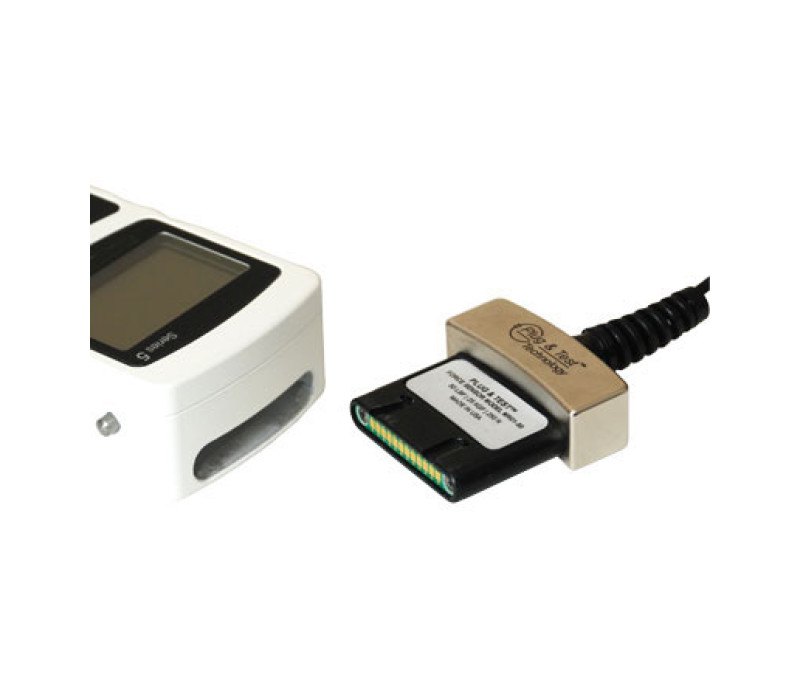

Unique Plug & Test® technology allows for interchangeable sensors to be used with a Mark-10 indicator. All calibration and configuration data is saved in the smart connector.

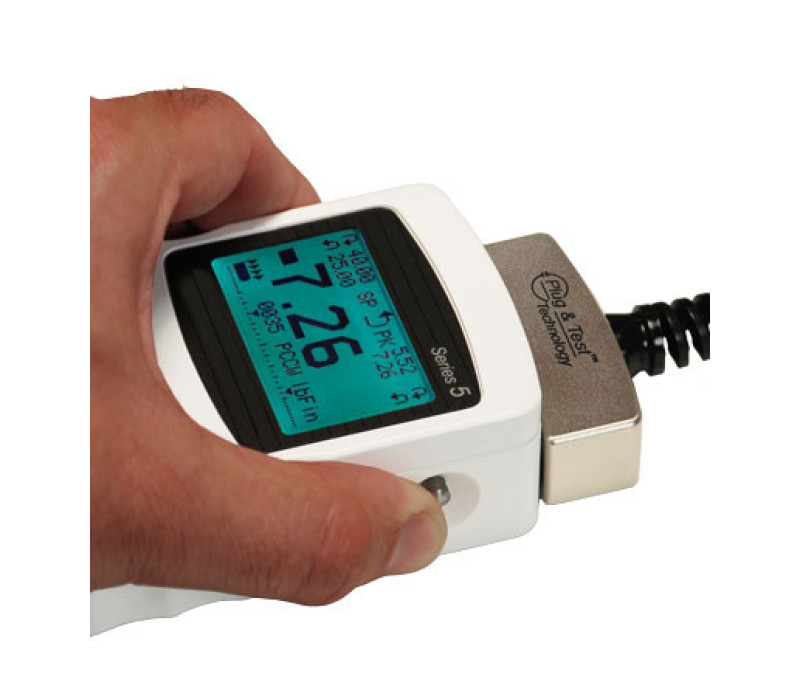

The Plug & Test® connector locks into the receptacle in the indicator when fully inserted. Dual buttons on the indicator housing release the connector for easy removal. Gold plated spring contacts ensure long lasting and reliable connection.

Universal Torque Sensor with Jacobs chuck

Name: Universal Torque Sensor with Jacobs chuck
SKU: 126909

The R50 Series Universal Torque Sensor measures in both directions with a capacity range from 7 to 1150 Ncm. The robust aluminum housing and the ability to use it as a portable as wel as a, in combination with a torque test bench, fixed device make the R50 suitable for a large variety of applications.

The R50 torque sensor contains a Jacobs chuck for measuring samples up to 12.7 mm in diameter (depending on the capacity) and is compatible with the Series 7i, 5i and 3i torque Indicators (sold separately).

Thanks to the unique Plug & Test technology, sensors can be interchanged easily. The internal PCB saves the calibration and configuration of the sensor.
The R50 can, be used in combination with a digital Indicator and a TSTM-DC motorized torque test stand to form a complete torque test system.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.

Price from € 883,00

Order now

Compatible with the Series 7i, 5i and 3i digital indicators
Rugged aluminum housing
Unique Plug & TestTM connector holds all calibration and configuration data
NIST-traceable certificate of calibration included
Measures from 7 Ncm up to 1150 Ncm

Tension Ranges

Model	Capacity with Model 7i / 5i	Resolution with Model 7i / 5i	Capacity with Model 3i	Resolution with Model 3i
MR50-10Z	10ozFin 700gFcm 7kgFmm 70Nmm 7Ncm	0.005 0.5 0.005 0.05 0.005	10ozFin 7kgFmm 7Ncm	0.01ozFin 0.005kgFmm 0.005Ncm
MR50-20Z	20ozFin 1400gFcm 14kgFmm 14Ncm 140Nmm	0.01 1 0.01 0.1 0.01	20ozFin 14KgFmm 14Ncm	0.02ozFin 0.01kgFmm 0.01Ncm
MR50-50Z	50ozFin 3600gFcm 36kgFmm 350Nmm 35Ncm	0.02 2 0.02 0.2 0.02	50ozFin 36kgFmm 36Ncm	0.05ozFin 0.05kgFmm 0.05Ncm
MR50-12	12IbFin 1IbFft 140kgFmm 135Ncm 1.35Nm	0.005 0.0005 0.1 0.1 0.001	12IbFin 140kgFmm 135Ncm	0.001IbFin 0.1kgFmm 0.1Ncm
MR50-50	50IbFin 4IbFft 580kgFmm 570Ncm 5.7Nm	0.02 0.002 0.5 0.5 0.005	50IbFin 580kgFmm 570Ncm	0.05IbFin 0.5kgFmm 0.5Ncm
MR50-100	100IbFin 8IbFft 1150kgFmm 1150Ncm	0.05 0.005 0.5 0.5	100IbFin 1150kgFmm 1150Ncm	0.1IbFin 1kgFmm 1Ncm

Accuracy:	± 0.35% of full scale + 1 digit + indicator
Weight:	from 0.6 kg
Shipping weight	1,4 kg
Warranty:	3 years
