MESURgauge Mesurgauge Load & Travel Analysis Software

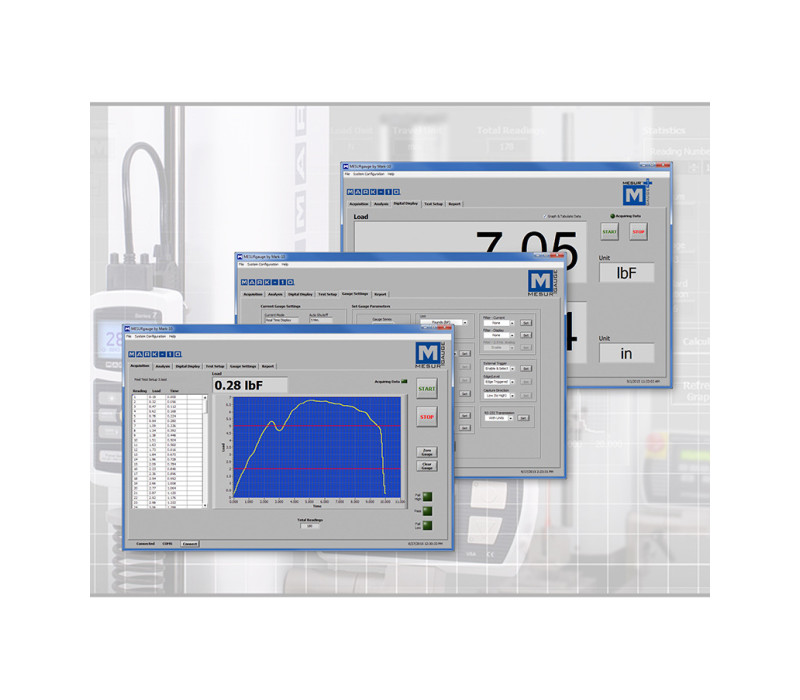

MESUR®gauge and MESUR®gauge Plus software are powerful and flexible data collection programs designed for use with Mark-10 instruments and test stands.

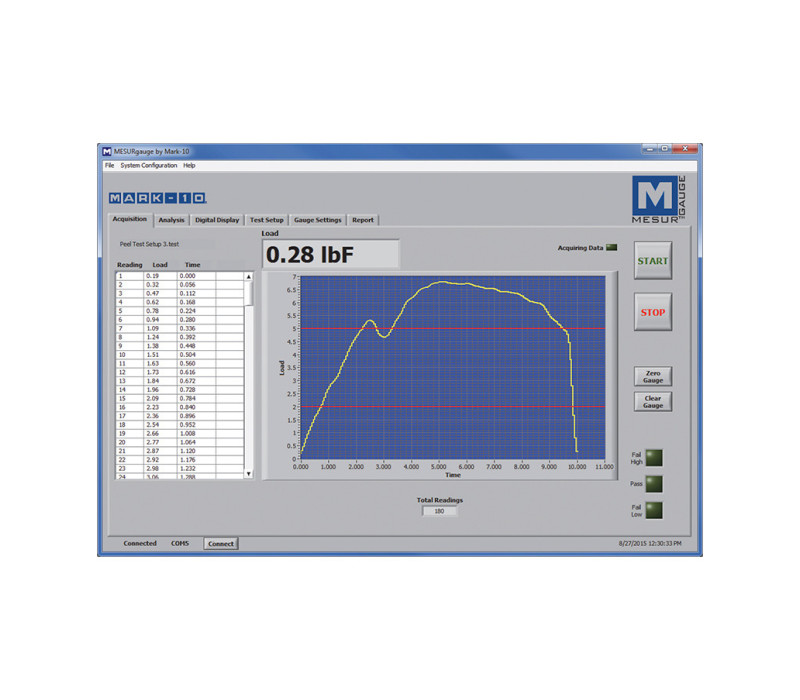

View real time data in graphical and tabular formats.

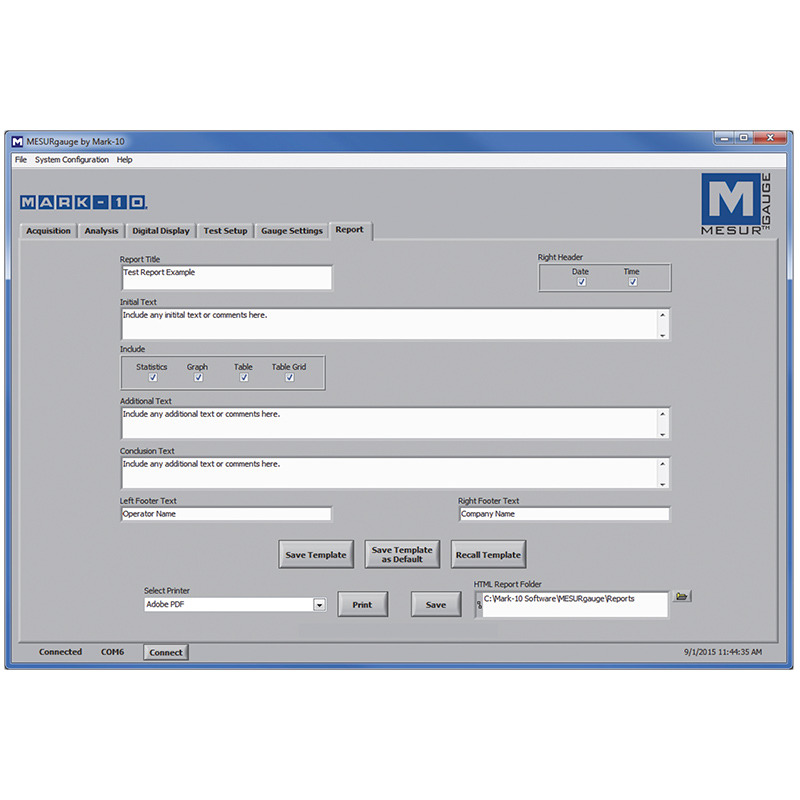

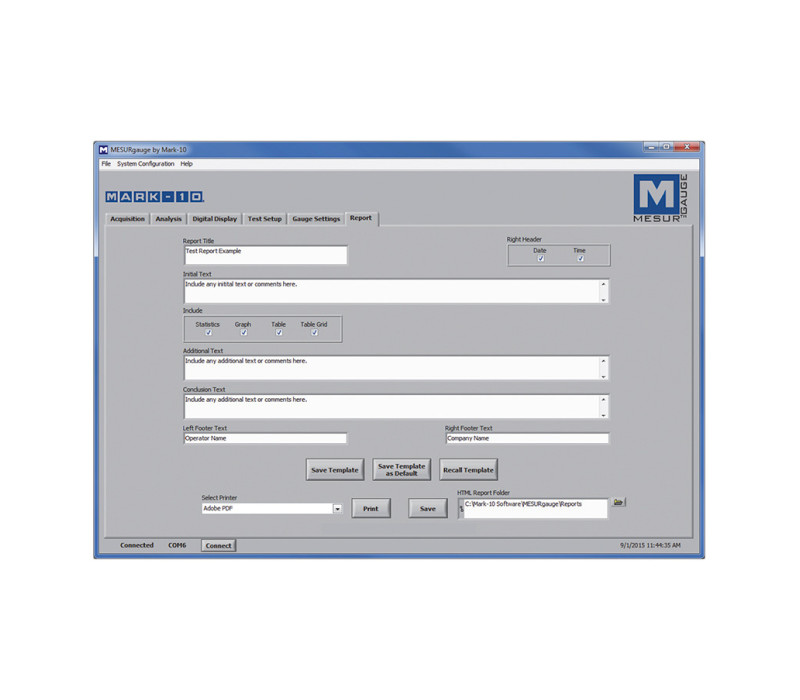

Easily customize reports and report templates.

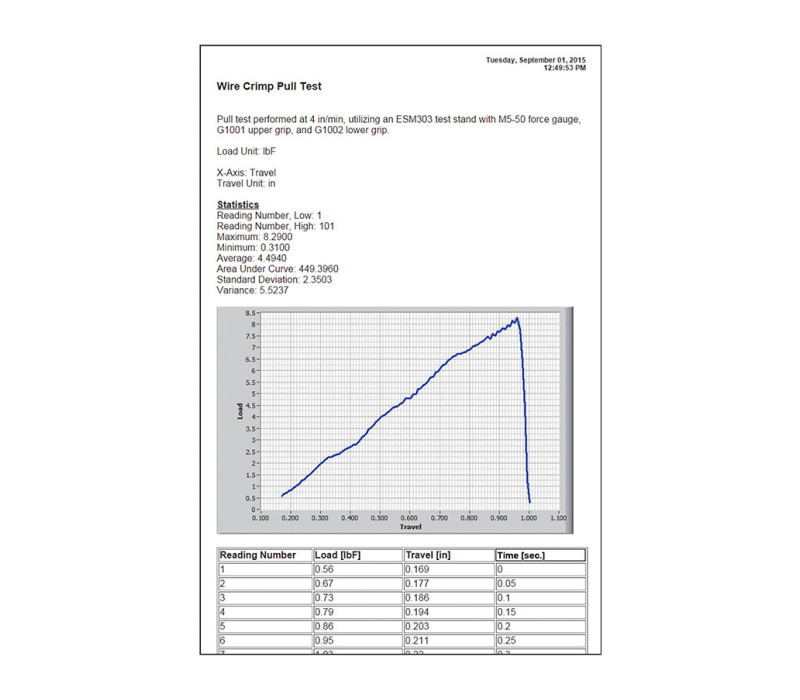

Reports can be saved to an HTML file or sent directly to a printer.

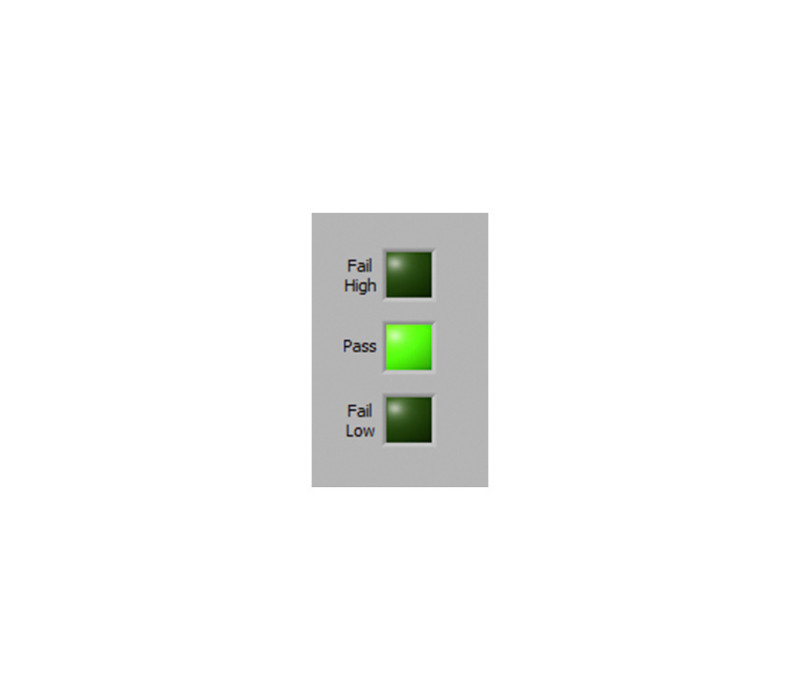

High and low limit indicators help differentiate between an acceptable sample and a reject.

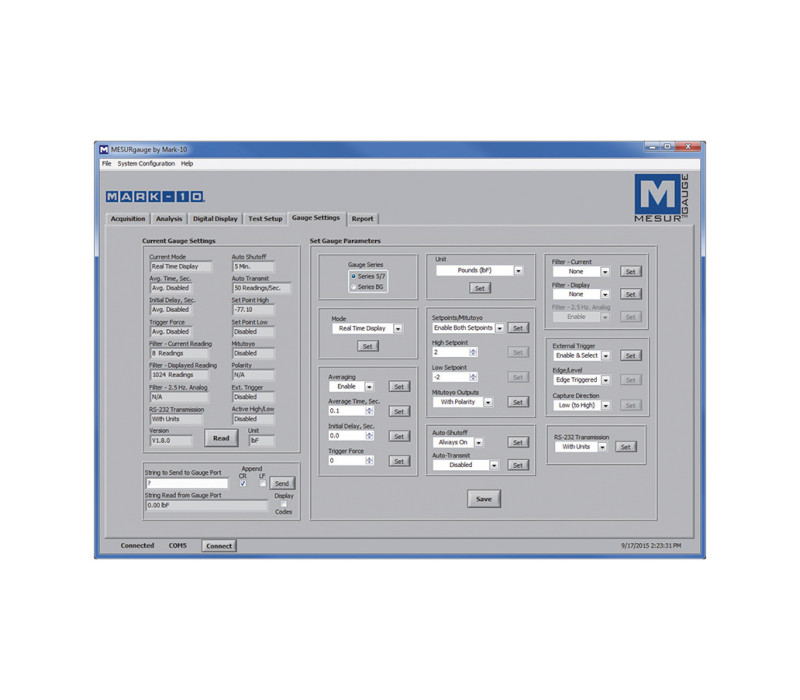

Mark-10 instrument settings can be configured through a convenient utility.

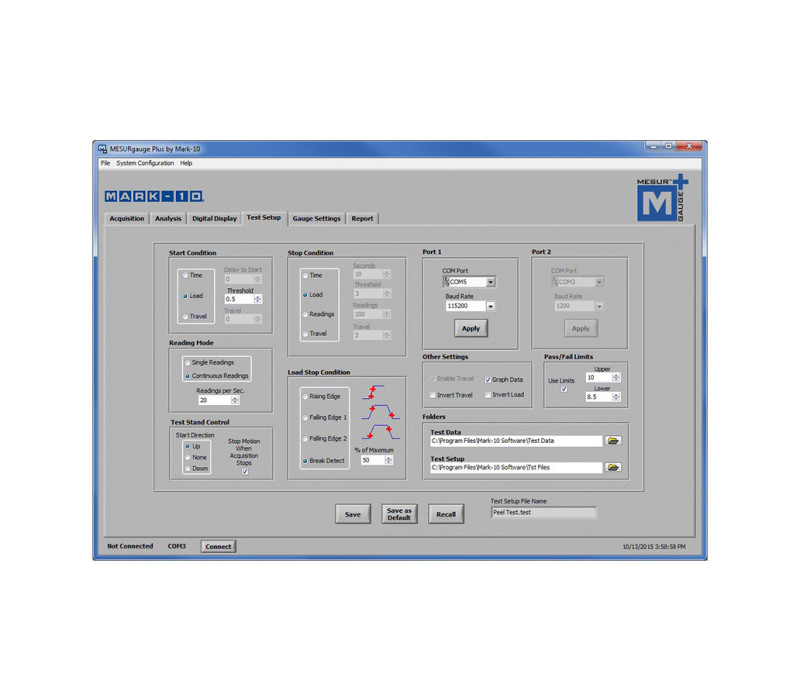

Configure test start and stop conditions, as well as motion control options in MESUR™gauge Plus.

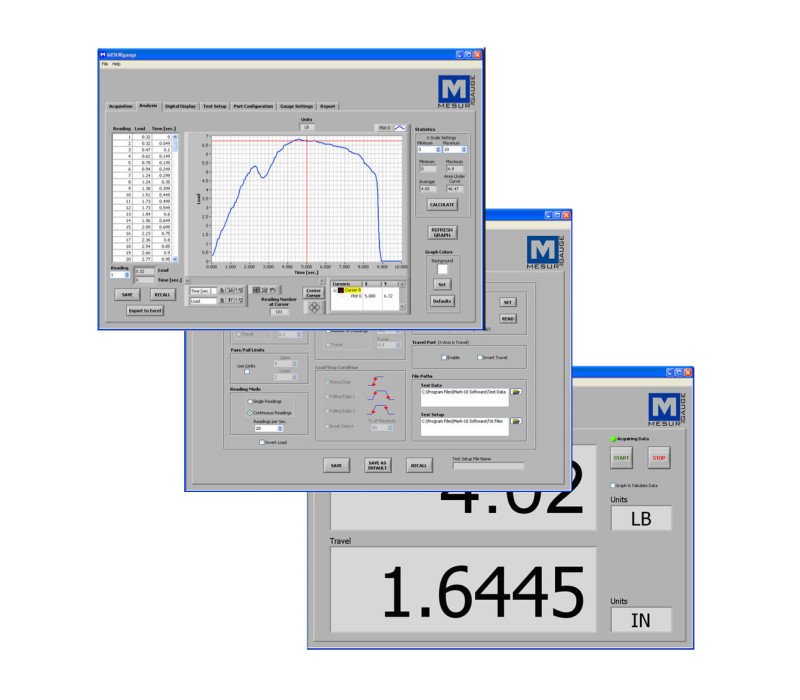

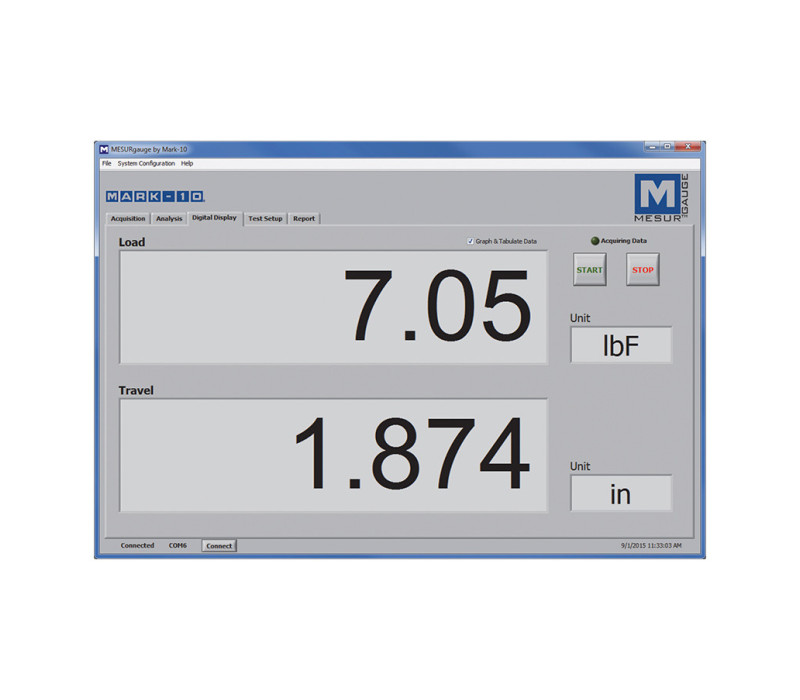

View real time load and travel readings on an enlarged simulated instrument display.

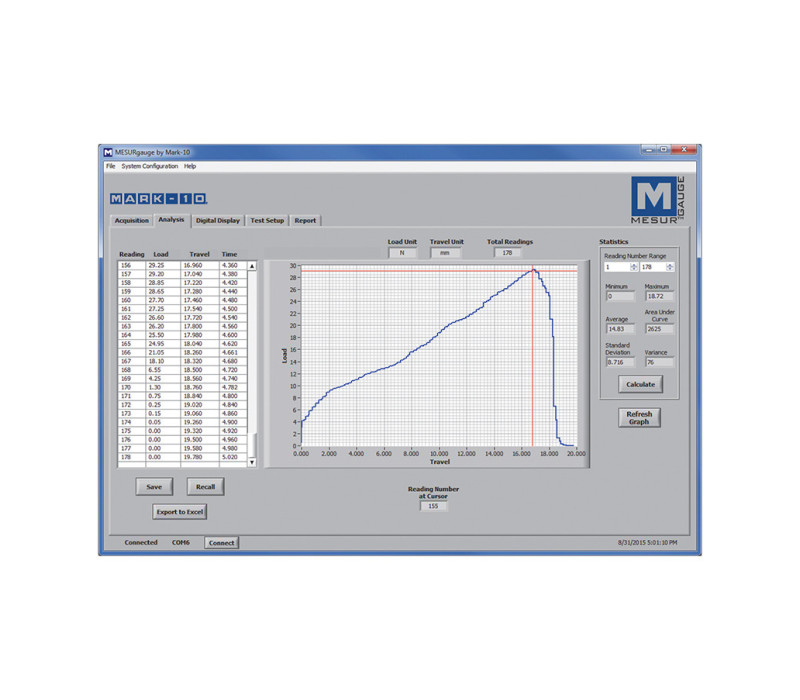

Analyze data post-test with a host of tools, including x-y cursor, statistical calculations, export to Excel, and more.

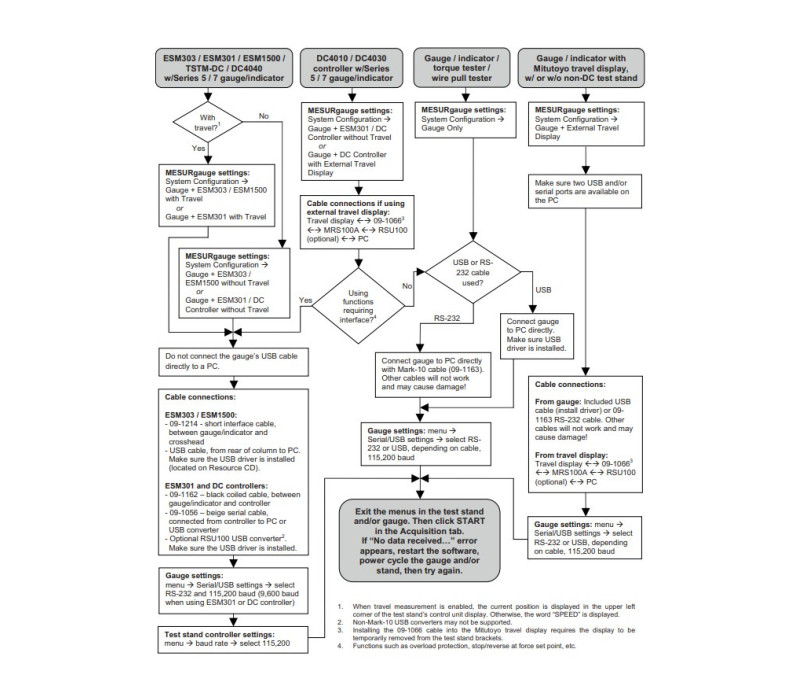

The communication flowchart summarizes the required settings and cable connections for most system configurations.

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software

Name: Mesurgauge / Mesurgauge plus Load & Travel Analysis Software
SKU: 126514

MESUR^®gauge is a measuring and analysis software program that is developed to expand the functionality of force and torque measuring instruments and test stands. It captures readings from any force or torque gauge with RS-232 output and displays data in tabular and graphical formats. Load data can be graphed against time or travel which is particularly useful for such applications as spring testing and tensile testing.

With analysis tools built into the program test results can be processed, including statistical calculations, quick data export to Microsoft Excel, customizable reports, pass/fail indicators, and many others. Ease of use with the ability to customize and save test setups, program test start and stop conditions, including load, time, distance, and sample break.

MESUR®gauge Plus adds the ability to control the motion of Mark-10 motorized test stands, coordinating motion control and data acquisition.

Simulated data generation provides the opportunity to evaluate MESUR^®gauge or MESUR^®gauge Plus without an actual instrument.

15-1004 MESUR gauge, - NO LONGER AVAILABLE -, Order Mesurgauge Plus instead.

Price from € 652,00

Order now

Real time tabular and graphical data displaying load vs. time or load vs. travel
Sends data from a force or torque gauge and travel display to a PC for further analysis
Configurable start and stop test triggers (time, load, number of samples, or travel)
Statistical calculations (minimum, maximum, average, area under curve) for a user-selectable data range
Graph manipulation tools, including zooming, rescaling, panning, titles, and more
One-button export to Excel
Create customizable reports and report templates
Compatible with all Mark-10, Imada, Shimpo and all other force and torque measuring instruments
Save and recall test setups and test data
View real time test data through an enlarged instrument display

Video

▶

Software Comparison Chart

	Mesur Gauge Plus	Mesur Gauge	Mesur Lite
Compatible equipment	Instruments and test stands	Instruments and test stands	Instruments
Test stand motor control	Yes	No	No
Type of data	Load vs. time / Load vs. travel vs. time / Custom	Load vs. time / Load vs. travel vs. time / Custom	Load vs time
Data tabulation	Yes	Yes	Yes
Export to Excel	Yes	Yes	Yes
Graphing and analysis tools	Yes	Yes	No
Maximum number of data points	Unlimited	Unlimited	5000
Continuous data input rate	0,000001 - 50 per second	0,000001 - 50 per second	0,1 - 10 per second
Statistical calculations	Yes	Yes	No
Available start conditions	Time, load, travel distance	Time, load, travel distance	Load
Available stop conditions	Time, load, sample break, travel distance, number of readings	Time, load, sample break, travel distance, number of readings	Number of data points
Confi gurable pass / fail indicators	Yes	Yes	No
Reporting	Yes, with customizable fields and templates	Yes, with customizable fields and templates	No
Save and recall test data	Yes	Yes	No
Save and recall multiple test setups	Yes	Yes	No
Gauge confi guration utility	Yes	Yes	No
Large digital display of force and travel	Yes	Yes	No
Mesur Gauge en Mesur Gauge plus are compatible with test stand models ESM303, ESM303H, and ESM1500

MESURgauge USB driver

MESURgauge USB Driver – Mac (note that all above software applications can only run in Windows mode)

MESURgauge Software Comparison Chart

Datasheet MESURgauge Software

Manual MESURgauge Software

Products

Item	Product	Price	Quantity	Action
130819	15-1005 MESURgauge PLUS Load & Travel Analysis Software, 1 license	€ 652,00
136830	15-1005-5 MESURgauge Plus Load & Travel Analysis Software, 5 licenses	€ 2.580,00

Accessories

Item	Product	Price	Quantity	Action
130335	Cable, serial, legacy gauge to PC DB-9	€ 73,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software

Features

Software Comparison Chart

Series-4 Advanced Digital Force Gauges

Series-5 Advanced Digital Force Gauge

Series-7 Professional Digital Force Gauge

Model-3I Force/Torque Indicator

Model-5I Advanced Digital Force/Torque Indicator

Model-7i Advanced Force/Torque Indicator

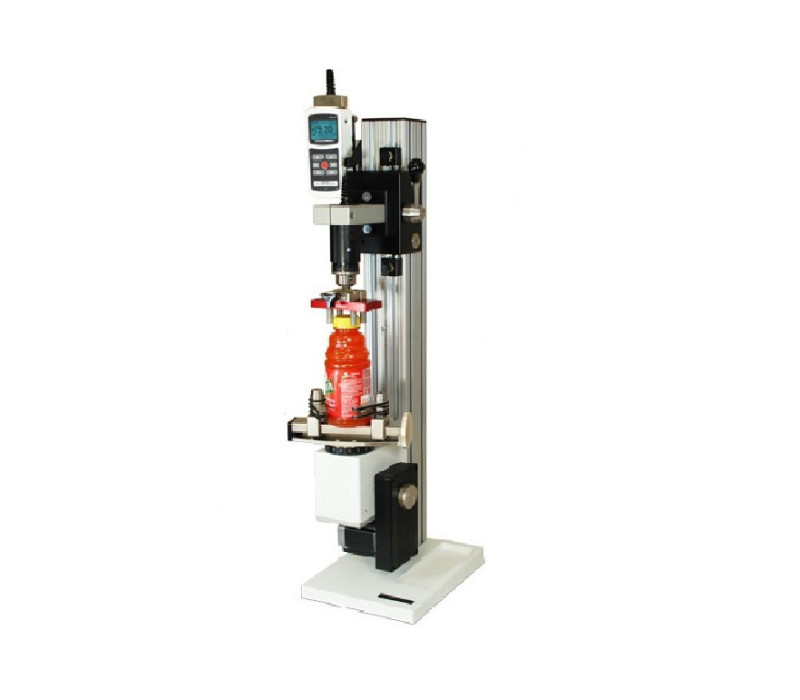

Motorized Cap Torque Measurement System
