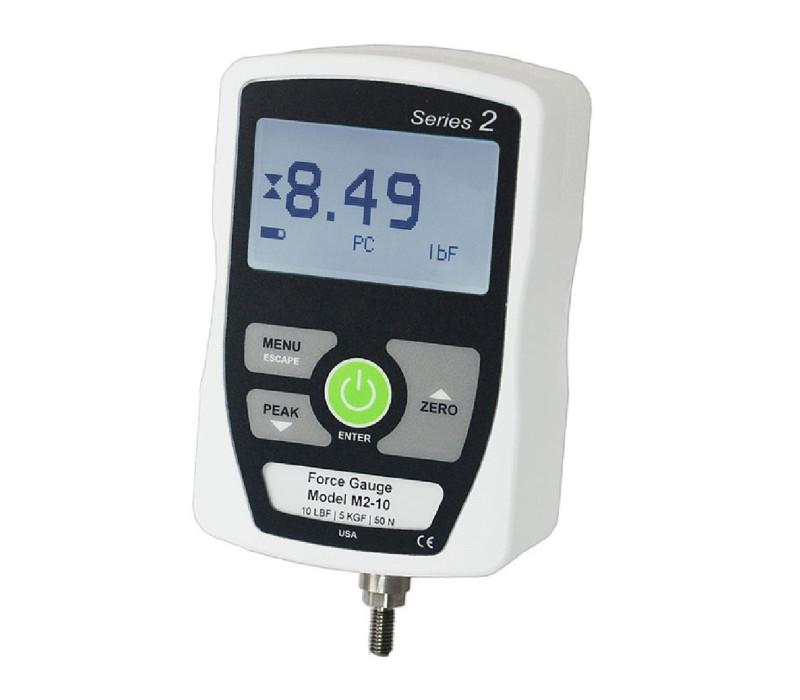

Series-2 Economical Digital Force Gauges

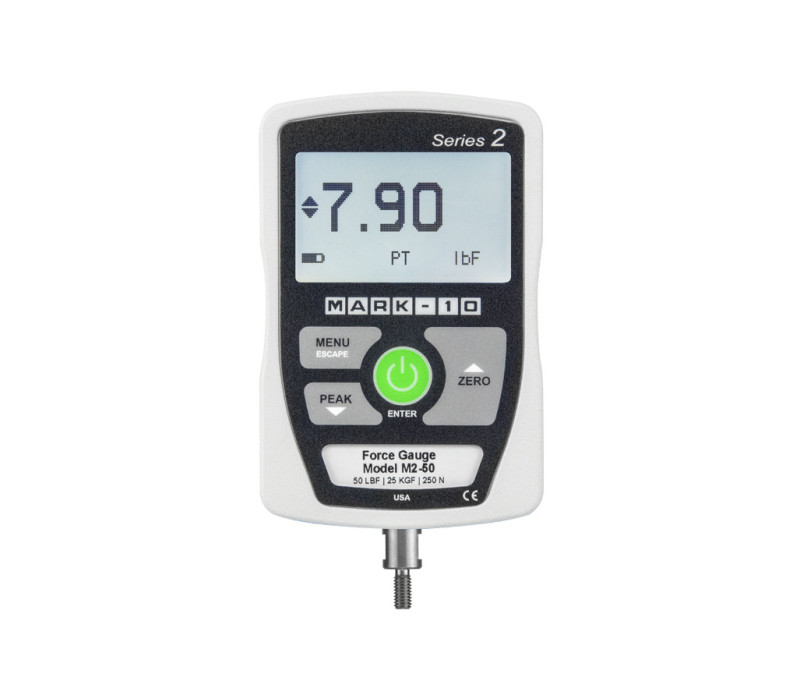

Series-2 Front view

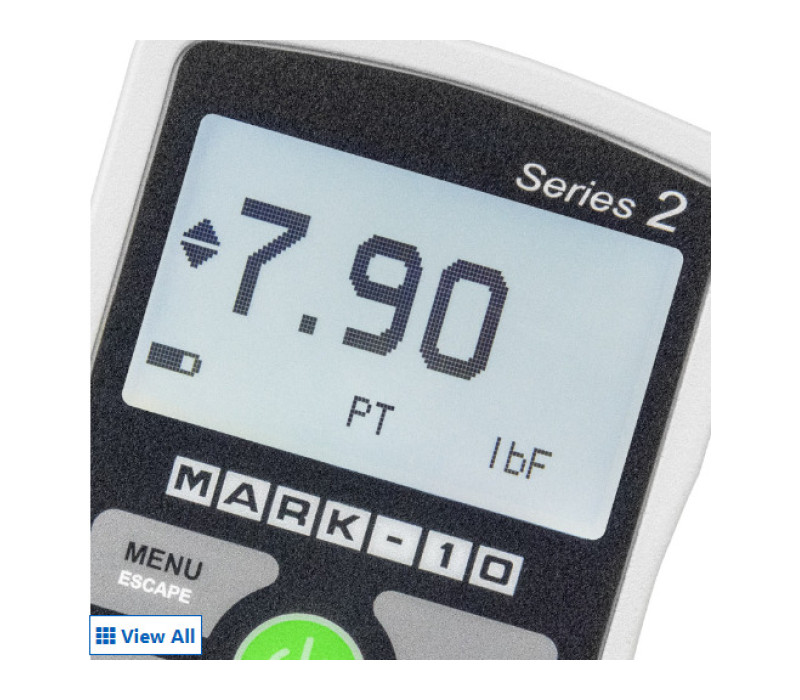

Series-2 Display view

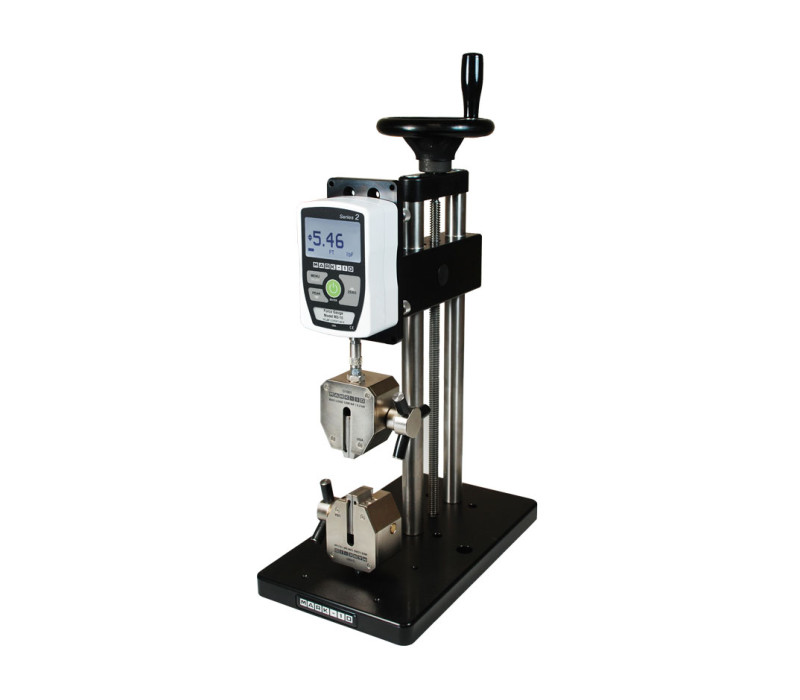

Series-2 Digital Force Gauge on a test stand

Series-2 Economical Digital Force Gauges

Name: Series-2 Economical Digital Force Gauges
SKU: 127056

The Economical Series-2 Digital Force Gauges are developed as an entry gauge for basic force testing applications.
With its accuracy of ±0,5% and a 500Hz sampling rate and peak readings this device captures reliable readings for applications in both production and laboratory environments.

The compact Series-2 Digital Force Gauge comes in 8 force versions ranging from 10 to 2500N.

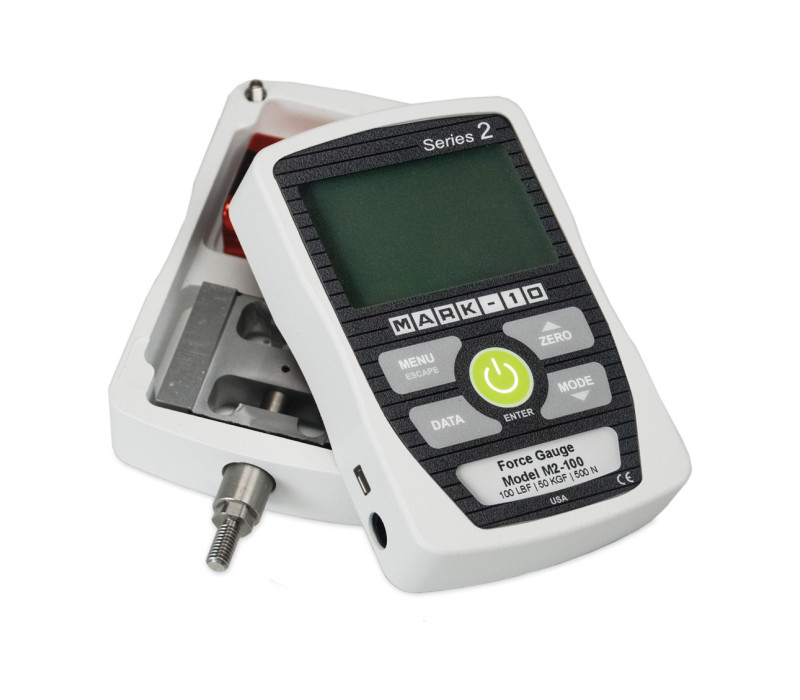

It features a backlit graphic display comes in an aluminum reversible housing and can be used as hand held or fixture mounted device.
Series-2 Force Gauges are compatible with a wide range of test stands and gripping fixtures.

The Digital Mark-10 Series Force Gauge range is available in a variation of 5 gauges with each gauge type available in a scale of force ranges.
Each type of gauge has its own specifications, the table below shows the main specifications of each gauge type.
All gauges types are equipped with a rechargeable battery, a back lit display and reversible aluminum housing.
The Series-# Digital Force Gauges are designed to be used for measuring tension and compression forces.

Mark-10 Digital Force Gauges are versatile instruments, in general they are combined with additional equipment to a purposely build system to perform the required tasks.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.

Price from € 455,00

Order now

Calculates peak tension and compression values
3 selectable units of measurement
Ultra-compact, ergonomic housing
Configurable default measurement unit and mode
500 Hz sampling rate
Large, backlit graphic display with auto-dimming
Powered by rechargeable battery or AC adapter
Reversible housing for alternate load cell orientation
3 Year Warranty

Force Ranges, Capacity & Resolutions

Model	lbF	kgF	N
M2-2	2 x 0,002	1 x 0,001	10 x 0,01
M2-5	5 x 0,005	2.5 x 0,002	25 x 0,02
M2-10	10 x 0,01	5 x 0,005	50 x 0,05
M2-20	20 x 0,02	10 x 0,01	100 x 0,1
M2-50	50 x 0,05	25 x 0,02	250 x 0,2
M2-100	100 x 0,1	50 x 0,05	500 x 0,5
M2-200	200 x 0,2	100 x 0,1	1000 x 1
M2-500	500 x 0,5	250 x 0,2	2500 x 2

Load Cell Thread Specifications

Gauge	M2-2 – M2-100	M2-200 - M2-500
Load Cell Thread	#10-32 UNF	5/16-18 UNC

LCD Display

Display

Reversible housing

reversible housing

The Series-2 is supplied as a kit including:

force gauge
AC adapter
battery
quick-start guide
resource CD (user's guide)
Carrying case
NIST-traceable certificate of calibration (data is available for an additional charge)

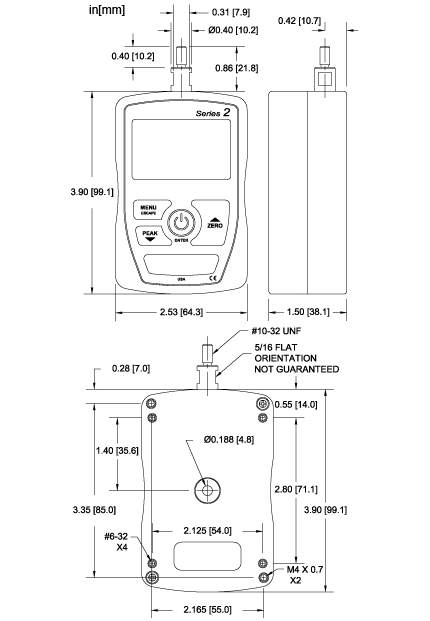

Series-2 force gauge models M2-2 tot M2-500 all have the same dimensions

All dimensions are noted in Inches with metric sizes in (mm) behind.

Force Gauge comparison table

	Series-7 Professional	Series-5 Advanced	Series-4 Performance	Series-3 Basic	Series-2 Economical
Accuracy	±0,1%	±0,1%	±0,2%	±0,3%	±0,5%
Sampling rate	14.000 Hz	7.000 Hz	3.000 Hz	2.000 Hz	500 Hz
Resolution	1/5.000	1/5.000	1/2.000	1/1.000	1/1.000
Units of measurement	lbF, ozF, gF, kgF, N, kN, mN (depending on model)	lbF, ozF, gF, kgF, N, kN, mN (depending on model)	lbF, ozF, gF, kgF, N, kN, mN (depending on model)	lbF, gF, kgF, N (depending on model)	lbF, kgF, N
Outputs	USB, RS-232, Mitutoyo, Analog	USB, RS-232, Mitutoyo, Analog	USB, RS-232, Mitutoyo, Analog	USB	USB
- RS-232	Configurable up to 230.400 baud	Configurable up to 115.200 baud	Configurable up to 115.200 baud	No	No
- USB	Configurable up to 230.400 baud	Configurable up to 115.200 baud	Configurable up to 115.200 baud	Configurable up to 115.200 baud	Configurable up to 115.200 baud
- Mitutoyo (Digimatic)	Serial BCD suitable for all Mitutoyo SPC-compatible devices	Serial BCD suitable for all Mitutoyo SPC-compatible devices	Serial BCD suitable for all Mitutoyo SPC-compatible devices	No	No
- Analog	±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension	±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension	±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension	N/A	N/A
- General purpose I/O	Three open drain outputs, one input	Three open drain outputs, one input	Three open drain outputs, one input	N/A	N/A
- Set point	Three open drain lines	Three open drain lines	Three open drain lines	N/A	N/A
Mesur-Lite software included	Yes	Yes	Yes	Yes	Yes
Data output functionality	Automatic output or by pressing DATA button, or requesting from a PC or other device.	Automatic output or by pressing DATA button, or requesting from a PC or other device.	By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).	By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).	By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).
ASCII command set for external control	Full command set	Full command set	“?” only (request current reading)	“?” only (request current reading)	“?” only (request current reading)
Interface w/MESUR® gauge and MESUR® Lite	Full communication	Full communication	Single point or continuous data output only	Single point or continuous data output only	Single point or continuous data output only
Interface with ESM303 / 750 / 1500 test stands	Full communication, including PC control	Full communication, including PC control	Limited to force data, overload protection, and force set points	N/A	N/A
Data memory	5.000 readings, with output	1.000 readings, with output	50 readings, with output	No	No
Data memory deletion	Any individual data point, or clear all	Any individual data point, or clear all	Any individual data point, or clear all	N/A	N/A
Statistic calculations and output to PC	Max, min, mean, std. dev., number of readings, with output	Max, min, mean, std. dev., number of readings, with output	Max, min, mean, std. dev., number of readings, with output	N/A	N/A
Break detection	Yes	No	No	No	No
1st / 2nd peak detection	Yes	No	No	No	No
Programmable footswitch command string	Yes	No	No	No	No
Averaging mode	Yes	Yes	No	No	No
External trigger mode	Yes	Yes	No	No	No
Analog load bar graph shown on display	Yes	Yes	Yes	Yes	No
Set points (for pass / fail indication)	Yes with high / low indicators, markers on analog bar graph, and outputs	Yes with high / low indicators, markers on analog bar graph, and outputs	Yes with high / low indicators, markers on analog bar graph, and outputs	Yes with high / low indicators, markers on analog bar graph, and outputs	No
Password protection	Yes, for calibration and individual keys	Yes, for calibration and individual keys	No	No	No
Peak readings always displayed	Yes	Yes	Yes	Yes	No (Peak mode must be selected)
Programmable audible tones	Yes	Yes	Yes	Yes	No
Calibration procedure	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)
Overload outputs	Dedicated pins for tension and compression	Dedicated pins for tension and compression	Dedicated pins for tension and compression	No	No
Safe overloads	200% of full scale (display shows warning at 110% and above)	200% of full scale (display shows warning at 110% and above)	200% of full scale (display shows warning at 110% and above)	200% of full scale (display shows warning at 110% and above)	200% of full scale (display shows warning at 110% and above)

Series-2 Quick start manual

Series-2 User Guide

Series-2 Data Sheet

Force Gauge Comparison Chart

Series-2 Solid Models

CE – Force and Torque Gauges, Indicators, and Testers

UKCA – Force and Torque Gauges, Indicators, and Testers

Accuracy	±0,5% of full scale
Sampling Rate	500 Hz
USB output	Configurable up to 115,200 baud
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life	Backlight on: up to 24 hours of continuous use Backlight off: up to 92 hours of continuous use
Measurement Units	N, lbF, kgF
Safe Overload	200% of full scale (display shows “OVER” at 110% and above)
Weight	M2-2 – M2-100: 0,33 kg [0.7 lb] M2-200 – M2-500: 0,41 kg [0.9 lb]
Environmental Requirements	0 - 40°C, max. 96% humidity, non-condensating
Warranty	3 years
Country of Origin	USA
