Series-3 Digital Force Gauge

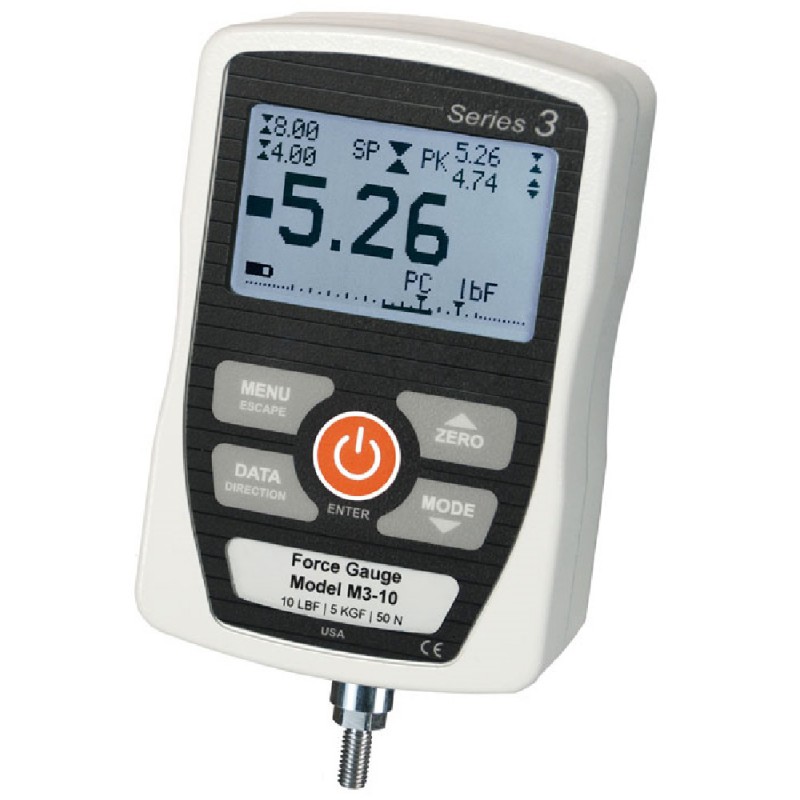

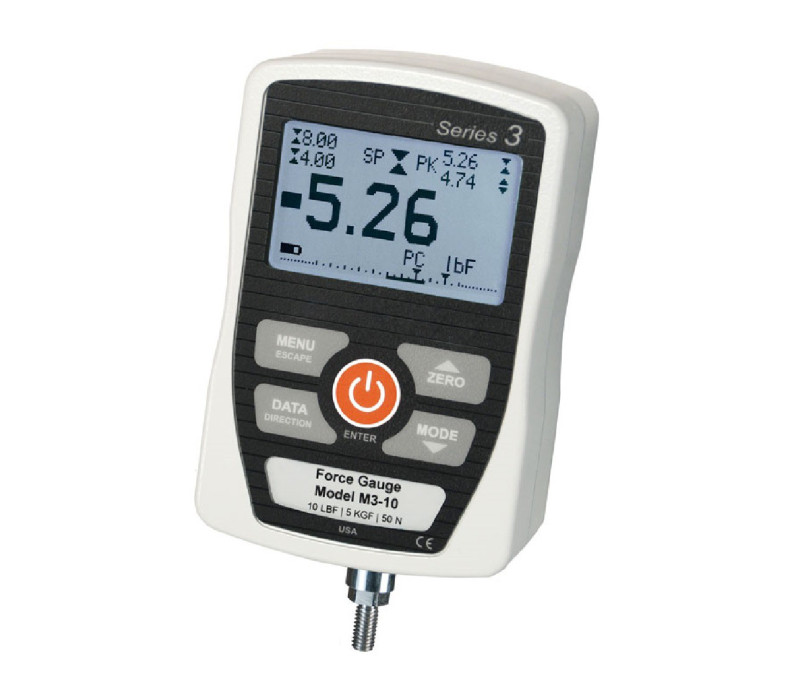

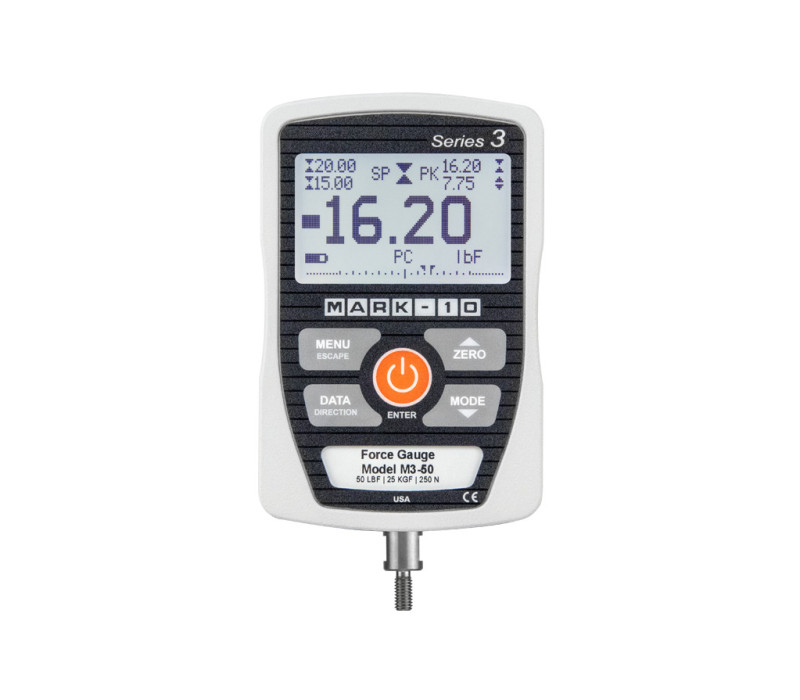

Series-3 Basic Digital Force gauge front featuring a rugged aluminum housing and large backlit dispay

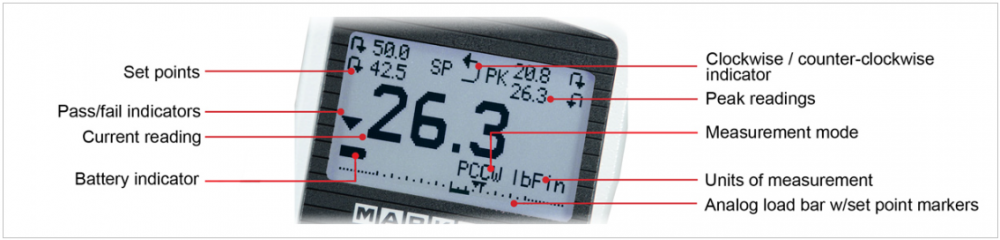

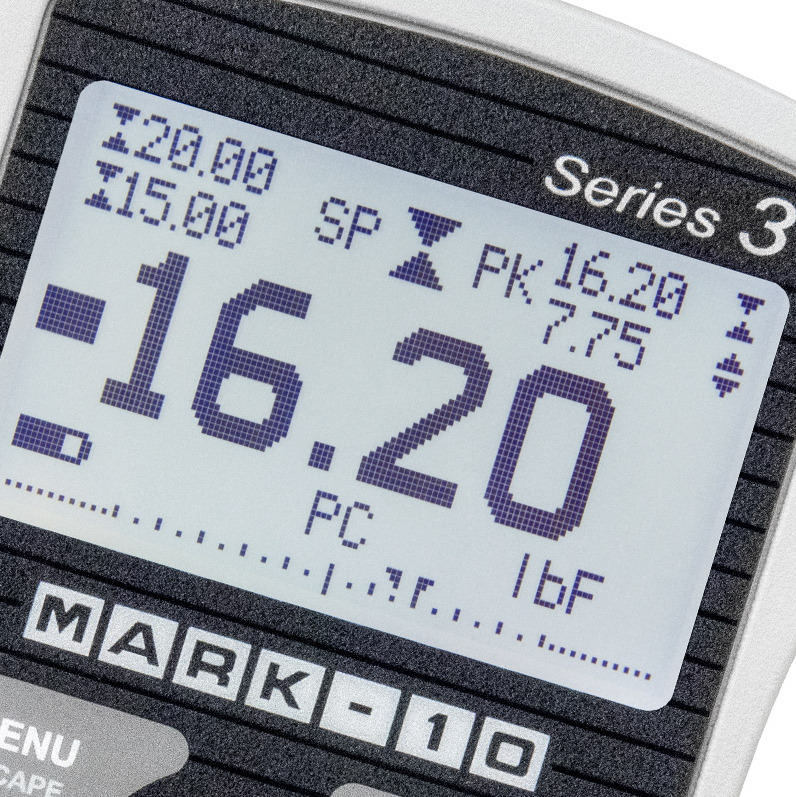

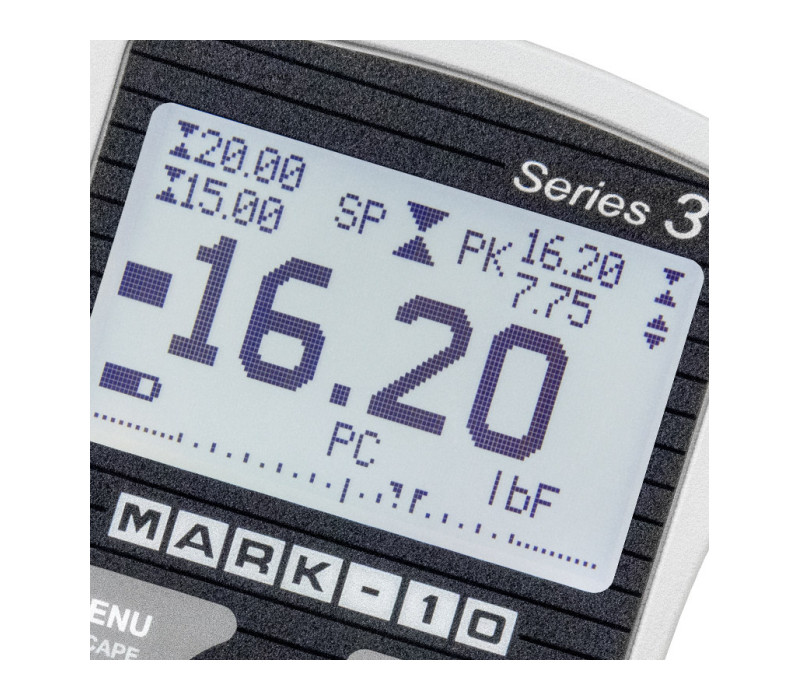

The Series-3 backlit display features large, easily legible digits, peak readings, set point indicators, analog load bar graph, and more.

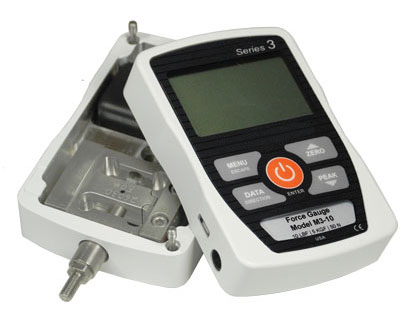

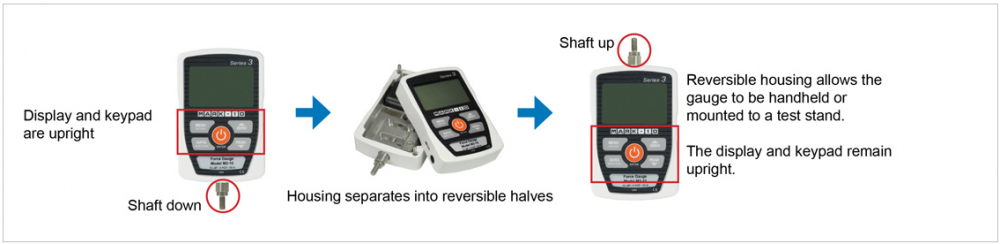

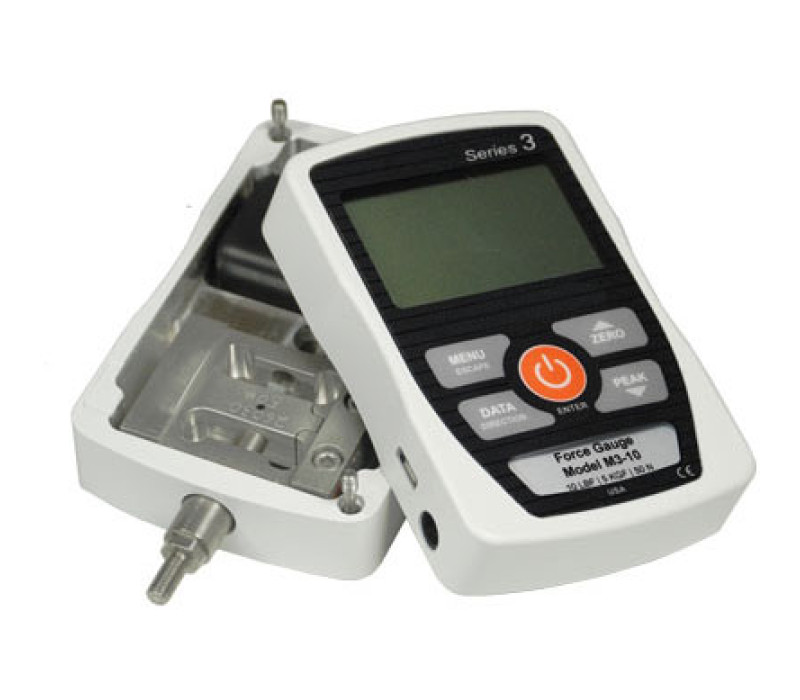

Series-3 reversible housing, allowing the gauge to be used with the load cell shaft oriented up or down, while the display and keys remain upright.

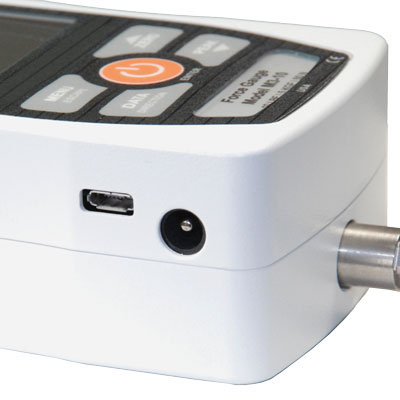

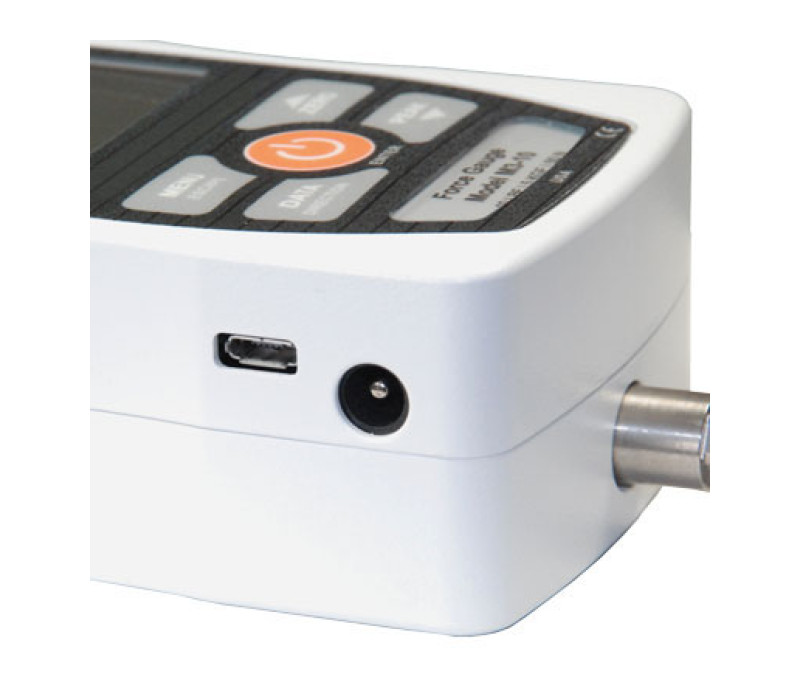

Series-3 USB connector and AC adapter, the kit includes a resource CD with USB driver, MESUR Lite software and MESURgauge DEMO software.

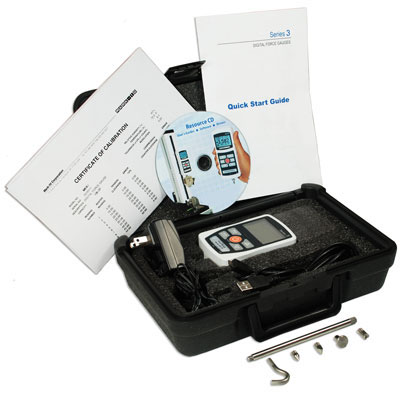

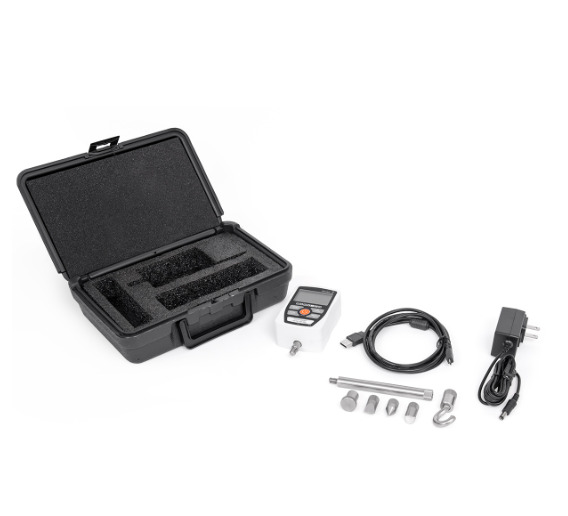

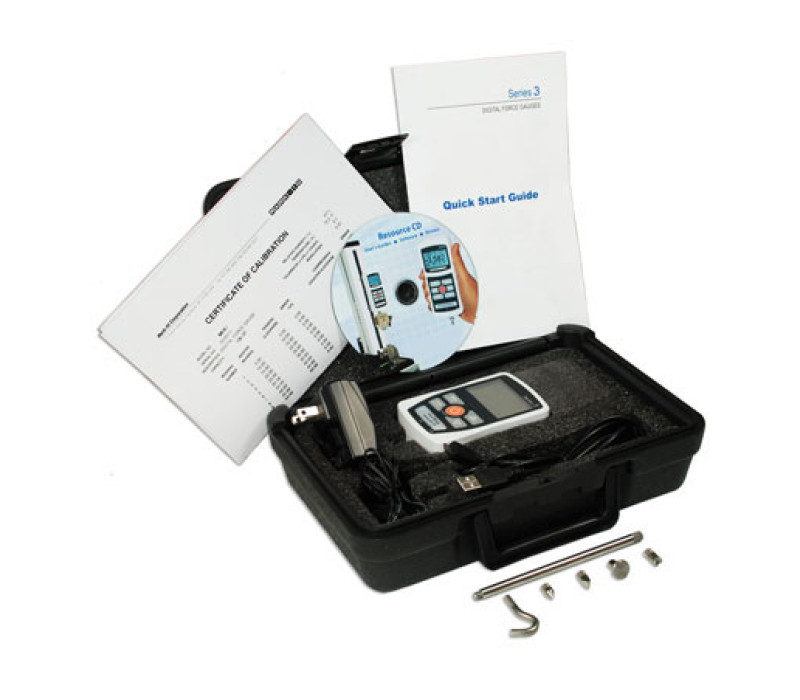

Series-3 complete kit

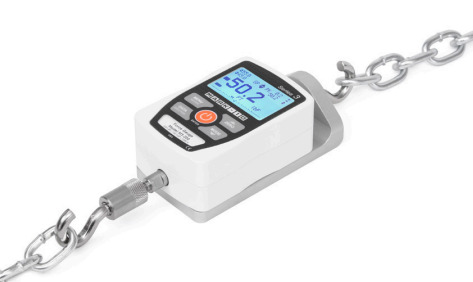

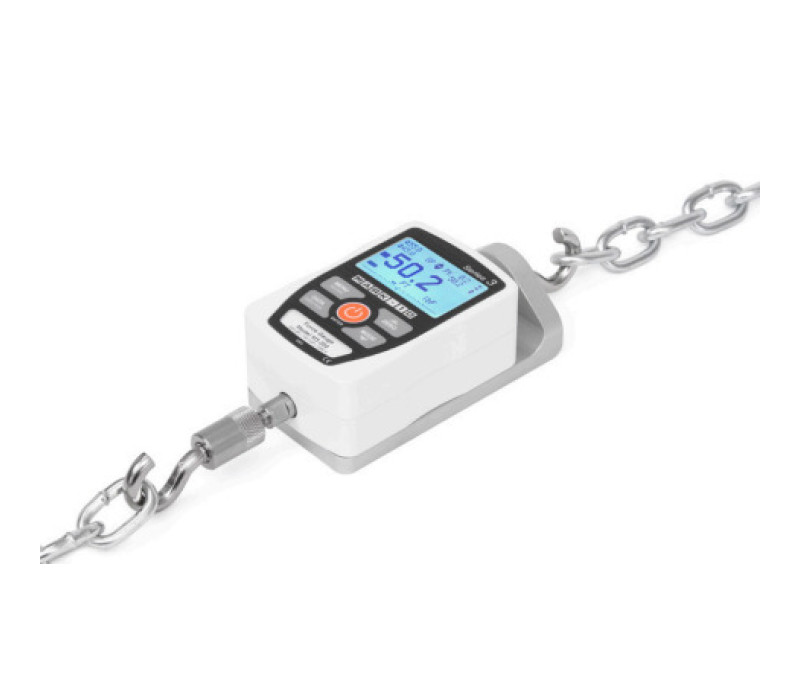

Series-3 gauge mounted on an inline adapter

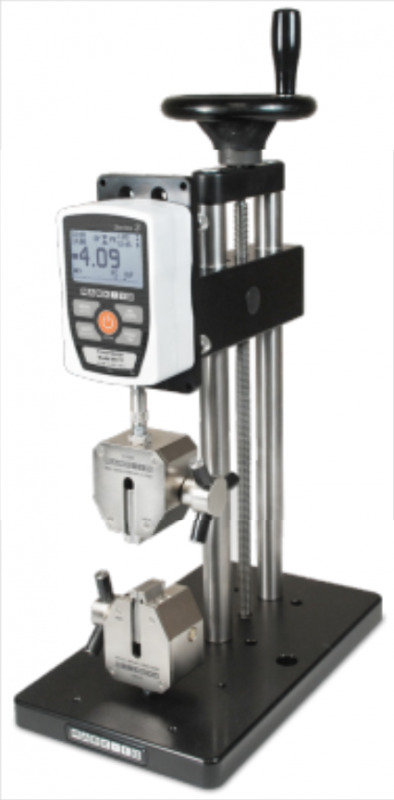

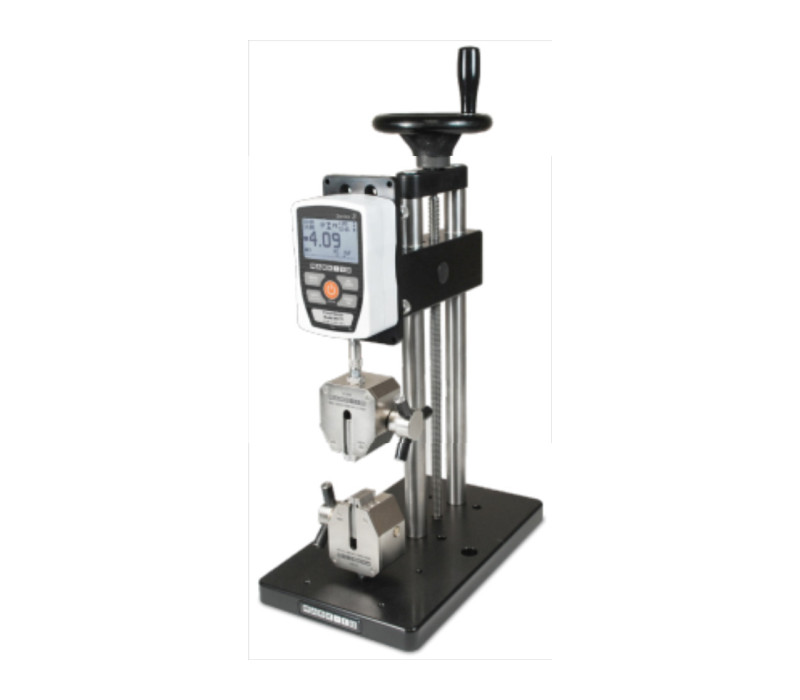

Series-3 Force Gauge mounted to an ES20 manual test stand in a setup with G1061 Wedge Grips

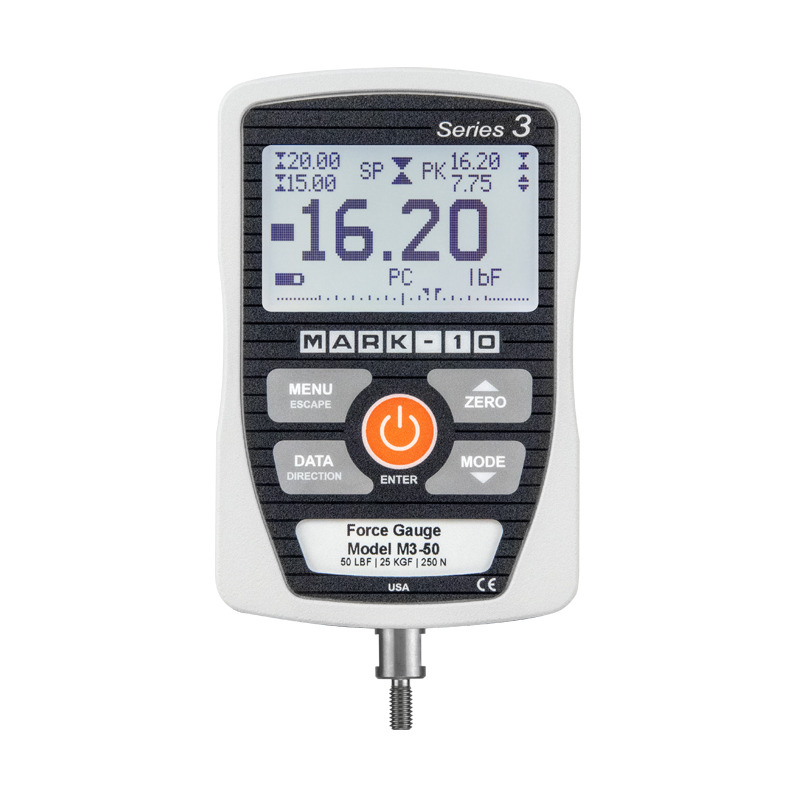

Series-3 Digital Force Gauge

Name: Series-3 Digital Force Gauge
SKU: 126818

The Basic Series-3 Digital Force Gauges are developed for a wide range of applications.
With its compact design the Series-3 features a sampling rate of 2.000 Hz, supports 3 units of measurement (depending on the version) and can be connected to a PC via a USB connection.

The Series-3 Digital Force Gauges come in a 0,5 N to 2500 N range divided in 11 steps.

The backlit LCD display shows all the setting and current measurement information.
Series-3 Force Gauges can be used in combination with a wide range of test stands and gripping fixtures.

The Digital Mark-10 Series Force Gauge range is available in a variation of 5 gauges with each gauge type available in a scale of force ranges. Each type of gauge has its own specifications, the table below shows the main specifications of each gauge type.
All gauges types are equipped with a rechargeable battery, a back lit display and reversible aluminum housing.
The Series-# Digital Force Gauges are designed to be used for measuring tension and compression forces.

All gauges except for the Series-2 come with MESUR^® Lite data acquisition software.
MESUR^® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Mark-10 Digital Force Gauges are versatile instruments, in general they are combined with additional equipment to a purposely build system to perform the required tasks.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.

Price from € 689,00

Order now

High-speed 2.000 Hz sampling rate
USB data output of continuous or individual data points
Ultra compact size
Large backlit graphic display
Programmable set points with pass/fail indicators
Live load bar graph with set point markers
Peak readings and set points always displayed
3 selectable units of measurement
Configurable audio alarms and key tones
Includes NIST Traceable Calibration Certificate
3 Year Warranty

The Series-3 is supplied as a complete kit including:

force gauge
extension rod
hook
cone
chisel
V-Groove
flat
coupling (from M3-50 and up)
carrying case
USB cable
AC adapter
battery
resource CD (USB driver (MESUR Lite software, MESURgauge DEMO software, user's guide)
NIST-traceable certificate of calibration (data is available for an additional charge)

Force Ranges, Capacity & Resolutions

Model	lbF	kgF	gF	N
M3-012	0,12 x 0,0001	-	50 x 0,05	0,5 x 0,0005
M3-025	0,25 x 0,0002	-	100 x 0,1	1 x 0,002
M3-05	0,5 x 0,0005	-	250 x 0,2	10 x 0,01
M3-2	2 x 0,002	1 x 0,001	-	10 x 0,01
M3-5	5 x 0,005	2,5 x 0,002	-	25 x 0,02
M3-10	10 x 0,01	5 x 0,005	-	50 x 0,05
M3-20	20 x 0,02	10 x 0,01	-	100 x 0,1
M3-50	50 x 0,05	25 x 0,02	-	250 x 0,5
M3-100	100 x 0,1	50 x 0,05	-	500 x 0,5
M3-200	200 x 0,2	100 x 0,1	-	1000 x 1
M3-500	500 x 0,5	250 x 0,2	-	2500 x 2

Load Cell Thread Specifications

Model	M3-012 – M3-100	M3-200 - M3-500
Load Cell Thread	#10-32 UNF	5/16-18 UNC

LCD Display

Display

Reversible Housing

Reversible

Included accessories

Accessory	M3-012 - M3-20	M3-50 - M3-100	M3-200 - M3-500
Extension Rod	G1024	G1024	G1031
Cone	G1026	G1026	G1033
Chisel	G1025	G1025	G1032
V-Groove	G1027	G1027	G1034
Flat	G1029	G1029	G1036
Hook	G1028	G1038	G1035
Coupling	-	G1039	G1037

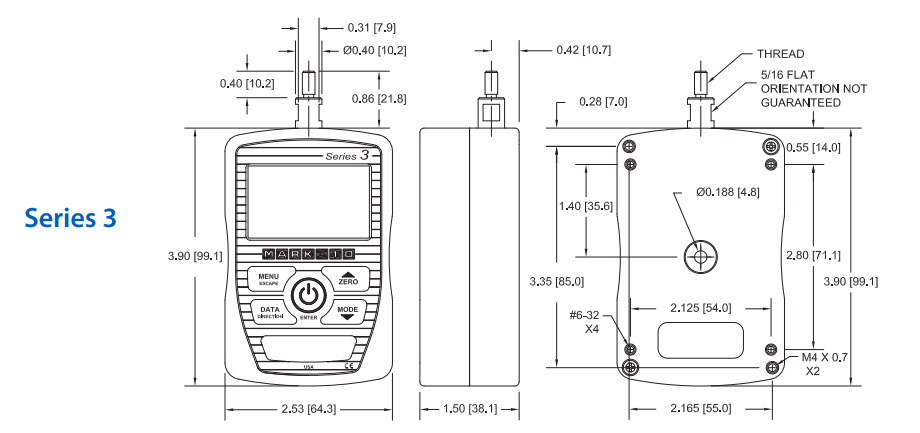

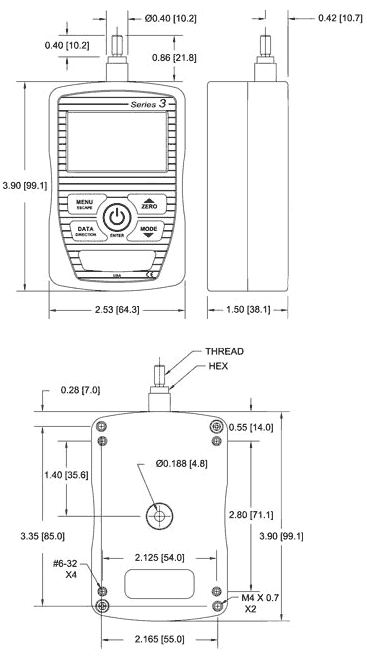

Series-3 force gauge models M3-012 tot M3-500 all have the same dimensions

All dimensions are noted in Inches with metric sizes in (mm) behind.

Force Gauge comparison table

	Series-7 Professional	Series-5 Advanced	Series-4 Performance	Series-3 Basic	Series-2 Economical
Accuracy	±0,1%	±0,1%	±0,2%	±0,3%	±0,5%
Sampling rate	14.000 Hz	7.000 Hz	3.000 Hz	2.000 Hz	500 Hz
Resolution	1/5.000	1/5.000	1/2.000	1/1.000	1/1.000
Units of measurement	lbF, ozF, gF, kgF, N, kN, mN (depending on model)	lbF, ozF, gF, kgF, N, kN, mN (depending on model)	lbF, ozF, gF, kgF, N, kN, mN (depending on model)	lbF, gF, kgF, N (depending on model)	lbF, kgF, N
Outputs	USB, RS-232, Mitutoyo, Analog	USB, RS-232, Mitutoyo, Analog	USB, RS-232, Mitutoyo, Analog	USB	No
- RS-232	Configurable up to 230.400 baud	Configurable up to 115.200 baud	Configurable up to 115.200 baud	No	N/A
- USB	Configurable up to 230.400 baud	Configurable up to 115.200 baud	Configurable up to 115.200 baud	Configurable up to 115.200 baud	N/A
- Mitutoyo (Digimatic)	Serial BCD suitable for all Mitutoyo SPC-compatible devices	Serial BCD suitable for all Mitutoyo SPC-compatible devices	Serial BCD suitable for all Mitutoyo SPC-compatible devices	No	N/A
- Analog	±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension	±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension	±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension	N/A	No
- General purpose I/O	Three open drain outputs, one input	Three open drain outputs, one input	Three open drain outputs, one input	N/A	No
- Set point	Three open drain lines	Three open drain lines	Three open drain lines	N/A	No
Mesur-Lite software included	Yes	Yes	Yes	Yes	No
Data output functionality	Automatic output or by pressing DATA button, or requesting from a PC or other device.	Automatic output or by pressing DATA button, or requesting from a PC or other device.	By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).	By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).	N/A
ASCII command set for external control	Full command set	Full command set	“?” only (request current reading)	“?” only (request current reading)	N/A
Interface w/MESUR® gauge and MESUR® Lite	Full communication	Full communication	Single point or continuous data output only	Single point or continuous data output only	N/A
Interface with ESM303 / 750 / 1500 test stands	Full communication, including PC control	Full communication, including PC control	Limited to force data, overload protection, and force set points	N/A	No
Data memory	5.000 readings, with output	1.000 readings, with output	50 readings, with output	No	No
Data memory deletion	Any individual data point, or clear all	Any individual data point, or clear all	Any individual data point, or clear all	N/A	N/A
Statistic calculations and output to PC	Max, min, mean, std. dev., number of readings, with output	Max, min, mean, std. dev., number of readings, with output	Max, min, mean, std. dev., number of readings, with output	N/A	N/A
Break detection	Yes	No	No	No	No
1st / 2nd peak detection	Yes	No	No	No	No
Programmable footswitch command string	Yes	No	No	No	No
Averaging mode	Yes	Yes	No	No	N/A
External trigger mode	Yes	Yes	No	No	No
Analog load bar graph shown on display	Yes	Yes	Yes	Yes	No
Set points (for pass / fail indication)	Yes with high / low indicators, markers on analog bar graph, and outputs	Yes with high / low indicators, markers on analog bar graph, and outputs	Yes with high / low indicators, markers on analog bar graph, and outputs	Yes with high / low indicators, markers on analog bar graph, and outputs	No
Password protection	Yes, for calibration and individual keys	Yes, for calibration and individual keys	No	No	No
Peak readings always displayed	Yes	Yes	Yes	Yes	No (Peak mode must be selected)
Programmable audible tones	Yes	Yes	Yes	Yes	No
Calibration procedure	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)
Overload outputs	Dedicated pins for tension and compression	Dedicated pins for tension and compression	Dedicated pins for tension and compression	No	N/A
Safe overloads	200% of full scale (display shows warning at 110% and above)	200% of full scale (display shows warning at 110% and above)	200% of full scale (display shows warning at 110% and above)	200% of full scale (display shows warning at 110% and above)	200% of full scale (display shows warning at 110% and above)

Video

▶

Force Gauge Comparison Chart

Series-3 Data Sheet

Series-3 Quick Start Guide

Series-3 Users Guide

Series-3 Solid Models

C# Code Example

LabVIEW Serial Write / Read VI

CE – Force and Torque Gauges, Indicators, and Testers

UKCA – Force and Torque Gauges, Indicators, and Testers

Accuracy	±0,3% of full scale ±1 digit
Sampling rate	2.000 Hz
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units	lbF, gF, kgF, N (depending on model)
USB Output	Configurable up to 115.200 baud.
Configurable Settings	Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration
Safe overload	200% of full scale (display shows “OVER” at 110% and above)
Weight	M3-012 – M3-100: 0,3 kg [0,7 lb] M3-200 – M3-500: 0,4 kg [0,9 lb]
Shipping weight	M3-012 – M3-100: 1,4 kg [3 lb] M3-200 – M3-500: 1,5 kg [3,2 lb]
Environmental requirements:	0 - 40°C [40 – 100°F], max. 96% humidity, non-condensing
Warranty	3 years

Products

Item	Product	Price
132971	M3-012 Digital Force Gauge - 0,5 N	€ 1.561,00
132972	M3-025 Digital Force Gauge - 1,0 N	€ 1.561,00
132973	M3-05 Digital Force Gauge - 2,5 N	€ 849,00
132974	M3-2 Digital Force Gauge - 10 N	€ 689,00
132975	M3-5 Digital Force Gauge - 25 N	€ 689,00
132869	M3-10 Digital Force Gauge - 50 N	€ 689,00
132977	M3-20 Digital Force Gauge - 100 N	€ 689,00
132871	M3-50 Digital Force Gauge - 250 N	€ 689,00
132979	M3-100 Digital Force Gauge - 500 N	€ 689,00
132980	M3-200 Digital Force Gauge - 1000 N	€ 849,00
132981	M3-500 Digital Force Gauge - 2500 N	€ 849,00

Accessories

Item	Product	Price
132876	Cable, USB, Series 7/5/4/3 to PC	€ 28,00
132826	Replacement battery, 8.4V NiMH	€ 18,00
131954	AC1030 AC adapter/charger, 110V US	€ 41,00
131955	AC1031 AC adapter/charger, 220V Europe	€ 41,00
132878	AC1032 AC adapter/charger, 220V UK	€ 41,00
132879	AC1035 AC adapter/charger, 220V Australia	€ 41,00
134333	AC1052 Mounting plate, Mark-10 gauges, 0.12 - 500 lbF capacities (0.5 to 2,500 N)	€ 55,00
130351	AC1003 Double Handle Grips for Force Gauges Series 2/3	€ 110,00
130819	15-1005 MESURgauge PLUS Load & Travel Analysis Software, 1 license	€ 652,00
136830	15-1005-5 MESURgauge Plus Load & Travel Analysis Software, 5 licenses	€ 2.580,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
