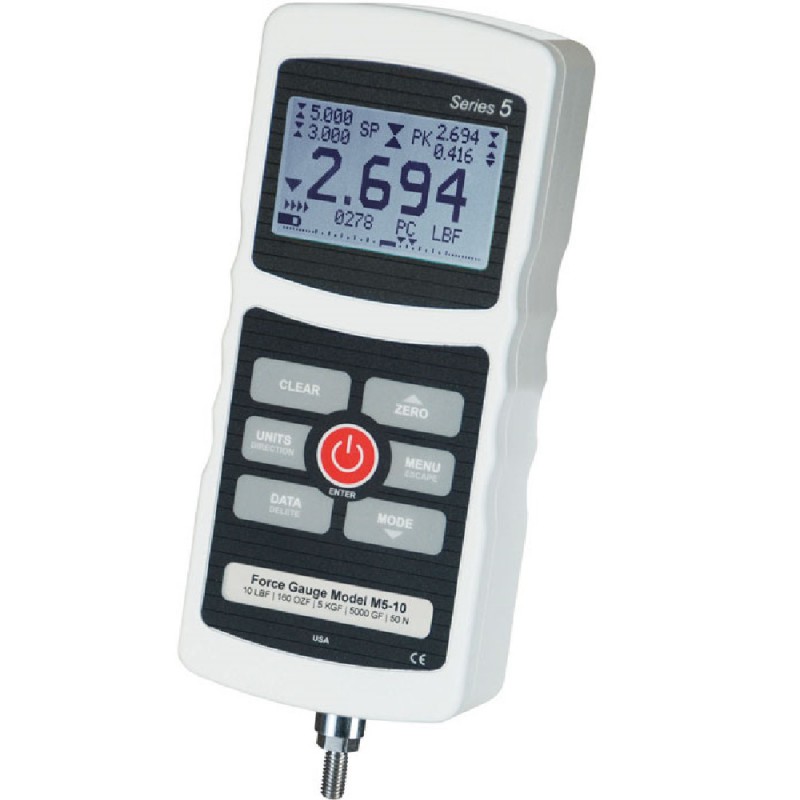

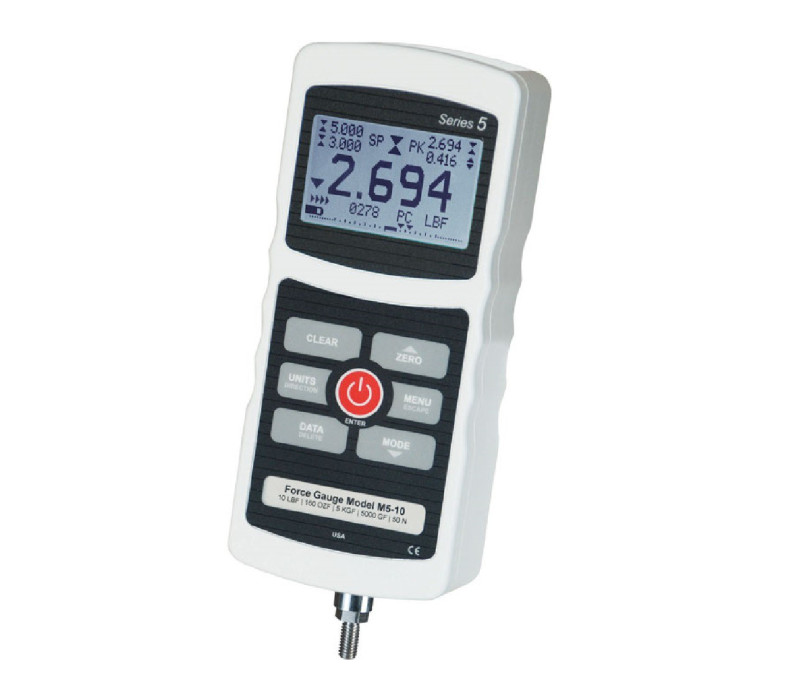

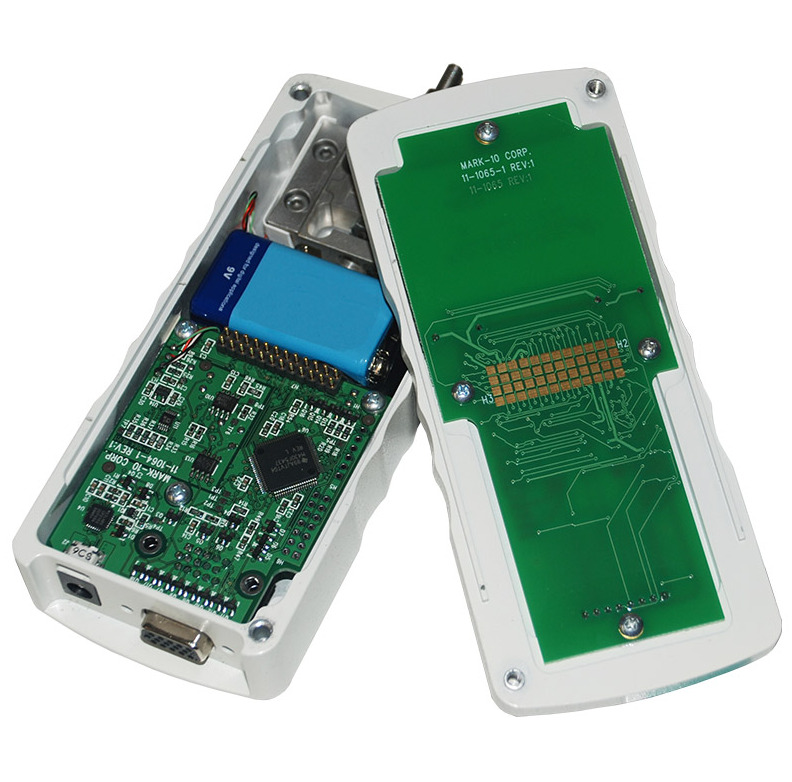

Advanced digital force gauge Series-5

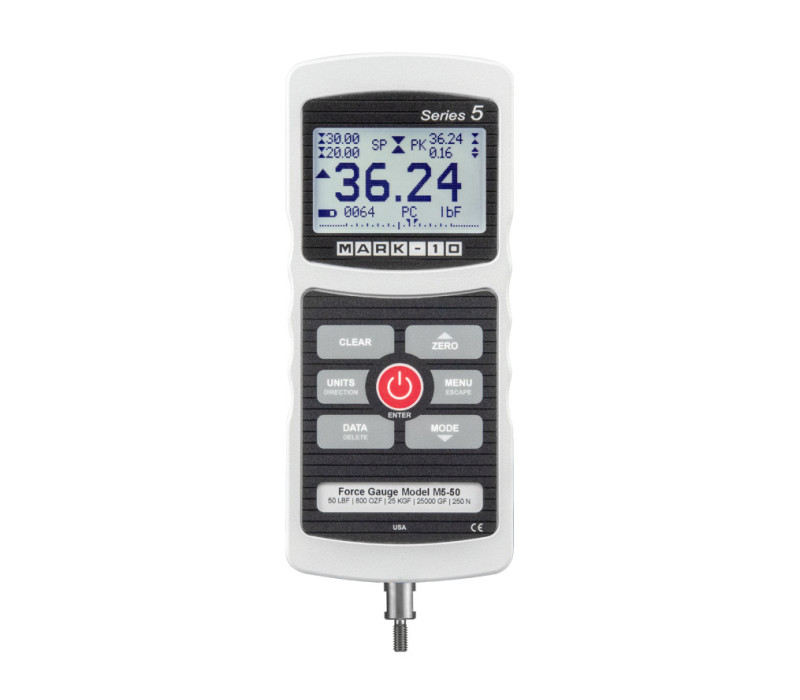

Digital force gauge with large backlit display Series-5

Digital force gauge with reversible aluminium housing Series-5

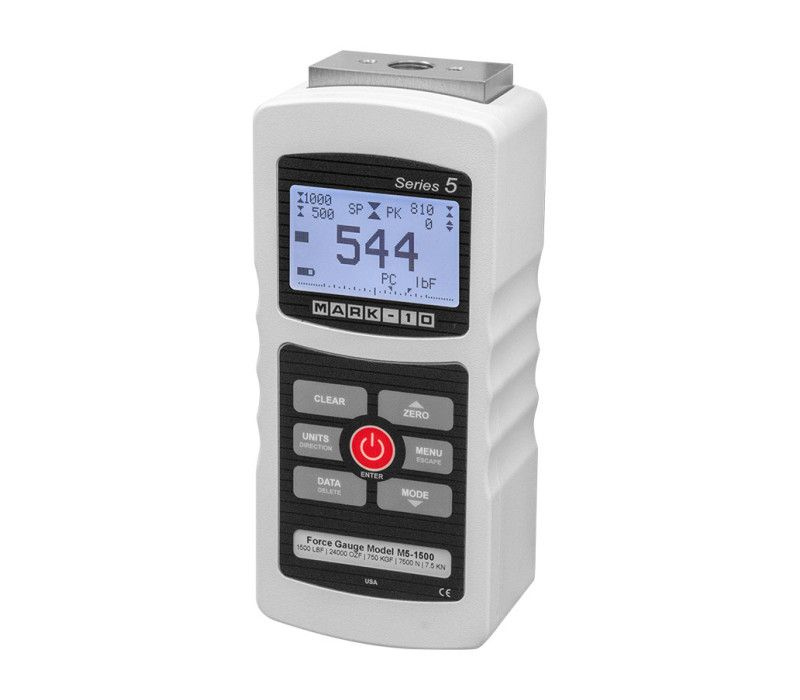

Digital force gauge with reversed shaft orientation Series-5

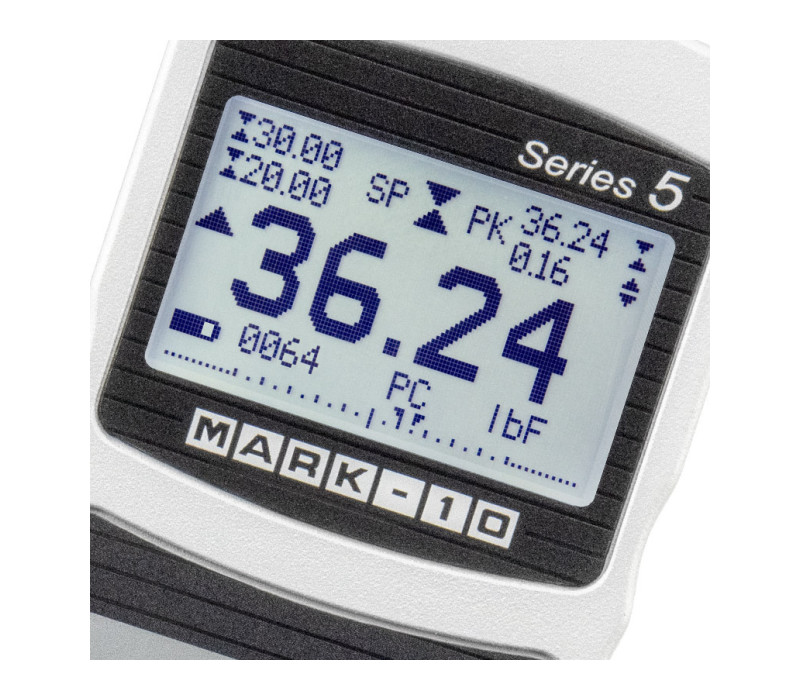

Digital force gauge display with force readings Series-5

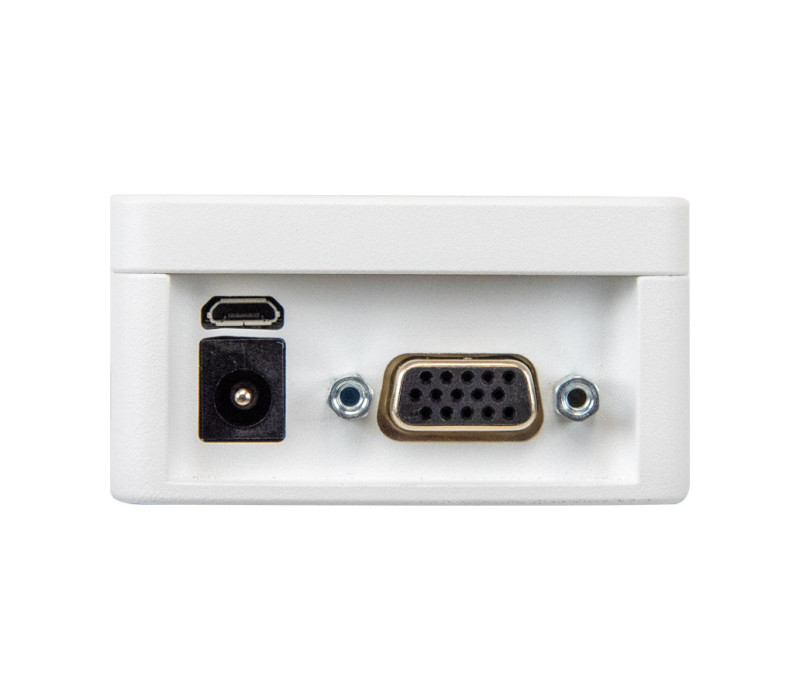

Digital force gauge with recessed connectors Series-5

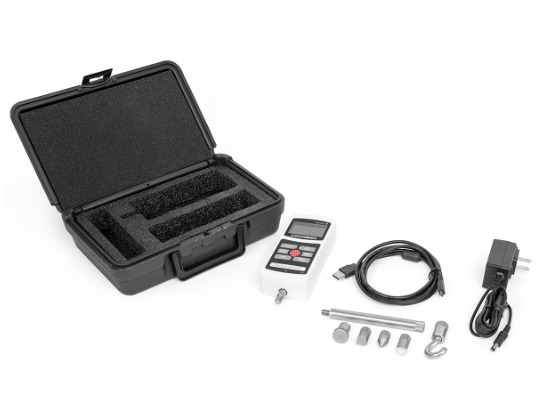

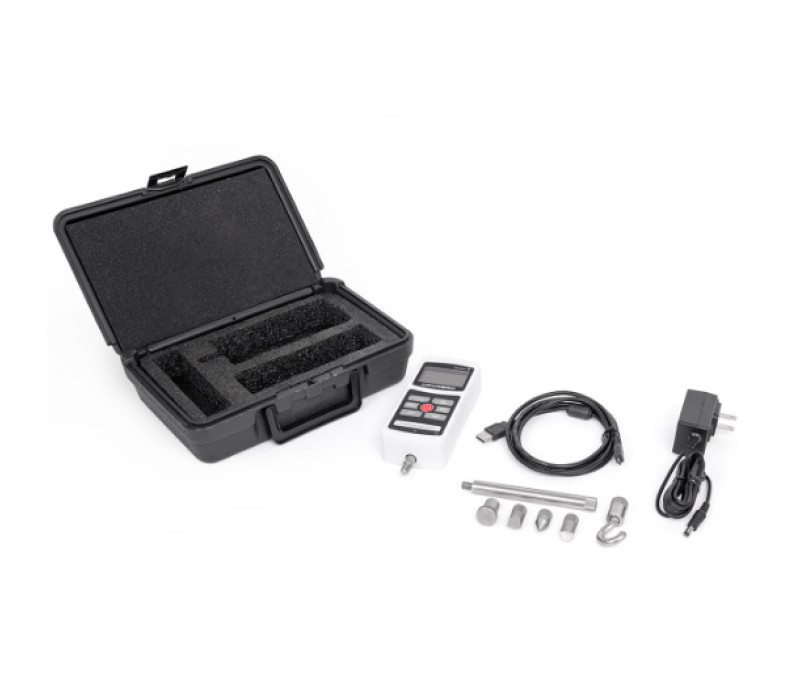

Digital force gauge complete kit with attachments Series-5

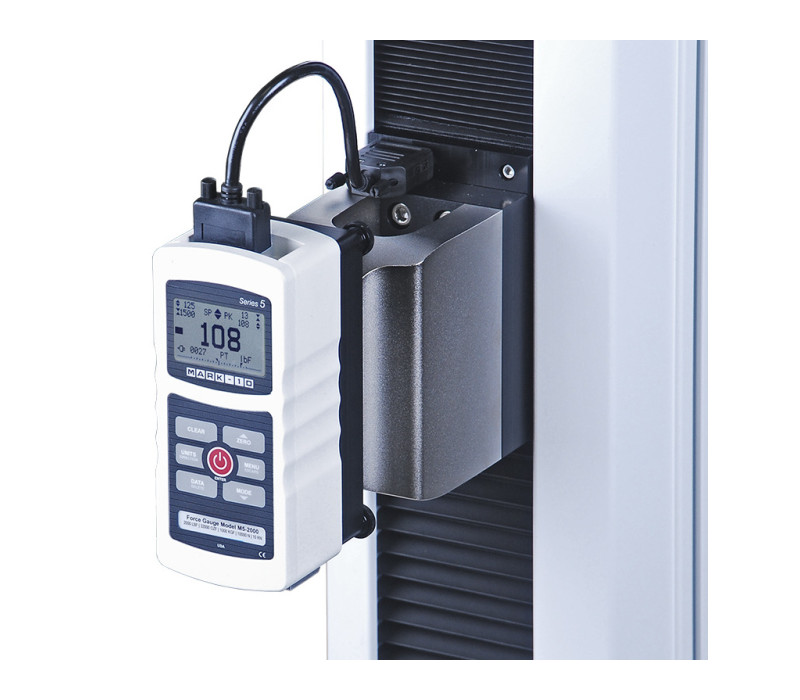

Digital force gauge mounted on a test stand crosshead Series-5

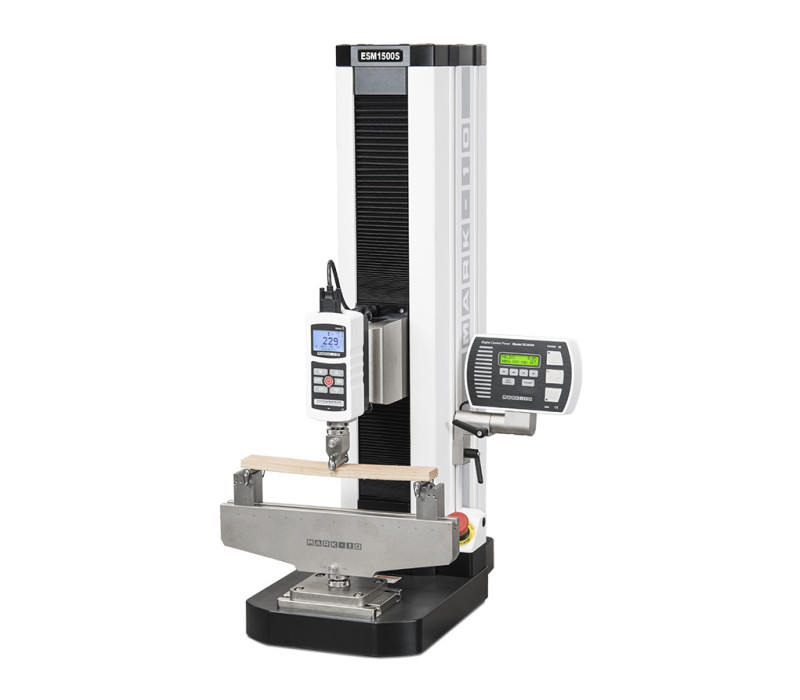

Digital force gauge in a three-point bend test setup Series-5

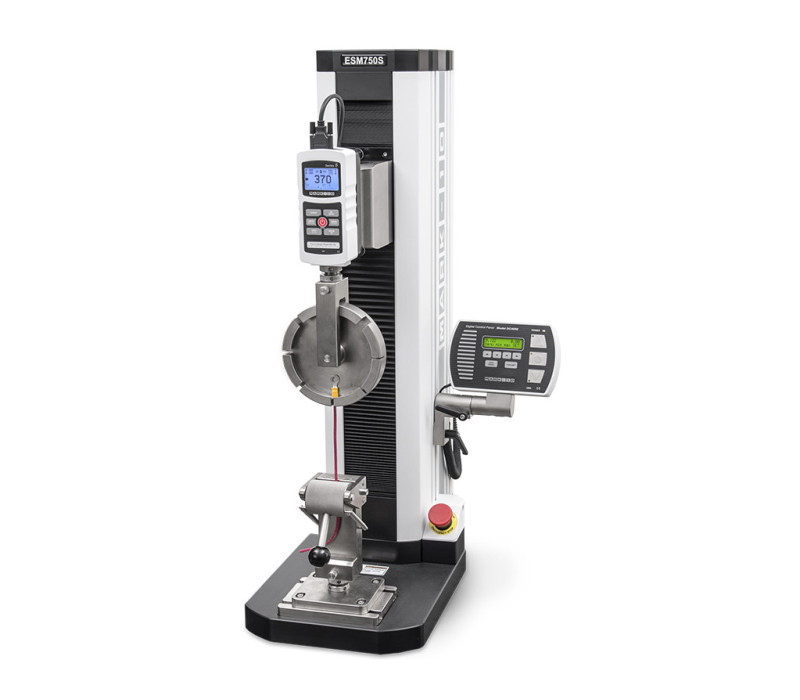

Digital force gauge in a wire crimp test setup Series-5

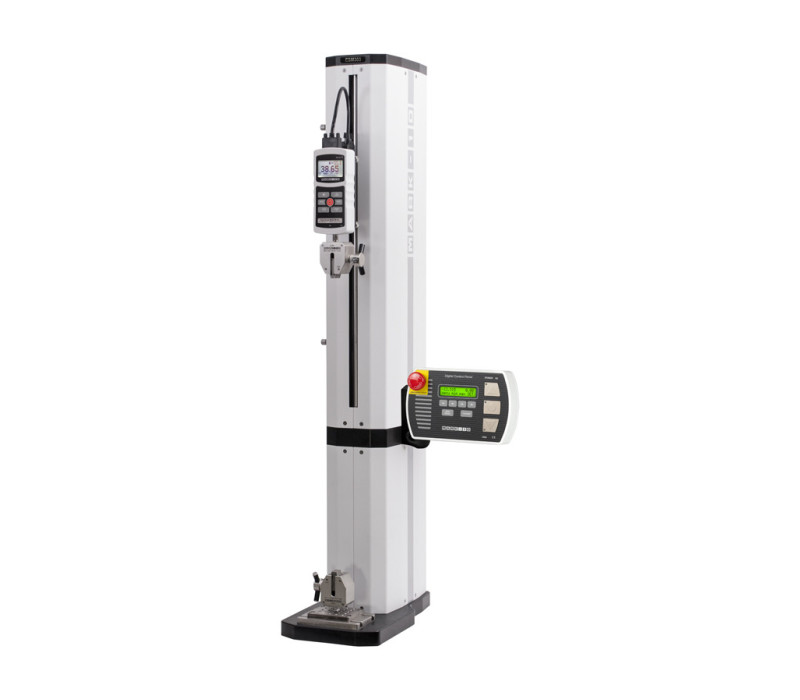

Digital force gauge on an extended motorised test stand Series-5

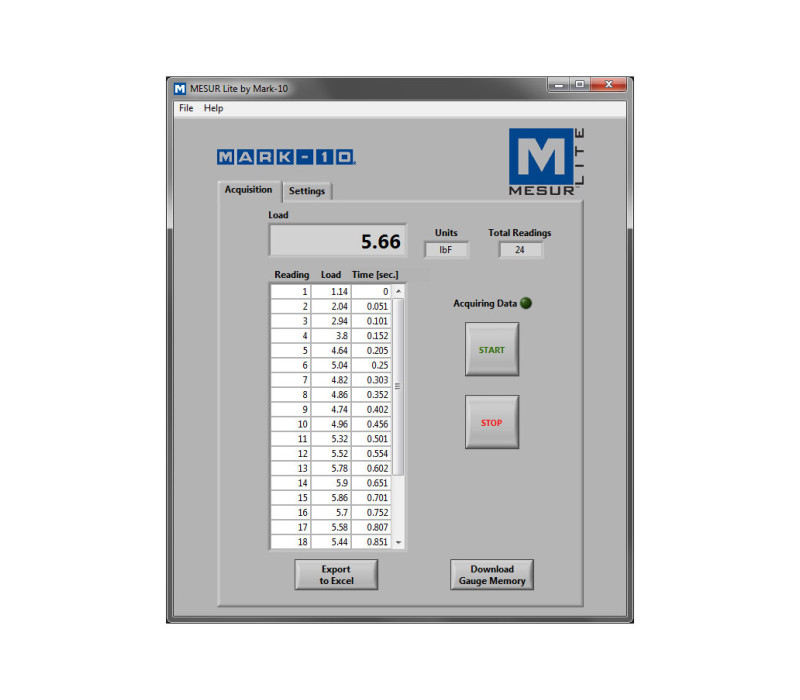

MESUR Lite data acquisition software for Series-5

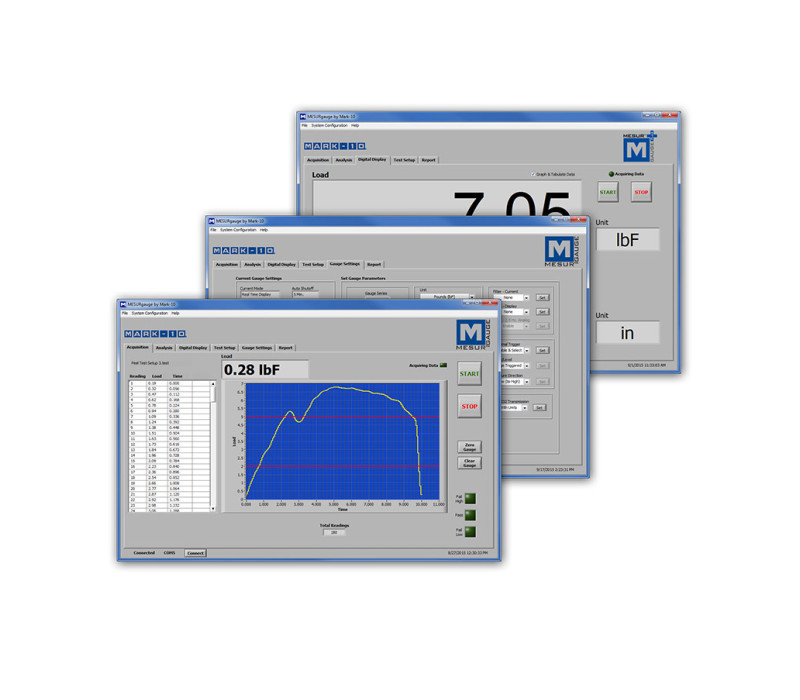

MESURgauge force analysis software for Series-5

Series-5 Mark-10 Advanced Digital Force Gauge

Name: Series-5 Mark-10 Advanced Digital Force Gauge
SKU: 126599

Advanced Mark-10 digital force gauge for tension and compression testing from 0.5 N to 10 kN

The Series-5 is an advanced digital force gauge for tension and compression testing, available in 17 measuring ranges from 0.5 N to 10 kN. It combines ±0.1% of full-scale accuracy with a 7,000 Hz sampling rate and 1/5000 resolution for reliable measurement of both steady and rapidly changing forces.

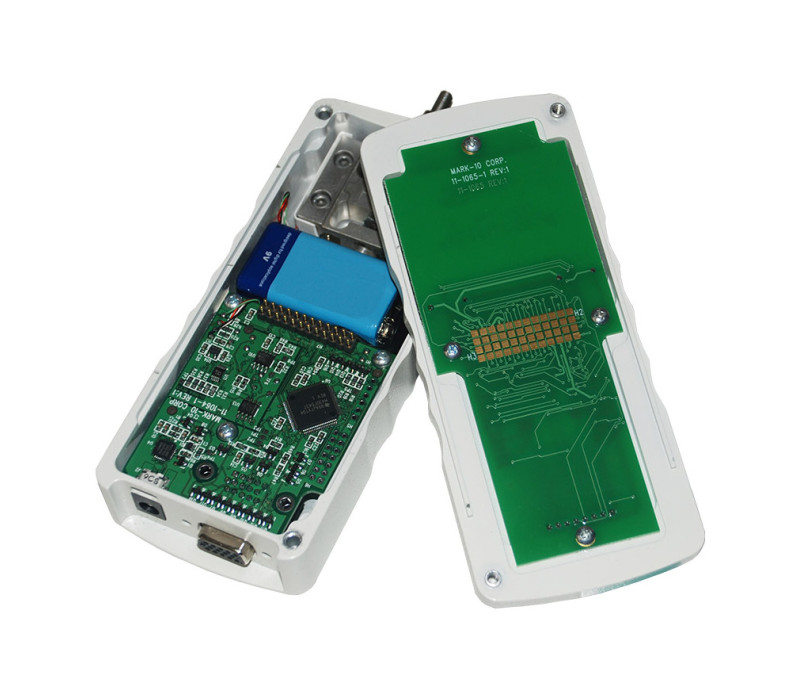

A large backlit graphic display shows force readings, peaks, set points and a live load bar graph. The rugged aluminium housing is reversible, allowing the load cell shaft to face up or down while the display and keys remain upright.

The Series-5 stores up to 1,000 readings with statistical calculations and supports USB, RS-232, Mitutoyo and analog outputs. Averaging, external trigger and programmable set point functions make it suitable for standalone testing or integration with Mark-10 test stands, grips and software.

Price from € 1.176,00

Order now

17 force ranges from 0.5 N to 10 kN for tension and compression testing
±0.1% of full-scale accuracy with 1/5000 resolution
High-speed 7,000 Hz sampling for capturing rapidly changing forces
Large backlit graphic display with peak values, set points and live load bar graph
1,000-reading memory with minimum, maximum, mean and standard deviation statistics
Programmable set points with indicators and outputs for pass/fail testing and external equipment control
Averaging mode calculates average force over a defined period, including applications such as peel testing
External trigger mode supports switch activation testing and remote display capture
USB, RS-232, Mitutoyo and analog outputs for connection to PCs and data collection systems
Automatic data output via USB or RS-232
Configurable audio alarms, key tones and password protection for individual keys and calibration
Reversible aluminium housing for handheld use or mounting to compatible Mark-10 test stands

Force Ranges

Model	Capacity	Resolution (N)
M5-012	0.12 lbF / 0.5 N	0.0001
M5-025	0.25 lbF / 1 N	0.0002
M5-05	0.5 lbF / 2.5 N	0.0005
M5-1	1 lbF / 5 N	0.001
M5-2	2 lbF / 10 N	0.002
M5-5	5 lbF / 25 N	0.005
M5-10	10 lbF / 50 N	0.01
M5-20	20 lbF / 100 N	0.02
M5-50	50 lbF / 250 N	0.05
M5-100	100 lbF / 500 N	0.1
M5-200	200 lbF / 1,000 N	0.2
M5-300	300 lbF / 1,500 N	0.5
M5-500	500 lbF / 2,500 N	0.5
M5-750	750 lbF / 3,750 N	2
M5-1000	1,000 lbF / 5,000 N	2
M5-1500	1,500 lbF / 7,500 N	5
M5-2000	2,000 lbF / 10,000 N	5

Models M5-750, M5-1000, M5-1500 and M5-2000 use an S-beam load cell and have a slightly larger housing; the interface and display remain the same.

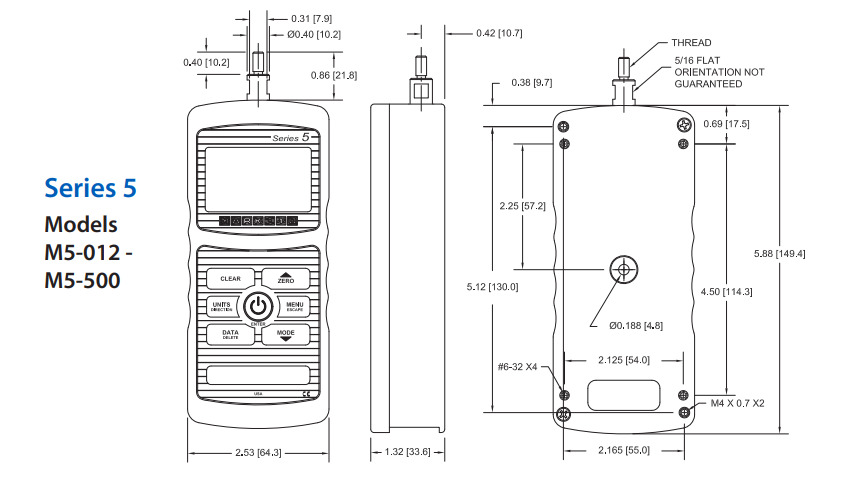

Force gauge dimensions M5-012–M5-500 Series-5

Refer to the drawing for the Series-5 M5-012–M5-500 dimensions. All dimensions are shown in inches [mm].

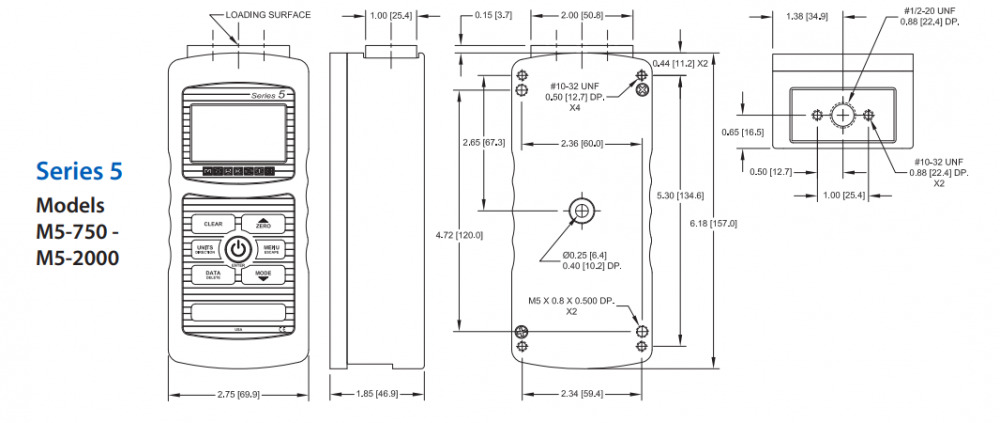

Force gauge dimensions M5-750–M5-2000 Series-5

Refer to the drawing for the Series-5 M5-750–M5-2000 dimensions. All dimensions are shown in inches [mm].

Force Gauge Comparison Chart

Data sheet Series-5 M5-012 - M5-500

Data Sheet Series-5 M5-750 - M5-2000

Quick start Series-5

Manual Series-5

Solid Models - M5-012 - M5-500

Solid Models - M5-750 - M5-2000

LabVIEW Serial Write / Read VI

C# Code Example

EC Declaration of Conformity-Gauges

UKCA Declaration of Conformity-Gauges

Series-5 digital force gauge
Extension rod
Cone
Chisel
V-groove attachment
Flat attachment
Hook — included with M5-012 through M5-1000; not included with M5-1500 or M5-2000
Coupling — included with M5-50 through M5-500 only
Thread adapter — included with M5-750 through M5-2000 only
Carrying case
USB cable
AC adapter with European plug
Rechargeable battery
NIST-traceable certificate of calibration with 10 data points in each direction (tension and compression)
MESUR Lite data acquisition software

Accuracy	±0.1% of full scale
Resolution	1/5000
Sampling Rate	7,000 Hz
Data Output Rate	Up to 500 Hz with firmware 2.3.0 or higher
Data Memory	1,000 readings with minimum, maximum, mean and standard deviation statistics
Measurement Units	lbF, ozF, gF, kgF, N, kN and mN, depending on model
Outputs	USB / RS-232: configurable up to 230,400 baud; automatic output up to 250 Hz; Gauge Control Language 2 Mitutoyo: serial BCD for compatible SPC devices Analog: ±1 VDC General purpose: 3 open drain outputs and 1 input Set points: 3 open drain lines, 40 VDC / 100 mA max.
Safe Overload	200% of full scale; display indicates OVER at 110% of full scale and above
Power	AC adapter or rechargeable battery; multi-step low-battery indication and automatic shut-off at critically low battery level
Battery Life	Backlight on: up to 7 hours Backlight off: up to 24 hours
Load Cell Thread	M5-012–M5-100: #10-32 UNF M5-200–M5-500: 5/16-18 UNC M5-750–M5-2000: 1/2-20 UNF
Environmental Requirements	4–40°C [40–100°F], maximum 96% RH, non-condensing
Conformance	CE, UKCA
Warranty	3 years

Products

Item	Product	Price
132538	M5-012 Digital Force Gauge - 0,5 N	€ 2.187,00
132539	M5-025 Digital Force Gauge - 1,0 N	€ 2.187,00
132540	M5-05 Digital Force Gauge - 2,5 N	€ 1.326,00
140859	M5-1 Digital Force Gauge - 5 N	€ 1.326,00
132541	M5-2 Digital Force Gauge - 10 N	€ 1.176,00
132542	M5-5 Digital Force Gauge - 25 N	€ 1.176,00
132520	M5-10 Digital Force Gauge - 50 N	€ 1.176,00
132543	M5-20 Digital Force Gauge - 100 N	€ 1.176,00
132544	M5-50 Digital Force Gauge - 250 N	€ 1.176,00
132545	M5-100 Digital Force Gauge - 500 N	€ 1.176,00
132521	M5-200 Digital Force Gauge - 1000 N	€ 1.326,00
136710	M5-300 Digital Force Gauge - 1500 N	€ 1.326,00
132546	M5-500 Digital Force Gauge - 2500 N	€ 1.326,00
136779	M5-750 Digital Force Gauge - 3750 N	€ 1.599,00
133311	M5-1000 Digital Force Gauge - 5000 N	€ 1.599,00
136689	M5-1500 Digital Force Gauge - 7500 N	€ 1.599,00
134811	M5-2000 Digital Force Gauge - 10.000 N	€ 1.599,00

Accessories

Item	Product	Price
132825	Cable, serial, Series 7/5/4 to RS-232 DB-9	€ 75,00
132876	Cable, USB, Series 7/5/4/3 to PC	€ 28,00
132826	Replacement battery, 8.4V NiMH	€ 19,00
131954	AC1030 AC adapter/charger, 110V US	€ 42,00
131955	AC1031 AC adapter/charger, 220V Europe	€ 42,00
132878	AC1032 AC adapter/charger, 220V UK	€ 42,00
132879	AC1035 AC adapter/charger, 220V Australia	€ 42,00
134333	AC1052 Mounting plate, Mark-10 gauges, 0.12 - 500 lbF capacities (0.5 to 2,500 N)	€ 56,00
131956	AC1002 Double Handle Grips for Force Gauges Series 4/5/7	€ 136,00
126886	AC1002-1 Handle grip for Series 7/5/4 gauges, single grip	€ 127,00
130819	15-1005 MESURgauge PLUS Load & Travel Analysis Software, 1 license	€ 668,00
136830	15-1005-5 MESURgauge Plus Load & Travel Analysis Software, 5 licenses	€ 2.643,00

All prices shown exclude VAT and shipping costs.
