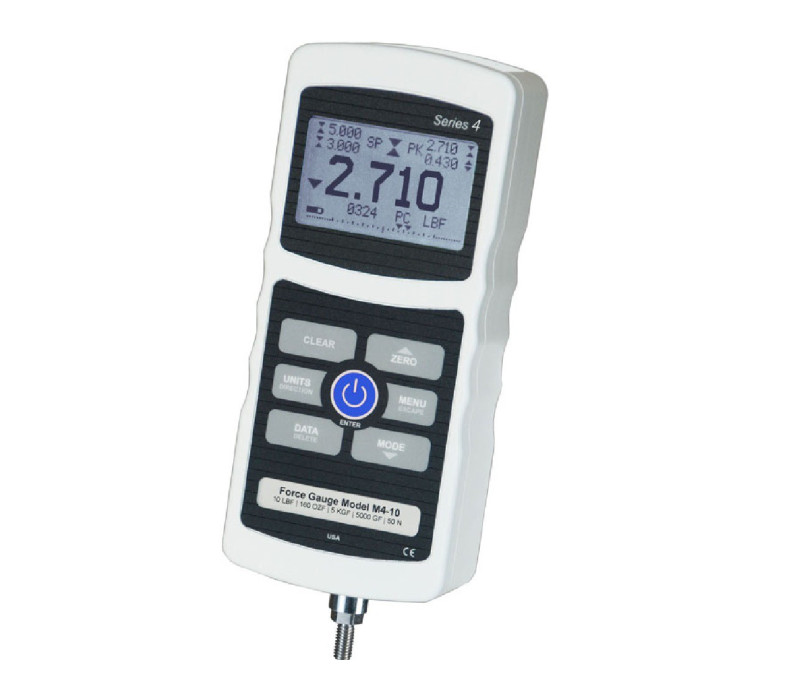

Series-4 Advanced Digital Force Gauges

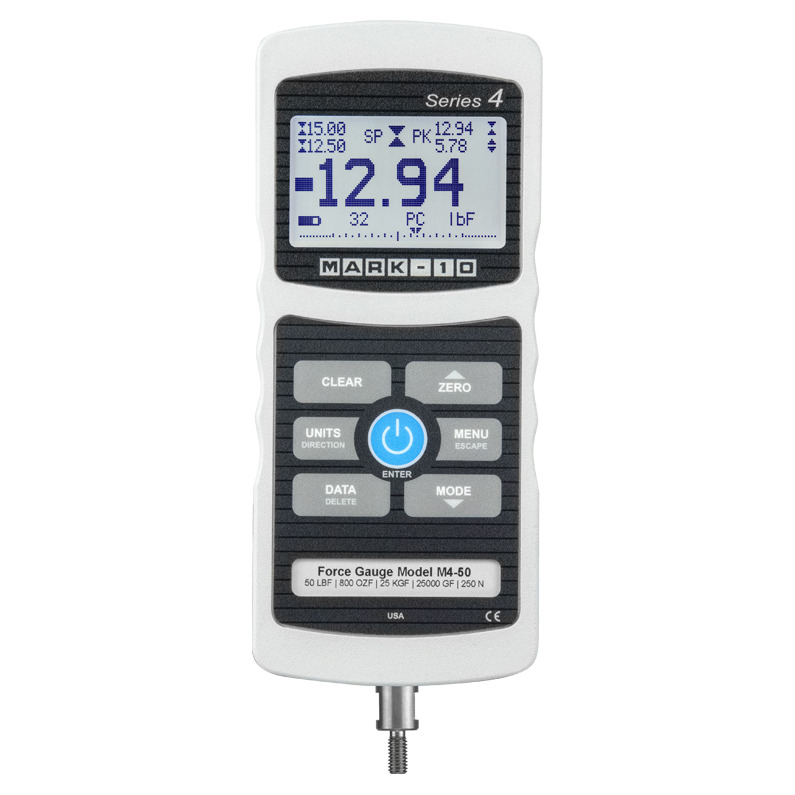

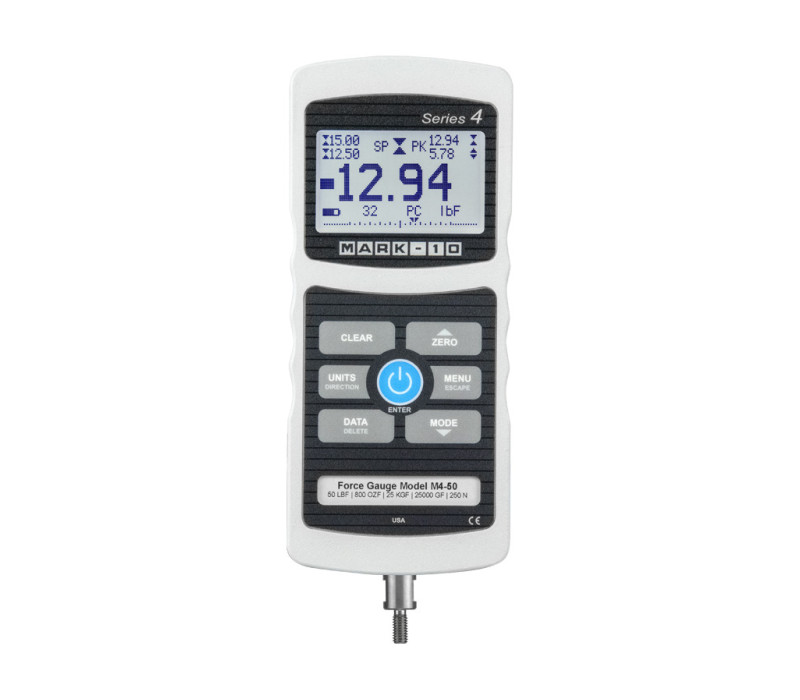

Front view of the Series-4 Digital Force Gauge with its strong aluminum housing and large backlit display

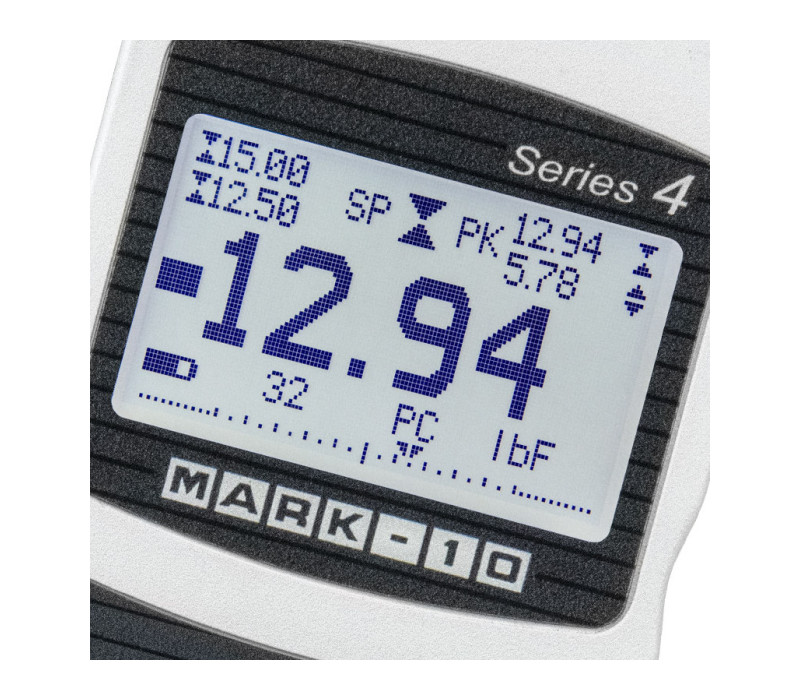

The backlit display features large, easily legible digits, peak readings, set point indicators, analog load bar graph, and more.

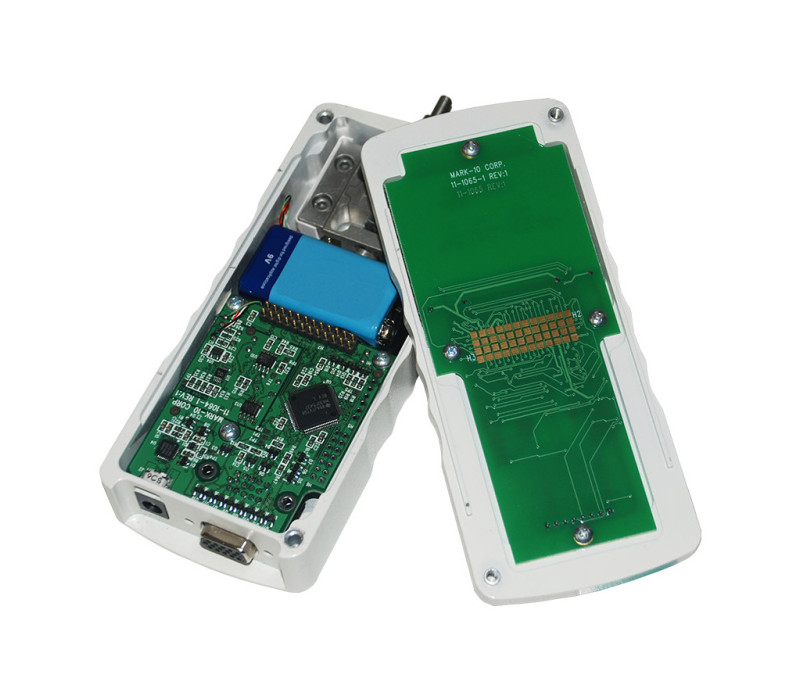

Mark-10 Force Gauges feature a unique reversible housing, allowing the gauge to be used with the load cell shaft oriented up or down, while the display and keys remain upright.

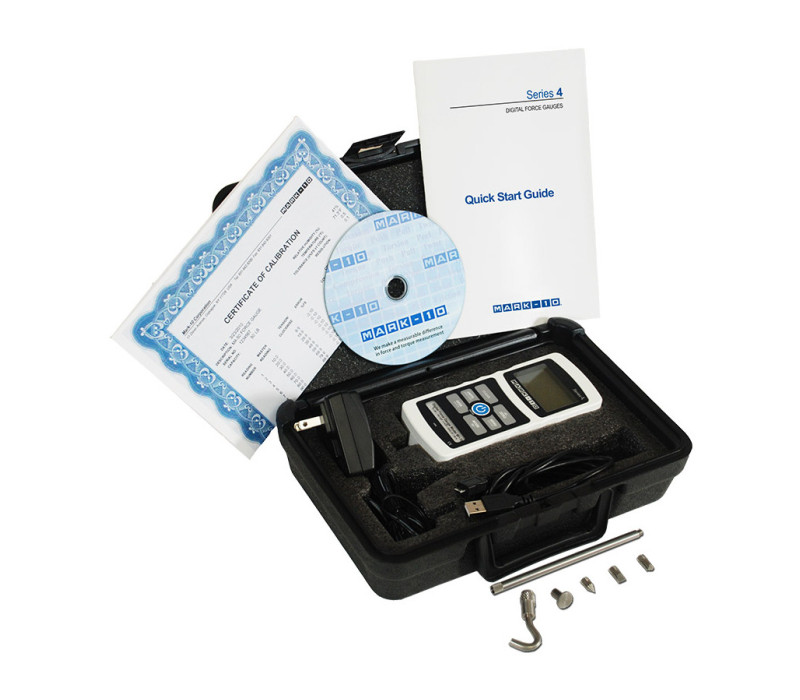

Series-4 Gauges include a carrying case, set of implements, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration with data.

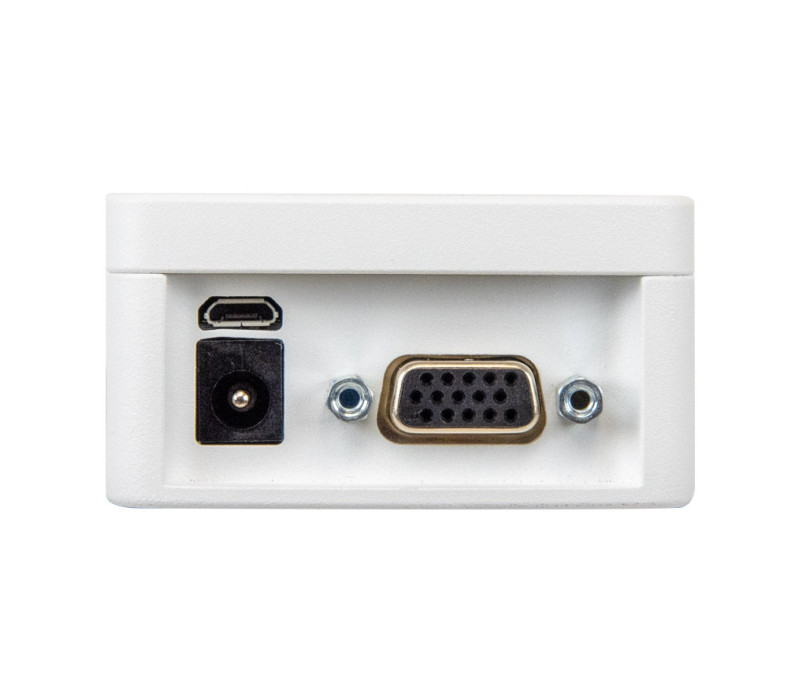

The various connectors are mounted recessed into the gauge housing for better protection.

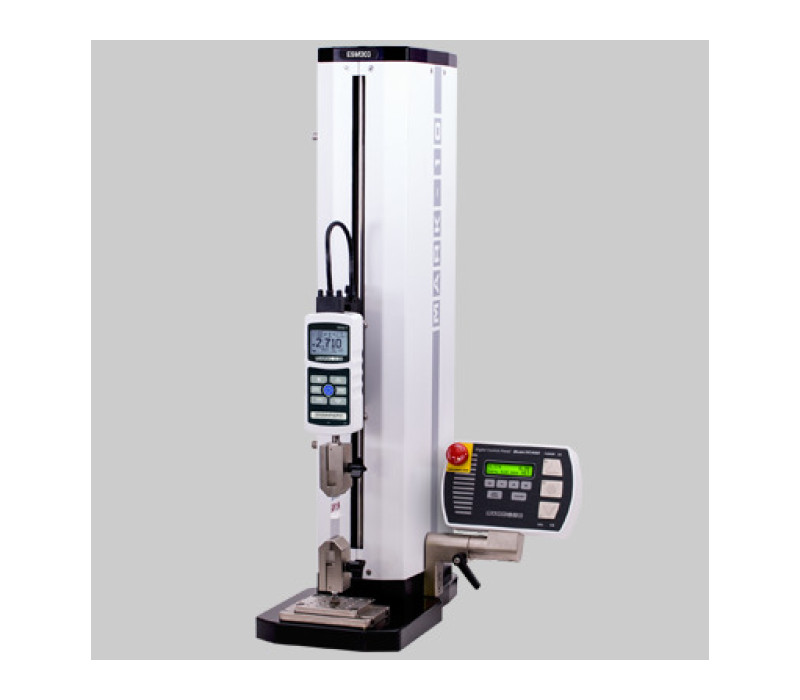

A Series-4 gauge is shown in a typical configuration mounted to a model ESM303 motorized test stand with pair of model G1061 wedge grips.

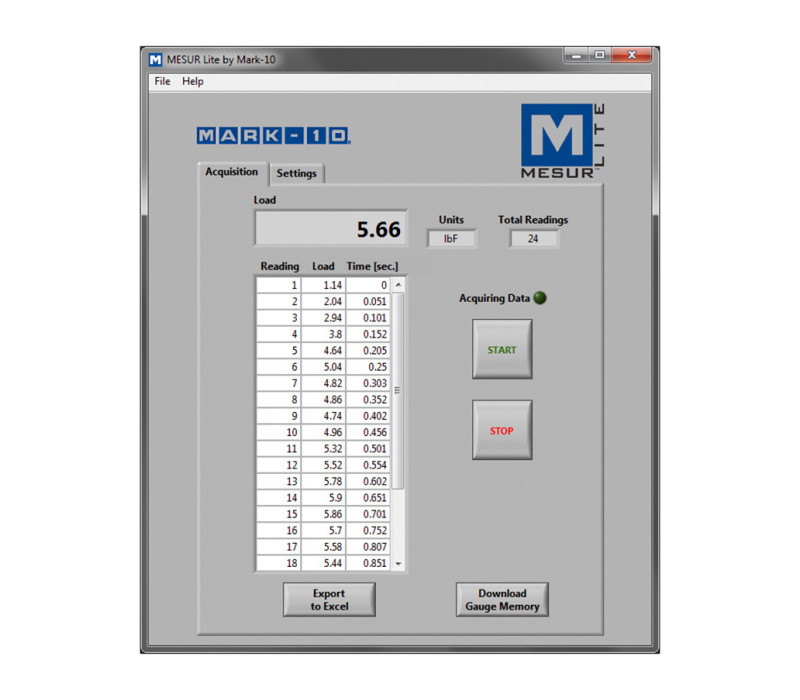

MESUR® Lite is a basic data collection program which tabulates data received from a Mark-10 Force or Torque Gauge and allows for exporting of data to Excel.

Series-4 Advanced Digital Force Gauges

Name: Series-4 Advanced Digital Force Gauges
SKU: 126801

The Advanced Series-4 Digital Force Gauges are positioned in the middle of the Mark-10 Digital Force Gauge range. With all the features of the Series-3 Force Gauges added with features from its higher positioned siblings Series-5 and Series-7, the Series-4 can be used for many applications across all industries.
Available in ranges from 0,5 to 2500 N each Series-4 Gauge supports data transfer to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.
It features a sampling rate of 3000 Hz with an accuracy of ±0,2% of full scale and can store up to 50 readings or continues data output through the included MESUR^® Lite data acquisition software.

The Digital Mark-10 Series Force Gauge range is available in a variation of 5 gauges with each gauge type available in a scale of force ranges.
Each type of gauge has its own specifications, the table below shows the main specifications of each gauge type.
All gauges types are equipped with a rechargeable battery, a back lit display and reversible aluminum housing.
The Series-# Digital Force Gauges are designed to be used for measuring tension and compression forces.
All gauges except for the series-2 come with MESUR^® Lite data acquisition software.

MESUR^® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Mark-10 Digital Force Gauges are versatile instruments, in general they are combined with additional equipment to a purposely build system to perform the required tasks.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.

Price from € 914,00

Order now

High-speed 3.000 Hz sampling rate
USB, RS-232, Mitutoyo, and analog outputs
Large backlit graphic display
50-point data memory with statistics (min, max, mean, standard deviation) and outputs
Live load bar graph with set point markers
Programmable set points, with alarms and outputs
Peak readings and set points always displayed
5 selectable units of measurement
Configurable audio alarms and key tones
Password protection, configurable for individual keys and calibration
Aluminum construction
Includes NIST Traceable Calibration Certificate

The Series-4 Force Gauge is supplied as a complete kit including:

Series-4 Force Gauge
carrying case

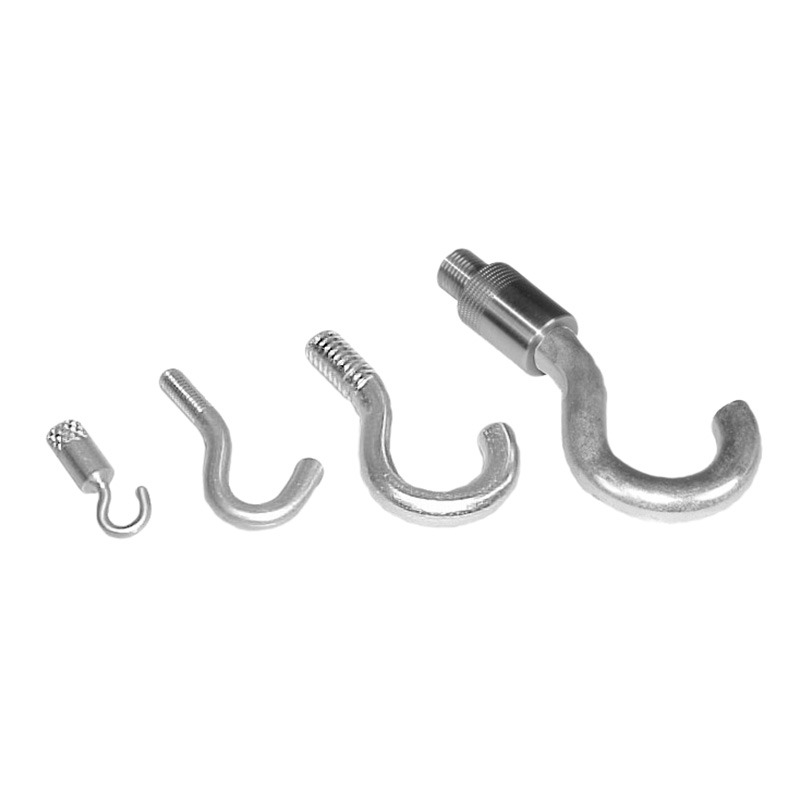

chisel, cone, V-groove, hook, flat,
extension rod
universal AC adapter
battery
quick-start guide
USB cable
NIST-traceable certificate of calibration with data
resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and user's guide)

Force Ranges, Capacity & Resolutions

Model	lbF	ozF	kgF	gF	N	kN	mN
M4-012	0,12 x 0,00005	2 x 0,001	-	50 x 0,02	0,5 x 0,0002	-	500 x 0,2
M4-025	0,25 x 0,0001	4 x 0,002	-	100 x 0,05	1 x 0,0005	-	1000 x 0,5
M4-05	0,5 x 0,0002	8 x 0,005	-	250 x 0,1	2,5 x 0,001	-	2500 x 1
M4-2	2 x 0,001	32 x 0,02	1 x 0,0005	1000 x 0,5	10 x 0,005	-	-
M4-5	5 x 0,002	80 x 0,05	2.5 x 0,001	2500 x 1	25 x 0,01	-	-
M4-10	10 x 0,005	160 x 0,1	5 x 0,002	5000 x 2	50 x 0,02	-	-
M4-20	20 x 0,01	320 x 0,2	10 x 0,005	10000 x 5	100 x 0,05	-	-
M4-50	50 x 0,02	800 x 0,5	25 x 0,01	25000 x 10	250 x 0,1	-	-
M4-100	100 x 0,05	1600 x 1	50 x 0,02	50000 x 20	500 x 0,2	-	-
M4-200	200 x 0,1	3200 x 2	100 x 0,05	-	1000 x 0,5	1 x 0,0005	-
M4-500	500 x 0,2	8000 x 5	250 x 0,1	-	2500 x 1	2.5 x 0,001	-

Load Cell Thread Specifications

Gauge	M4-012 – M4-100	M4-200 - M4-500
Load Cell Thread	#10-32 UNF	5/16-18 UNC

LCD Display

Display

Reversible Housing

Reversible housing

Included accessories

Accessory	M4-012 - M4-20	M4-50 - M4-100	M4-200 - M4-500
Extension Rod	G1024	G1024	G1031
Cone	G1026	G1026	G1033
Chisel	G1025	G1025	G1032
V-Groove	G1027	G1027	G1034
Flat	G1029	G1029	G1036
Hook	G1028	G1038	G1035
Coupling	-	G1039	G1037

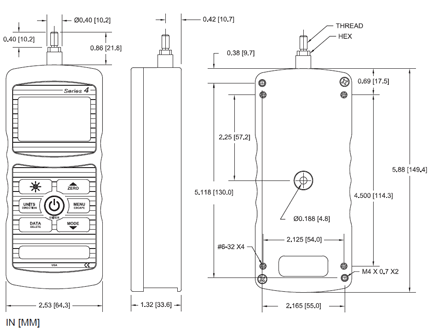

Series-4 Force Gauge models M4-012 tot M4-500 all have the same dimensions

All dimensions are noted in Inches with metric sizes in (mm) behind.

Force Gauge comparison table

	Series-7 Professional	Series-5 Advanced	Series-4 Performance	Series-3 Basic	Series-2 Economical
Accuracy	±0,1%	±0,1%	±0,2%	±0,3%	±0,5%
Sampling rate	14.000 Hz	7.000 Hz	3.000 Hz	2.000 Hz	500 Hz
Resolution	1/5.000	1/5.000	1/2.000	1/1.000	1/1.000
Units of measurement	lbF, ozF, gF, kgF, N, kN, mN (depending on model)	lbF, ozF, gF, kgF, N, kN, mN (depending on model)	lbF, ozF, gF, kgF, N, kN, mN (depending on model)	lbF, gF, kgF, N (depending on model)	lbF, kgF, N
Outputs	USB, RS-232, Mitutoyo, Analog	USB, RS-232, Mitutoyo, Analog	USB, RS-232, Mitutoyo, Analog	USB	No
- RS-232	Configurable up to 230.400 baud	Configurable up to 115.200 baud	Configurable up to 115.200 baud	No	N/A
- USB	Configurable up to 230.400 baud	Configurable up to 115.200 baud	Configurable up to 115.200 baud	Configurable up to 115.200 baud	N/A
- Mitutoyo (Digimatic)	Serial BCD suitable for all Mitutoyo SPC-compatible devices	Serial BCD suitable for all Mitutoyo SPC-compatible devices	Serial BCD suitable for all Mitutoyo SPC-compatible devices	No	N/A
- Analog	±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension	±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension	±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension	N/A	No
- General purpose I/O	Three open drain outputs, one input	Three open drain outputs, one input	Three open drain outputs, one input	N/A	No
- Set point	Three open drain lines	Three open drain lines	Three open drain lines	N/A	No
Mesur-Lite software included	Yes	Yes	Yes	Yes	No
Data output functionality	Automatic output or by pressing DATA button, or requesting from a PC or other device.	Automatic output or by pressing DATA button, or requesting from a PC or other device.	By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).	By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).	N/A
ASCII command set for external control	Full command set	Full command set	“?” only (request current reading)	“?” only (request current reading)	N/A
Interface w/MESUR® gauge and MESUR® Lite	Full communication	Full communication	Single point or continuous data output only	Single point or continuous data output only	N/A
Interface with ESM303 / 750 / 1500 test stands	Full communication, including PC control	Full communication, including PC control	Limited to force data, overload protection, and force set points	N/A	No
Data memory	5.000 readings, with output	1.000 readings, with output	50 readings, with output	No	No
Data memory deletion	Any individual data point, or clear all	Any individual data point, or clear all	Any individual data point, or clear all	N/A	N/A
Statistic calculations and output to PC	Max, min, mean, std. dev., number of readings, with output	Max, min, mean, std. dev., number of readings, with output	Max, min, mean, std. dev., number of readings, with output	N/A	N/A
Break detection	Yes	No	No	No	No
1st / 2nd peak detection	Yes	No	No	No	No
Programmable footswitch command string	Yes	No	No	No	No
Averaging mode	Yes	Yes	No	No	N/A
External trigger mode	Yes	Yes	No	No	No
Analog load bar graph shown on display	Yes	Yes	Yes	Yes	No
Set points (for pass / fail indication)	Yes with high / low indicators, markers on analog bar graph, and outputs	Yes with high / low indicators, markers on analog bar graph, and outputs	Yes with high / low indicators, markers on analog bar graph, and outputs	Yes with high / low indicators, markers on analog bar graph, and outputs	No
Password protection	Yes, for calibration and individual keys	Yes, for calibration and individual keys	No	No	No
Peak readings always displayed	Yes	Yes	Yes	Yes	No (Peak mode must be selected)
Programmable audible tones	Yes	Yes	Yes	Yes	No
Calibration procedure	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)
Overload outputs	Dedicated pins for tension and compression	Dedicated pins for tension and compression	Dedicated pins for tension and compression	No	N/A
Safe overloads	200% of full scale (display shows warning at 110% and above)	200% of full scale (display shows warning at 110% and above)	200% of full scale (display shows warning at 110% and above)	200% of full scale (display shows warning at 110% and above)	200% of full scale (display shows warning at 110% and above)

Force Gauge Comparison Chart

Series-4 Data Sheet

Series-4 Quick Start Guide

Series-4 User Manual

Series-4 Solid Models

LabVIEW Serial Write / Read VI

Series-4 C# Code Example

CE – Force and Torque Gauges, Indicators, and Testers

UKCA – Force and Torque Gauges, Indicators, and Testers

Accuracy	±0,2% of full scale ±1 digit
Sampling Rate	3.000 Hz
Power	AC or rechargeable battery (NiMH). Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage.
Battery Life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement Units	lbF,ozF,gF,kgF,N,kN,mN (depending on model)
Outputs	USB / RS-232: Fully configurable up to 115.200 baud. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatibile devices. Analog: ±1 VCD, ±0.25% of full scale at capactiy General Purpose: Three open drain outputs, one input Set Points: Three open drain lines
Configurable settings	Digital filters, outputs, automatic shutoff, default settings, key tones, audio alarms, calibration
Safe Overload	200% of full scale (display shows "OVER" at 110% and above)
Weight (gauge only)	M4-012 – M4-100: 0,5 kg [1 lb] M4-200 – M4-500: 0,5 kg [1.2 lb]
Shipping weight	M4-012 - M4-100: 1,4 kg [3.0 lb] M4-200 - M4-500: 1,5 kg [3.2 lb]
Included Accessories	Carrying case, chisel, cone, V-groove, hook, flat, extension rod, AC adapter, battery, USB cable with driver, MESURgauge DEMO software, NIST-traceable certificate of calibration with data
Warranty	3 years

Products

Item	Product	Price
132815	M4-012 Digital Force Gauge - 0,5 N	€ 1.818,00
132814	M4-025 Digital Force Gauge - 1,0 N	€ 1.818,00
132816	M4-05 Digital Force Gauge - 2,5 N	€ 1.097,00
132819	M4-2 Digital Force Gauge - 10 N	€ 914,00
132820	M4-5 Digital Force Gauge - 25 N	€ 914,00
132821	M4-10 Digital Force Gauge - 50 N	€ 914,00
132822	M4-20 Digital Force Gauge - 100 N	€ 914,00
132823	M4-50 Digital Force Gauge - 250 N	€ 914,00
132824	M4-100 Digital Force Gauge - 500 N	€ 914,00
132817	M4-200 Digital Force Gauge - 1000 N	€ 1.097,00
132818	M4-500 Digital Force Gauge - 2500 N	€ 1.097,00

Accessories

Item	Product	Price
132825	Cable, serial, Series 7/5/4 to RS-232 DB-9	€ 73,00
132876	Cable, USB, Series 7/5/4/3 to PC	€ 28,00
132826	Replacement battery, 8.4V NiMH	€ 18,00
131954	AC1030 AC adapter/charger, 110V US	€ 41,00
131955	AC1031 AC adapter/charger, 220V Europe	€ 41,00
132878	AC1032 AC adapter/charger, 220V UK	€ 41,00
132879	AC1035 AC adapter/charger, 220V Australia	€ 41,00
134333	AC1052 Mounting plate, Mark-10 gauges, 0.12 - 500 lbF capacities (0.5 to 2,500 N)	€ 55,00
131956	AC1002 Double Handle Grips for Force Gauges Series 4/5/7	€ 133,00
126886	AC1002-1 Handle grip for Series 7/5/4 gauges, single grip	€ 124,00
130819	15-1005 MESURgauge PLUS Load & Travel Analysis Software, 1 license	€ 652,00
136830	15-1005-5 MESURgauge Plus Load & Travel Analysis Software, 5 licenses	€ 2.580,00

All mentioned prices are excluding VAT & excluding shipment costs.
