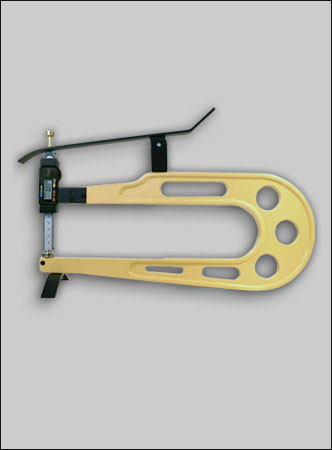

MDM-835 Digital Thickness Gauge | MDM-835


Made in GermanyThe MDM-835 digital thickness gauge measures the material thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, etc.

Due to its self-closing mechanism, the MDM-835 ensures highest accuracy. The resolution is 0.01 mm throughout the measurement range from 0 to 75 mm.


Features
  • Output (RS-232) for data collection
  • Lever for opening with self closing mechanism
  • Zero setting by button push
  • Spring force measurement
  • Selectable measurement units (mm or inch)
  • Calibration certificate included

Tension Ranges
ModelRanges Resolution Depth of Jaw
MDM-835 75 mm 0.01 mm350 mm

Feeler Shape
When ordering the MDM-835, please indicate your desired feeler, for example "MDM-835-B" for the gauge with feeler "B". Only your desired feeler shape is included.


Specifications
Resolution:0.01 mm
Measuring range:75 mm
Depth of jaw:350 mm
Measuring pressure:2 N
Measuring principle:Self closing
Feeler shapeA/B/C/D/E
Display:LCD 7 mm high
Measuring system:Sylvac
Weight, net (gross):1250 g (1300 g)
