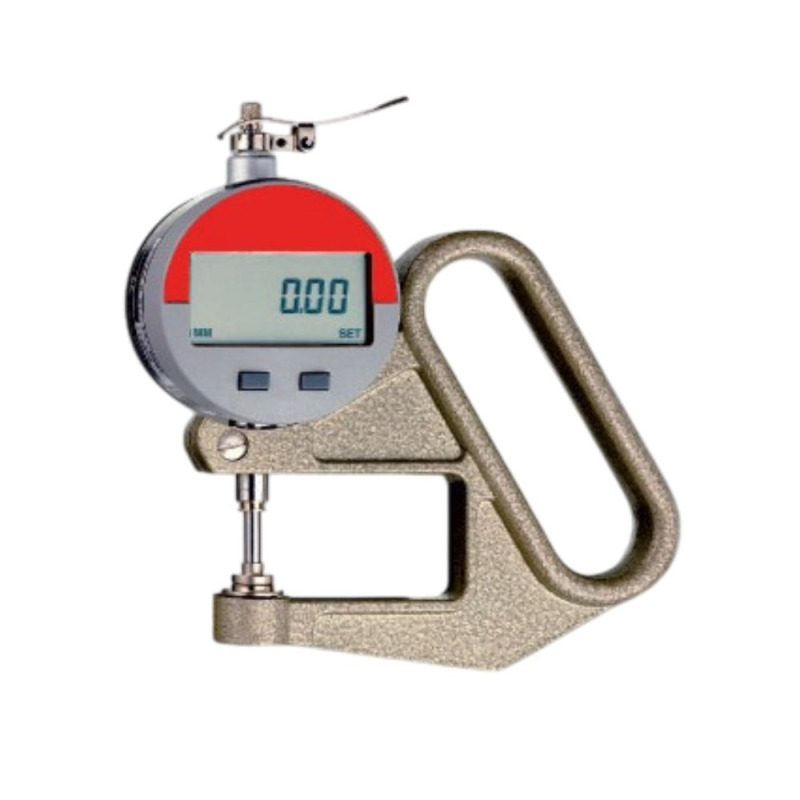

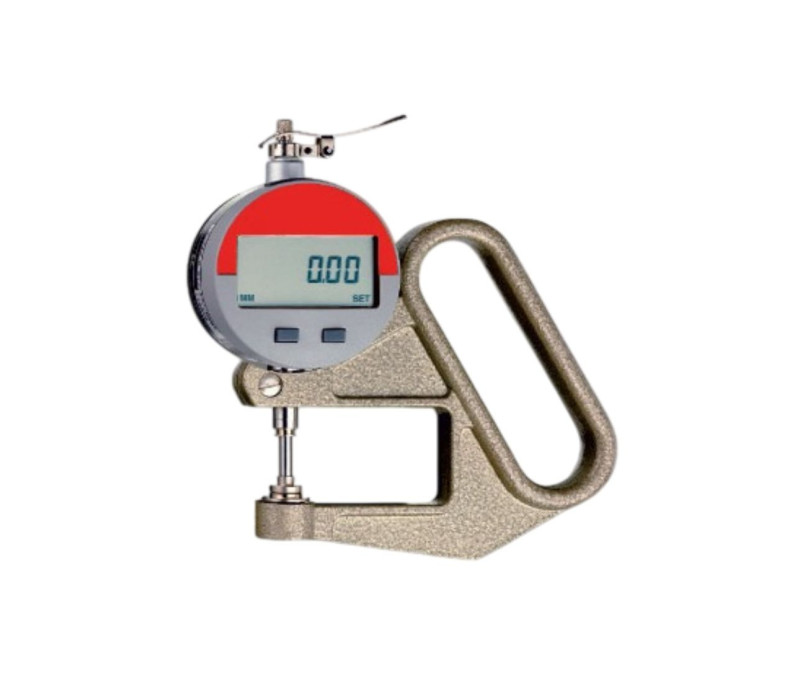

JD-50 JD-50 Digital Thickness Gauge

JD-50 Digital Thickness Gauge

The JD-50 digital thickness gauge combines high-precision measurement with a large, easy-to-read LCD display, making it ideal for measuring leather, textiles, foils, cardboard, felt, rubber, plastic, and more. Its lightweight aluminium frame and self-closing mechanism ensure both portability and stability during use.

The JD-50 allows users to toggle between metric and imperial units, and is available with five different feeler types to suit various applications. Measurement is performed by spring force and operated via a lifting lever.

Key Features:

Lever-operated opening with self-closing mechanism: Ensures convenient handling and secure positioning.
High-resolution accuracy: 0.01 mm (0.001 inch) for demanding applications.
Clear LCD display: Easy reading of measurements, even in low light environments.
User-selectable units: mm or inches to match your workflow.
RS232 data output: For digital data collection (optional cable required).
Dial gauge model: Sylvac S 229 integrated for reliability.

Main Benefits:

Lightweight and ergonomic: Ideal for handheld use in the lab or on the shop floor.
Adaptable: Compatible with five interchangeable feelers for versatile applications.
Data-ready: Enables direct output of measurements for analysis and traceability.

Contact us for more information about the JD-50 or to request personalised assistance.

€ 624,00

Order now

Jaw depth: 50 mm.
Measuring range: up to 12.5 mm.

Feeler Types

To place your order, please indicate the desired feeler, for example: JD-50-B for a gauge with feeler B. This means that NOT all feelers are included in the package!

	Feeler: A For rubber, felt, soft materials, non-wovens, etc. Does not meet any DIN EN ISO standards. Custom type A feelers with diameters from 30 to 56 mm available on request at additional cost.
	Feeler: B For rubber, felt, soft materials, non-wovens, etc. Does not meet any DIN EN ISO standards.
	Feeler: C For soft leather, cardboard, paper, films, etc.
	Feeler: D For hard leather, plywood, fibre boards, etc.
	Feeler: E For sheet metal, etc.

Available Accessory: Table Stand for Thickness Gauges

	This table stand allows handheld thickness gauges to be converted into bench top units, improving stability and ease of use.
	Dimensions in mm

Resolution:	0.01 mm / 0.001 inch
Measuring range:	0 - 12,5 mm / 0.5 inch
Depth of jaw:	50 mm
Display:	LCD 6 digit, 8.5 mm high
Measuring principle:	Capacitive (Sylvac)
Measuring pressure:	< 1.4 N
Feeler shape:	a,b,c,d or e
Lifting device:	Operating by lifting device - self closing
Data output:	RS 232, optical coupling
Power supply:	Battery, 3 V Lithium, CR 2032
Temperature range:	10 - 45°C
Weight, net:	300 g

Products

Item	Product	Price
133422	JD-50-A Thickness Gauge	€ 624,00
126025	JD-50-B Thickness Gauge	€ 624,00
126026	JD-50-C Thickness Gauge	€ 624,00
130460	JD-50-D Thickness Gauge	€ 624,00
133008	JD-50-E Thickness Gauge	€ 624,00

Accessories

Item	Product	Price
134582	DCPRMD-USB Cable For Dial Thickness Gauge to USB	€ 169,00
126360	FD J-CC Footpedal	€ 452,00
126836	Table Stand for Thickness Gauge	€ 85,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
