Digital Thickness Gauges

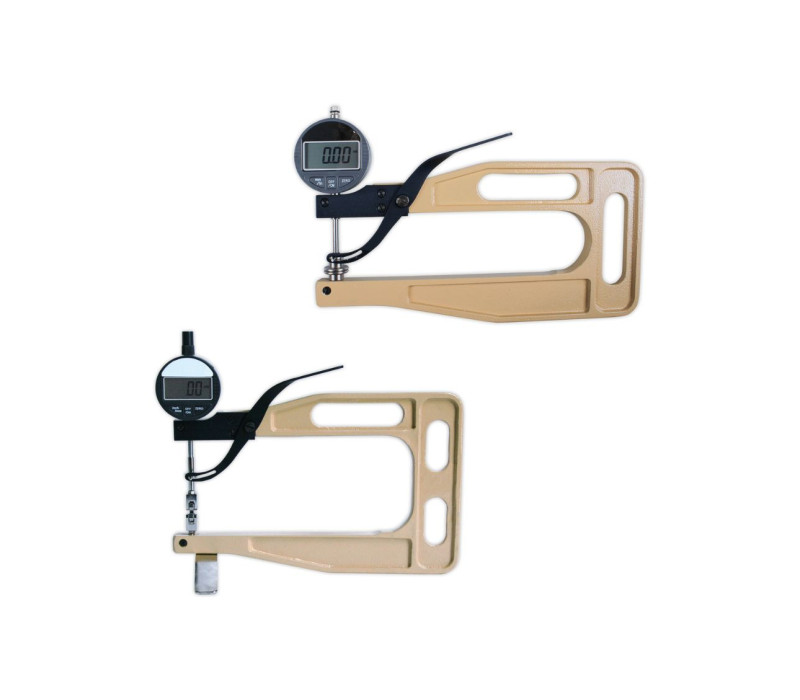

Explore the DTG-200 digital thickness gauges, designed to accurately measure the thickness of a variety of materials such as leather, textiles, cardboard, felt, rubber, sheet metal, plywood, and plastic. These devices offer precise measurement ranges with a resolution of 0.01 mm. Two models available:

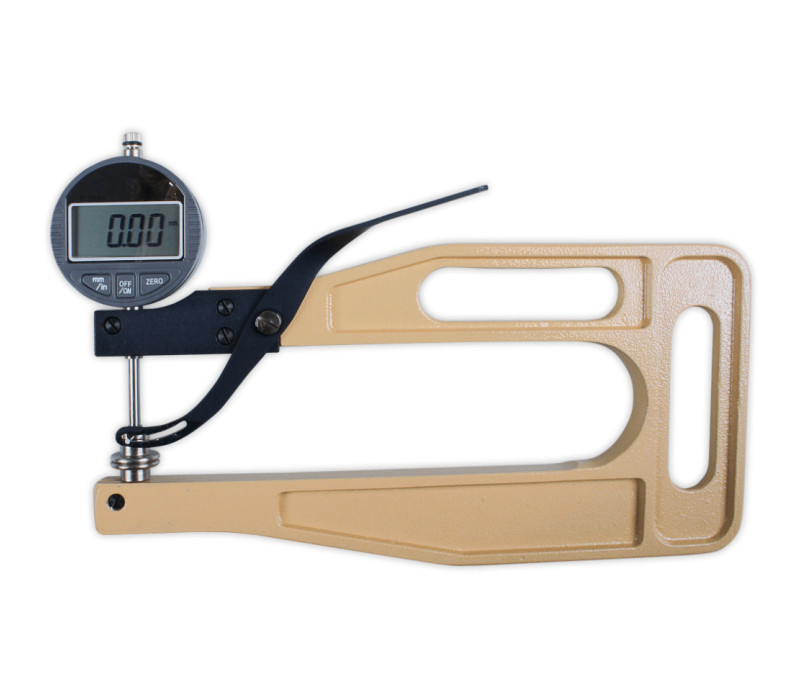

- DTG-200-10: Measurement range of 0 to 10 mm, suitable for most standard applications.

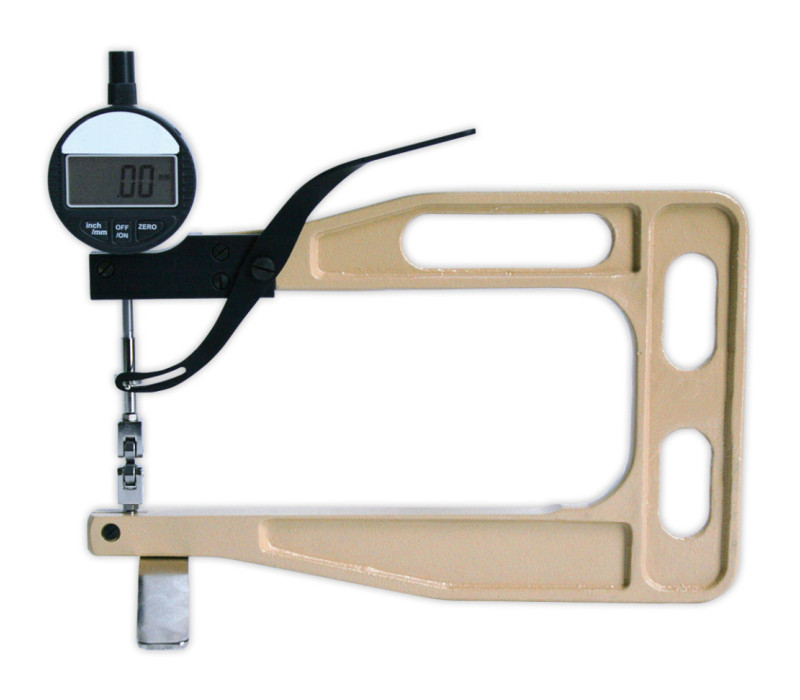

- DTG-200-25: Extended measurement range of 0 to 25 mm, ideal for thicker materials.

Key Features:

Self-Closing Mechanism: Ensures maximum accuracy and resolution across the entire measurement range.
RS 232 Output: Allows for efficient digital data transfer, easily integrating with other digital systems.
LCD Display: Shows user-selectable measurement units, in millimetres or inches, providing flexibility and convenience.
Zero Setting Button: Enables quick and easy calibration before each use to ensure measurement accuracy.

Key Benefits:

Application Versatility: Suitable for measuring a wide variety of materials, making these gauges an essential tool in many industrial sectors.
Durability and Reliability: Constructed with high-quality materials that ensure durability and reliability in demanding industrial conditions.
Ease of Use: Designed to be intuitive and easy to handle, allowing users to perform quick and accurate measurements.

Contact us for more information on how the DTG-200 thickness gauges can enhance your measuring processes with precision and efficiency.

Price from € 350,00

Order now

Calibration Certificate Included: Each gauge comes with a calibration certificate, ensuring that measurements comply with precision standards from the first use.
Compatible Accessories: Availability of various feelers to suit different types of materials and applications, further enhancing the functionality of the gauge.

Available models

Model	Range	Resolution	Depth of Jaw
DTG-50-10	0 - 10 mm	0.01 mm	50 mm
DTG-50-25	0 - 25 mm	0.01 mm	50 mm
DTG-200-10	0 - 10 mm	0.01 mm	200 mm
DTG-200-25	0 - 25 mm	0.01 mm	200 mm
DTG-300-10	0 - 10 mm	0.01 mm	300 mm
DTG-300-25	0 - 25 mm	0.01 mm	300 mm
DTG-500-10	0 - 10 mm	0.01 mm	500 mm
DTG-500-25	0 - 25 mm	0.01 mm	500 mm

Feeler Types

To place the order, please specify the desired feeler, for example: DTG-200-10-B for a gauge with feeler B. This means that NOT all feelers are included in the package!

	Feeler: A For hard leather, glass, metal sheets.
	Feeler: B For wood, rubber, soft leather, foil, etc.
	Feeler: C For soft rubber, felt, fleece.
	Feeler: D For rubber rings, round materials.
	Feeler: E For paper, cardboard, chipboard and fiberboard, and plywood.
	Feeler: F For metal sheets, glass, round materials.
	Feeler: G For very rigid materials.
	Feeler: H For foams and insulating materials.
	Feeler: I For very soft foams and insulating materials.
	Feeler: M For rubber sheets, felt, soft materials.

Resolution:	0.01 mm
Measuring range:	DTG-200-10: 0-10 mm DTG-200-25: 0-25 mm
Depth of jaw:	200 mm
Measuring pressure:	2 N
Measuring principle:	Self closing
Feeler shape:	A/B/C/D/E/F/G/H/I/M
Display:	LCD 4 digit, 8 mm high
Measuring system:	Sylvac
Weight, net (gross):	700 g (750 g)

Products

Item	Product	Price
138095	DTG-200-10-A - Thickness gauge with feeler A	€ 360,00
134435	DTG-200-10-B Thickness gauge with feeler B (diameter feeler 10 mm)	€ 350,00
135639	DTG-200-10-C Thickness gauge with feeler C (diameter feeler 25 mm)	€ 350,00
137292	DTG-200-10-D Thickness gauge with feeler D (diameter feeler 5 mm)	€ 350,00
134445	DTG-200-10-E Thickness gauge with feeler E (diameter feeler 16 mm)	€ 350,00
137863	DTG-200-10-F Thickness gauge with feeler F (diameter feeler 3.5 mm)	€ 350,00
140081	DTG-200-10-H Thickness gauge with feeler H (diameter feeler 30 mm)	€ 360,00
138004	DTG-200-10-I Thickness gauge with feeler I (diameter feeler 50 mm)	€ 375,00
137978	DTG-200-25-A Digital Thickness gauge with feeler A (feeler 6.0 mm)	€ 394,00
136703	DTG-200-25-B Digital Thickness gauge with feeler B (Ø 10mm)	€ 385,00
136593	DTG-200-25-C Digital Thickness gauge with feeler C (diameter feeler 25 mm)	€ 385,00
137979	DTG-200-25-D Digital Thickness gauge with feeler D ( Ø 5mm)	€ 385,00
137980	DTG-200-25-E Digital Thickness gauge with feeler E ( Ø 16mm)	€ 385,00
137981	DTG-200-25-F Digital Thickness gauge with feeler F ( Ø 3,5mm)	€ 385,00
135172	DTG-200-25-G Digital Thickness gauge with feeler G (feeler 1.5 mm)	€ 385,00
136796	DTG-200-25-H Digital Thickness Gauge with feeler H (diameter feeler 30 mm)	€ 394,00
134621	DTG-200-25-I Digital Thickness gauge with feeler I (diameter feeler 50 mm)	€ 410,00
137977	DTG-200-25-M Digital Thickness Gauge with feeler M ( Ø 20mm)	€ 385,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
