JD-100 Digital Thickness Gauge

Name: JD-100 Digital Thickness Gauge
SKU: 127637

Digital thickness gauge with 100 mm jaw depth and five measuring contact options

The JD-100 digital thickness gauge measures material thickness over a range of 0–10 mm with 0.01 mm resolution. Its 100 mm jaw depth allows measurements further from the edge of sheet materials such as leather, textiles, paper, cardboard, rubber, felt, plastics, films and sheet metal.

The gauge features a large LCD display, selectable millimetre and inch readings, and a lever-operated lifting mechanism for positioning the material between the measuring contacts. Standard measuring force is 0.8 N, with a reduced force of 0.6 N available. An RS-232 data connection supports digital measurement transfer using an optional compatible cable.

Five versions are available, JD-100-A to JD-100-E, each fitted with a measuring contact type suited to different materials. Select the appropriate version for your application; the five contact types are not supplied together.

Request price >>

100 mm jaw depth for measurements further from the material edge
0–10 mm measuring range with 0.01 mm resolution
Lever-operated lifting mechanism for convenient material positioning
Large LCD display with selectable millimetre and inch readings
Standard 0.8 N or reduced 0.6 N measuring force
Five measuring contact configurations for different materials
RS-232 data connection with optional compatible RS-232 or USB cables

Feeler Types

The JD-100 is available with five measuring contact types for different materials. Order the gauge with the contact type required for your application, for example JD-100-B for type B. Each gauge is supplied with the selected contact type only, not a complete set of five.

Feeler Type	Typical Materials	Order Code
A	Rubber, felt, soft materials and non-wovens	JD-100-A
B	Rubber, felt, soft materials and non-wovens	JD-100-B
C	Soft leather, cardboard, paper and films	JD-100-C
D	Hard leather, plywood and fibreboard	JD-100-D
E	Sheet metal and other hard sheet materials	JD-100-E

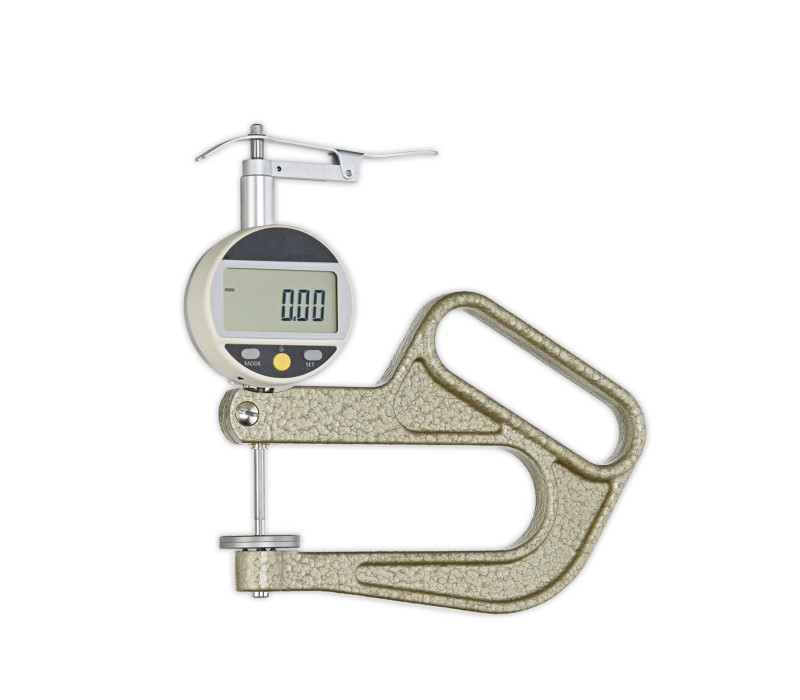

JD-100 digital thickness gauge with integrated RS-232 data connection
Measuring contacts of the selected type (A, B, C, D or E)

Measuring Range	0–10 mm
Resolution	0.01 mm
Error Limit	20 µm + 1 digit
Jaw Depth	100 mm
Measuring Force	Standard: 0.8 N Reduced: 0.6 N
Display	LCD, 8.5 mm digit height
Measuring System	Capacitive
Data Connection	RS-232; compatible with optional DCMD 232 and DCMD USB cables
Power Supply	3 V lithium button cell
Operating Temperature	+10 °C to +40 °C
Weight	450 g (including battery)
