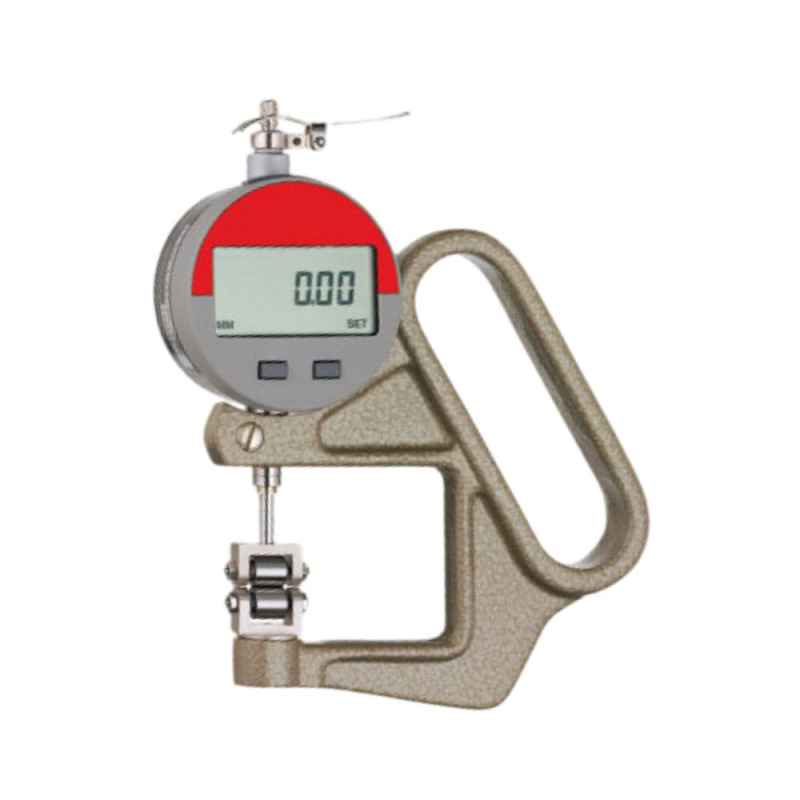

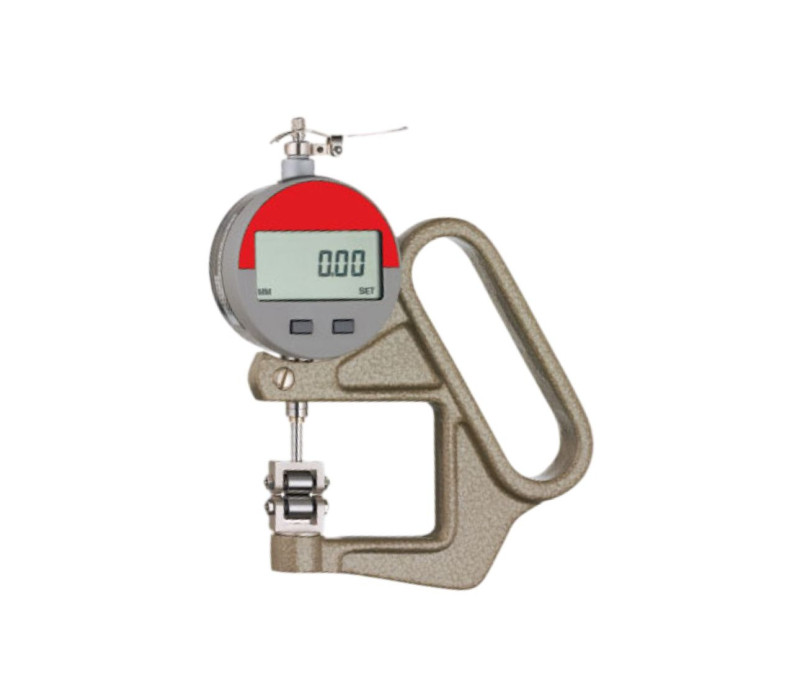

JD-50-R Digital Thickness Gauge


Made in GermanyThe JD-50-R is a digital thickness gauge specifically designed for measuring moving materials such as wires, tapes, foils, narrow fabrics, and more. It features precision steel rollers mounted on ball bearings, allowing accurate measurements without stopping the production line, at speeds of up to 150 m/min.

With its high-visibility LCD display and a resolution of 0.01 mm (0.001"), this model ensures precise and clear readings. The lever-operated opening mechanism with automatic closing and its robust aluminium frame make it easy to handle, stable, and durable.

Key Features:

  • Precision rollers: 8.7 mm wide and 8.4 mm diameter, grounded to ensure stable readings.
  • Measurement on moving material: Up to 150 m/min without halting production.
  • Easy-to-read LCD display: Clear visualisation in mm or inches, depending on user preference.
  • High resolution: 0.01 mm / 0.001 inch for maximum precision.
  • Lever-operated function: Lifting mechanism with automatic closing ensures stable operation.
  • RS232 data output: For digital data collection (optional cable required).
  • Digital comparator: Equipped with high-reliability Sylvac S 229 unit.



Main Benefits:

  • Production line efficiency: Enables measurements on moving materials without stopping the process.
  • Consistent precision: Maintains high accuracy even in dynamic working conditions.
  • Adaptability: Lower roller available with or without flanges to accommodate different material widths.



Contact us for more information or to request a personalised quote.


Features

  • Jaw depth: 50 mm.
  • Measuring range: Up to 12.5 mm.
  • Usage note: Not suitable for continuous (inline) diameter inspection.

Available Models
Model Resolution Roller Style

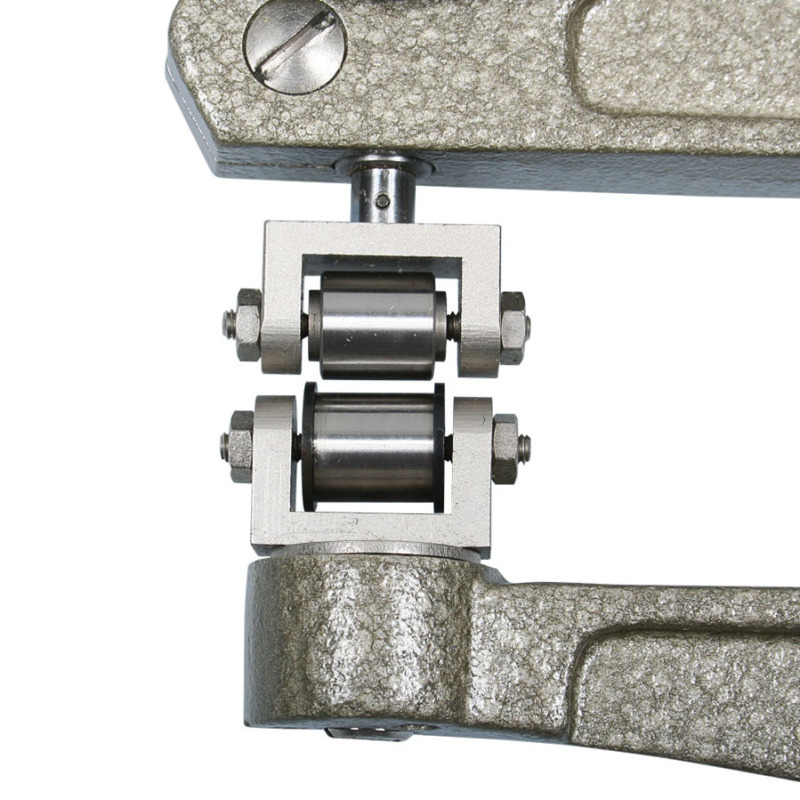

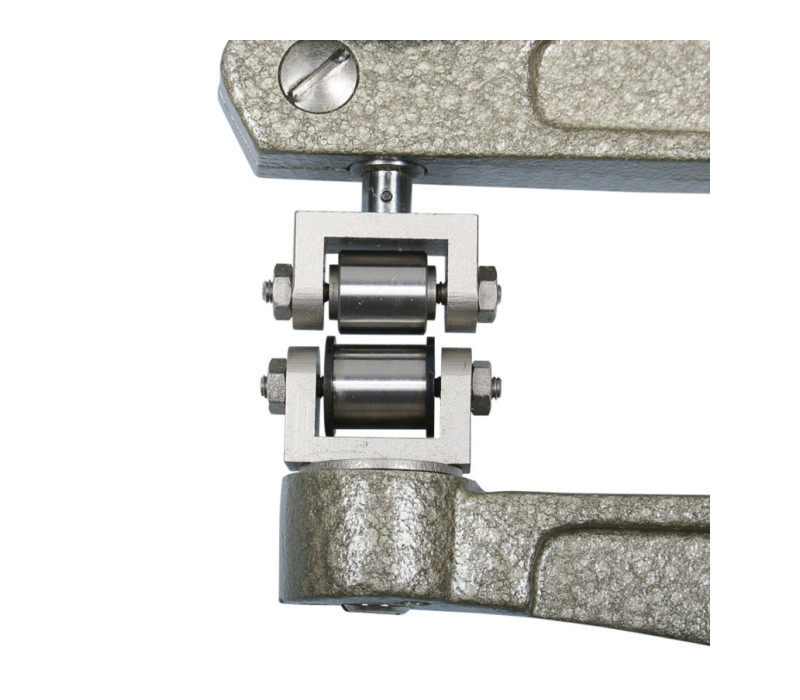

JD-50-R 0.01 mm Lower roller with flanges With flanges

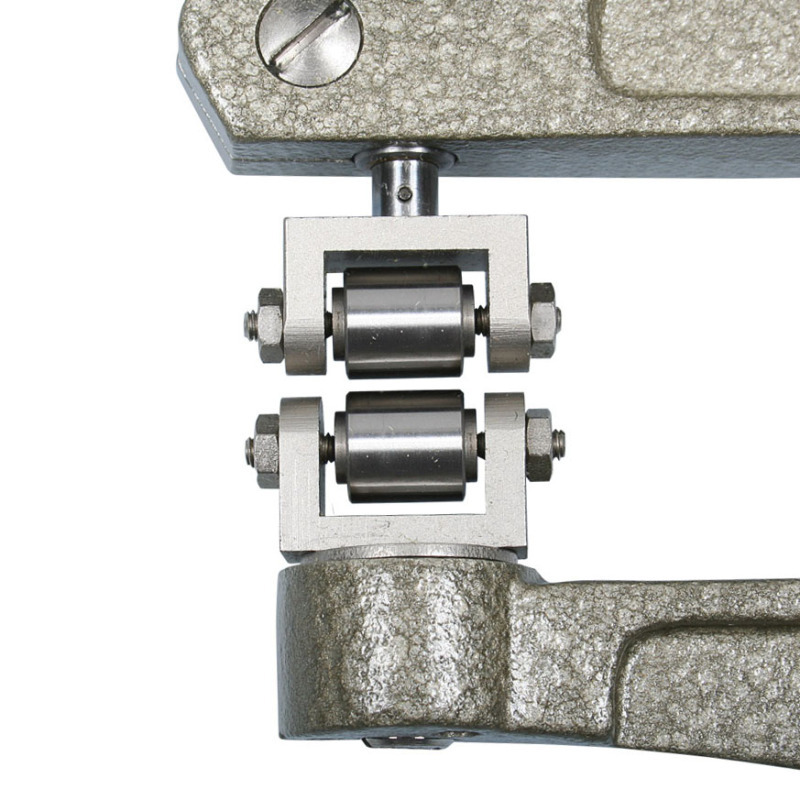

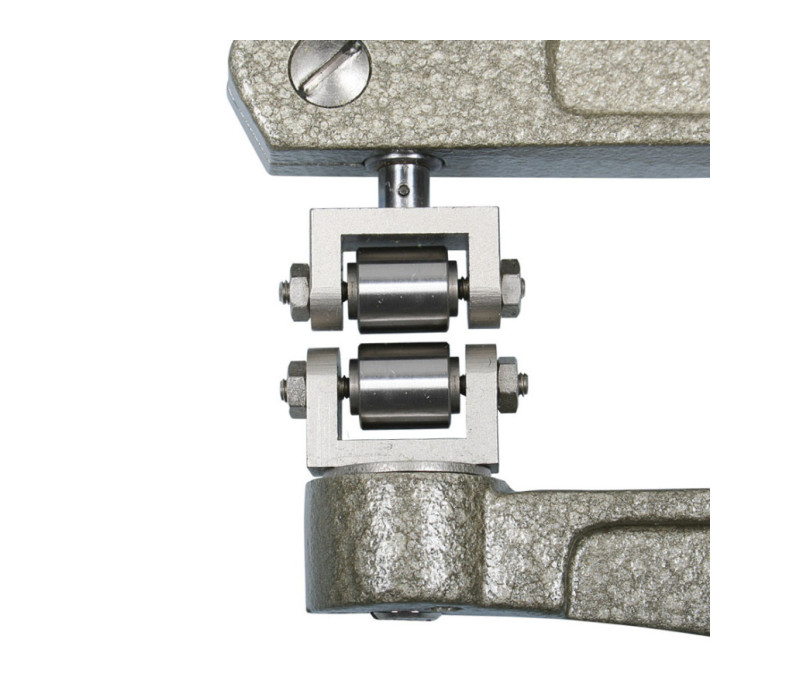

JD-50-RO* 0.01 mm Lower roller without flanges Without flanges

* The JD-50-R model is equipped as standard with a lower roller featuring side flanges, ensuring precise guidance of materials up to 8.7 mm wide during thickness measurement. For wider materials, the version without flanges is available under code JD-50-RO.

*Note:
A 100 mm jaw depth version, model JD-100-R, is also available upon request.


Available Accessory: Table Stand for Thickness Gauges
Table stand

This desktop stand allows handheld thickness gauges to be converted into benchtop units, improving stability and ease of use.

table stand dimensions

Dimensions in mm


Downloads

Specifications

Resolution:0.01 mm / 0.001 inch
Measuring range:0 - 12.5 mm / 0 - 0.5 inch
Depth of jaw:50 mm
Display:LCD 6 digit, 8.5 mm high
Measuring principle:Capacitive (Sylvac)
Measuring pressure:< 1.4 N
Measurement by spring load:Operating by lifting device - self closing
Data output:RS 232, optical coupling
Power supply:Battery 3 V Lithium, CR 2032
Temperature range:10 - 45°C
Weight, net:300 g

Buy Now

Products

Product
Price
Quantity
131969
JD-50-R Thickness Gauge
€ 768,00
126030
JD-50-RO Thickness Gauge with Rollers - no flanges
€ 768,00

Accessories

Product
Price
Quantity
134582
DCPRMD-USB Cable For Dial Thickness Gauge to USB
€ 164,00
126360
FD J-CC Footpedal
€ 424,00
126836
Table Stand for Thickness Gauge
€ 81,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
