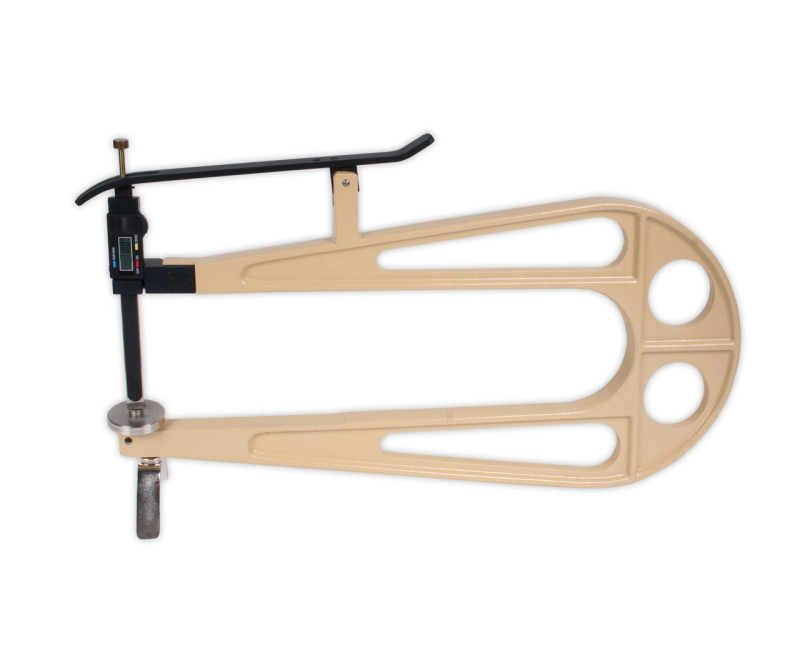

    BDTG-400-100 Digital Thickness Gauge

    The BDTG-400-100 digital thickness gauge is designed for applications requiring an extended measuring range and consistent accuracy across thicker materials. Suitable for leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood and plastics, it maintains a stable 0.01 mm resolution throughout the full 0–100 mm measuring span. Its self-closing mechanism ensures uniform pressure and repeatable results, even on sensitive or flexible samples.

    Key Features:

    • RS-232 Output: Enables efficient data transfer to PCs, printers or QC software.
    • Spring-Force Measurement: Provides consistent measuring pressure for reliable results.
    • Zero Setting Button: Quick calibration before each measurement sequence.
    • Selectable Units: Measurement in millimetres or inches.
    Key Benefits:

    • Large Measuring Capacity: Extended 0–100 mm range for applications involving thicker or multilayer materials.
    • Stable, Repeatable Results: Self-closing mechanism guarantees uniform force on every measurement.
    • Robust Construction: Designed for continuous use in laboratory, production and incoming-inspection environments.
    • Easy Operation: Lever-assisted opening simplifies handling during repetitive testing.


    Contact us for assistance selecting the right configuration or to request a quotation.
    Price from € 528,00
    Order now
    • Lever-Operated Opening: Easy sample handling with automatic closing for consistent pressure.
    • Calibration Certificate Included: The gauge is delivered verified and ready for use.
    Available Models

    Available Models

    ModelRangeResolutionJaw Depth
    BDTG-200-500 - 50 mm0.01 mm200 mm
    BDTG-300-500 - 50 mm0.01 mm300 mm
    BDTG-350-750 - 75 mm0.01 mm350 mm
    BDTG-400-1000 - 100 mm0.01 mm400 mm
    Feeler Types

    To place the order, please specify the desired feeler, for example: BDTG-400-100-B for a gauge with feeler B. This means that NOT all feelers are included in the package!

    Feeler RMU A

    Feeler: A

    For hard leather, glass, metal sheets.
    Feeler RMU B

    Feeler: B

    For wood, rubber, soft leather, foil, etc.
    Feeler RMU C

    Feeler: C

    For soft rubber, felt, fleece.
    Feeler RMU D

    Feeler: D

    For rubber rings, round materials.
    Feeler RMU E

    Feeler: E

    For paper, cardboard, chipboard and fiberboard, and plywood.
    Feeler RMU F

    Feeler: F

    For metal sheets, glass, round materials.
    Feeler RMU G

    Feeler: G

    For very rigid materials.
    Feeler RMU H

    Feeler: H

    For foams and insulating materials.
    Feeler RMU I

    Feeler: I

    For very soft foams and insulating materials.
    Feeler RMU M

    Feeler: M

    For rubber sheets, felt, soft materials.
    Resolution:0.01 mm
    Measuring range:100 mm
    Jaw depth:400 mm
    Measuring pressure:2 N
    Measuring principle:Self closing
    Feeler shape:A/B/C/D/E/F/G/H/I/M
    Display:LCD 7 mm high
    Measuring system:Sylvac
    Weight, net (gross):1400 g (1450 g)

    Order Now

    Products
    Item Product Price  Quantity Action
    138245BDTG-400-100-A Thickness Gauge Range 100mm - 400mm depth (feeler A - R6 mm) € 538,00
    139975BDTG-400-100-D Thickness Gauge Range 100mm - 400mm depth (feeler D - 5 mm) € 528,00
    135181BDTG-400-100-E Thickness Gauge Range 100mm - 400mm depth (feeler E - 16 mm) € 528,00
    135150BDTG-400-100-G Thickness Gauge Range 100mm - 400mm depth (feeler G - 1.5 mm) € 528,00
    134674BDTG-400-100-H Thickness Gauge Range 100mm - 400mm depth (feeler H - 30 mm) € 538,00
    134802BDTG-400-100-I Thickness Gauge Range 100mm - 400mm depth (feeler I - 50 mm) € 553,00
    134293BDTG-400-100-M Thickness Gauge Range 100mm - 400mm depth (diameter feeler) € 528,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
