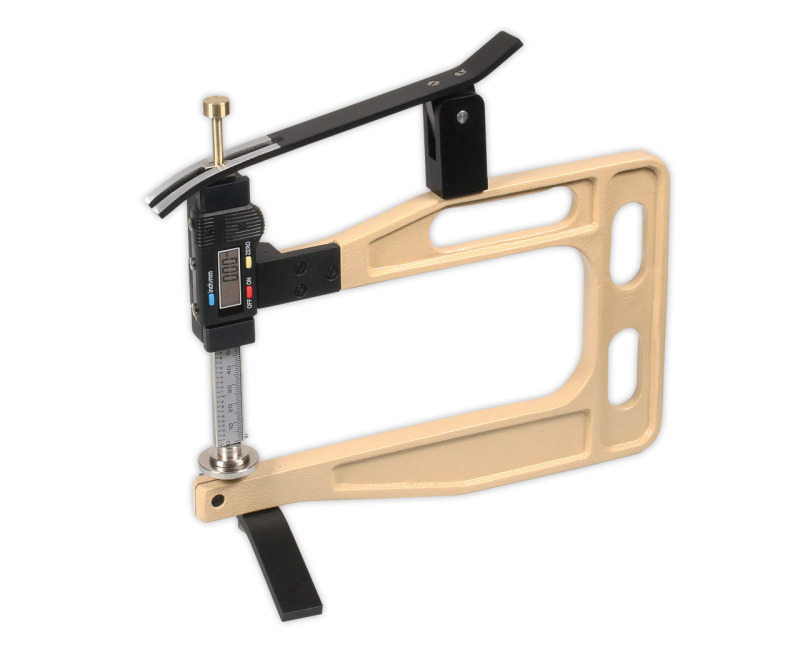

BDTG-200-50 Digital Thickness Gauge
The BDTG-200-50 digital thickness gauge is designed for precise thickness measurement of flexible and semi-rigid materials such as leather, textiles, cardboard, rubber, plastics, foil and thin sheet materials. It delivers consistent and repeatable results across the full 0–50 mm measuring range with a resolution of 0.01 mm.
This model features a 200 mm jaw depth, making it suitable for the majority of laboratory, workshop and quality-control applications where standard sample sizes are measured.
Key Features:
- RS-232 Output: Allows direct connection to PCs, printers or SPC and quality-control systems.
- Lever-Actuated Jaw Opening: Facilitates controlled sample positioning and repeatable measurements.
- Constant Spring Force: Ensures uniform measuring pressure, even on soft or compressible materials.
- Zero Reset Function: Enables fast and reliable zeroing prior to measurement.
- Clear LCD Display: Measurement units selectable between millimetres and inches.
Key Benefits:
- Reliable Thickness Control: High-resolution electronics combined with controlled closing force improve repeatability.
- Wide Application Range: Suitable for routine inspection of most industrial sheet and flexible materials.
- Efficient Operation: Lever mechanism reduces operator fatigue during repetitive measurements.
- Compact Jaw Depth: 200 mm reach covers the majority of standard test samples without excess bulk.
Contact us for technical advice or to confirm suitability for your specific application.
Features
- 0.01 mm Resolution: High-precision measurement across the entire 0–50 mm range.
- Calibration Certificate Included: Supplied verified and ready for immediate use.
| Model | Range | Resolution | Jaw Depth |
|---|---|---|---|
| BDTG-200-50 | 0 - 50 mm | 0.01 mm | 200 mm |
| BDTG-300-50 | 0 - 50 mm | 0.01 mm | 300 mm |
| BDTG-350-75 | 0 - 75 mm | 0.01 mm | 350 mm |
| BDTG-400-100 | 0 - 100 mm | 0.01 mm | 400 mm |
To place the order, please specify the desired feeler, for example: BDTG-200-50-B for a gauge with feeler B. This means that NOT all feelers are included in the package!
 |
Feeler: A For hard leather, glass, metal sheets. |
 |
Feeler: B For wood, rubber, soft leather, foil, etc. |
 |
Feeler: C For soft rubber, felt, fleece. |
 |
Feeler: D For rubber rings, round materials. |
 |
Feeler: E For paper, cardboard, chipboard and fiberboard, and plywood. |
 |
Feeler: F For metal sheets, glass, round materials. |
 |
Feeler: G For very rigid materials. |
 |
Feeler: H For foams and insulating materials. |
 |
Feeler: I For very soft foams and insulating materials. |
 |
Feeler: M For rubber sheets, felt, soft materials. |
Specifications
| Resolution: | 0.01 mm |
| Measuring range: | 50 mm |
| Jaw depth: | 200 mm |
| Measuring pressure: | 2 N |
| Measuring principle: | Self closing |
| Feeler shape: | A/B/C/D/E/F/G/H/I/M |
| Display: | LCD 7 mm high |
| Measuring system: | Sylvac |
| Weight, net (gross): | 700 g (750 g) |
