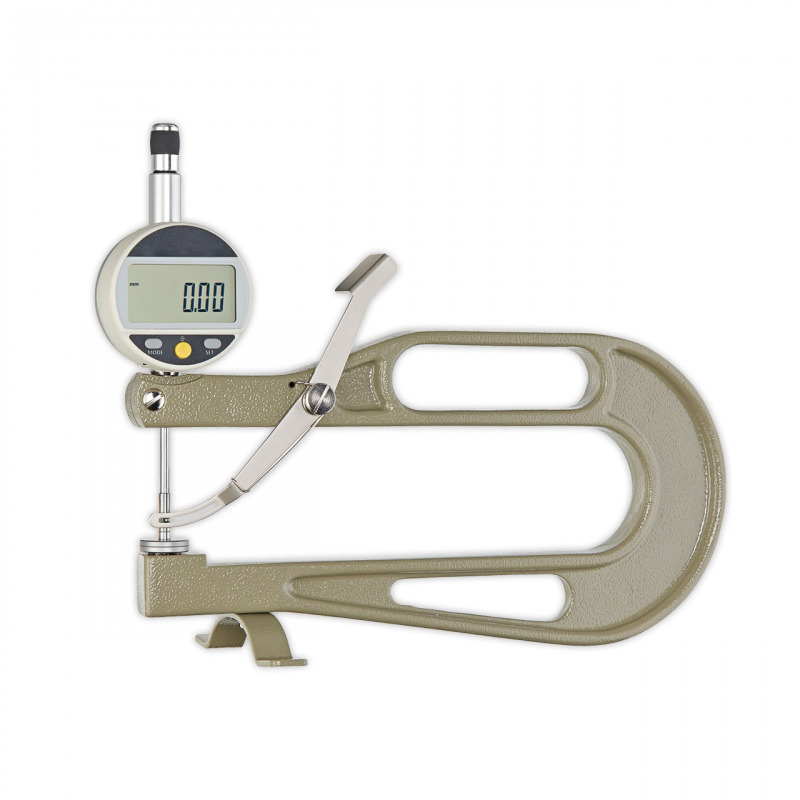

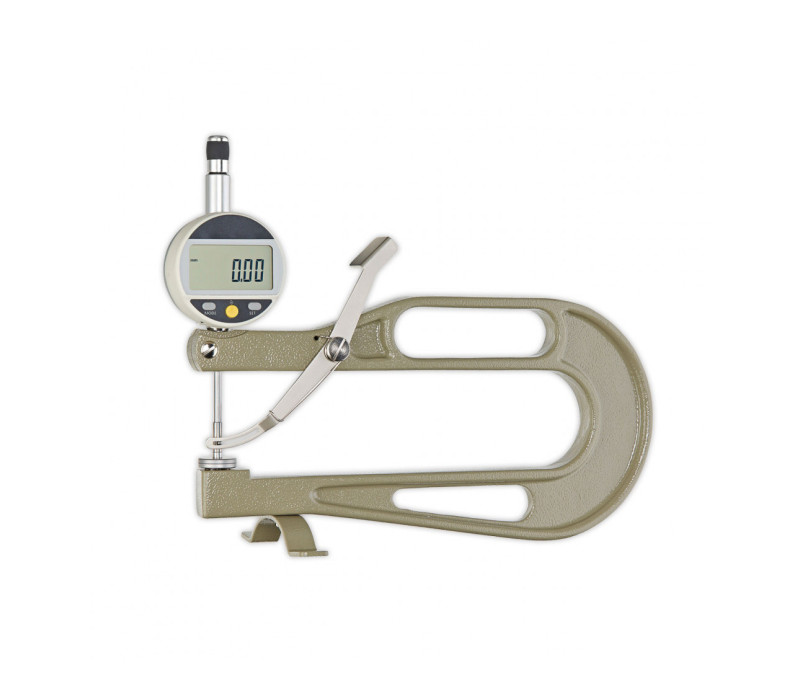

JD-200 Digital Thickness Gauge

Name: JD-200 Digital Thickness Gauge
SKU: 127391

JD-200 thickness gauge that measures thickness by spring force. Typical applications include leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic and more. It comes with an LCD display where measurements are displayed in mm or in inches.

Measuring range 0 - 10 mm

Resolution 0.01 mm

€ 791,00

Order now

LCD display with user selectable units of measurement (mm or inch)
Resolution 0.01 mm
Includes swing-out foot for on-table operation
Dial gauge model: Sylvac S229
Operating by lifting device - self closing
Output signals: – USB – RS 232
The JD-200 exists in 5 versions with different feelers according to your needs

Feeler Shape:

To order, please indicate the desired feeler, e.g. JD-200-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!

Feeler

Feeler: A

For rubber, felt*, soft materials*, nonwovens*, etc.
*Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge

Feeler: B
For rubber, felt*, soft materials*, nonwovens*, etc.

*Meets no DIN EN ISO standard

Feeler: C

For soft leather, cardboard, paper, foils, etc.

Feeler: D

For hard leather, plywood, fiberboard, etc.

Feeler: E
For sheet metal, etc.

Available Models:

Model	Measuring Range	Resolution	Depth of jaw
JD-200	10 mm 0.4 Inch	0.01 mm 0.001 Inch	200 mm
JD-50	10 mm 0.4 Inch	0.01 mm 0.001 Inch	50 mm
JD-100	10 mm 0.4 Inch	0.01 mm 0.001 Inch	100 mm
JD-200-25	25 mm 1 Inch	0.01 mm 0.001 Inch	200 mm

Measuring range:	0 – 10 mm / 0 – 0.4 Inch
Resolution:	0.01 mm / 0.001 Inch
Depth of jaws:	200 mm
Display:	LCD 6 digit, 8.5 mm high
Measuring principle:	Capacitive (Sylvac)
Measuring pressure:	1.9 N ± 20 %
Feeler shape:	A/B/C/D/E
Lifting device:	Operating by lifting device - self closing
Data output:	USB, RS 232, galvanic isolation
Power supply:	3 V Lithium, CR 2032
Temperature range:	10 – 45 °C
Weight, net:	700g (1150 g)

Products

Item	Product	Price
137455	JD-200-A Digital Thickness Gauge	€ 791,00
137670	JD-200-C Digital Thickness Gauge	€ 791,00
139126	JD-200-B Digital Thickness Gauge	€ 791,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
