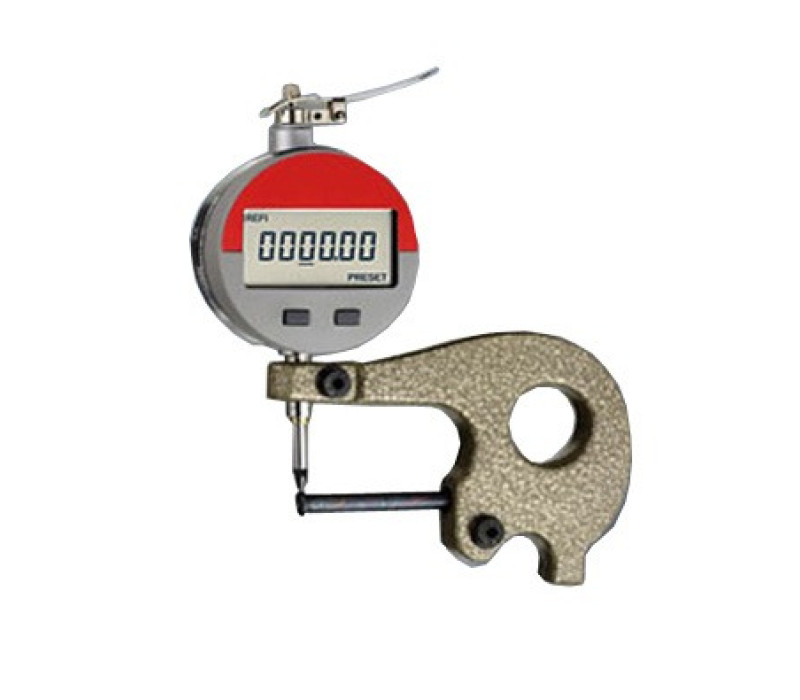

JD-50-W Thickness gauge for measuring tube walls

Name: JD-50-W Thickness gauge for measuring tube walls
SKU: 126992
Price: 756.00 EUR

The digital thickness gauge series has the benefit of an easy to read LCD display, combined with the highest accuracy. The user can select either to display thickness in mm or in inches.

The JD-50-W model is equipped with a collar Ø 1 mm for measuring tubes still have a burr from parting. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.

€ 756,00

Order now

The ground feeler is equipped with a collar Ø 1 mm for measuring tubes still have a burr from parting
Resolution 0.01 mm (0.001 inch)
RS 232 output for data collection
Opening by lifting device (lever) - self closing thickness gauge
Dial gauge model: Sylvac S 229
User selectable units mm and inch

Resolution:	0.01 mm / 0.001 inch
Measuring range:	0 - 12,5 mm / 0 - 0.5 inch
Depth of jaw:	50 mm
Display:	LCD 6 digit, 8.5 mm high
Measuring principle:	Capacitive (Sylvac)
Measuring pressure:	< 1.4 N
Feeler shape:	Ø 1 mm
Lifting device:	Operating by lifting device - self closing
Data output:	RS 232, optical coupling
Power supply:	Battery, 3 V Lithium, CR 2032
Temperature:	10 - 45°C
Weight, net:	300 g

Products

Item	Product	Price	Quantity	Action
133784	JD-50-W Thickness Gauge	€ 756,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
