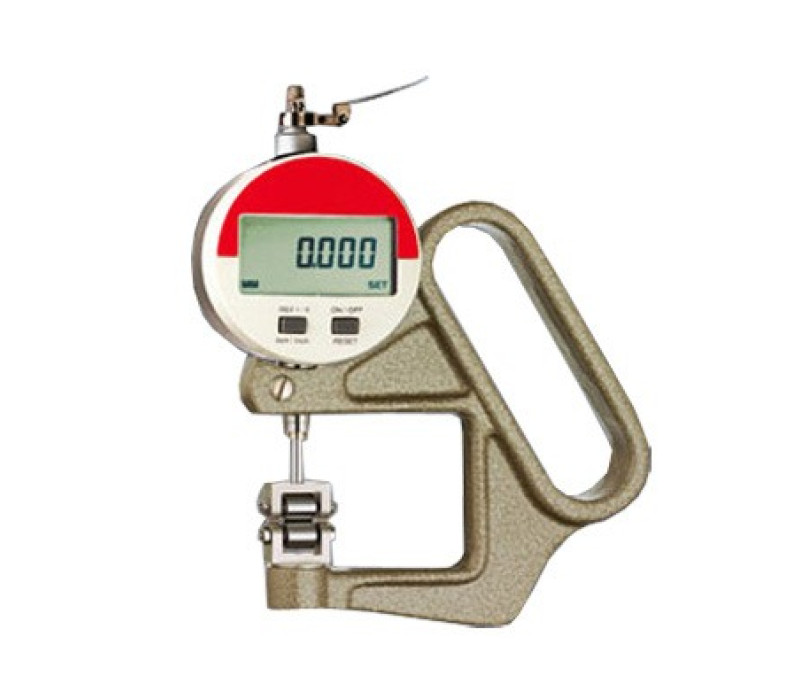

FD-50-R Thickness Gauge for moving objects

Name: FD-50-R Thickness Gauge for moving objects
SKU: 125873

The 8.7 mm rollers allow measurements on moving materials such as wires, tapes, foils, etc. up to a speed of 150 m/min. The lower roller is equipped with flanges as standard. If wider material is to be measured, the lower roller is available without flanges.

Measurement is performed by a spring force. The opening is done by a lifting device (lever) and is self-closing.

Indication:
Not to be used for continuous (in-line) checking of the diameter

Diameter of the lower roller Diameter of the lower roller.

FD-50R - FD-50RO

Diameter of the lower roller.

€ 924,00

Order now

8.7 mm wide rollers permit measurement of moving materials, diameter 8.4 mm rollers are grounded
Resolution 0.001 mm (0.0001 inch)
User selectable units mm and inch
Operating by lifting device - self closing
Max. Line speed 150 m/min
Easy to read LCD Display
RS 232 output for data collection
Dial gauge model: Sylvac S 229

Available Models

Model	Resolution	Roller style
FD-50-R	0.001 mm	Lower roller with flanges
FD-50-RO*	0.001 mm	Lower roller no flanges

* The lower roller is standard equipped with flanges for guiding the material to be measured. If wider material than 8.7 mm has to be measured the lower roller is available without flanges. To order use Code O e.g. FD-50-RO

Downloads

Resolution:	0.001 mm / 0.0001 inch
Measuring range:	0 - 10 mm / 0.4 inch
Depth of jaw:	50 mm
Display:	LCD 6 digit, 8.5 mm high
Measuring principle:	Capacitive (Sylvac)
Measuring pressure:	< 1.4 N
Measurement by spring load:	Operating by lifting device - self closing
Data output:	RS 232, optical coupling
Power supply:	Battery 3 V Lithium, CR 2032
Temperature range:	10 - 45°C
Weight, net:	300 g

Products

Item	Product	Price	Quantity	Action
130316	FD-50-R Digital Thickness Gauge / 50 mm; rollers with flanges / Resolution: 0.001 mm	€ 924,00
130493	FD-50-RO Digital Thickness Gauge / 50 mm; rollers without flanges / Resolution 0.001 mm	€ 924,00

Accessories

Item	Product	Price
134582	DCPRMD-USB Cable For Dial Thickness Gauge to USB	€ 169,00
126360	FD J-CC Footpedal	€ 452,00
126836	Table Stand for Thickness Gauge	€ 85,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
